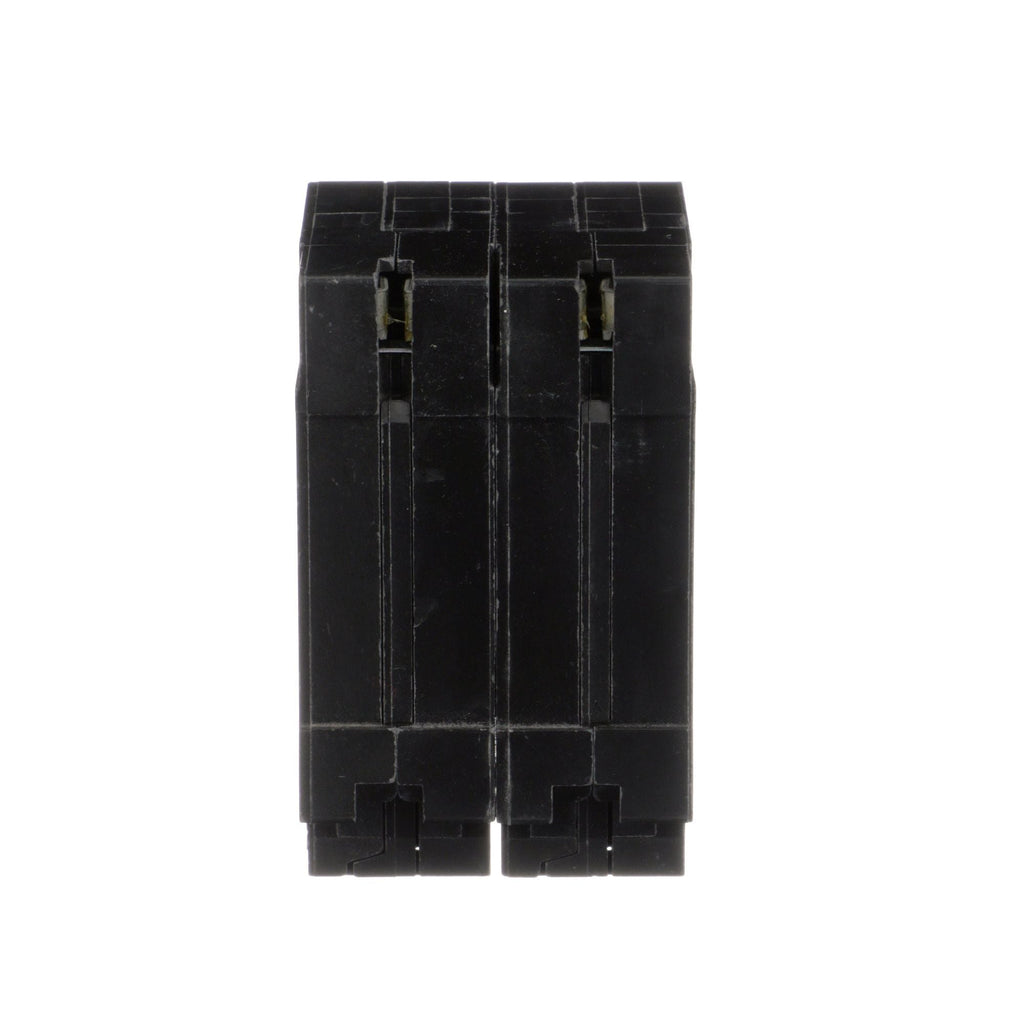

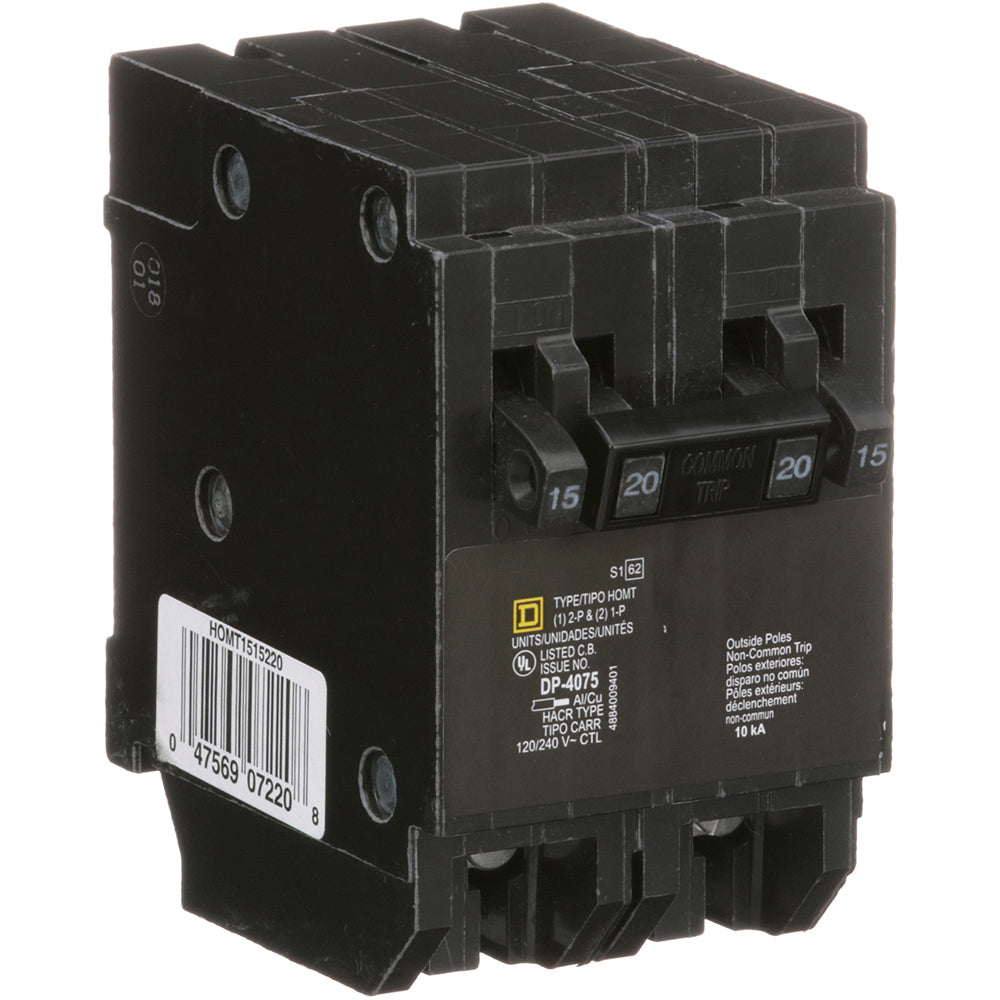

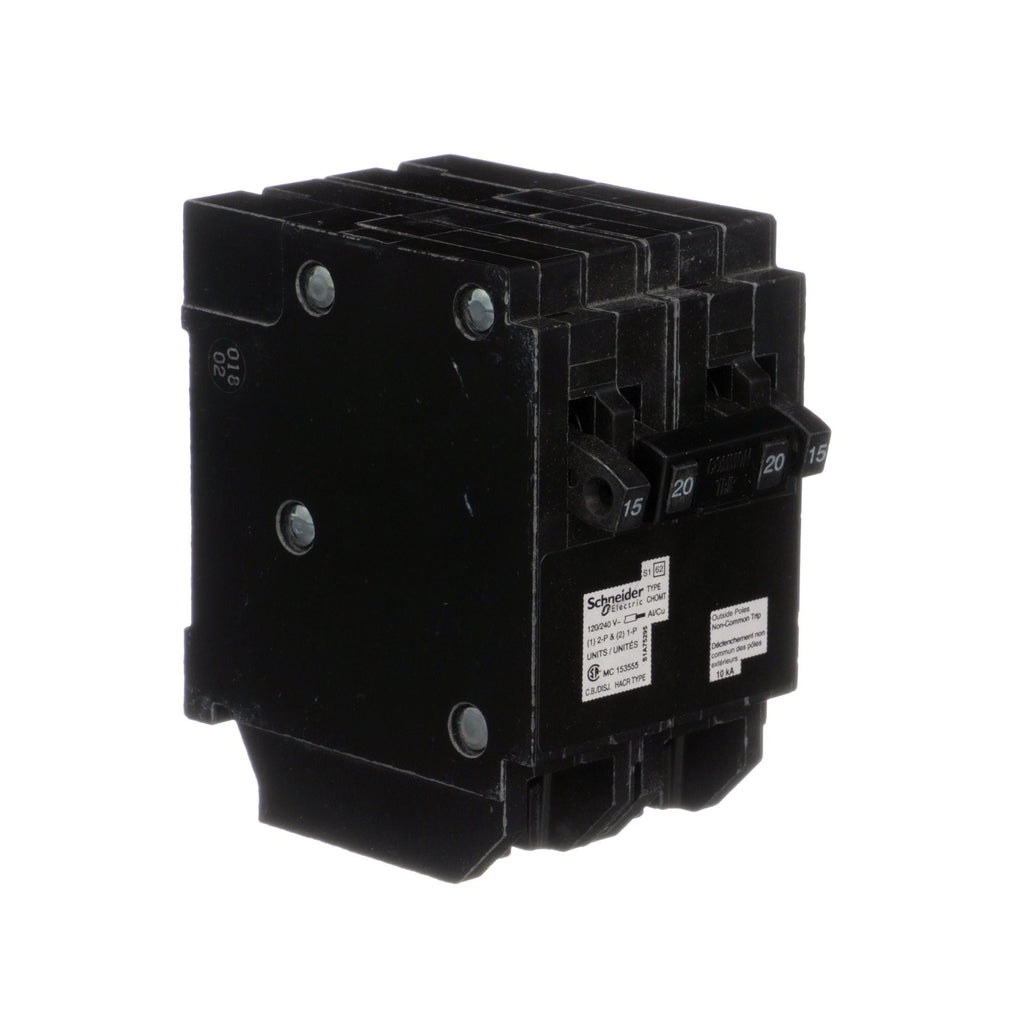

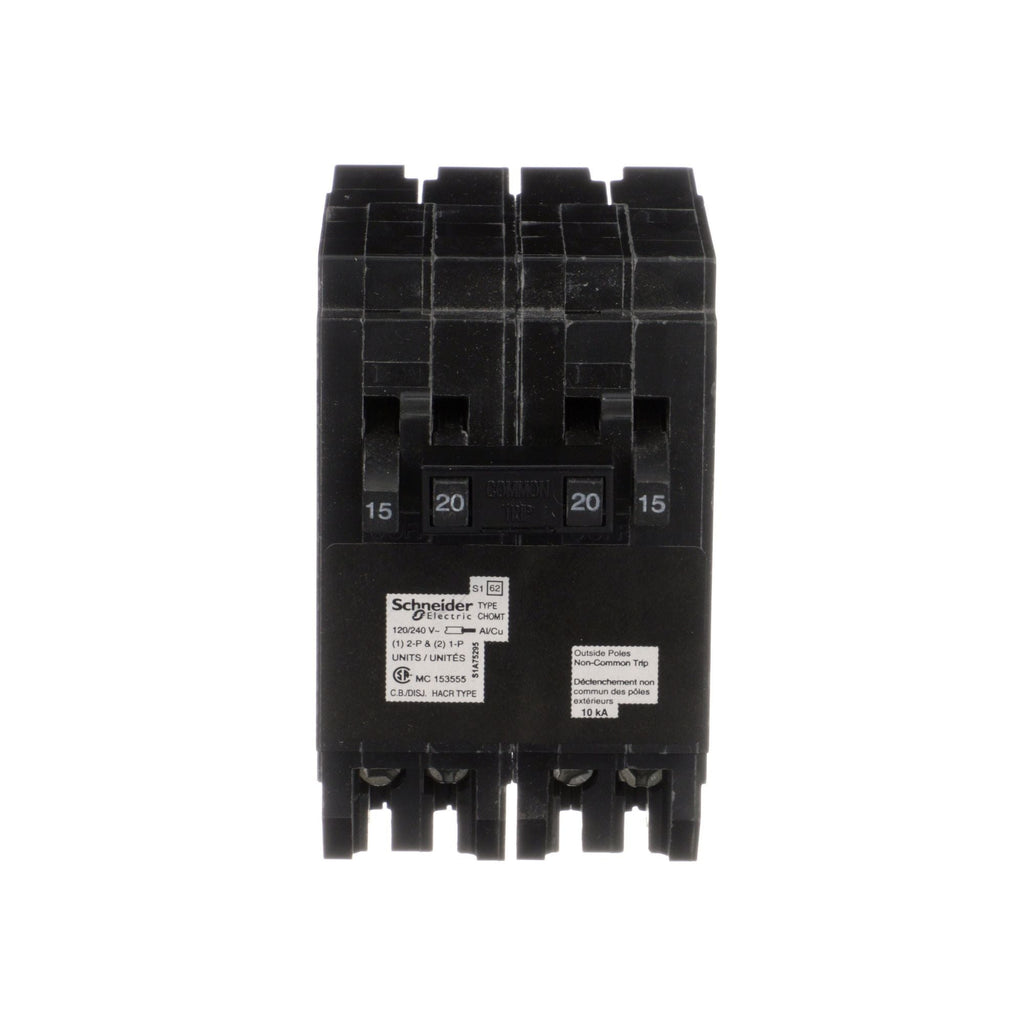

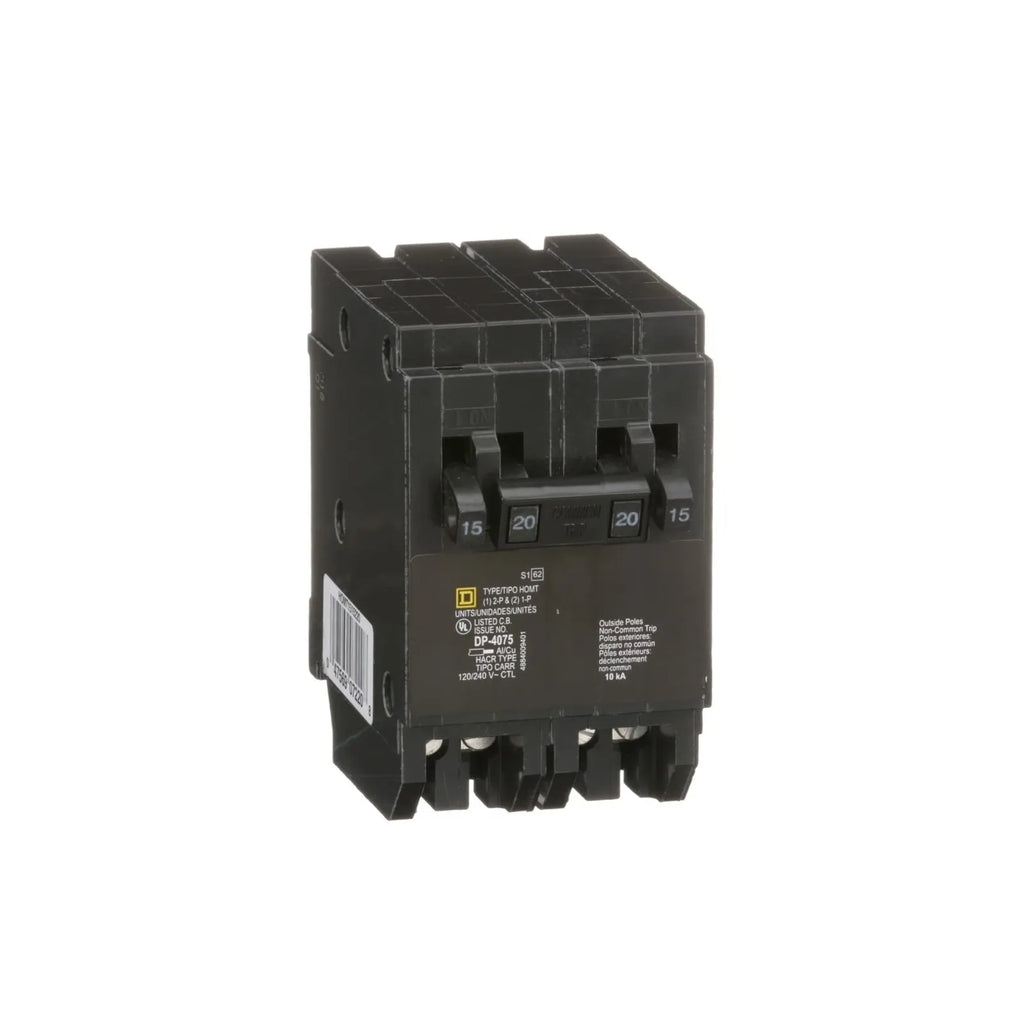

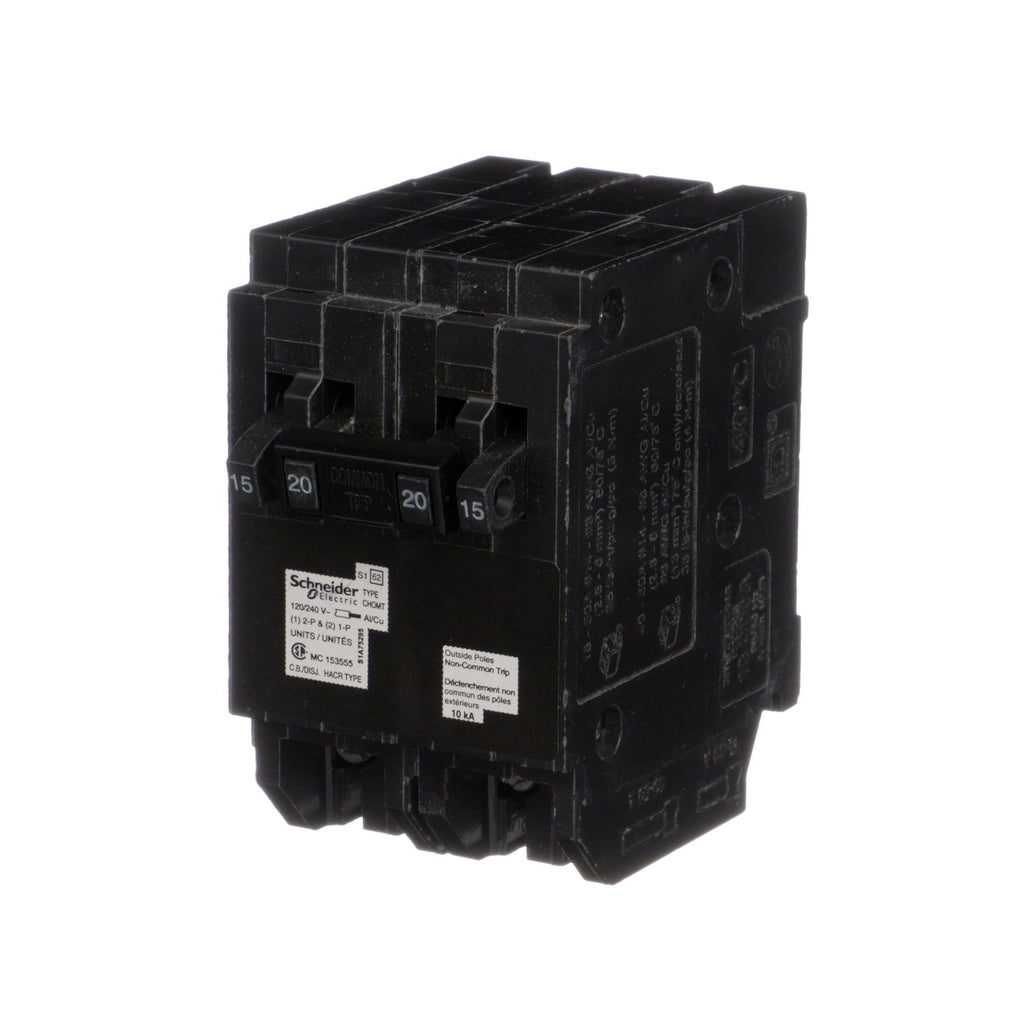

HOMT1515220 - Square D Homeline 4-Pole 20A/15A Quad Tandem Circuit Breaker 240V 10kA Plug-In

HOMT1515220

HOMT1515220 is a Square D Homeline quad tandem circuit breaker designed for residential and commercial circuit protection.This 4-pole breaker features a combination of two 1-pole breakers rated at 15A each and one 2-pole breaker rated at 20A, supporting 120/240 VAC operation with a 10 kA interrupt rating. It uses a plug-in mounting type compatible with Homeline load centers and provides thermal magnetic trip protection with long-time and instantaneous functions. The breaker accepts 14 to 8 AWG copper or aluminum wire and is UL listed for safety.

Key Specifications
• Manufacturer: Square D
• Series/Frame: Homeline
• Poles: 4 (2 x 1-pole at 15A, 1 x 2-pole at 20A)
• Voltage Rating: 120/240 VAC
• Interrupt Rating: 10 kA at 240V
• Mounting Type: Plug-In
• Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
• Wire Range: 14-8 AWG Copper/Aluminum
• Dimensions: 3.13" H x 2.00" W x 2.98" D
• Certifications: UL Listed, HACR Rated
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HOMT1515220
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOMT
• Voltage : 240
• Amperage : 20
• Phase : 1
• Poles : 4
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Box Lugs
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 8 AWG (Cu/Al)
• Breaker Type : Quad Tandem
• Protection : Thermal Magnetic



Product Data

• UPC : 785901101000
• GTIN : 00785901101000
• Country of Origin : Mexico
• Dimensions : 3.13 in (79.50 mm) x 2 in (50.8 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
• Weight : 0.84
• Standards : UL Listed
• Certification : UL Listed
• Wire Size : 1x AWG 14 to AWG 8, Aluminum/Copper
