Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Parts & Accessories
Description
HOML2225

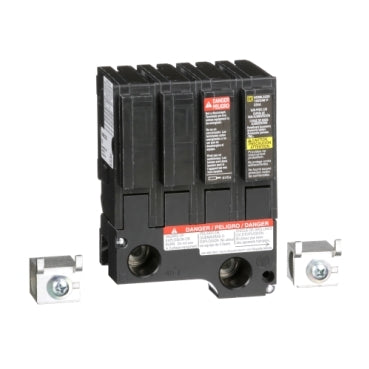

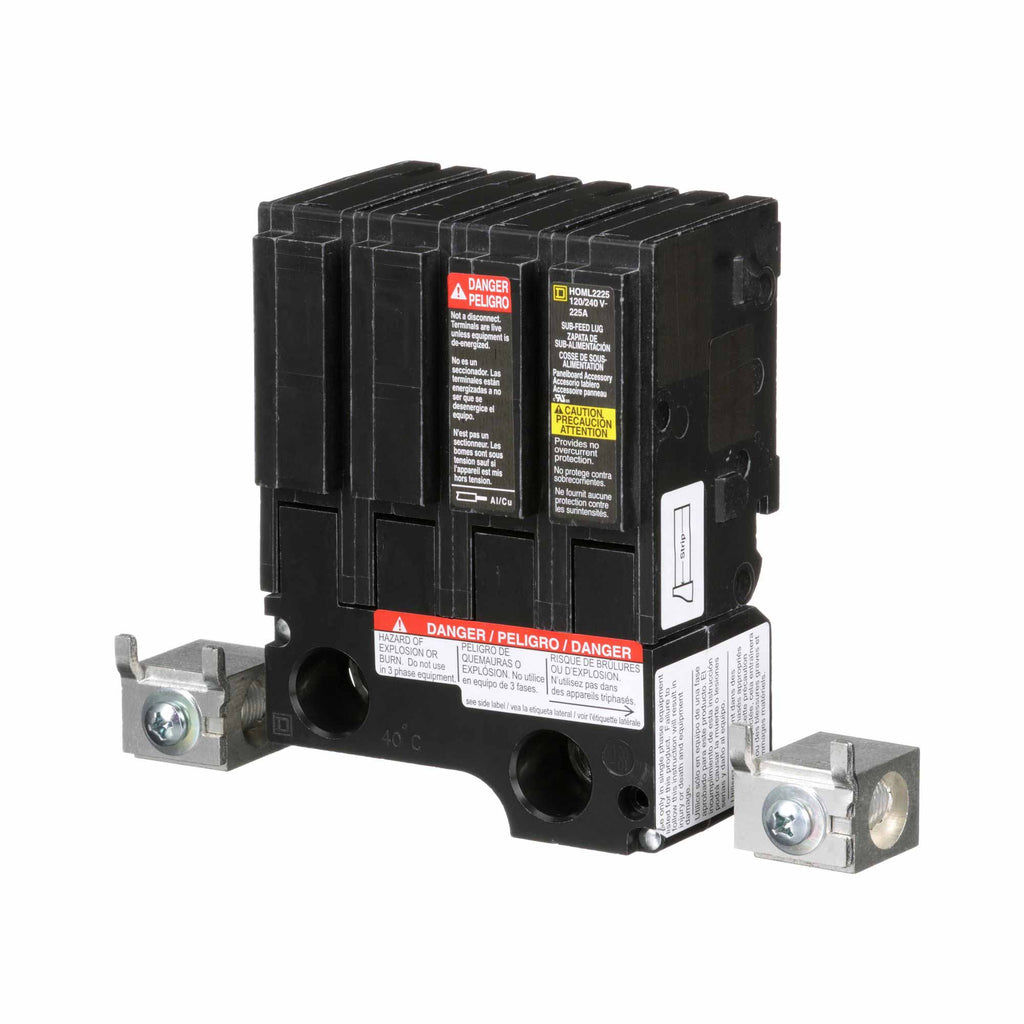

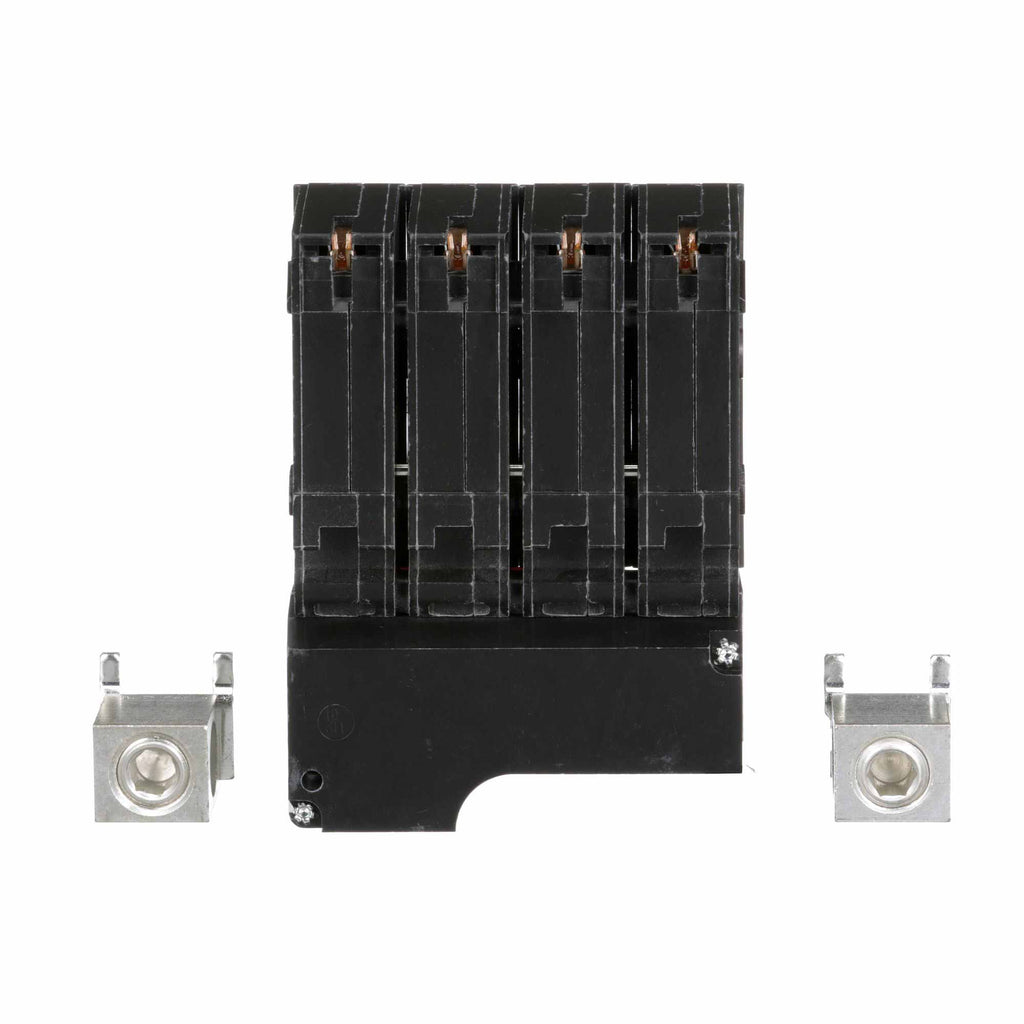

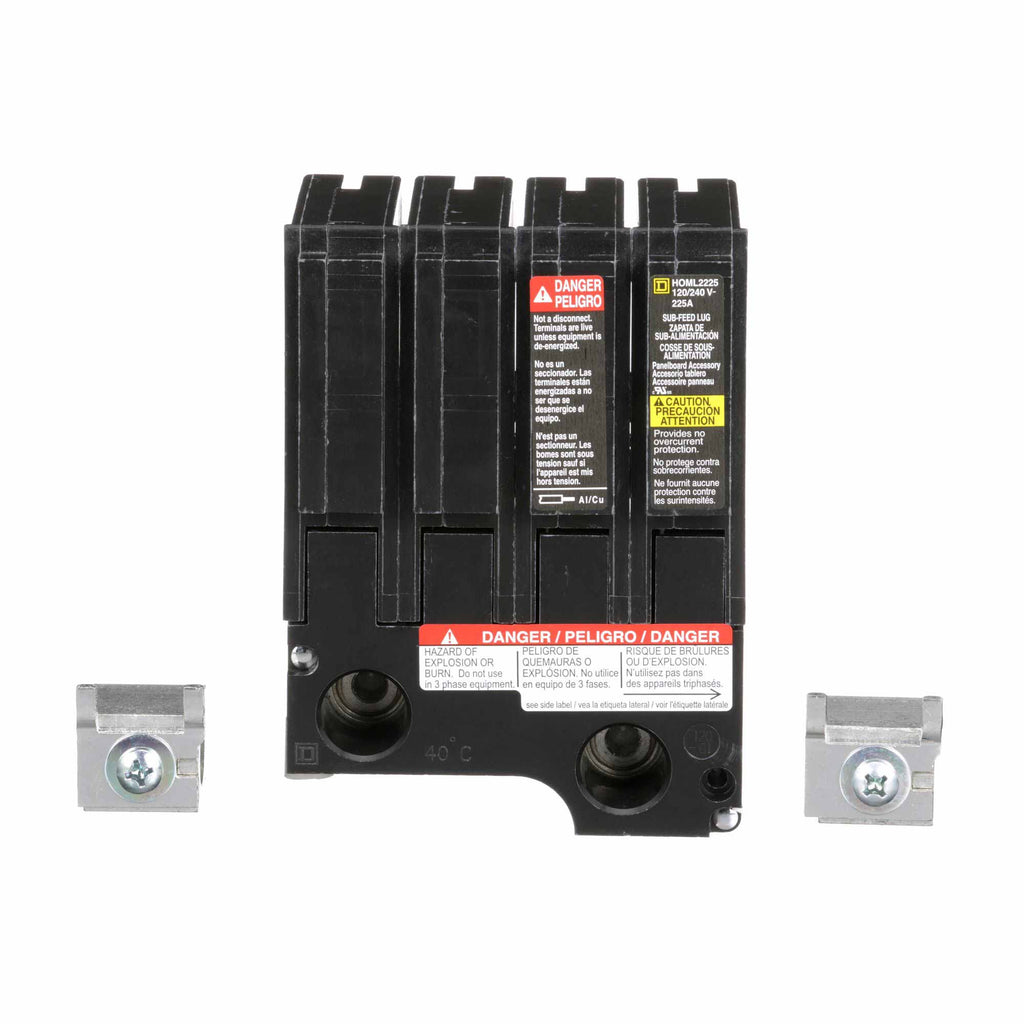

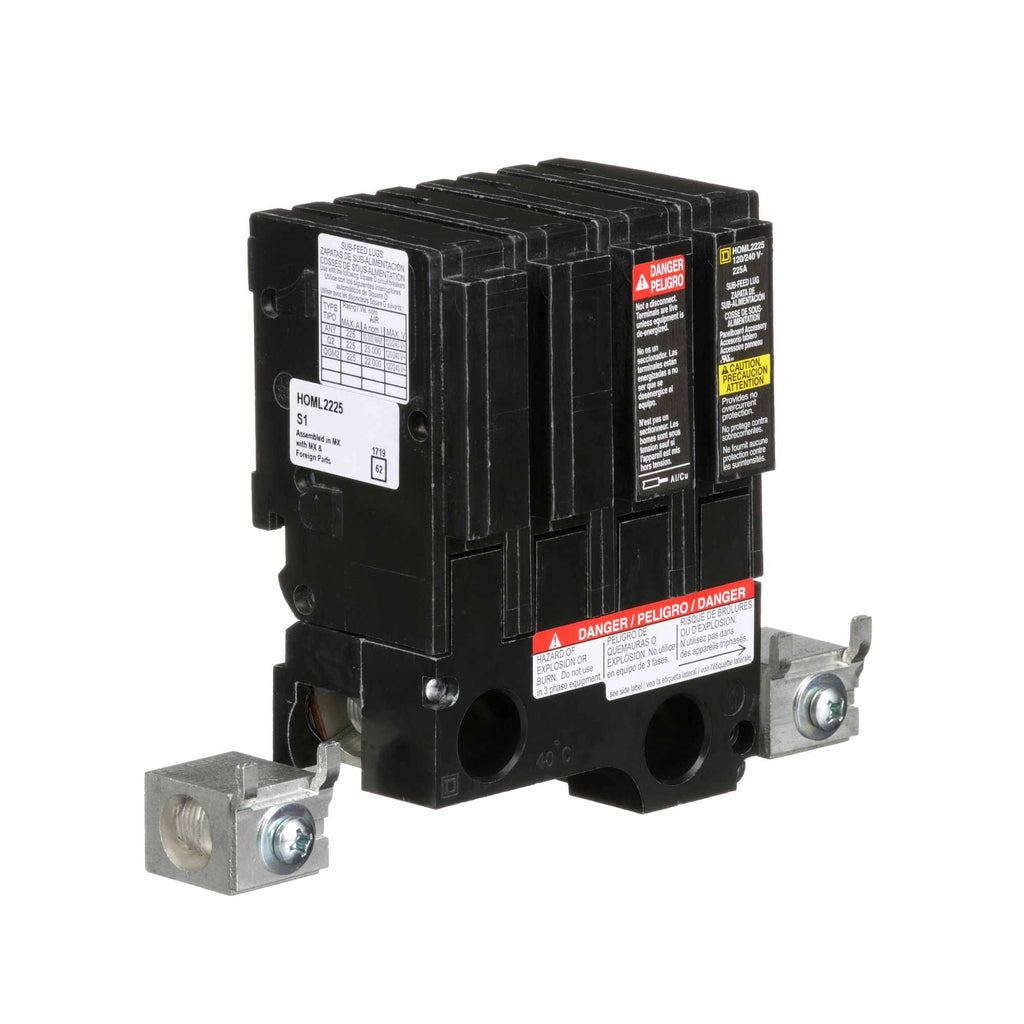

HOML2225 is a 2-pole, 225 amp circuit breaker sub feed lug from Square D's Homeline series designed for 240V systems.This Square D HOML2225 plug-on sub feed lug is engineered for residential, commercial, and industrial applications. It supports wire sizes from 4 AWG to 300 kcmil and mounts directly onto Homeline load centers. The device is UL listed and provides a reliable method for feeding current to a different location within the electrical panel. Its compact design requires two spaces and features a 225 amp interrupt rating.
- Manufacturer: Square D
- Series: Homeline (HOM)
- Amperage: 225 A
- Voltage: 240 V
- Poles: 2
- Mounting Type: Plug-On
- Wire Range: 4 AWG to 300 kcmil
- UL Listed
- Frame Type: HOM
- Application: Sub Feed Lug for Load Centers
- Space Required: 2 spaces
Specifications
- Part Number: HOML2225
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Parts & Accessories
- Family : Homeline
- Type : HOM
- Voltage : 240
- Amperage : 225
- Poles : 2
- Compatible Frames : HOM
Product Data
- UPC : 785901852469
- GTIN : 00785901852469
- Country of Origin : Mexico
- Dimensions : 5.39 in (136.91 mm) x 3.98 in (101.09 mm) x 3.13 in (79.50 mm) (Height x Width x Depth)
- Weight : 2.749 lb
- Certification : UL
- Wire Size : AWG 4, 300 kcmil
