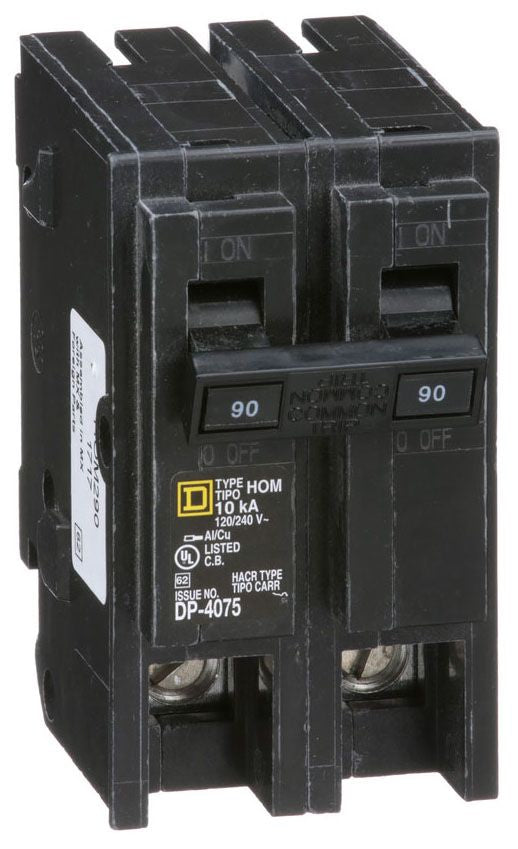

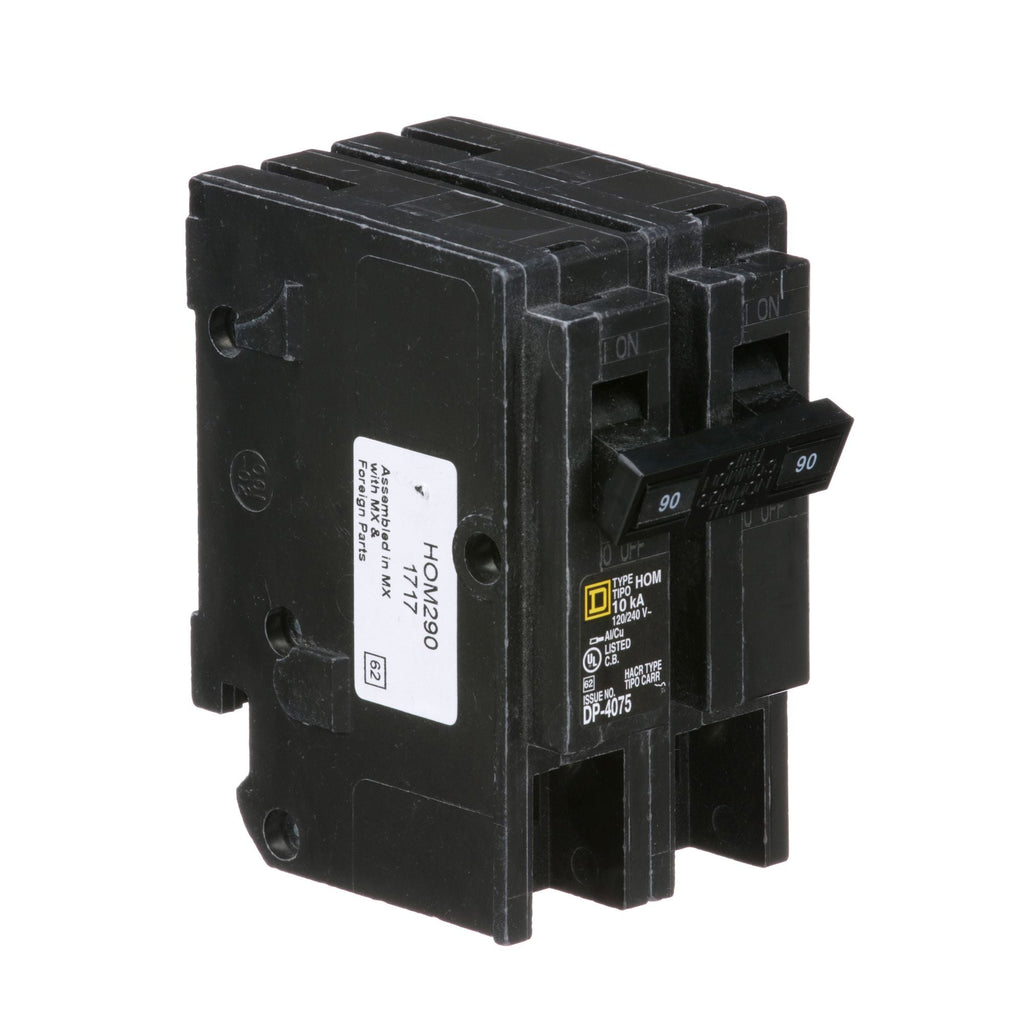

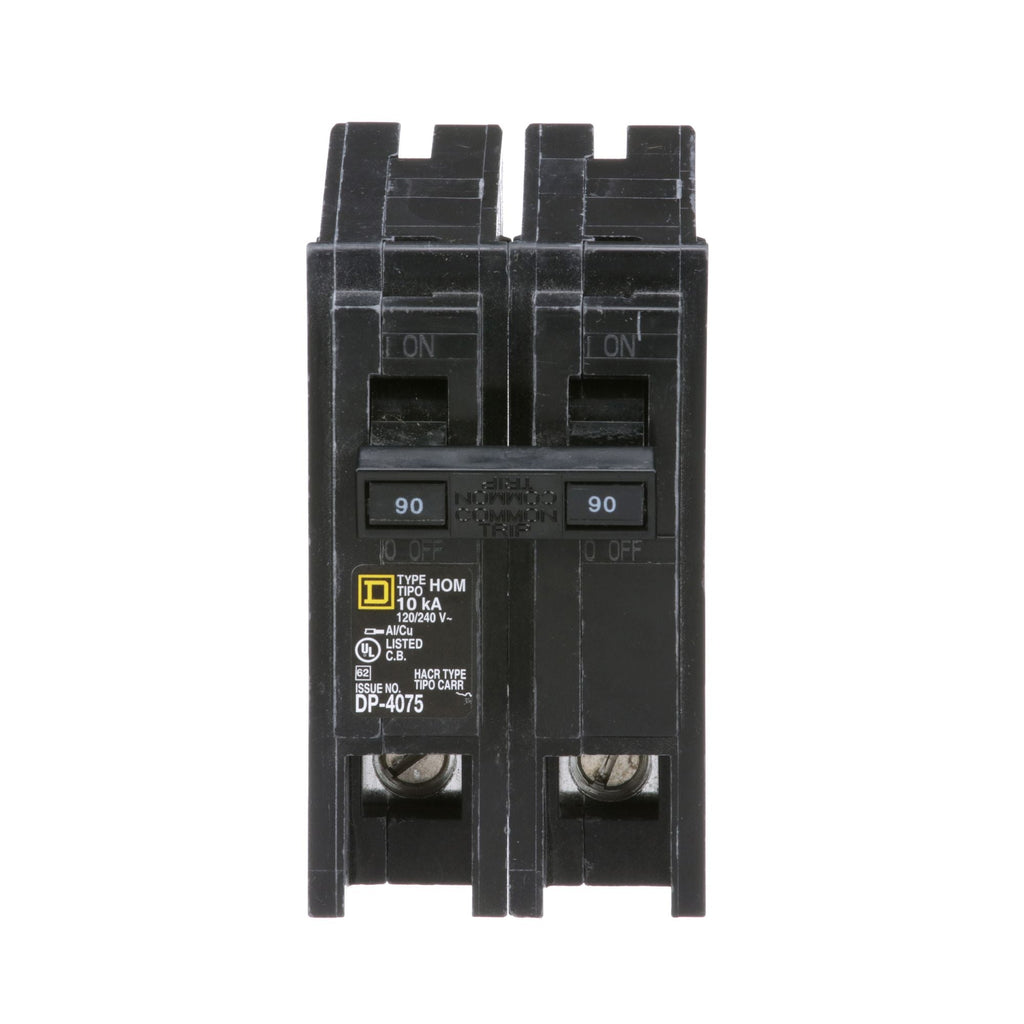

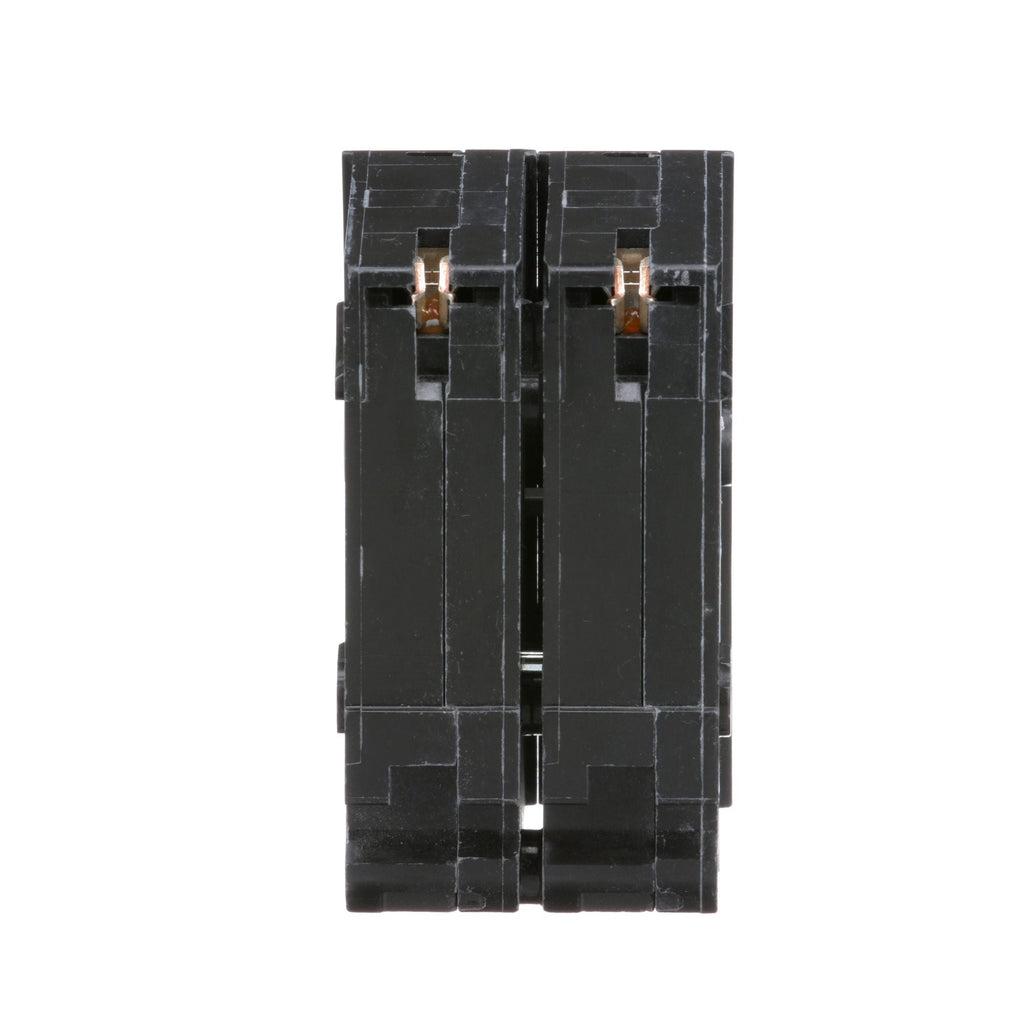

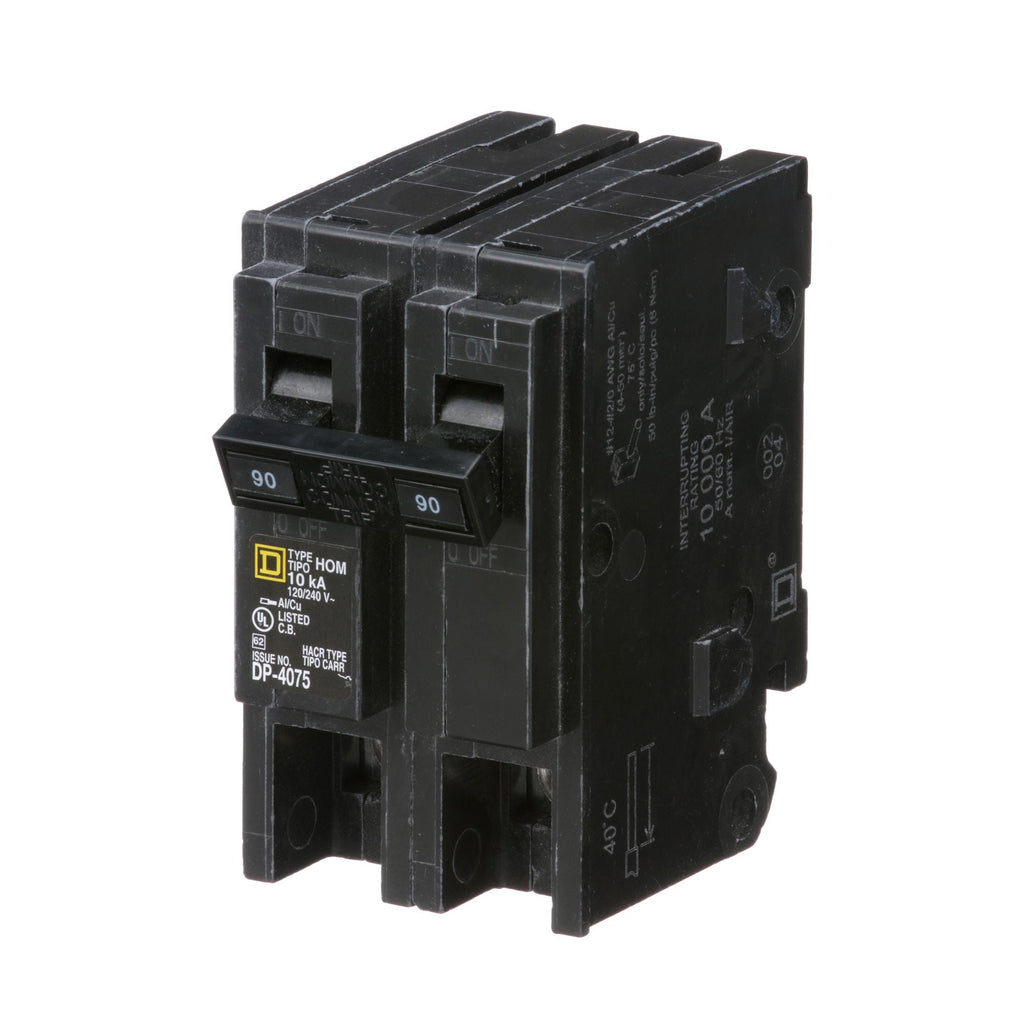

HOM290 - Square D 90 Amp 2-Pole Plug-On Circuit Breaker 120/240 VAC 10kA Homeline

HOM290

HOM290 is a Square D 90 Amp 2-pole plug-on circuit breaker designed for Homeline load centers.This thermal magnetic breaker features a common trip, 120/240 VAC voltage rating, and a 10,000 amp interrupting rating. It mounts via plug-on connection and supports wire sizes from 4 to 2/0 AWG aluminum or copper. Certified UL listed, it provides reliable protection with long-time and instantaneous trip functions.

Key Specifications
• Manufacturer: Square D
• Part Number: HOM290
• Amperage: 90 Amp
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Plug-On
• Interrupt Rating: 10 kA
• Trip Unit: Thermal Magnetic, Common Trip
• Wire Size: 4 to 2/0 AWG Aluminum/Copper
• Series/Frame: Homeline
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOM290
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOM
• Voltage : 120/240
• Amperage : 90
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 100A/HOM
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901065715
• GTIN : 00785901065715
• Country of Origin : Mexico
• Dimensions : 3.13 in (79.50 mm) x 2 in (50.8 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
• Weight : 0.855 lb
• Panel Type : Homeline Load Center
• Standards : CSA Certified, HACR, UL Listed
• Certification : CSA Certified, HACR, UL Listed
• Wire Size : 1x AWG 4 to AWG 2/0, Aluminum/Copper
