HOM280 - Square D 80 Amp 2 Pole 120/240V Plug-In Circuit Breaker 10kA AIR Homeline

HOM280

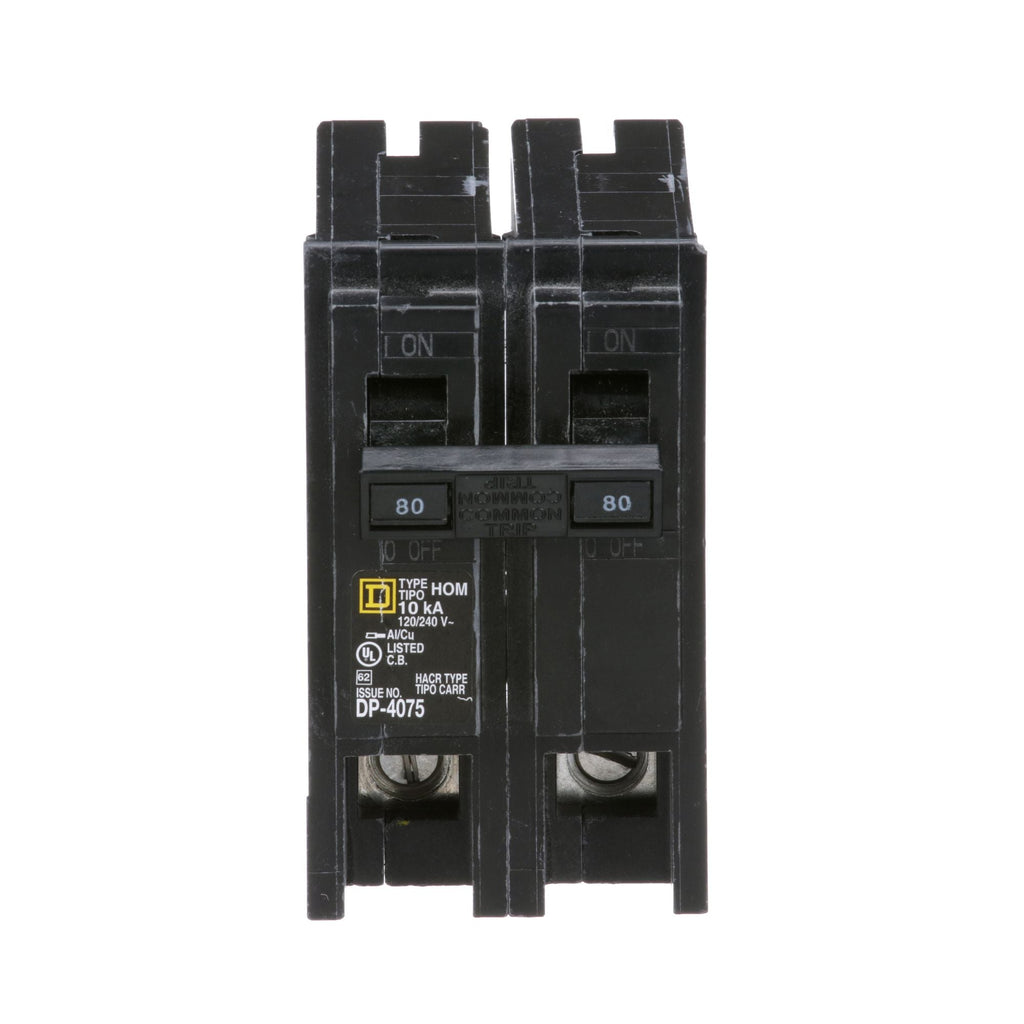

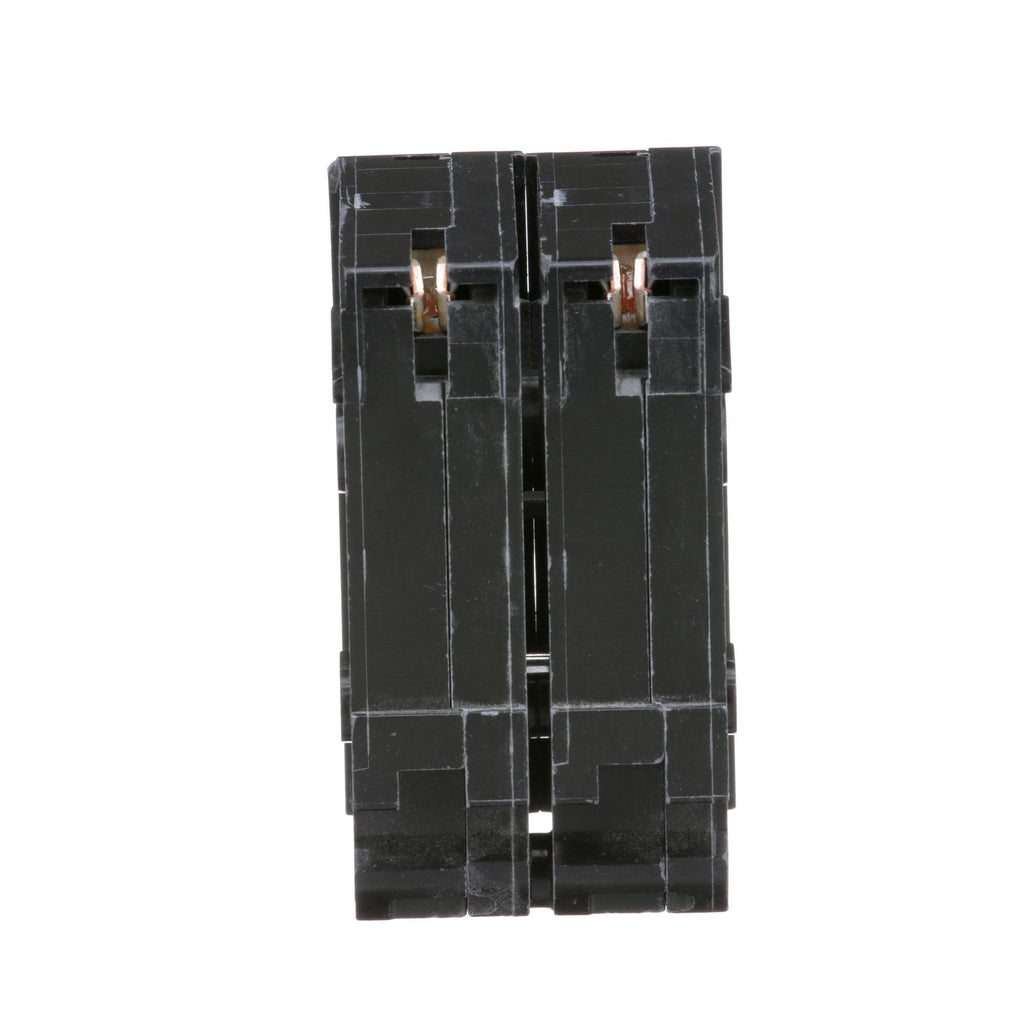

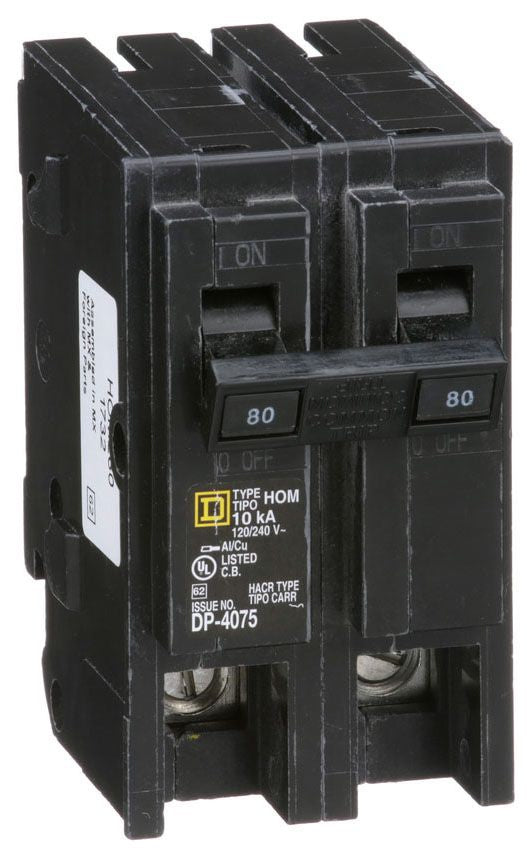

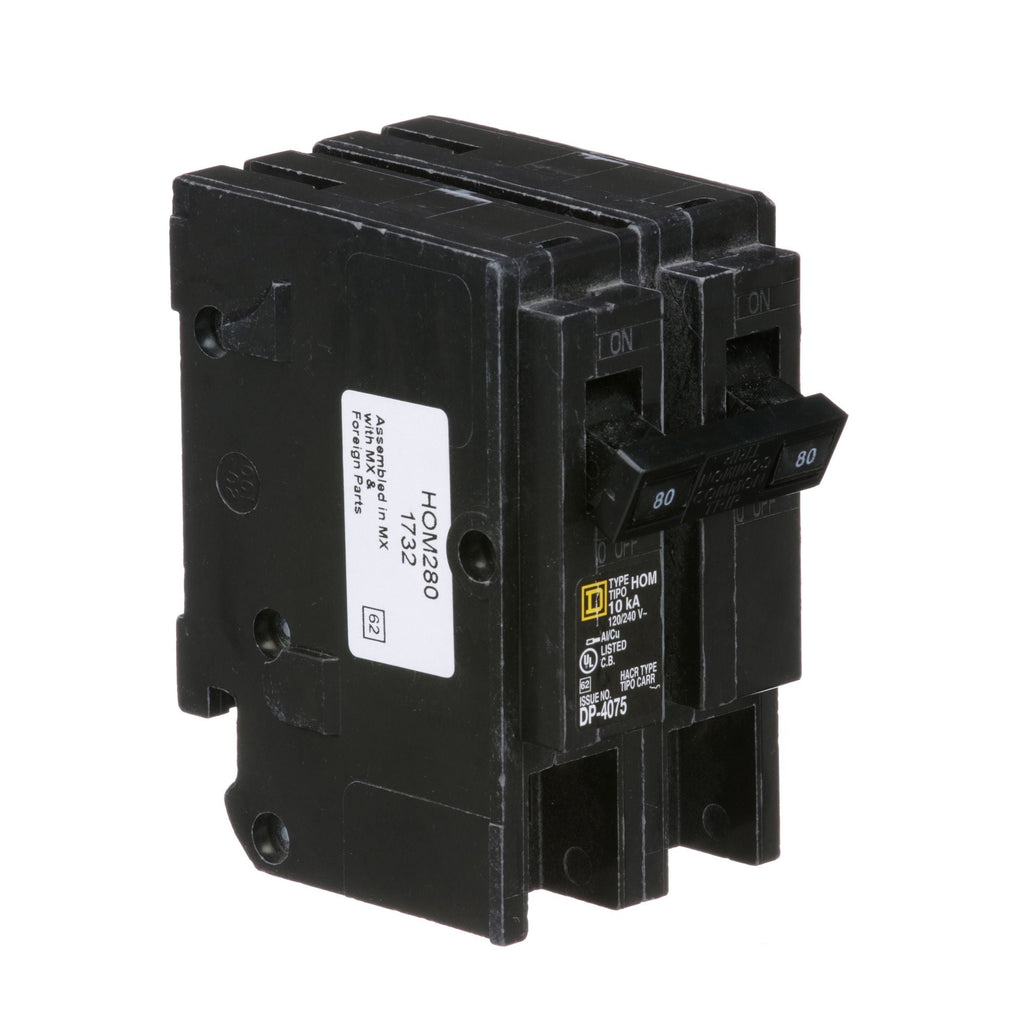

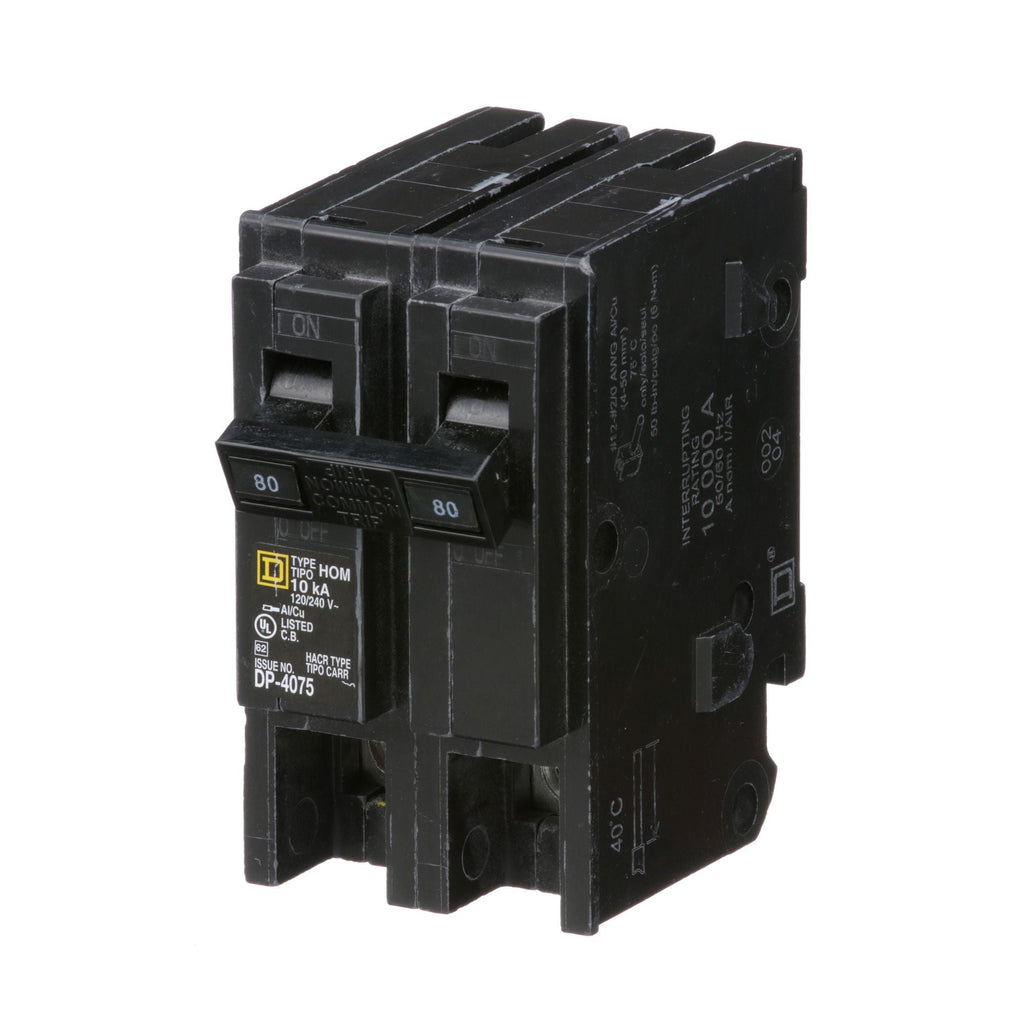

HOM280 is a Square D Homeline 2 pole circuit breaker rated for 80 amps and 120/240 volts AC with a 10kA interrupt rating.This plug-in type miniature circuit breaker provides reliable standard trip protection for residential and light commercial applications. It features a 2 pole configuration, 80 amp amperage, and a 10,000 amp interrupting rating (AIR) at 120/240 VAC. The breaker is UL listed and HACR rated, designed for easy installation in compatible Square D Homeline load centers.

Key Specifications
• Amperage: 80 Amps
• Voltage Rating: 120/240 VAC
• Number of Poles: 2
• Mounting Type: Plug-In
• Interrupt Rating: 10,000 Amps (10kA AIR)
• Series/Frame: Homeline (HOM)
• Trip Unit: Standard Trip
• Certifications: UL Listed, HACR Rated
• Compatible with Square D Homeline Load Centers

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOM280
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOM
• Voltage : 120/240
• Amperage : 80
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 100A/HOM
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901065678
• GTIN : 00785901065678
• Country of Origin : Mexico
• Dimensions : 3.13 in (79.50 mm) x 2 in (50.8 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
• Weight : 0.85 lb
• Panel Type : Homeline Load Center
• Standards : CSA Certified, HACR, UL Listed
• Certification : CSA Certified, HACR, UL Listed
• Wire Size : 1x AWG 4 to AWG 2/0, Aluminum/Copper
