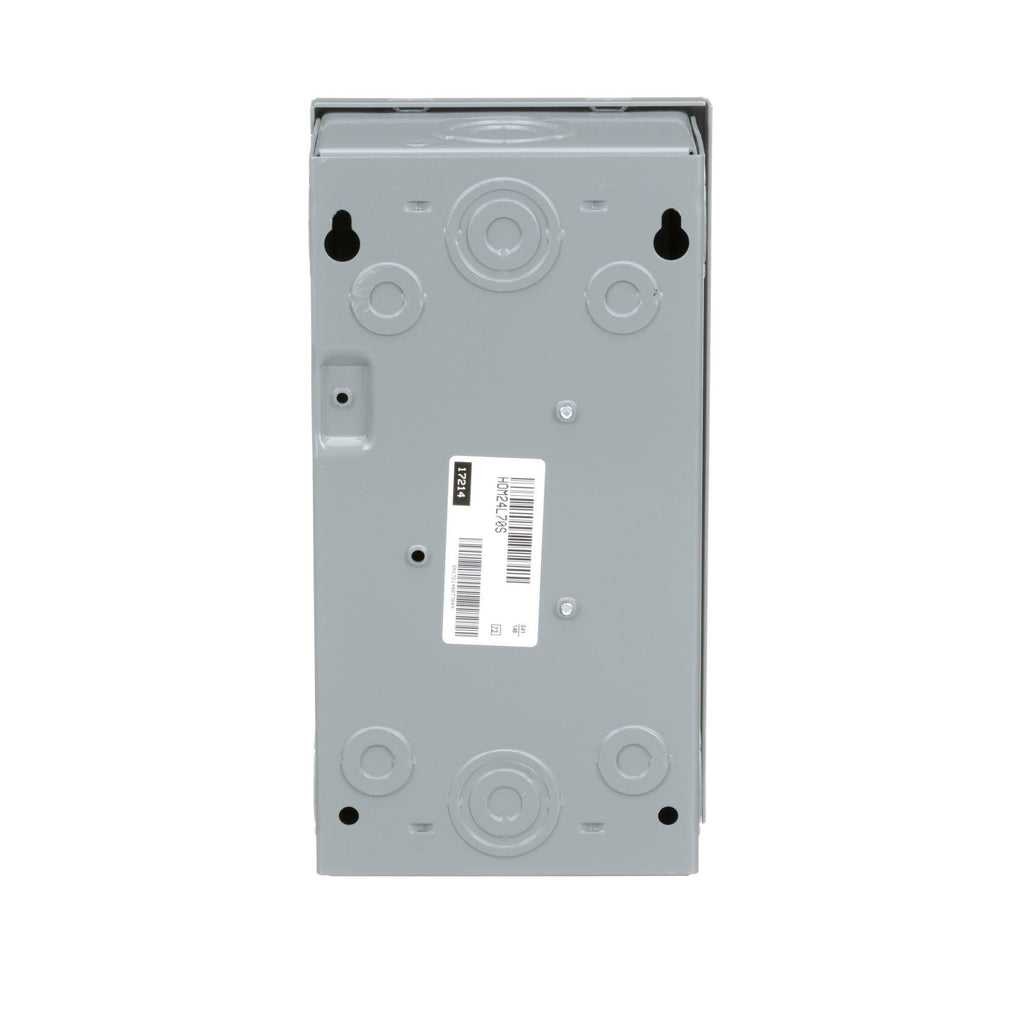

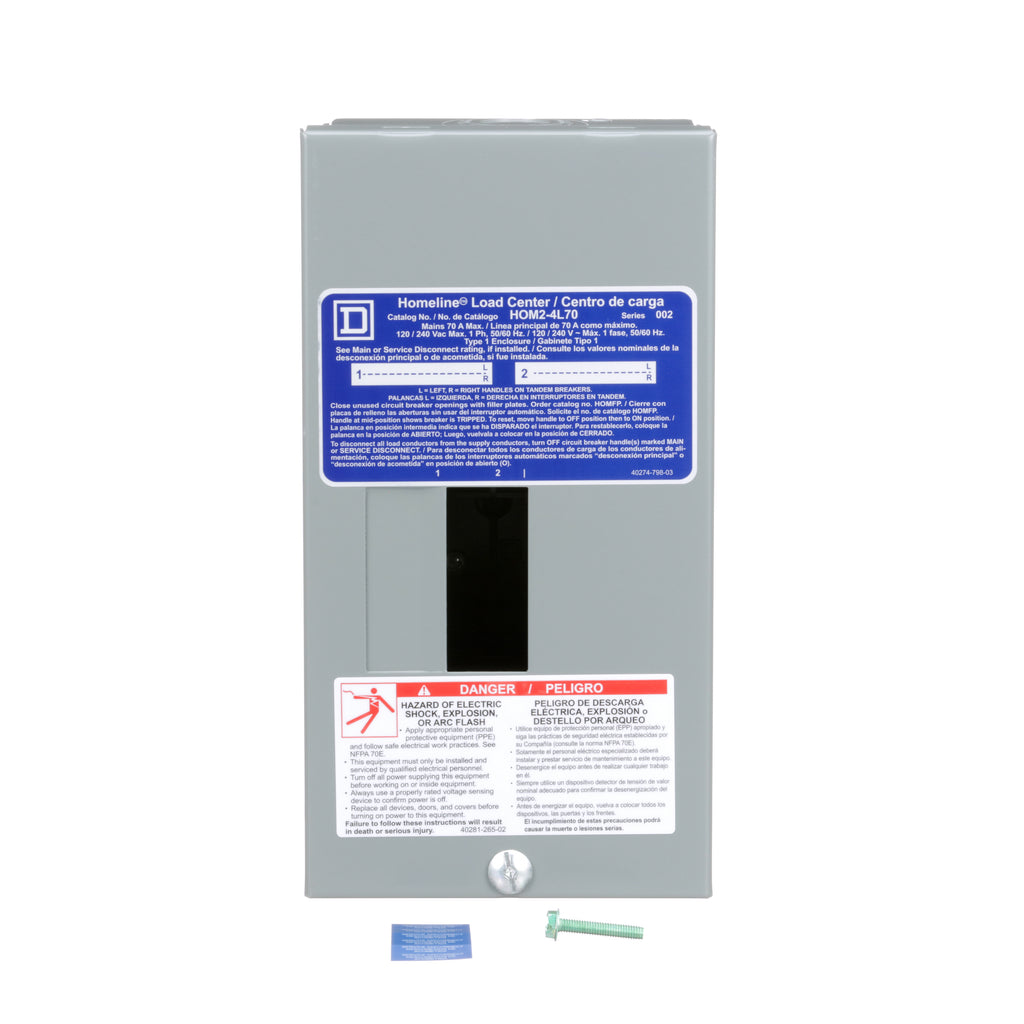

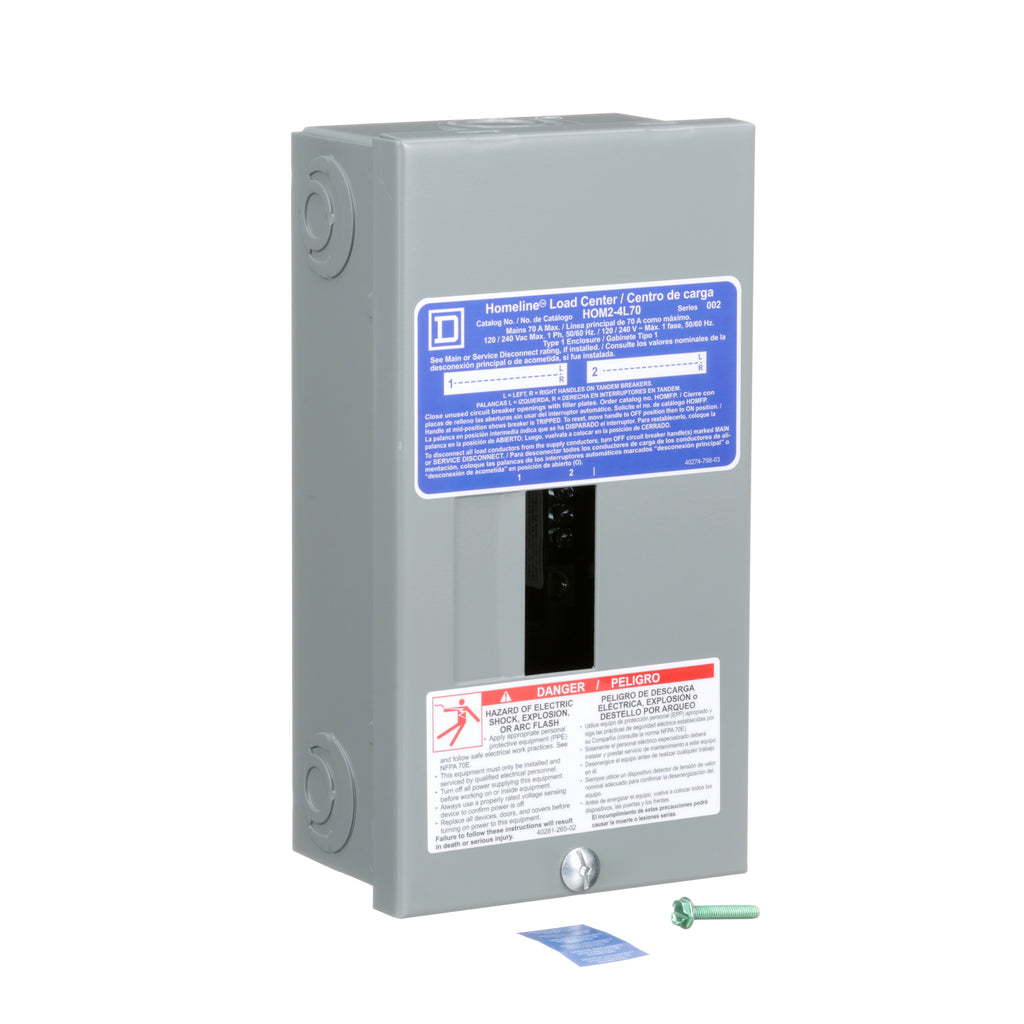

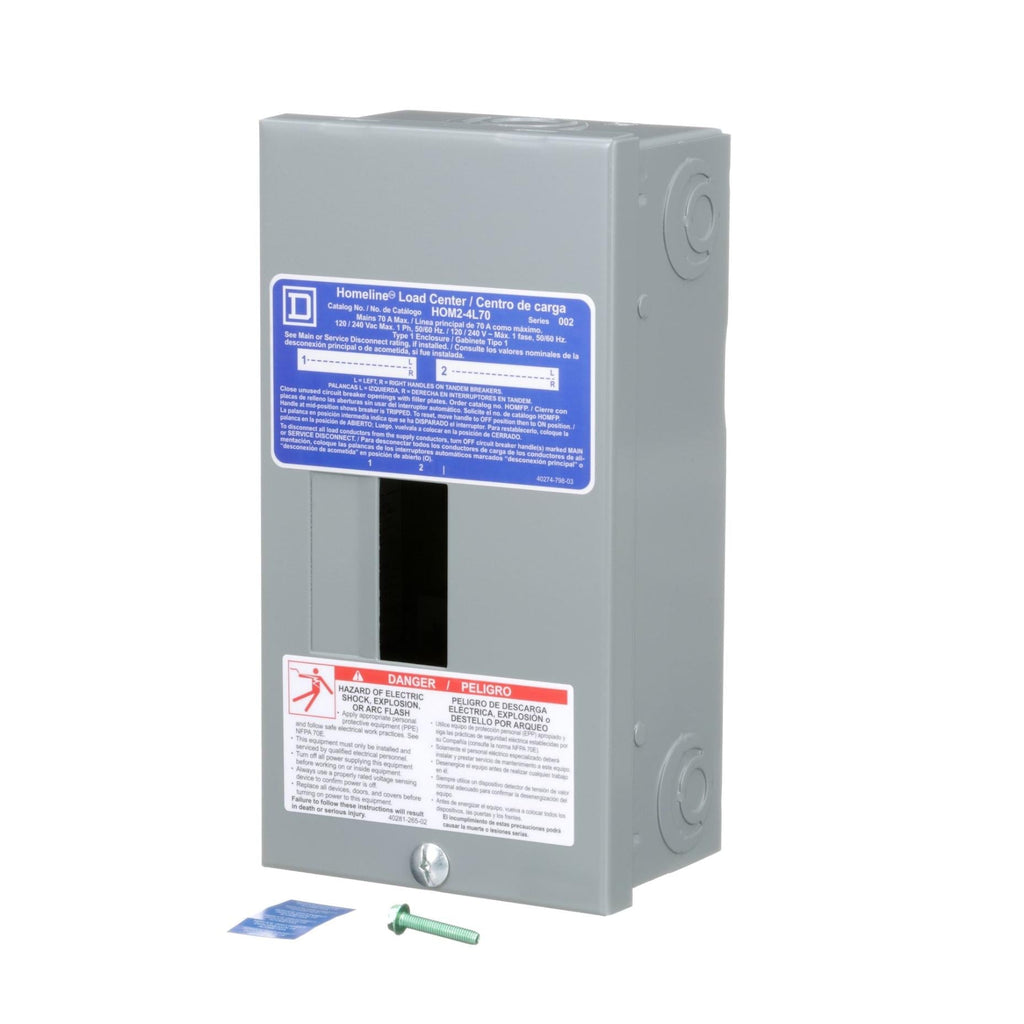

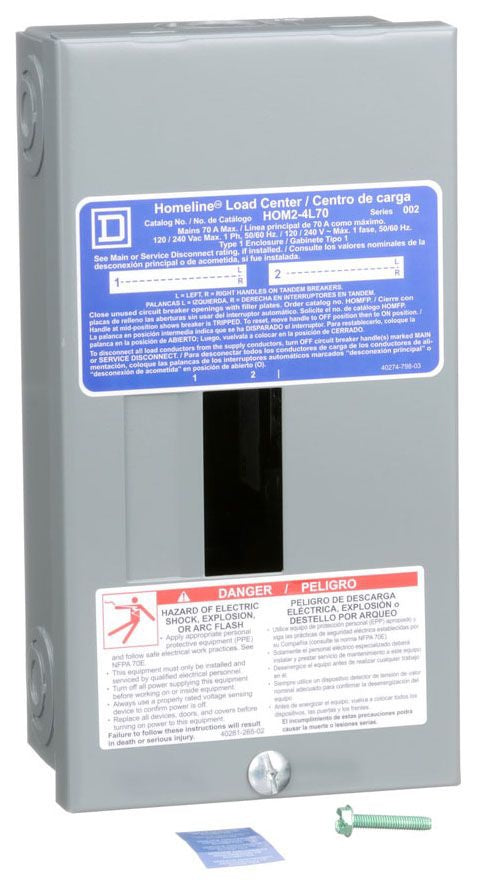

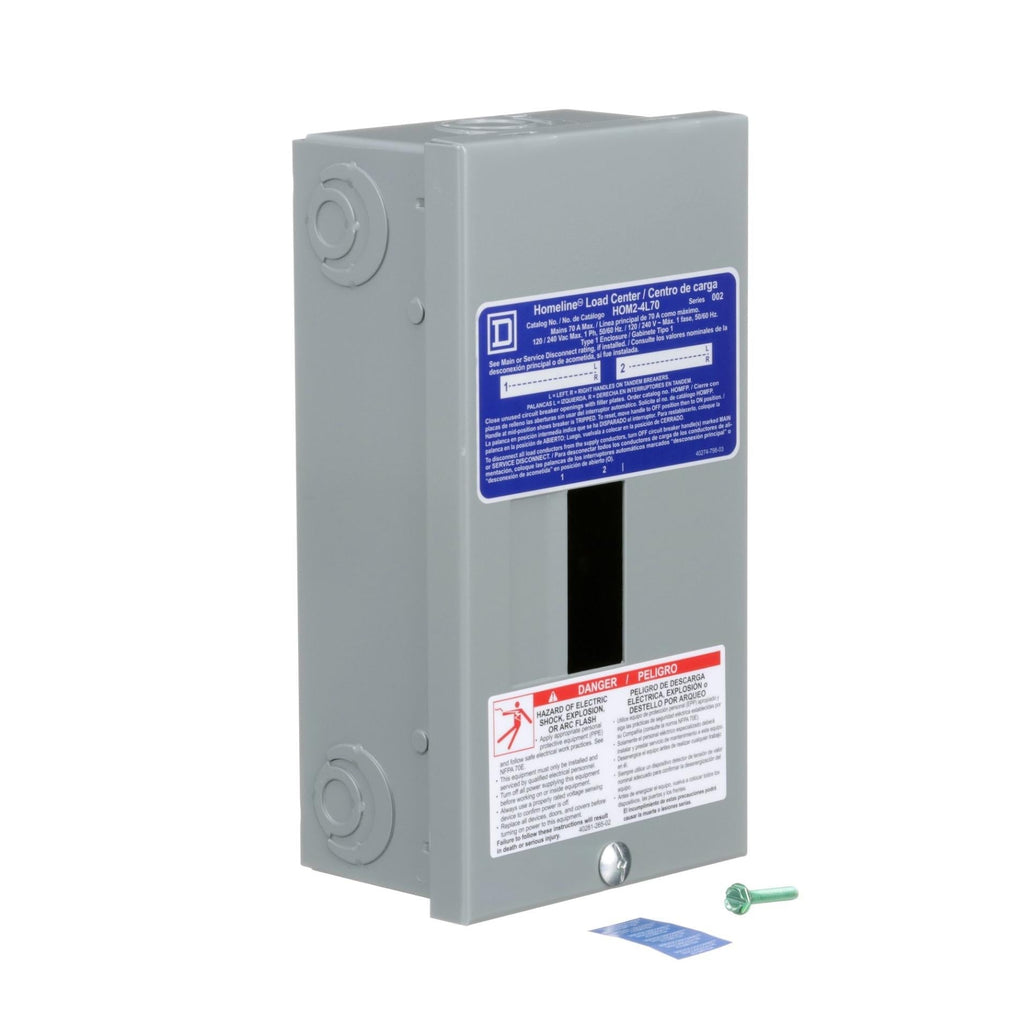

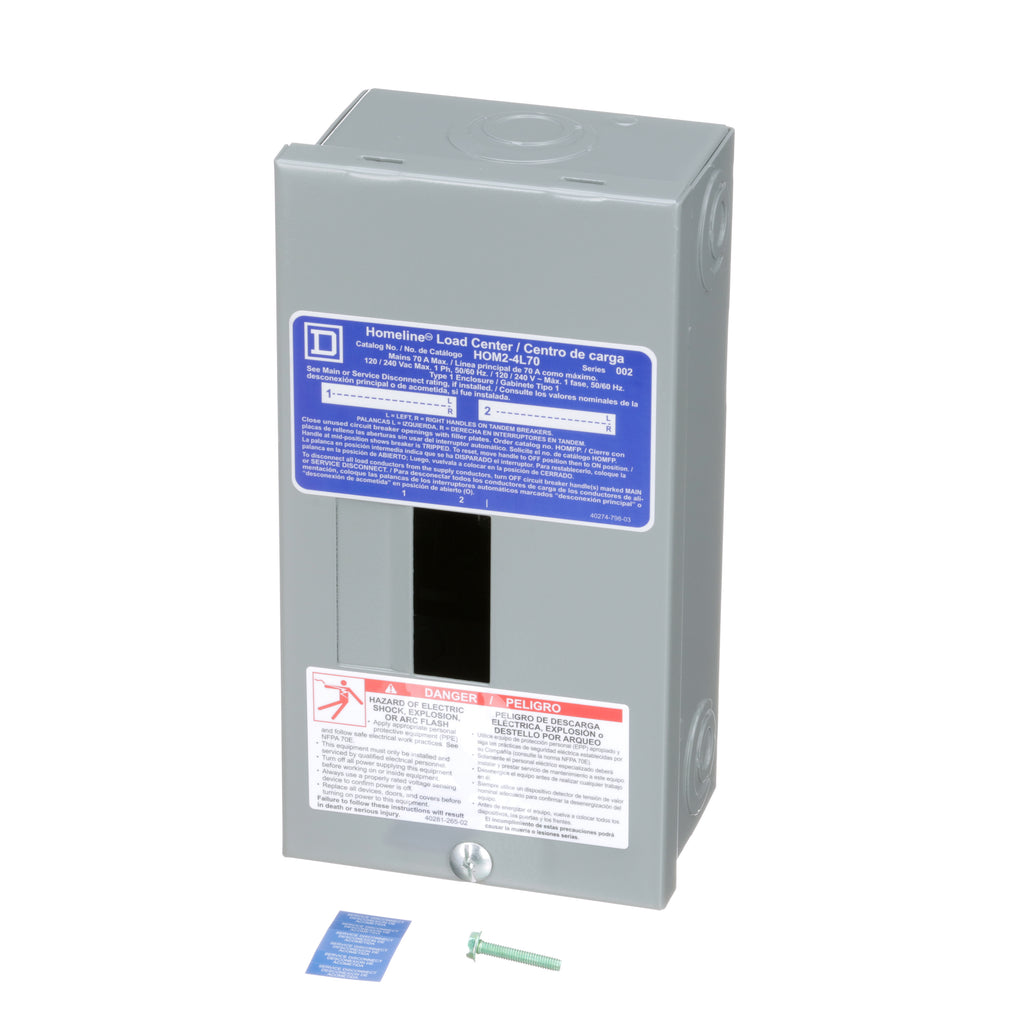

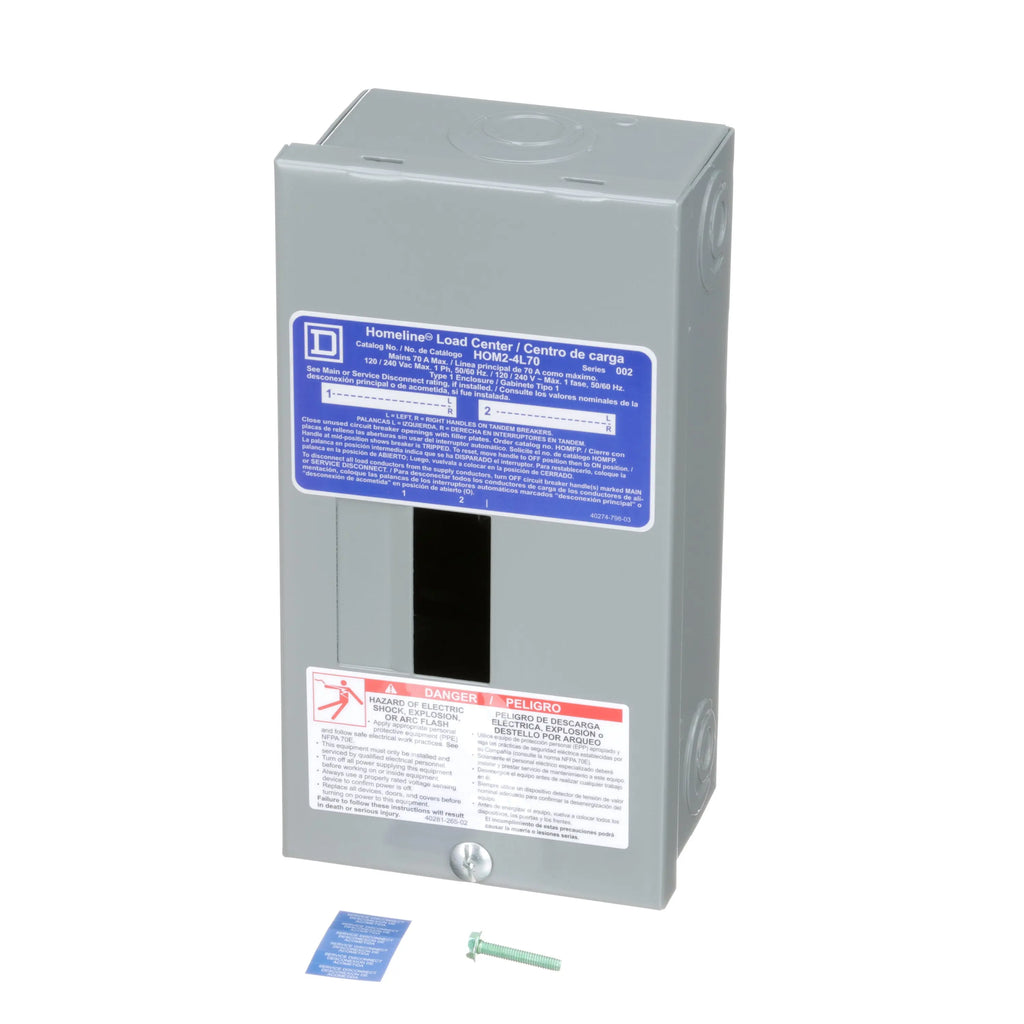

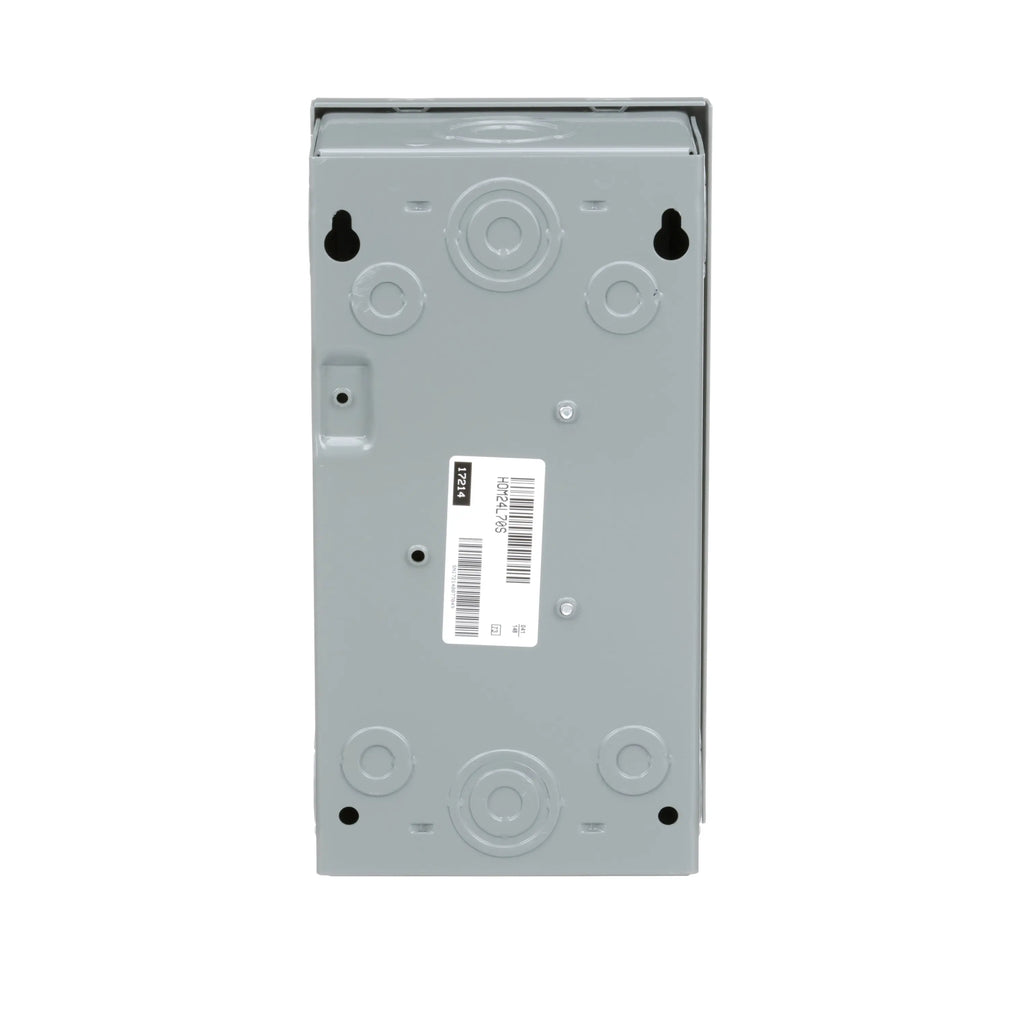

HOM24L70S - Square D Homeline 70 Amp 2-Space 4-Circuit 120/240VAC Load Center, NEMA 1, Main Lug, 10kA Interrupt Rating

HOM24L70S

HOM24L70S is a Square D Homeline load center designed for reliable electrical distribution in residential and light commercial applications.

This 1-phase load center features a main lug configuration, supports up to 2 tandem circuit breakers, and is compatible with Square D HOM series breakers. The enclosure is rated NEMA 1 for indoor use and includes a surface-mount cover for safety and convenience.

Key Specifications
• Amperage: 70 A
• Voltage: 120/240V AC
• Poles: 1
• Mounting Type: Panel, surface cover included
• Interrupt Rating: 10 kAIC
• Series/Frame: Homeline (HOM)
• Trip Unit: Not specified (standard thermal-magnetic for HOM series)
• Certifications: NEMA 1, mercury free
• Number of Spaces: 2 (supports up to 4 circuits with tandem breakers)
• Bus Material: Tin-plated aluminum
• Dimensions: 4.81" W x 3.19" D x 9.3" H
• For Use With: Square D HOM circuit breakers

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOM24L70S
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Load Center
• Family : HOMELINE
• Type : HOM
• Voltage : 120/240 AC
• Amperage : 70
• Phase : 1
• Temp Rating : -13–158 °F (-25–70 °C)
• Nema Rating : 1
• Compatible Frames : HOM,HOMT,HOMGFI,HOMAFI

Product Data

• UPC : 078590106116
• GTIN : 00785901061168
• Country of Origin : Mexico
• Dimensions : 9.3 in (236 mm) x 4.8 in (122 mm) x 3.2 in (81 mm) (Height x Width x Depth)
• Weight : 3.9
• Certification : RoHS Compliant, UL Listed
• Wire Size : AWG 12 to AWG 3, Aluminum, AWG 14 to AWG 4, Copper
