HOM230EPD - Square D Homeline 30A 2-Pole 120/240V Plug-In Ground Fault Circuit Breaker, 10kA Interrupt, Class B, UL/CSA

HOM230EPD

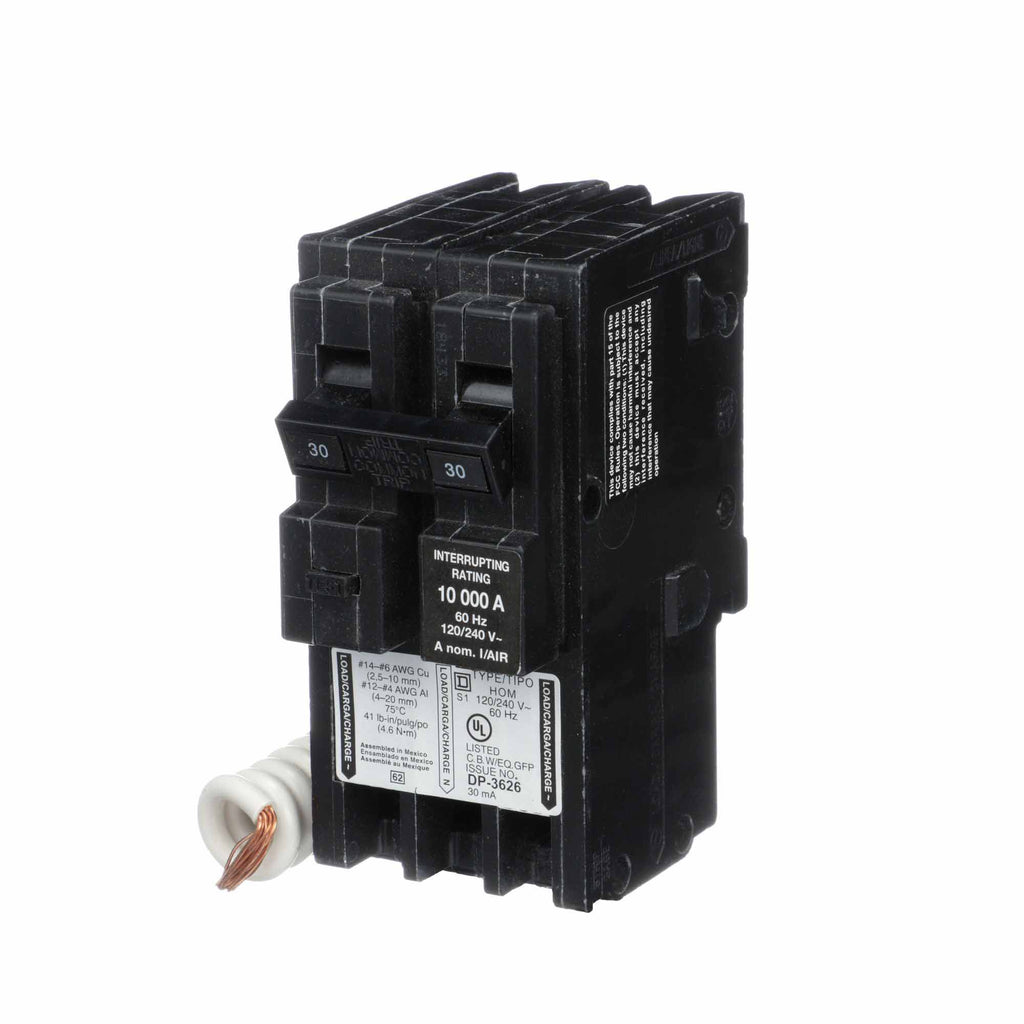

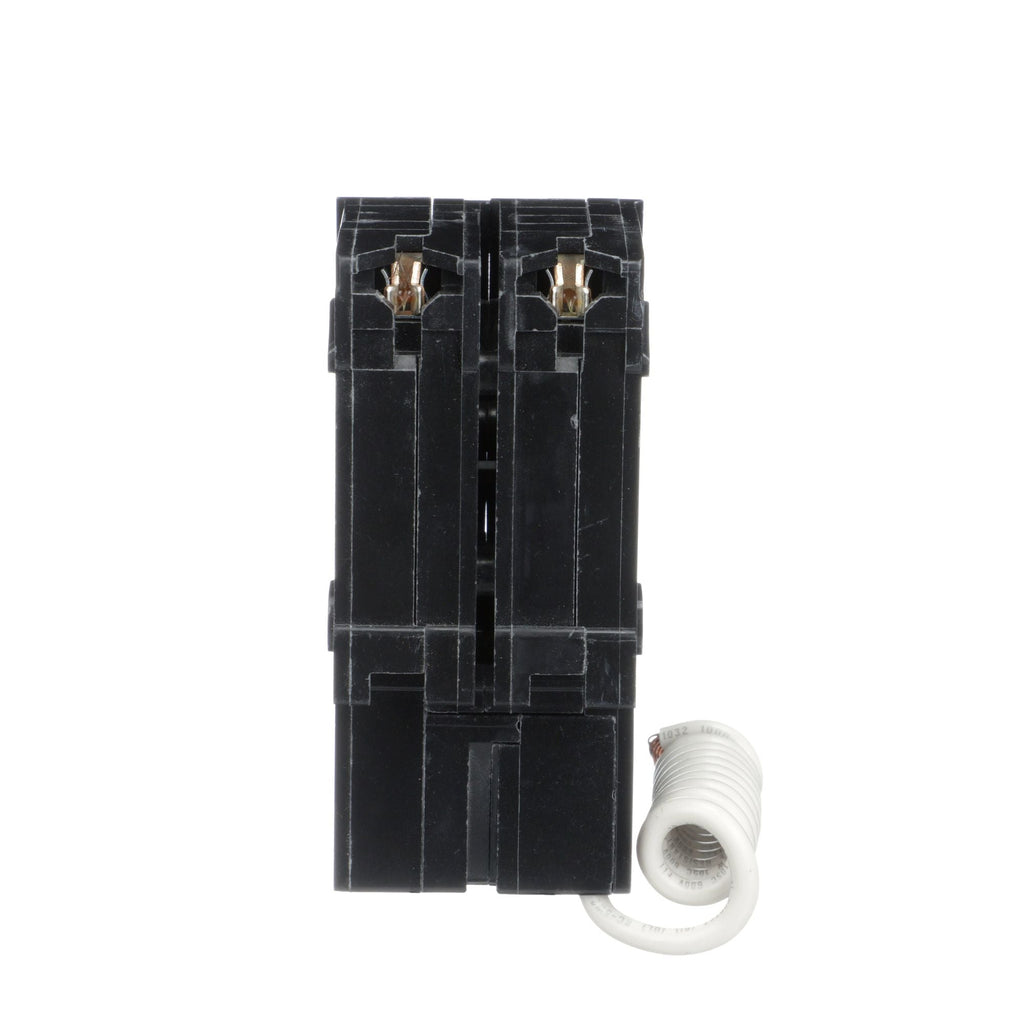

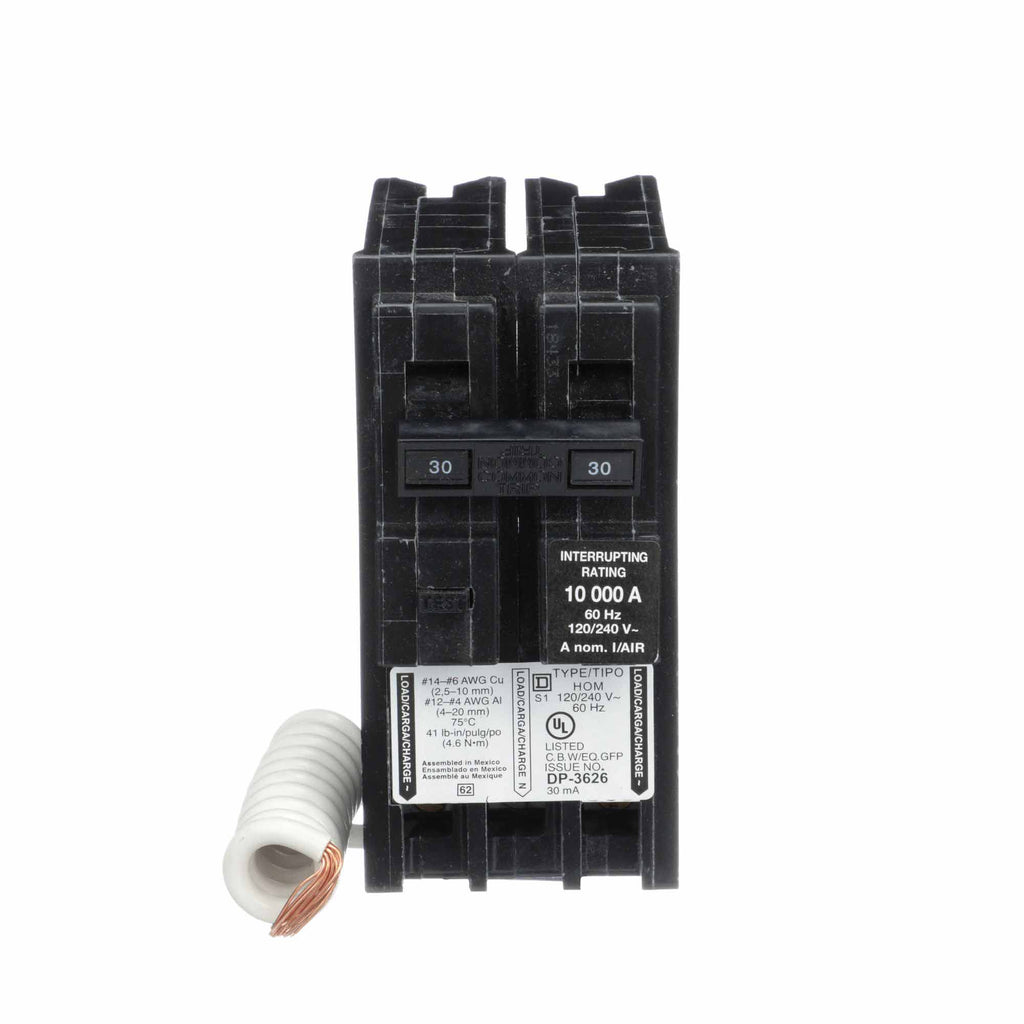

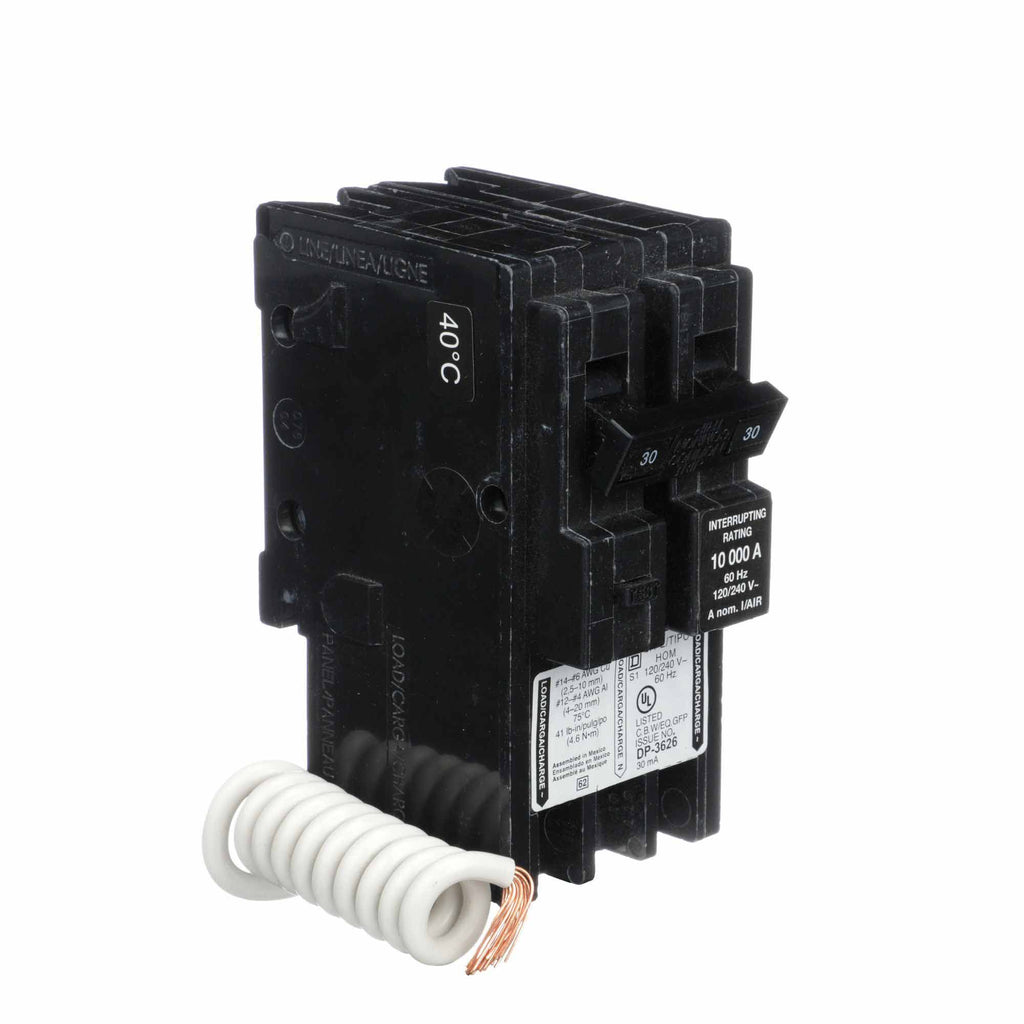

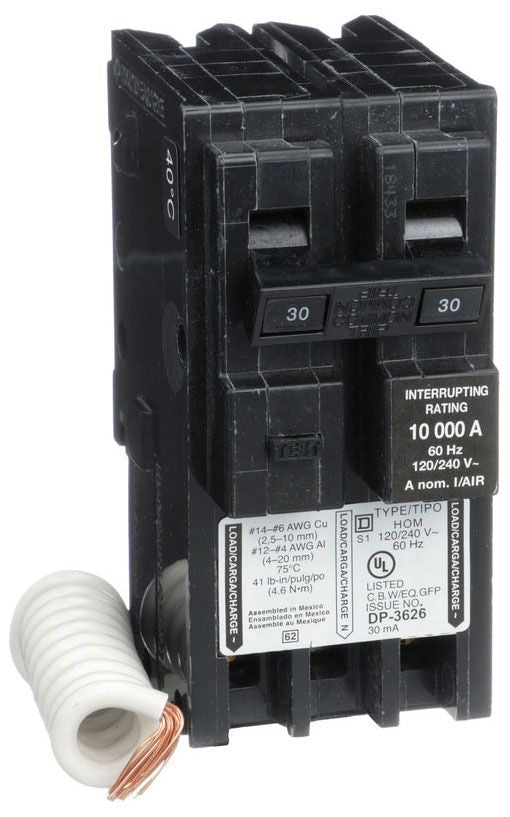

HOM230EPD is a Square D Homeline 2-pole, 30A ground fault circuit breaker designed for reliable protection in residential and light commercial applications.

This plug-in miniature circuit breaker offers both overload and short circuit protection, plus ground fault protection for equipment and personnel. It is compatible with Homeline load centers and features a thermal magnetic trip unit with long time and instantaneous functions. The HOM230EPD is UL and CSA listed, ensuring compliance with North American safety standards.

Key Specifications
• Amperage: 30A
• Voltage: 120/240V AC
• Poles: 2
• Mounting Type: Plug-In
• Interrupt Rating: 10kA at 120/240V
• Series/Frame: Homeline (HOM)
• Trip Unit: Thermal Magnetic, Class B Ground Fault (30mA)
• Certifications: UL, CSA
• Wire Size: 14 to 8 AWG (Aluminum/Copper)
• Terminal Type: Screw Clamp
• Temperature Rating: 104°F (40°C)

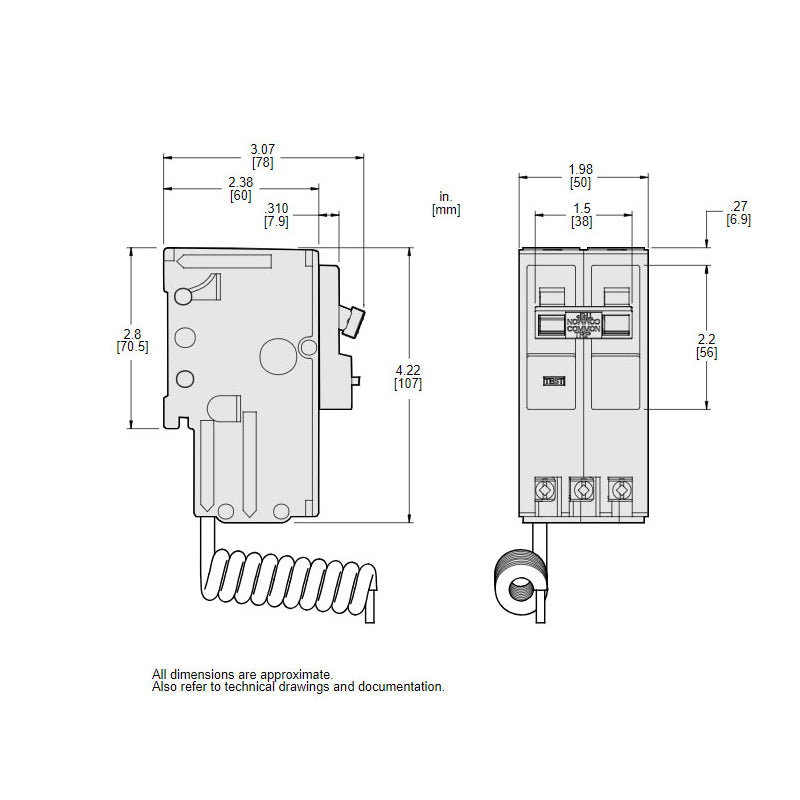

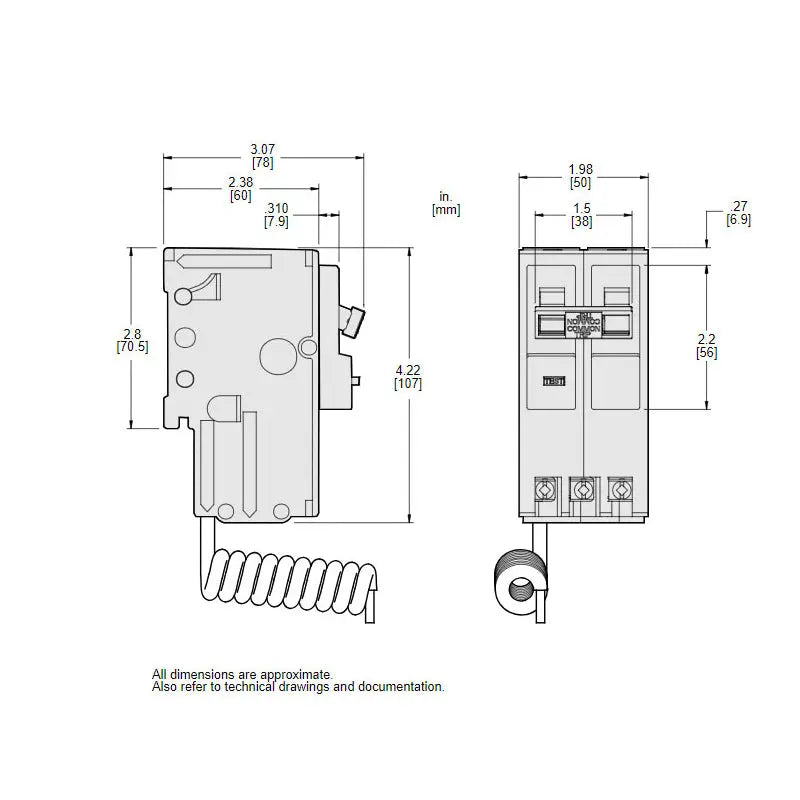

• Dimensions: 5.4" L x 3.6" W x 2.2" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOM230EPD
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOM
• Voltage : 240
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous
• Terminal Connection : Screw Clamp Terminals
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 8 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901682769
• GTIN : 00785901682769
• Country of Origin : Mexico
• Dimensions : Depth 10.53 in (267.46 mm) Width 16 in (406.40 mm) Height 52.5 in (1333.50 mm)
• Weight : 1.16
• Standards : UL Listed
• Certification : UL Listed
• Wire Size : AWG 14, AWG 8 Aluminium/Copper)1
