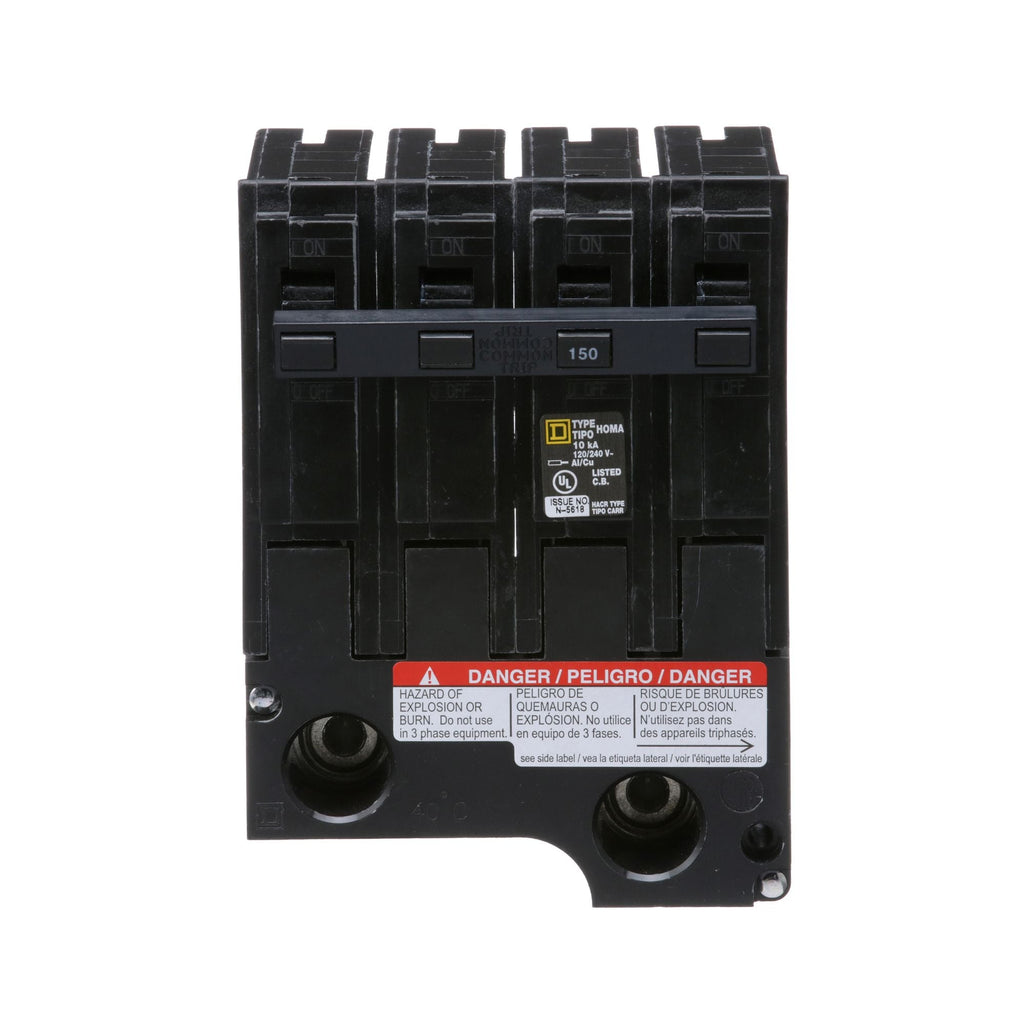

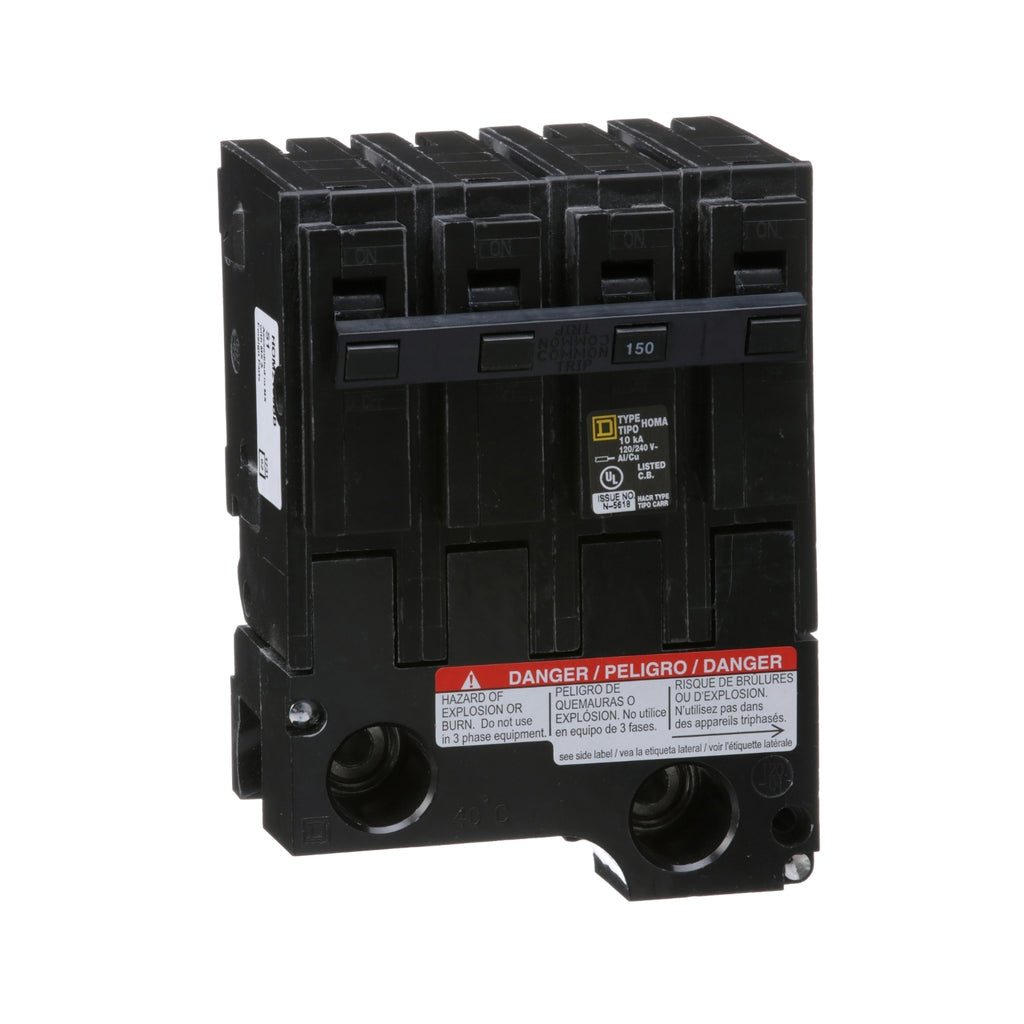

HOM2150BB - Square D 150A 2-Pole 120/240V Miniature Circuit Breaker Plug-In Homeline

HOM2150BB

HOM2150BB is a 150 Amp, 2-pole miniature circuit breaker from Square D's Homeline series designed for reliable residential and commercial circuit protection.This circuit breaker features a 120/240 Volt AC rating, 10 kA interrupting capacity, and a plug-in mounting type for easy installation in Homeline load centers. It provides strong short-circuit and overload protection with a thermal magnetic trip unit and is UL listed for safety compliance. The breaker accepts box lug connections for copper or aluminum conductors from 4 AWG to 300 kcmil.

Key Specifications
• Amperage: 150 A
• Voltage Rating: 120/240 V AC
• Number of Poles: 2
• Mounting Type: Plug-in
• Interrupt Rating: 10 kA AIR
• Series/Frame: Homeline
• Trip Unit: Thermal Magnetic
• UL Listed
• Electrical Connection: Box lugs (4 AWG to 300 kcmil)
• Compact dimensions for easy installation

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOM2150BB
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOM
• Voltage : 240
• Amperage : 150
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Box Lugs
• MCM Size : Min. Wire Size 4 AWG (Cu/Al) Max. Wire Size 300 kcmil (Cu/Al)
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901296201
• GTIN : 00785901296201
• Country of Origin : Mexico
• Dimensions : 5.39 in (136.91 mm) x 3.98 in (101.09 mm) x 3.13 in (79.50 mm) (Height x Width x Depth)
• Weight : 2.961
• Standards : UL Listed
• Certification : UL Listed
