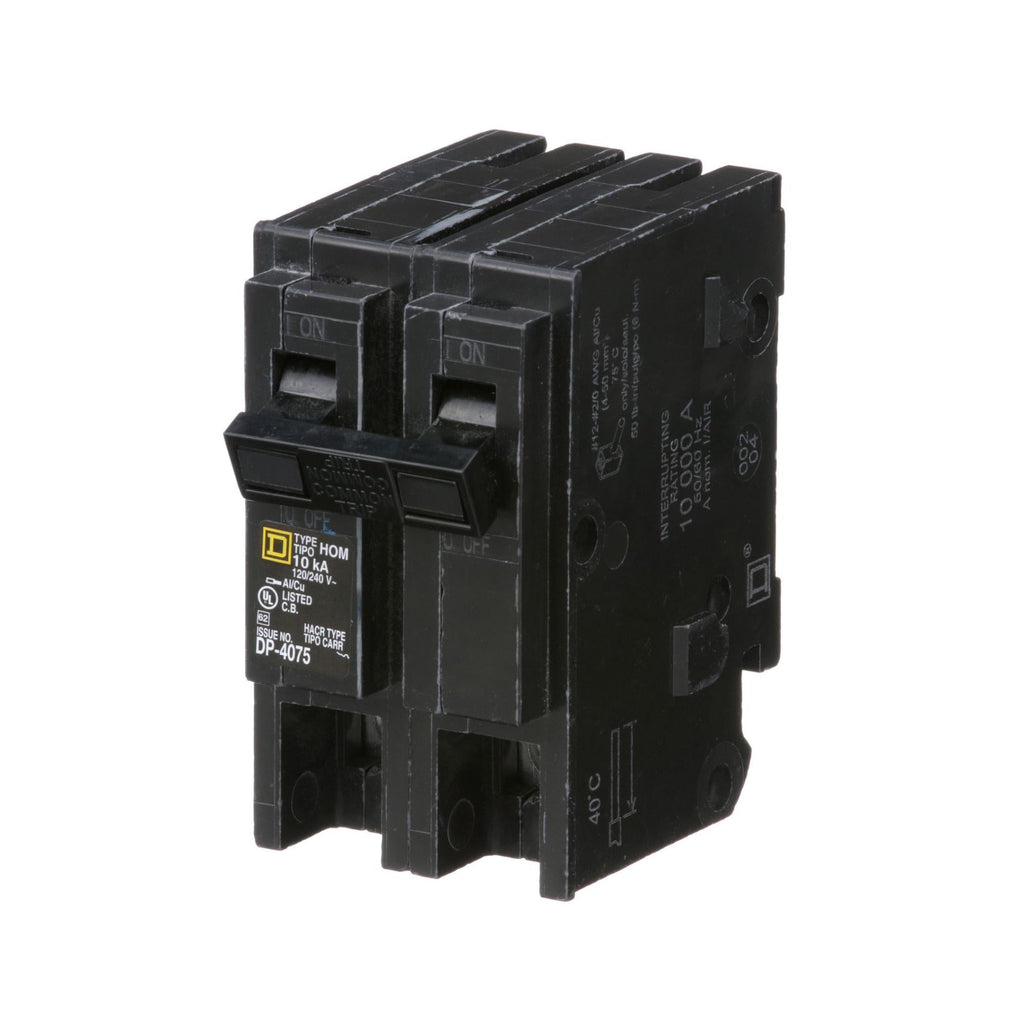

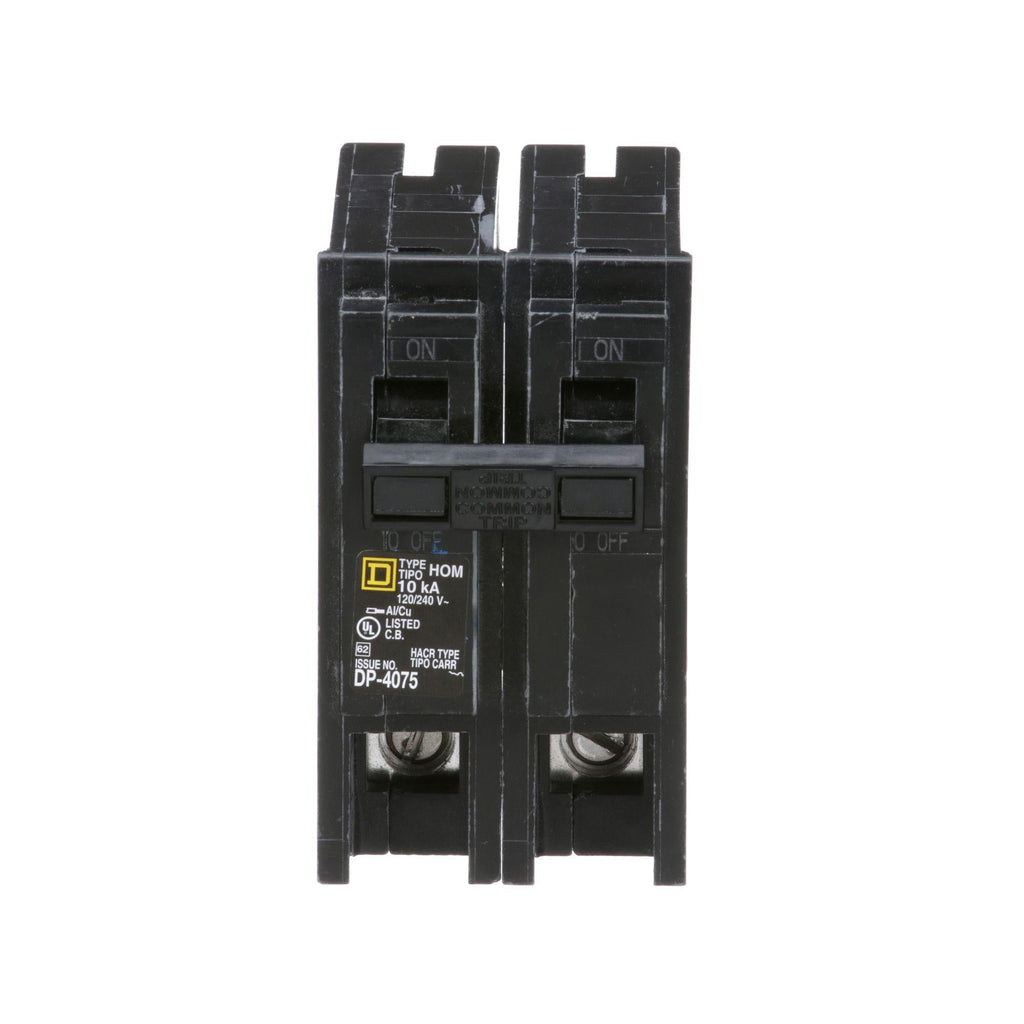

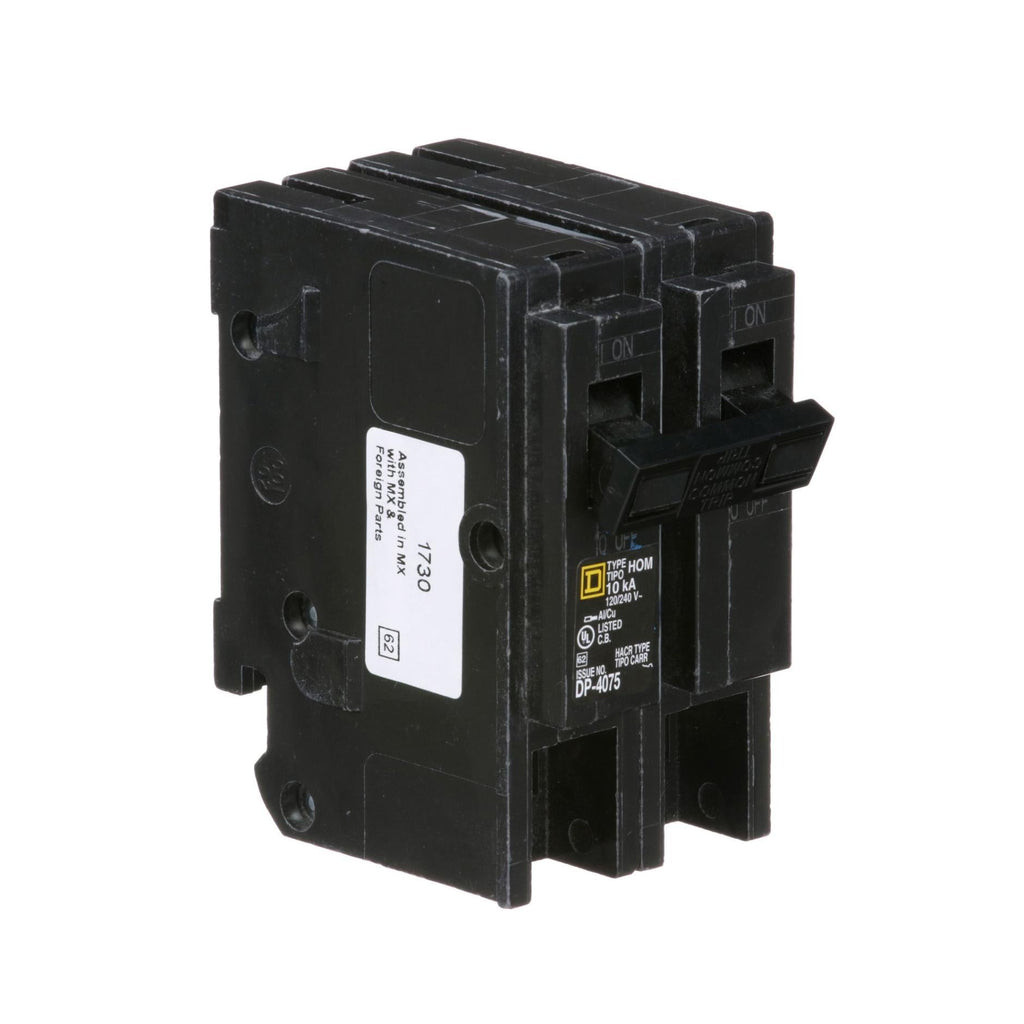

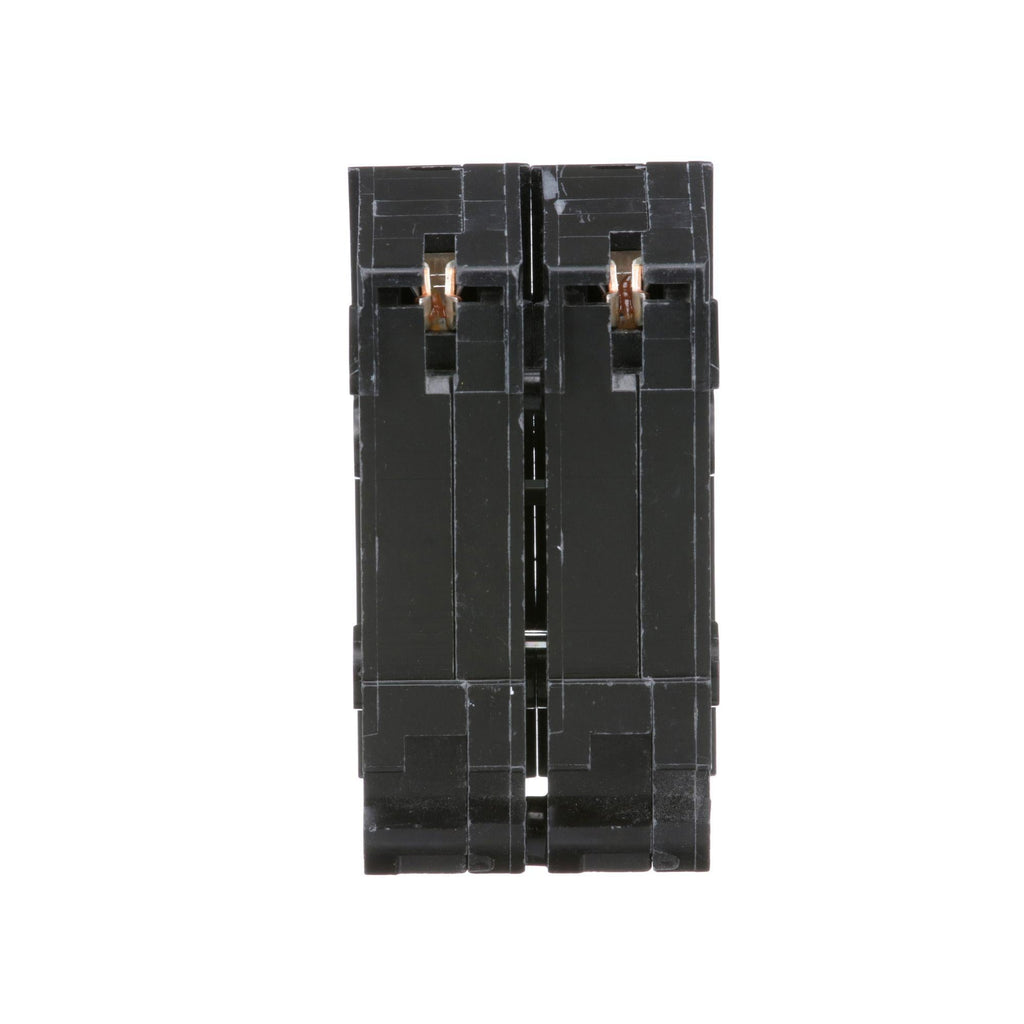

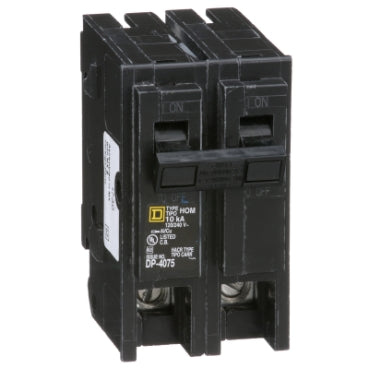

HOM2110 - Square D 110A 2-Pole 120/240V Molded Case Circuit Breaker Homeline

HOM2110

HOM2110 is a Square D 2-pole molded case circuit breaker with a 110 amp rating designed for residential and light commercial applications.This thermal magnetic breaker operates at 120/240 volts AC with a 10 kA interrupt rating and features a plug-in mounting type compatible with Homeline load centers. It provides reliable branch circuit protection with a common trip mechanism and is HACR rated for HVAC equipment.

• Amperage: 110 Amps
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Plug-in
• Interrupt Rating: 10 kA AIR
• Series/Frame: Homeline
• Trip Unit: Thermal Magnetic
• Certifications: HACR Rated
• Application: Residential and Light Commercial

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOM2110
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOM
• Voltage : 120/240
• Amperage : 110
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 100A/HOM
• Temp Rating : Minimum Operating Temp 104 Degrees F Max. Operating Temp.104 Degrees F
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard

Product Data

• UPC : 785901114826
• GTIN : 00785901114826
• Country of Origin : Mexico
• Dimensions : 3.13 in (79.50 mm) x 2 in (50.8 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
• Weight : 0.86
• Panel Type : Homeline Load Center
• Standards : CSA Certified, HACR, UL Listed
• Certification : CSA Certified, HACR, UL Listed
• Wire Size : AWG 4, AWG 2/0 aluminium/copper)1
