Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description

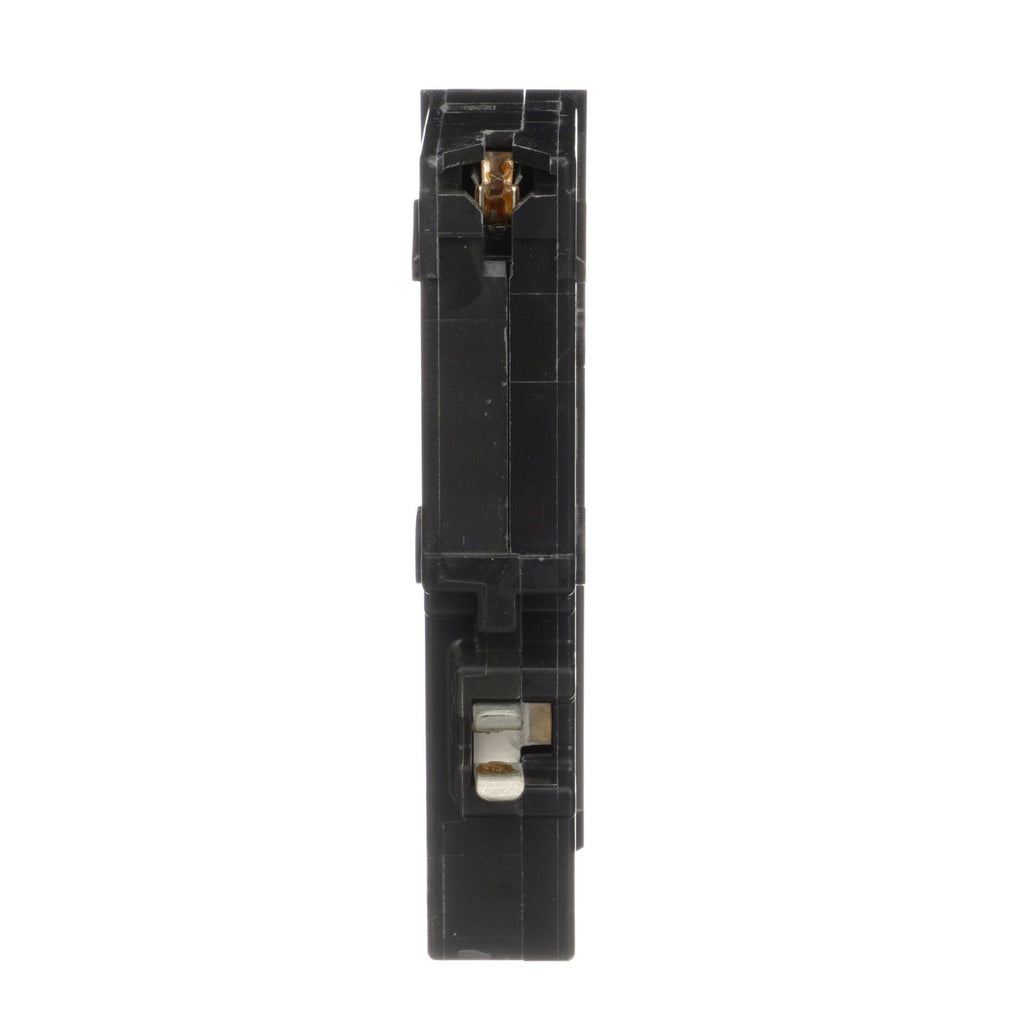

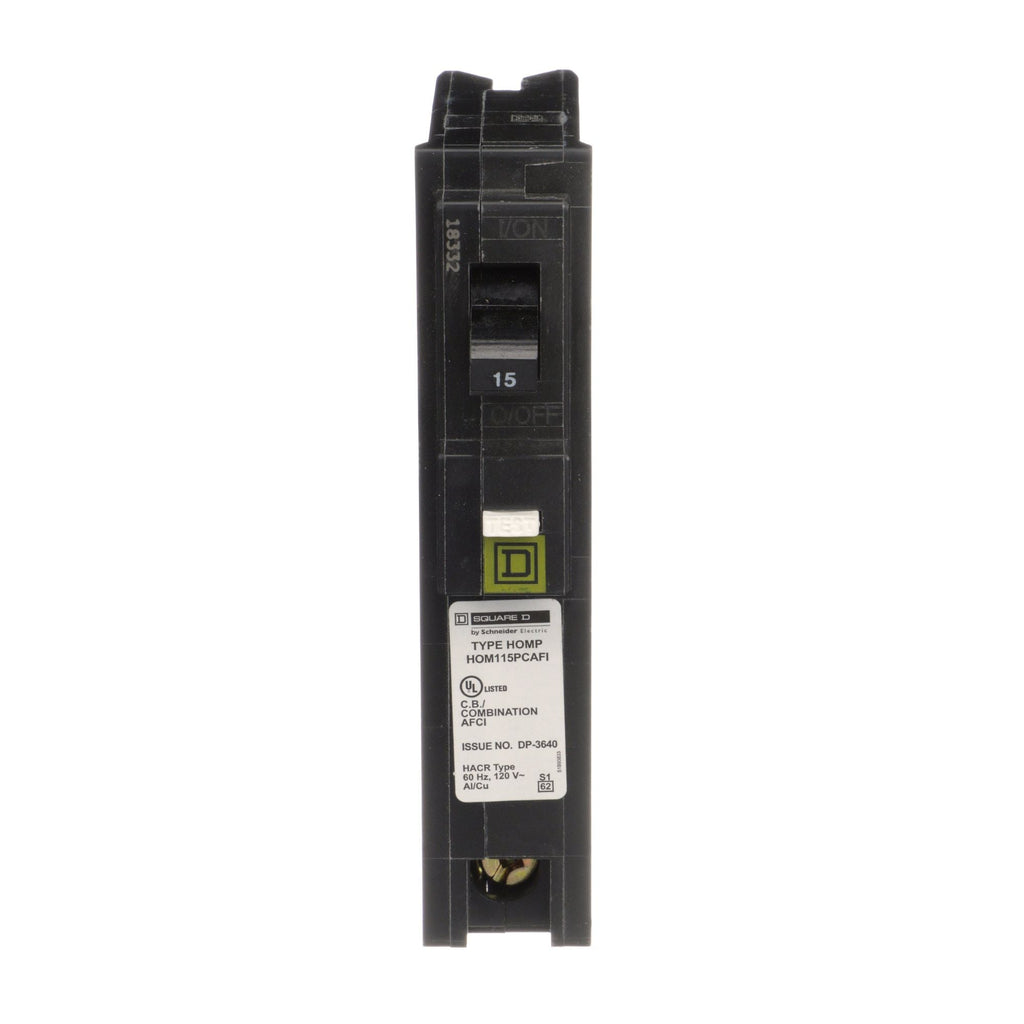

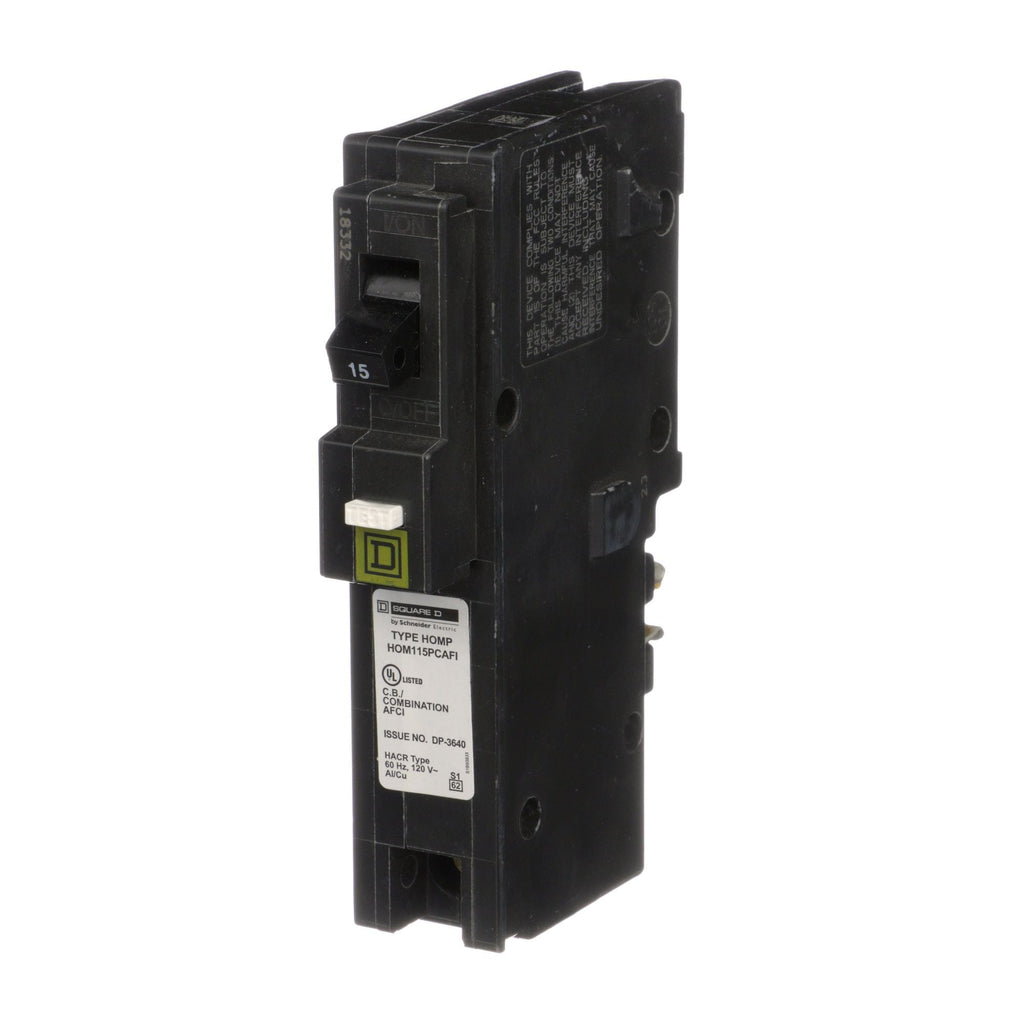

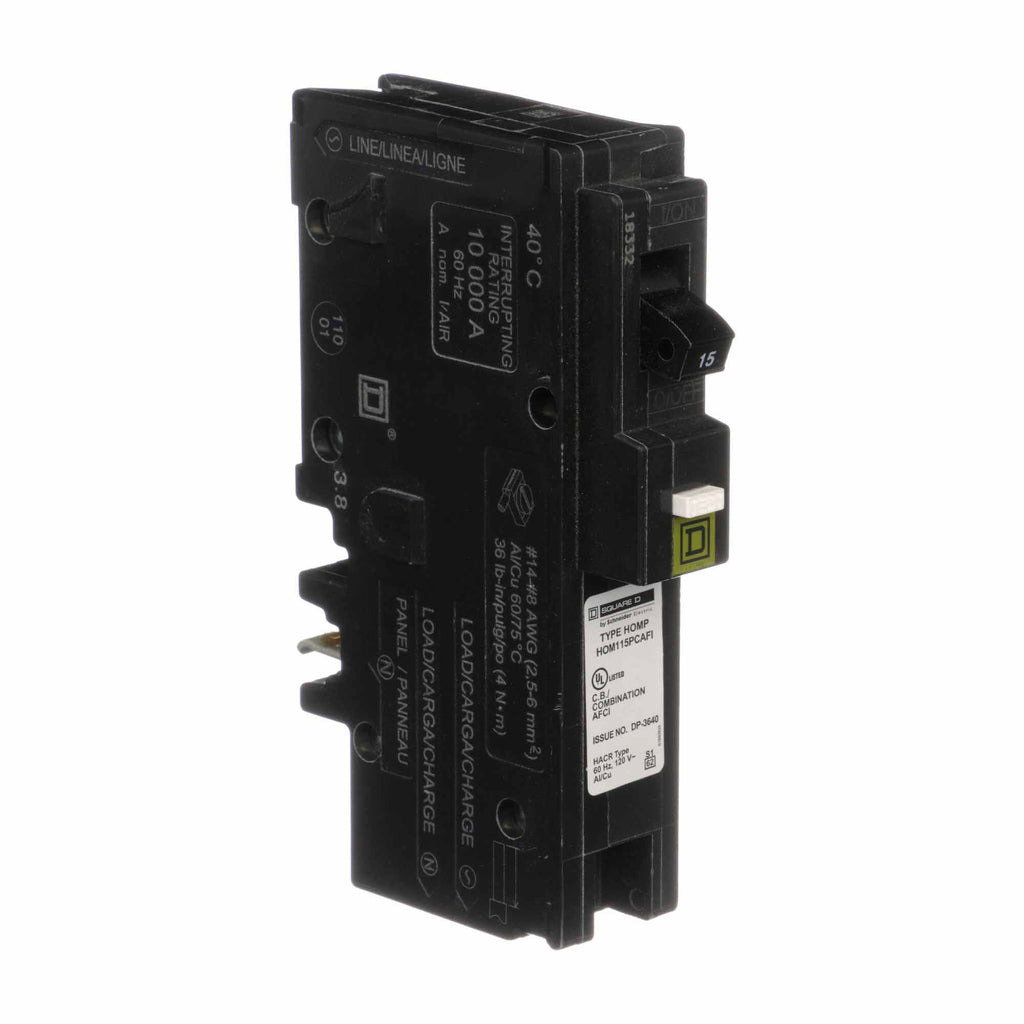

HOM115PCAFI
HOM115PCAFI is a Square D Homeline combination arc fault circuit breaker designed for fast installation and superior circuit protection in residential and commercial applications.
This 1-pole, plug-on neutral breaker provides 15A protection at 120V, with a 10kA interrupt rating and thermal magnetic trip unit. It is engineered for compatibility with Homeline load centers, offering both overload and short circuit protection plus advanced arc fault detection in compliance with NEC and UL1699 standards. The plug-in mounting and clamp terminal accept 14–8 AWG copper or aluminum wire for flexible installation.
-
Key Specifications
- Part Number: HOM115PCAFI
- Manufacturer: Square D
- Amperage: 15A
- Voltage: 120V
- Poles: 1
- Mounting Type: Plug-in
- Interrupt Rating: 10kA
- Series/Frame: HOM (Homeline)
- Trip Unit: Thermal Magnetic (Long Time/Instantaneous)
- Certifications: UL Listed, HACR rated
- Wire Range: 14–8 AWG Cu/Al
- Connection: Plug-on neutral
- Frequency: 50/60 Hz
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HOM115PCAFI
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : HOMELINE
- Type : HOM
- Voltage : 120
- Amperage : 15
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Screw Clamp Terminals
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 14 AWG (Cu/Al), 14 AWG (Cu) Max. Wire Size 8 AWG (Cu/Al), 10 AWG (Cu)
- Breaker Type : Combination Arc-Fault
- Protection : Thermal Magnetic
Product Data
- UPC : 785901950806
- GTIN : 00785901950806
- Country of Origin : Mexico
- Dimensions : 3.13 in (79.50 mm) x 1 in (25.4 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
- Weight : 0.65 lb
- Standards : UL Listed
- Certification : UL Listed
- Wire Size : 1x AWG 14 to AWG 8, Aluminum/Copper, 2x AWG 14 to AWG 10, Copper
