2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HNXD63B900L

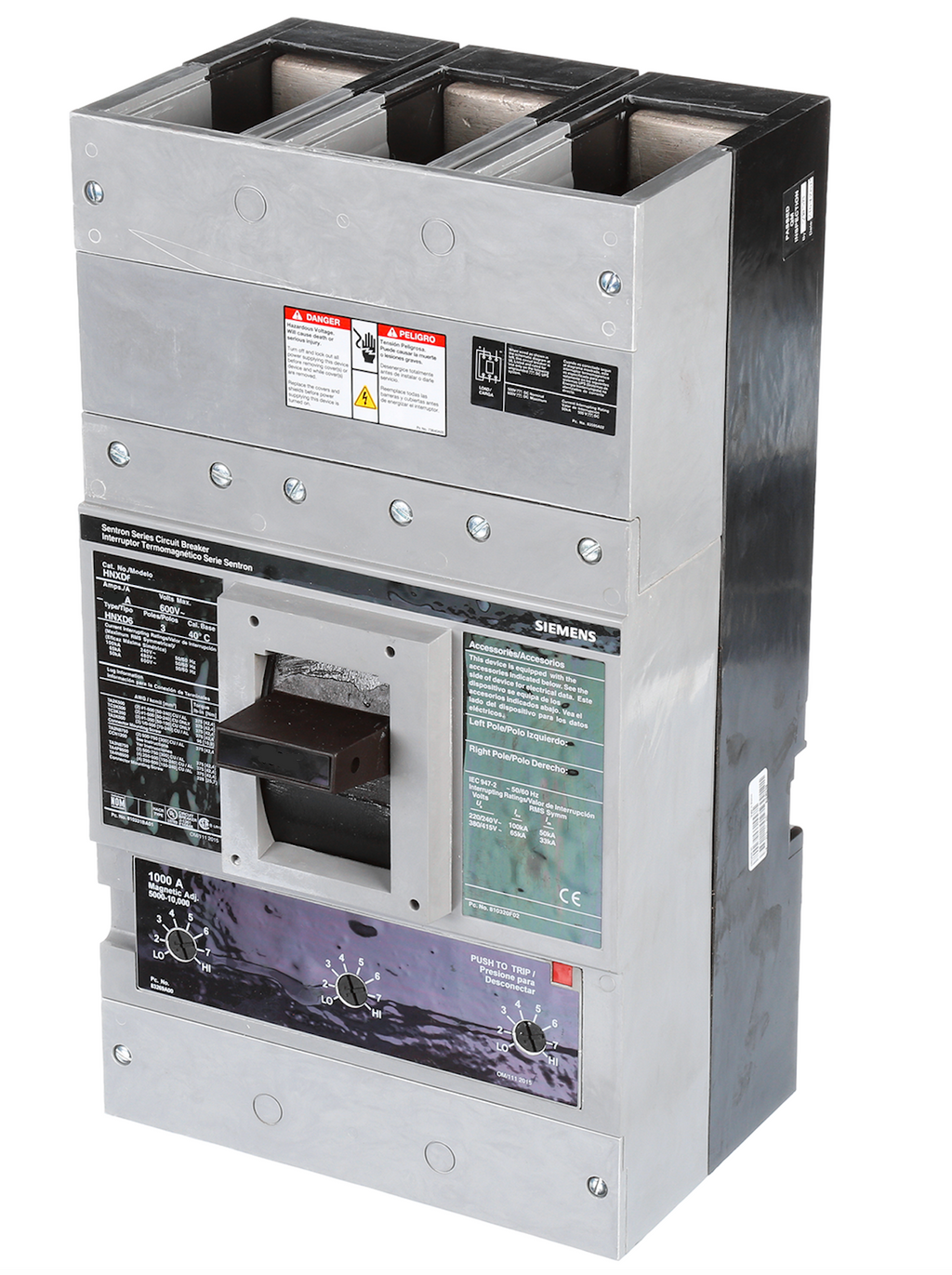

HNXD63B900L is a 3-pole molded case circuit breaker from Siemens designed for industrial and commercial power distribution applications. This thermal magnetic breaker features an ND frame construction and is rated for 900 amperes at 40 degrees Celsius with a maximum voltage of 600 VAC at 50/60 Hz, also rated for 500 VDC operation. The breaker delivers reliable overcurrent and short-circuit protection with a 50 kAIC interrupt rating at 480V, making it suitable for demanding electrical systems requiring high-capacity switching and protection.
- Amperage Rating: 900 Amps
- Voltage: 600 VAC at 50/60 Hz, 500 VDC
- Poles: 3-Pole
- Frame Type: ND Frame
- Trip Unit: Thermal Magnetic
- Interrupt Rating: 50 kAIC at 480V
- Temperature Rating: 40 Degrees Celsius
- Mounting Type: Molded Case
- Breaker Type: HNXD6
Specifications
- Part Number: HNXD63B900L
- Manufacturer : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HNXD
- Voltage : 600
- Amperage : 900
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : ND Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 65
