Product Info
- Manufacturer:Siemens
- Sub-Category:Disconnect
Description
HNF362JCH

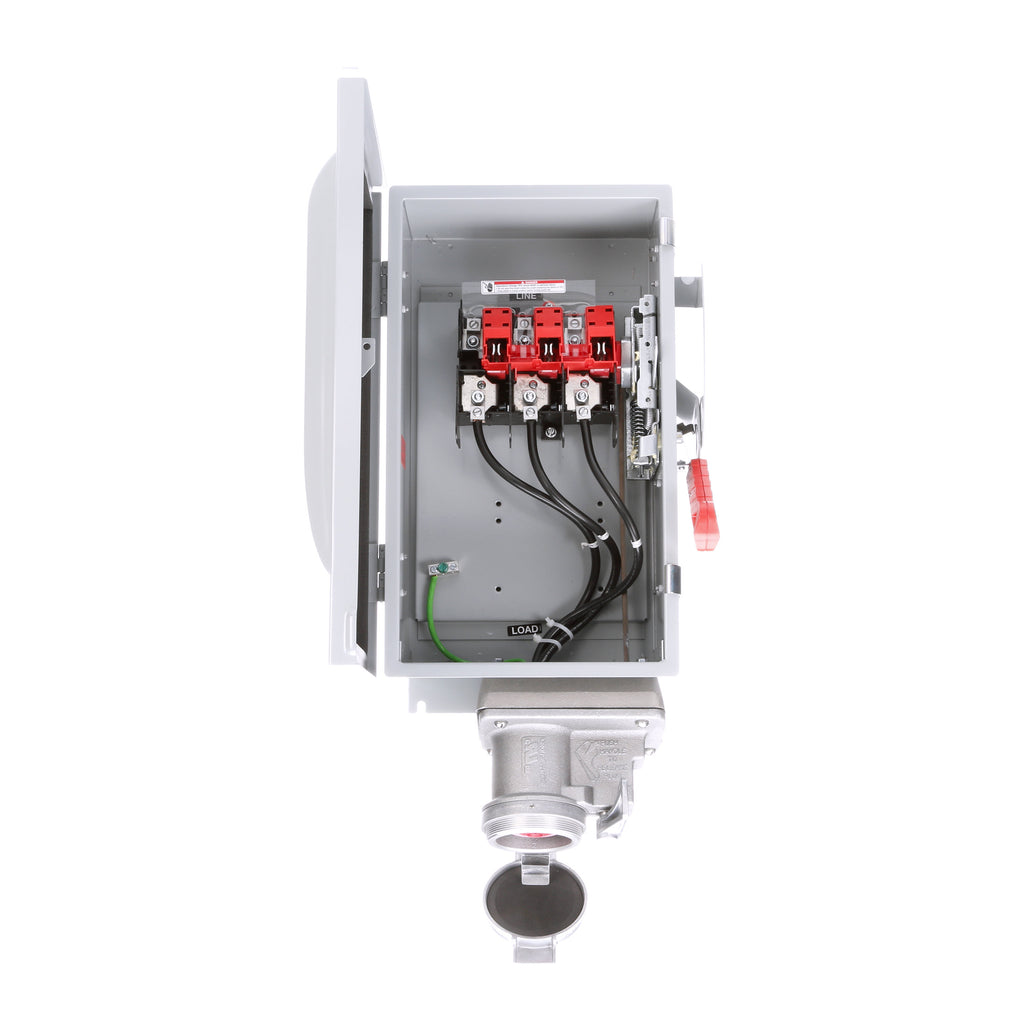

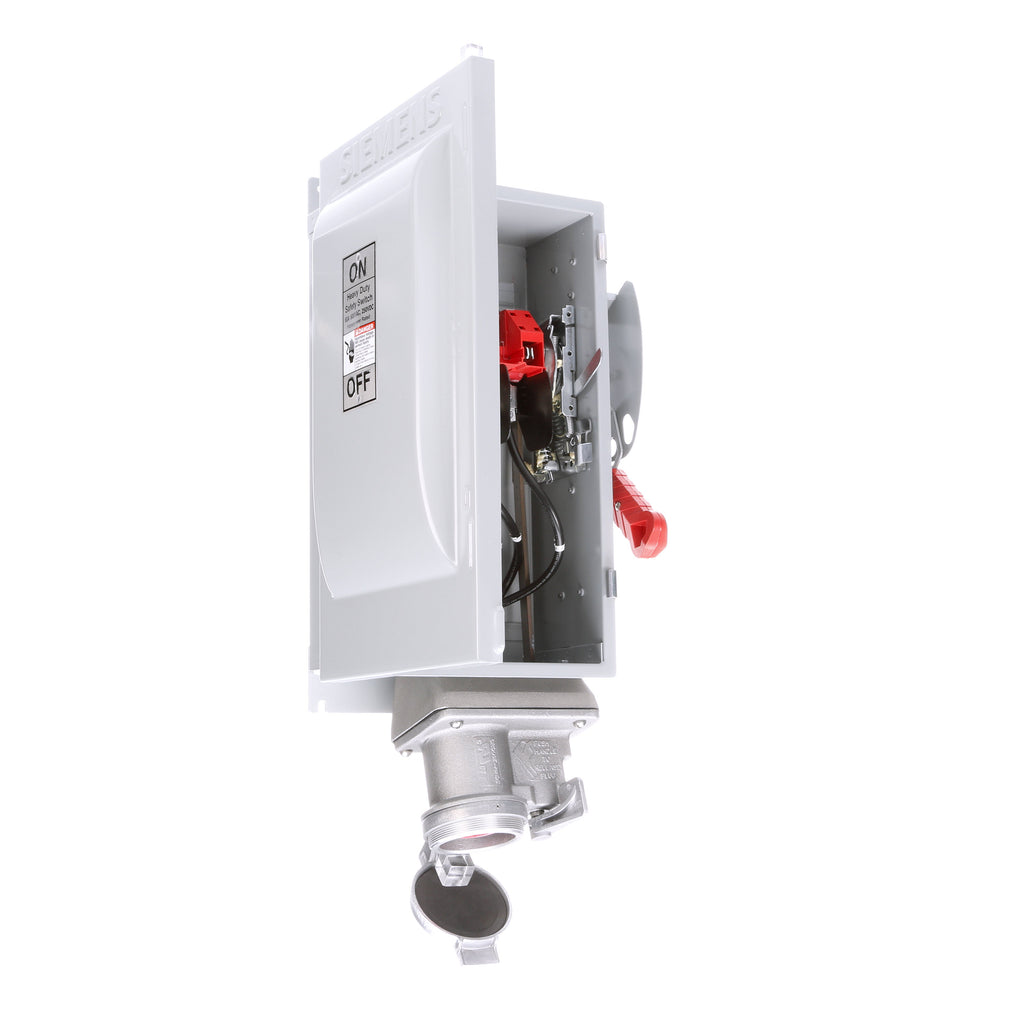

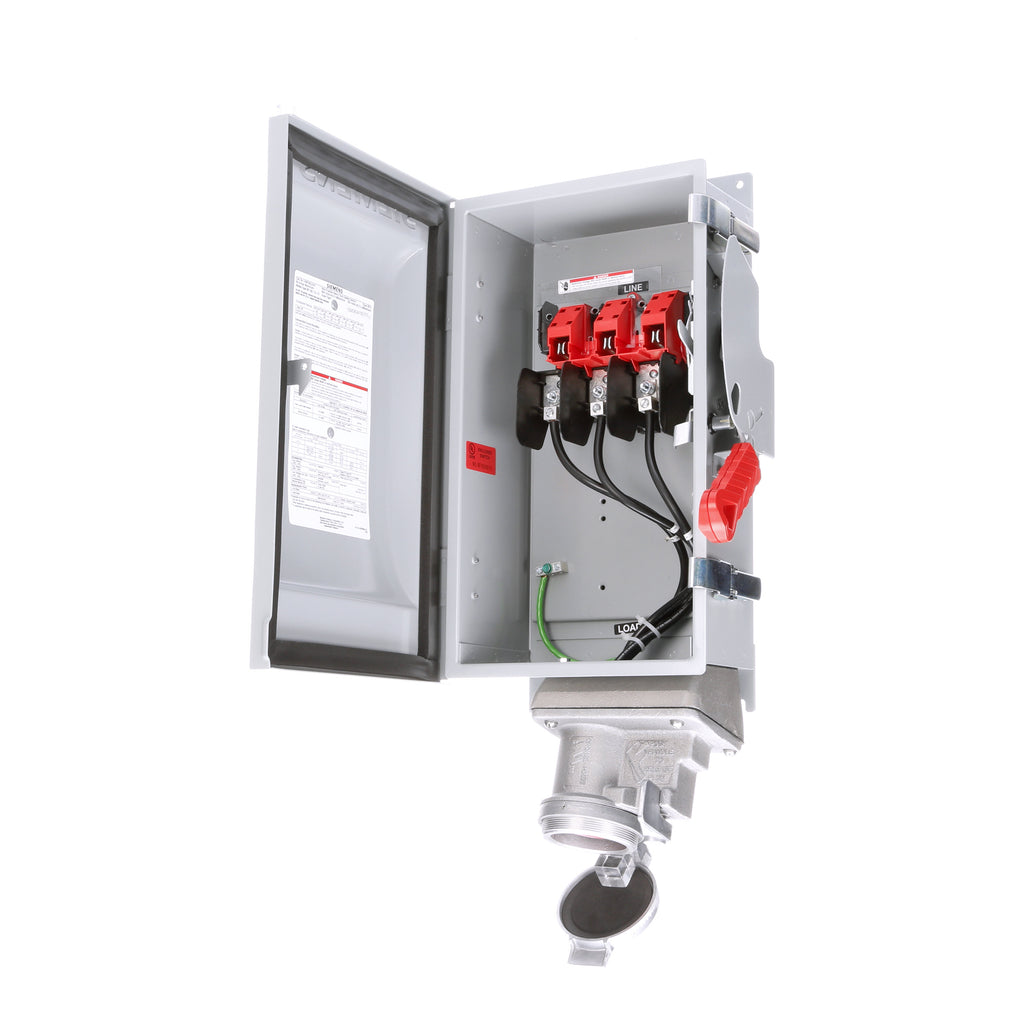

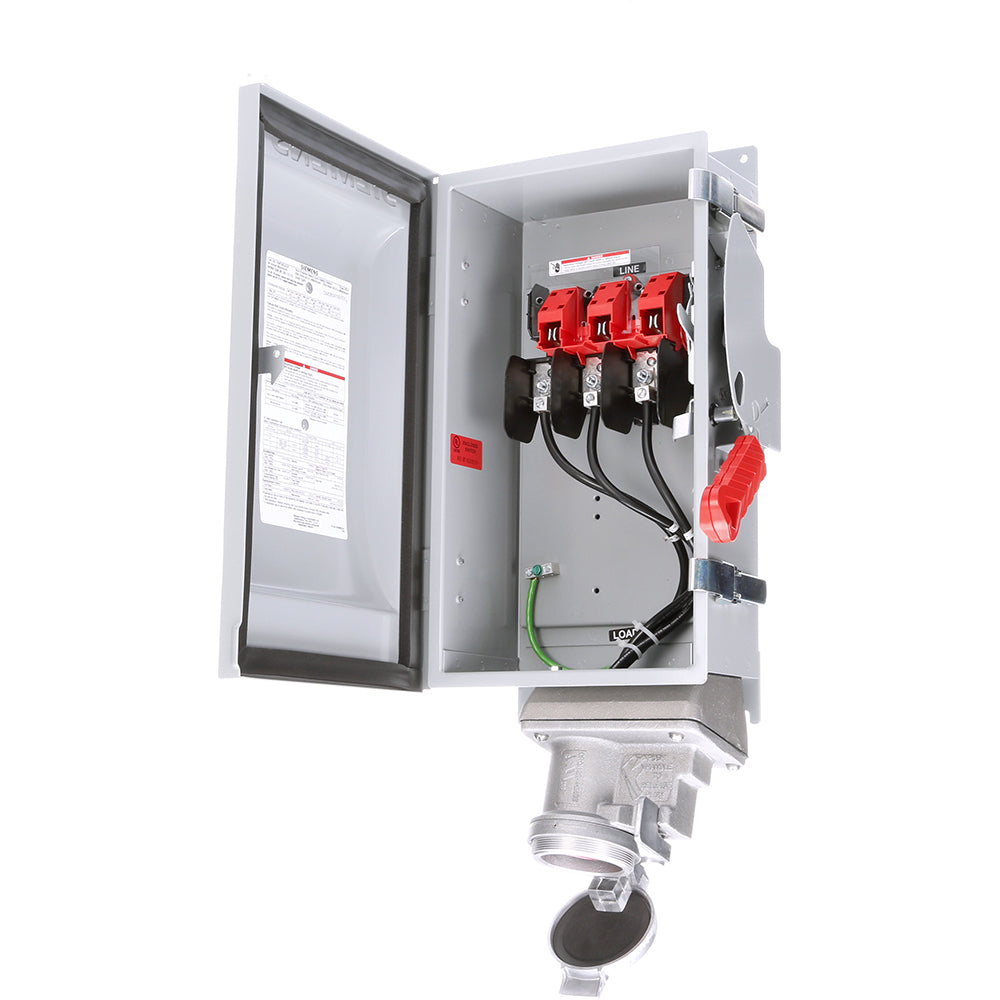

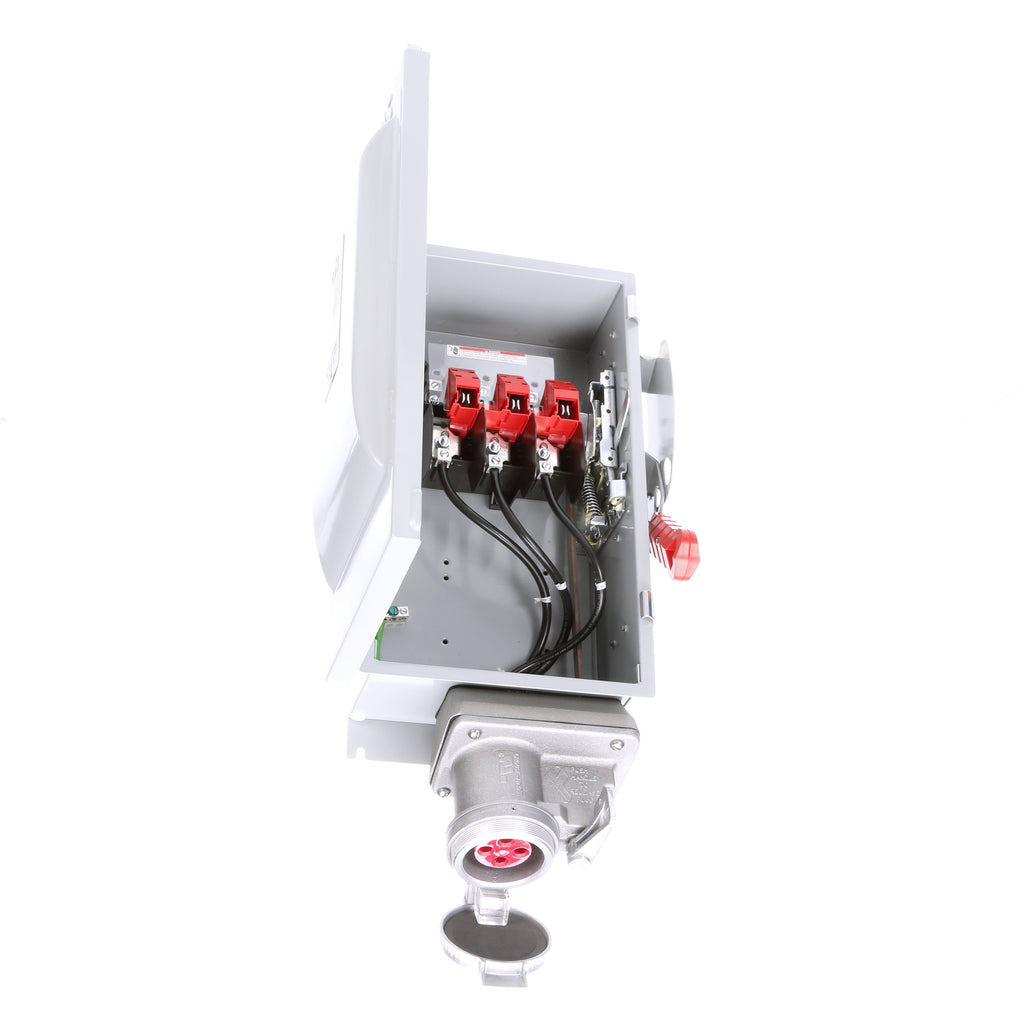

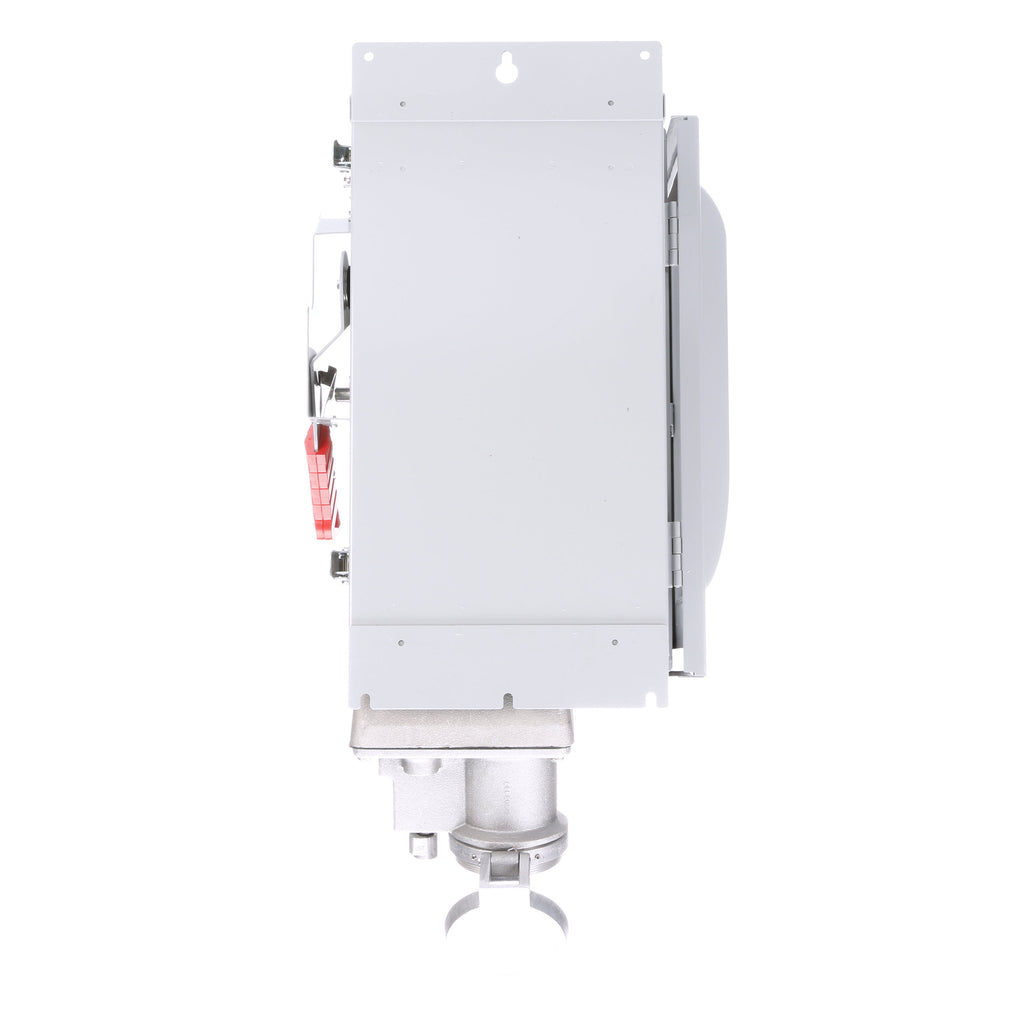

HNF362JCH is a Siemens heavy duty non-fusible safety switch rated for 60 amps and 600 volts AC with 3 poles and a NEMA 12 enclosure.This Type VBII enclosed safety switch features a galvanized steel housing designed for indoor use. It is a single throw, non-fusible switch with insulation and a 3-pole, 3-wire configuration. The switch supports up to 60 hp at 600 VAC and complies with UL 98 standards. Its dimensions are approximately 19.31 in H x 9.94 in W x 10.46 in D, suitable for heavy duty low voltage applications requiring reliable circuit protection.
- Key Specifications
- Amperage: 60 A
- Voltage Rating: 600 V AC
- Number of Poles: 3
- Mounting Type: Enclosed, Type VBII
- Interrupt Rating: Heavy Duty
- Enclosure Rating: NEMA 12
- Trip Unit: Non-Fusible
- Housing Material: Galvanized Steel
- Phase: 3
- Horsepower Rating: 60 hp at 600 VAC
- Standards: UL 98 Certified
- Dimensions: 19.31 in H x 9.94 in W x 10.46 in D
Specifications
- Part Number: HNF362JCH
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Disconnect
- Section : Non-Fusible Disconnect Switch
- Family : VBII Series
- Type : HNF
- Voltage : 600 AC AC
- Amperage : 60
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 12
- Compatible Frames : PGP
Product Data
- UPC : 783643436008
- GTIN : 0783643436008
- Country of Origin : Mexico
- Dimensions : 13.78 x 7.874 x 27.953 inch
- Weight : 28.065
- Certification : UL listed
