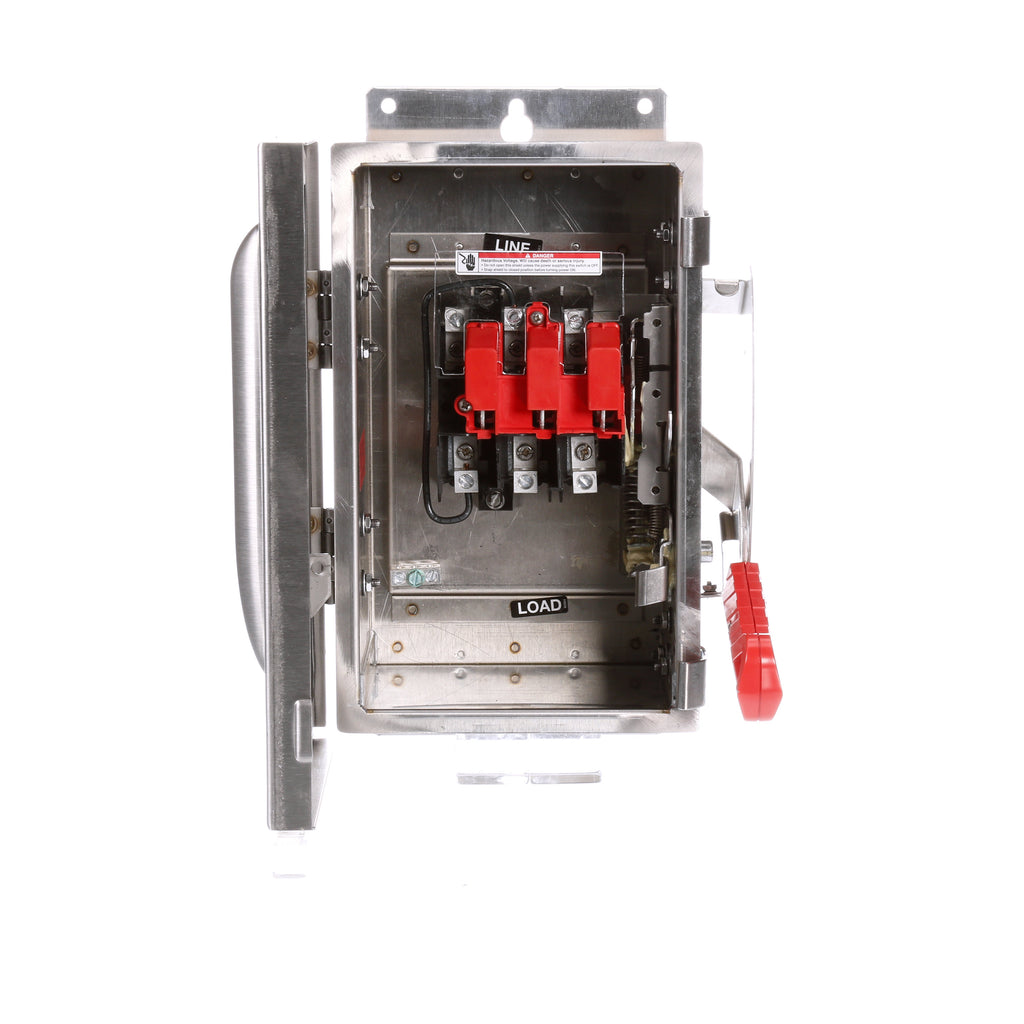

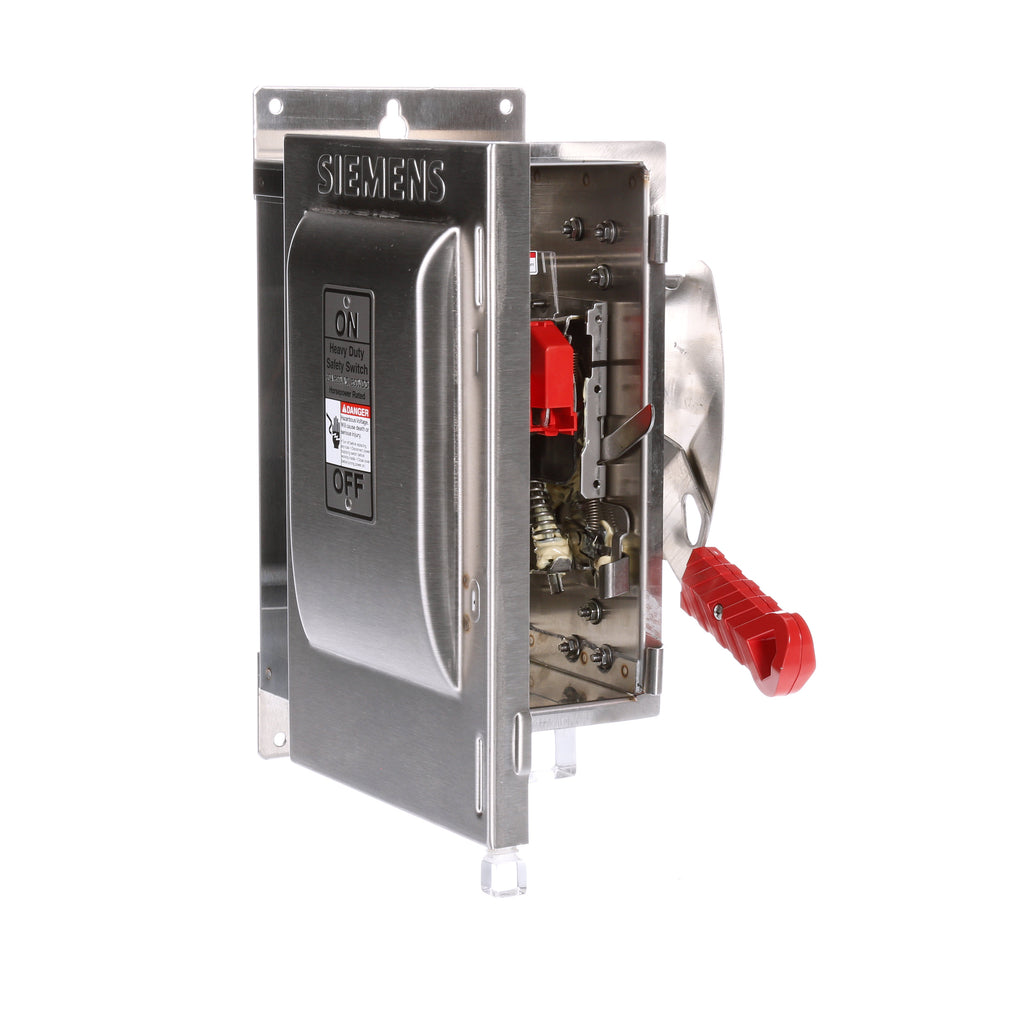

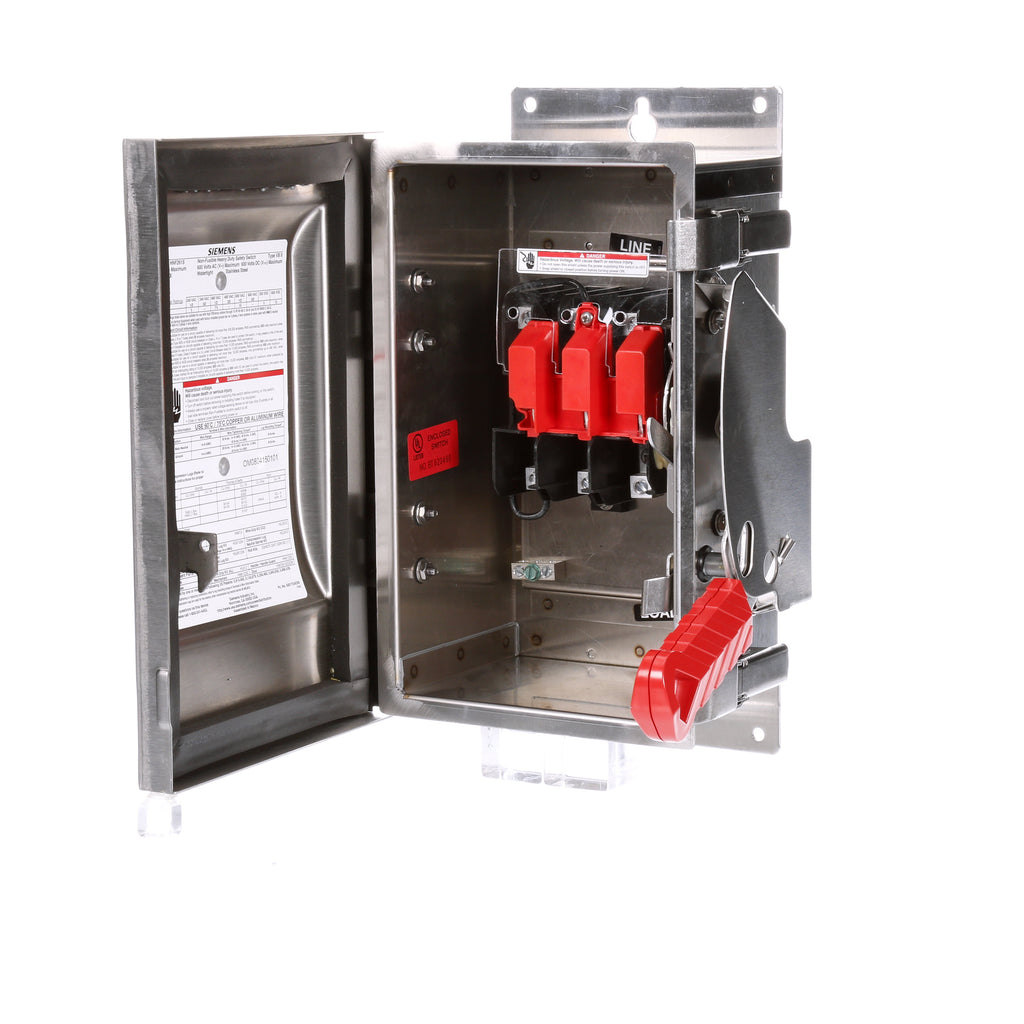

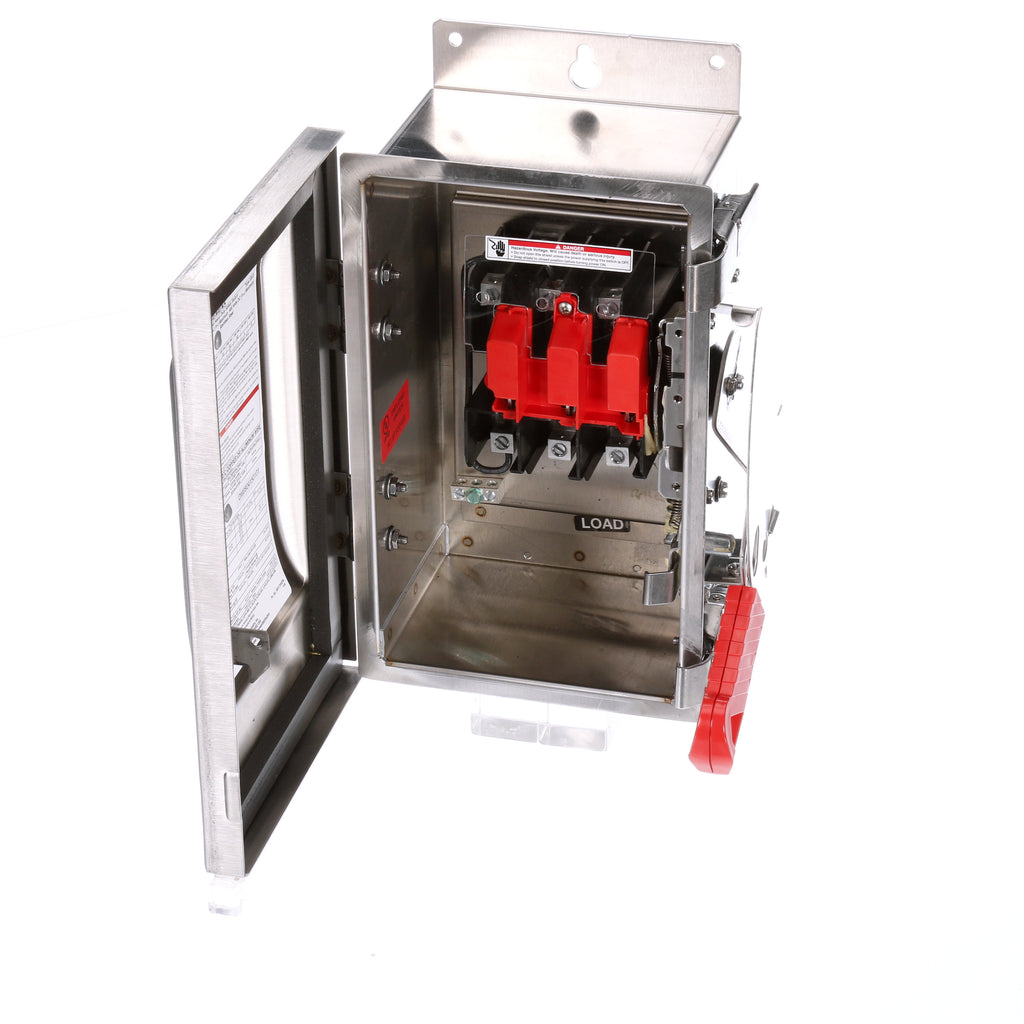

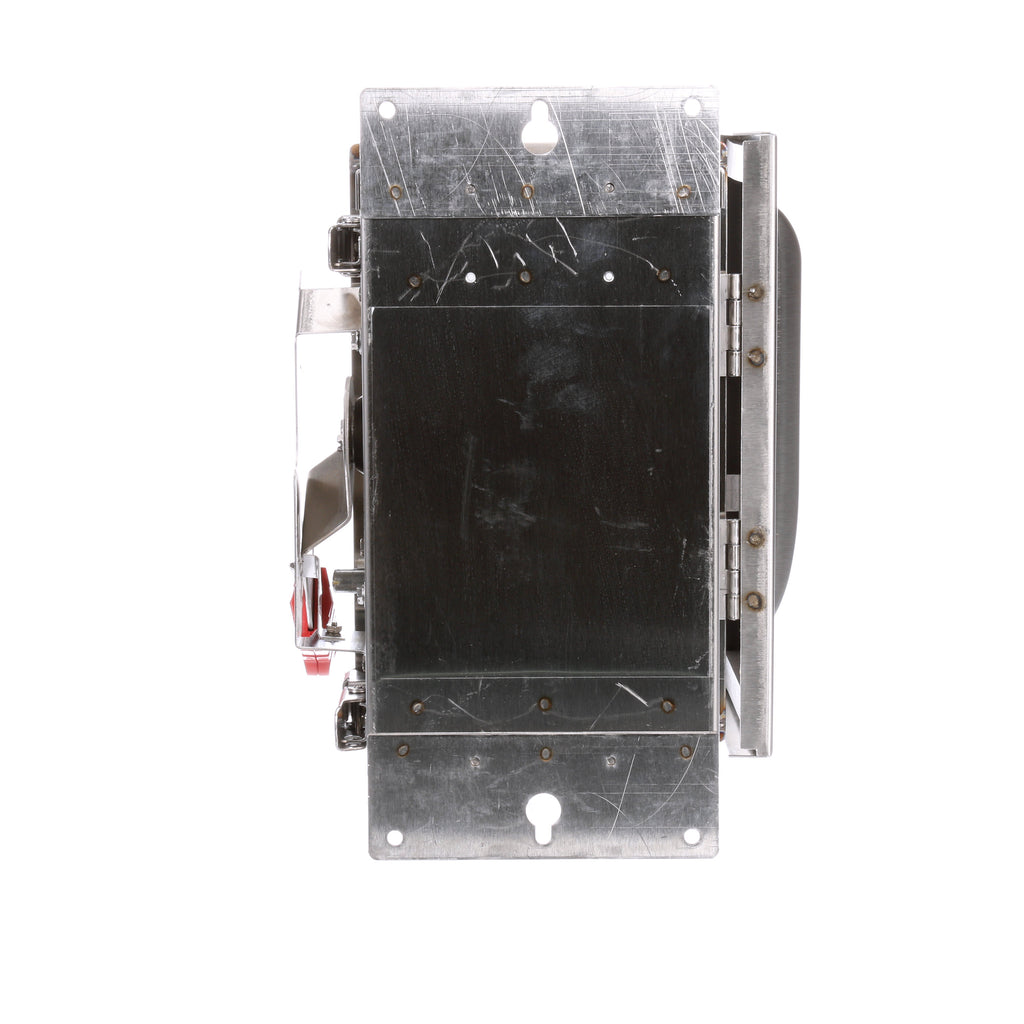

HNF261S - Siemens 30A 600V 2-Pole Heavy Duty Non-Fusible Safety Switch NEMA 4X Stainless Steel

HNF261S

HNF261S - Siemens heavy duty non-fusible safety switch rated 30A, 600V AC, 2-pole in NEMA 4X enclosure.This Siemens HNF261S is a 2-pole heavy duty safety switch with 30 amp rating and 600 VAC/VDC voltage rating. It features a NEMA 4X stainless steel enclosure, lever actuator, and DPST contact form with 200kAIC interrupting capacity at 600V.

• Amperage Rating: 30A
• Voltage Rating: 600 VAC/VDC
• Poles: 2
• Contact Form: DPST
• Enclosure Type: NEMA 4X
• Interrupt Rating: 200kAIC at 600V
• Series: HNF
• Horsepower Rating: 10 HP

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HNF261S
• Manufacturer : Siemens
• Brand : Siemens
• Category : Switch
• Item Subcategory : Disconnect
• Section : Non-Fusible Disconnect Switch
• Family : VBII Series
• Type : HNF
• Voltage : 600 AC AC
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 200kA@600V
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : NEMA 4X
• Compatible Frames : PGP

Product Data

• UPC : 783643174092
• GTIN : 00783643174092
• Country of Origin : Mexico
• Dimensions : 16.535 x 11.811 x 7.874 inch
• Weight : 14.573
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Certification : UL listed
