Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
HMDLDC3800F

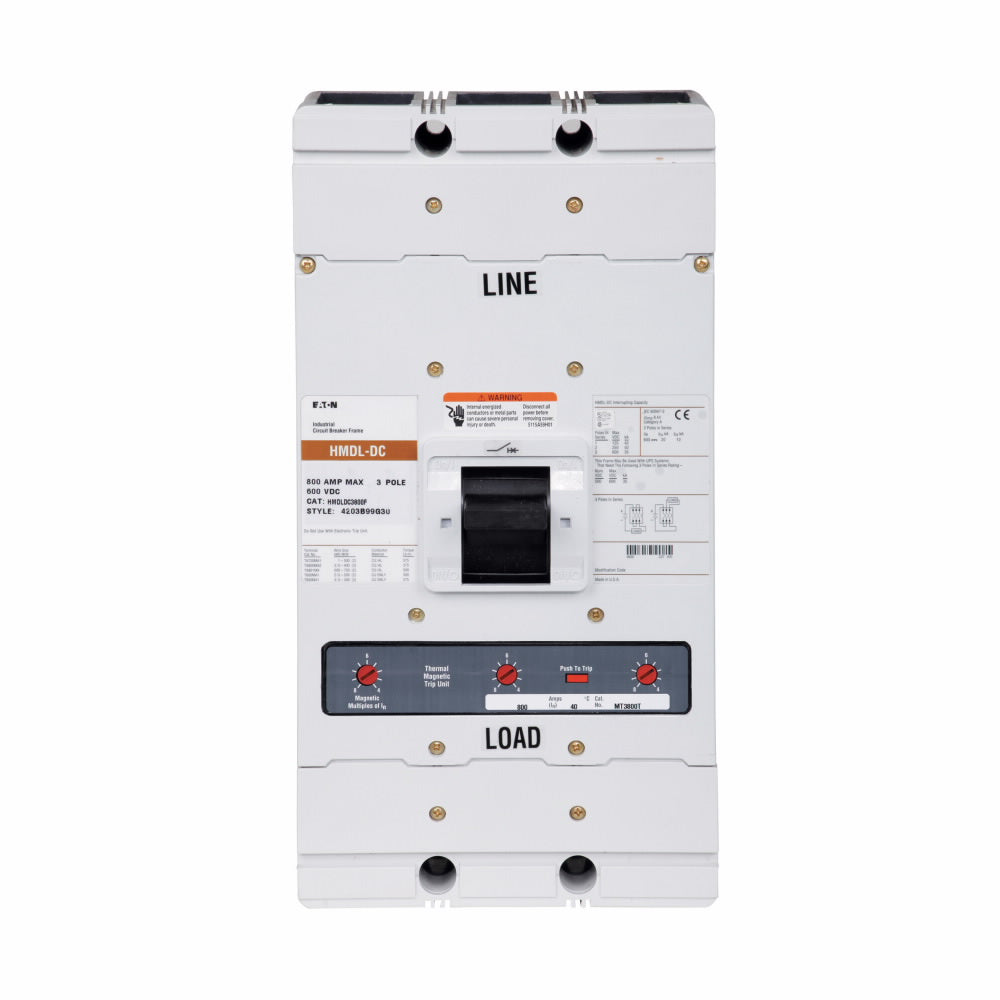

HMDLDC3800F is an Eaton Series C MDL-frame molded case circuit breaker frame designed for 3-pole applications with an 800 amp rating.This bolt-on frame breaker supports up to 600 VAC and features a thermal magnetic trip unit with high interrupting capacity of 100 kA at 240 VAC and 65 kA at 480 VAC. It is UL listed and suitable for use in 50/60 Hz systems, providing reliable protection in industrial and commercial power distribution.
- Manufacturer: Eaton
- Series: C, MDL Frame
- Amperage: 800 A
- Voltage Rating: 600 VAC
- Poles: 3
- Interrupt Rating: 100 kA at 240 VAC, 65 kA at 480 VAC
- Mounting Type: Bolt-On
- Trip Unit: Thermal Magnetic
- Frequency: 50/60 Hz
- UL Listed
- Frame Only (no trip unit included)
- Weight: Approximately 26.2 lbs
Additional Information
This item is Frame only as definded by the part number. That means it is only the circuit breaker frame, and no lugs or trip unit is included with the frame.
Specifications
- Part Number: HMDLDC3800F
- Manufacturer : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : HMDLDC
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 35kA@600V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : M Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 782114859643
- GTIN : 00782114859643
- Country of Origin : United States
- Dimensions : 4.06 in x 8.25 in x 8.25 in (Length/Depth x Height x Width)
- Weight : 23.8
- Certification : UL 489
