HMCP800X7W - Eaton 800A 600V 3-Pole Motor Circuit Protector Frame J-K Series C

HMCP800X7W

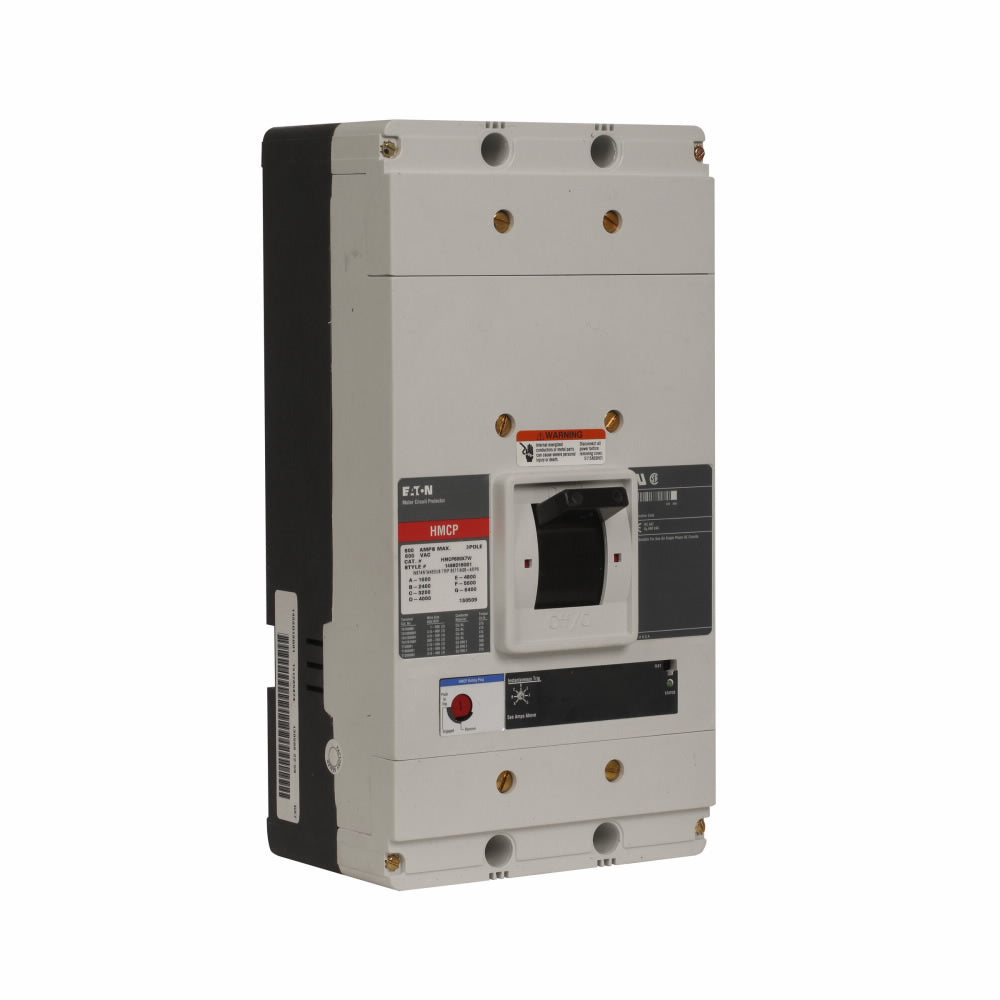

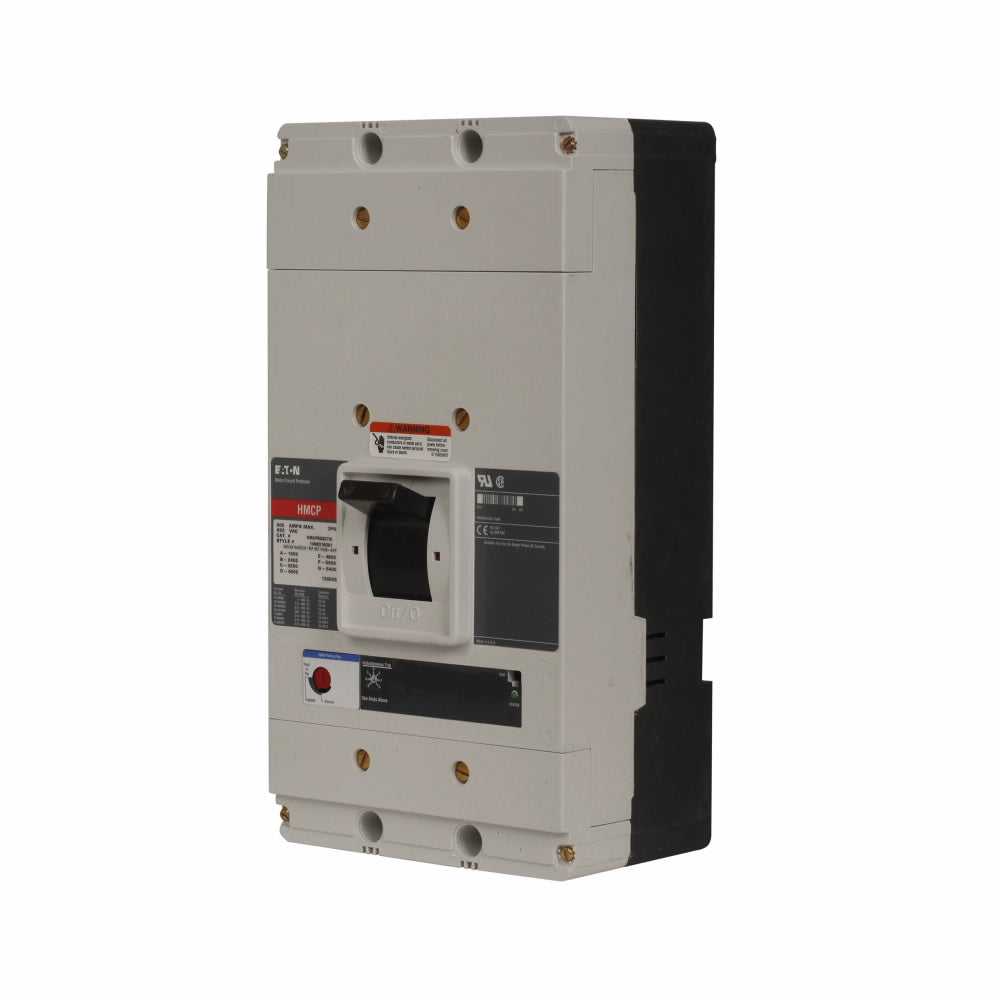

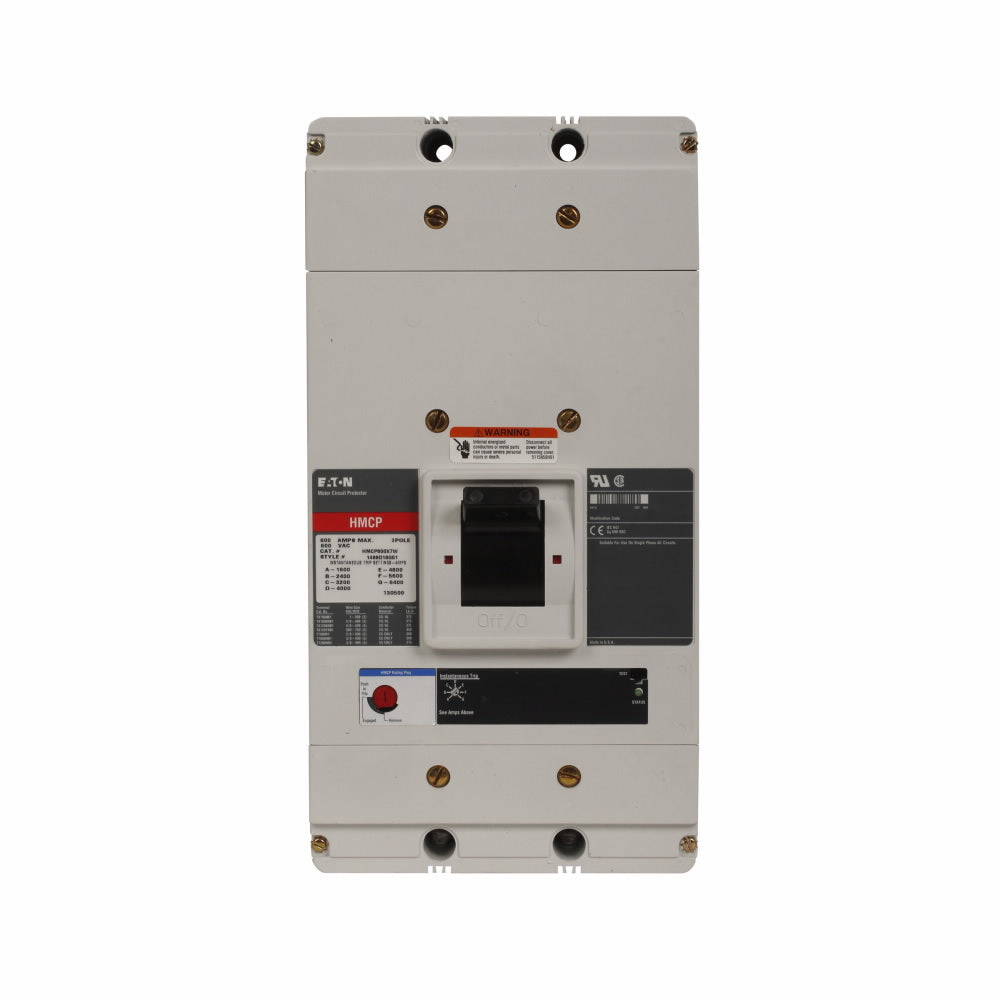

HMCP800X7W is an Eaton 800 amp, 600 volt, three-pole motor circuit protector designed for reliable motor protection.This molded case circuit breaker features a Frame J-K size with a magnetic trip range of 1600-6400 A, Series C frame, and is rated for 600 VAC and 250 VDC applications. It comes without terminals and provides instantaneous magnetic trip protection for motor circuits. The device is UL Listed and CSA Certified.

• Amperage Rating: 800 A
• Voltage Rating: 600 V AC, 250 V DC
• Number of Poles: 3
• Frame Size: J-K
• Series: C
• Trip Unit: Magnetic, instantaneous only
• Magnetic Trip Range: 1600-6400 A
• Mounting Type: Bolt-On
• Terminals: Without terminals
• Certifications: UL Listed, CSA Certified
• Weight: 29 lb
• Warranty: 1 year from installation or 18 months from shipment

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: HMCP800X7W
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HMCP
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 50kA@480V
• Connection : Bolt-On
• Functions : I - Instantaneous
• Frame Size : N Frame
• Protection : Magnetic Only

Product Data

• UPC : 782114410646
• GTIN : 00782114410646
• Country of Origin : United States
• Dimensions : 4.06 in x 16 in x 8.25 in (Length/Depth x Height x Width)
• Weight : 29
• Certification : CSA Certified,UL Listed
