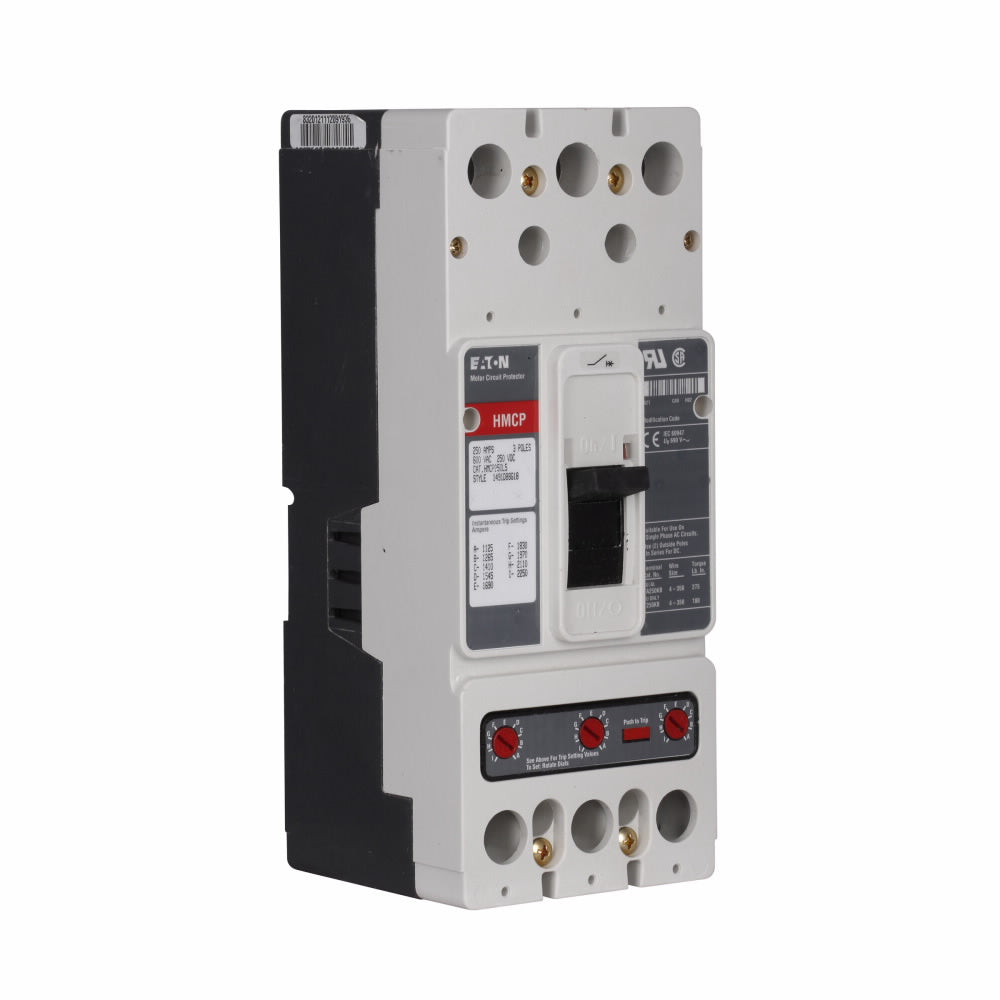

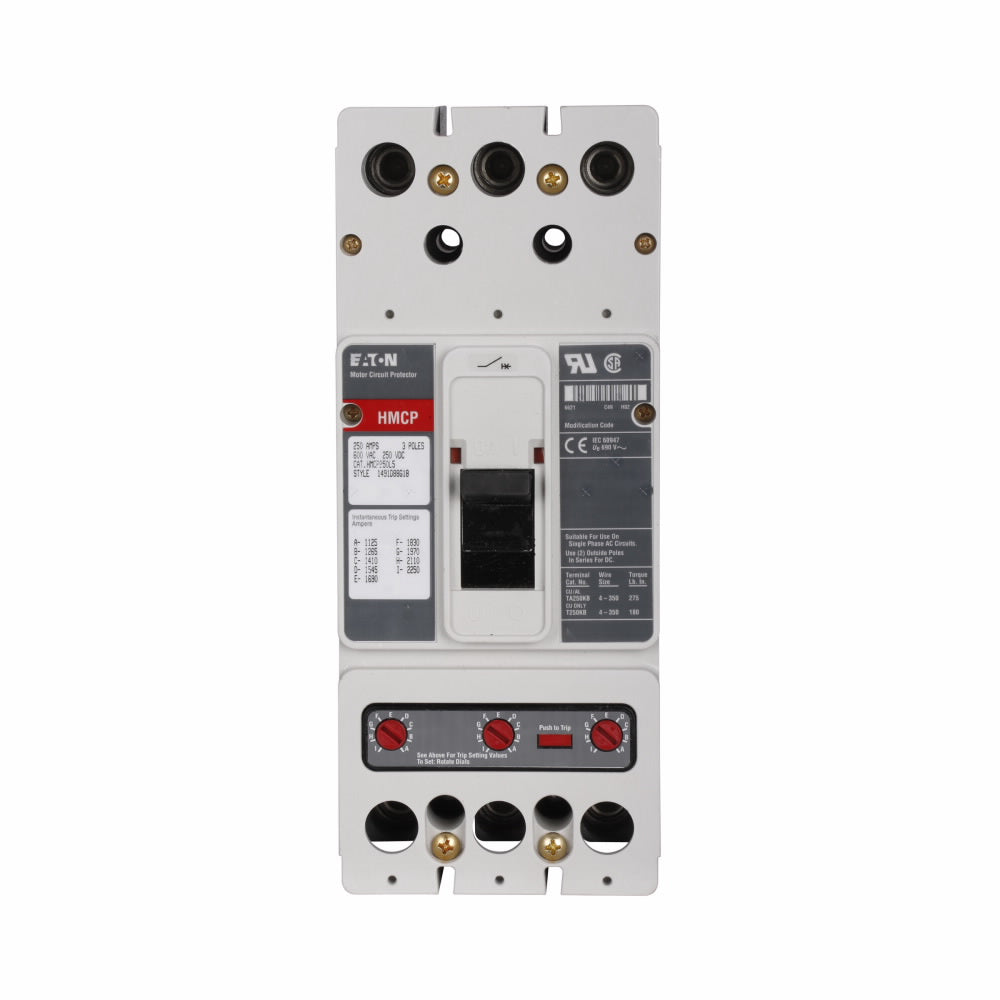

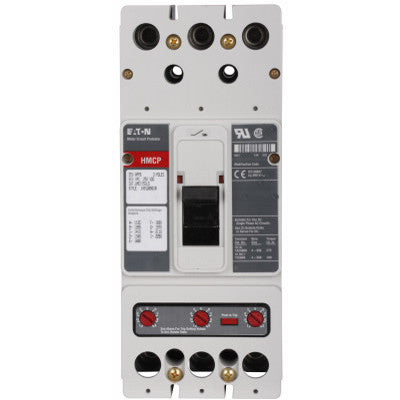

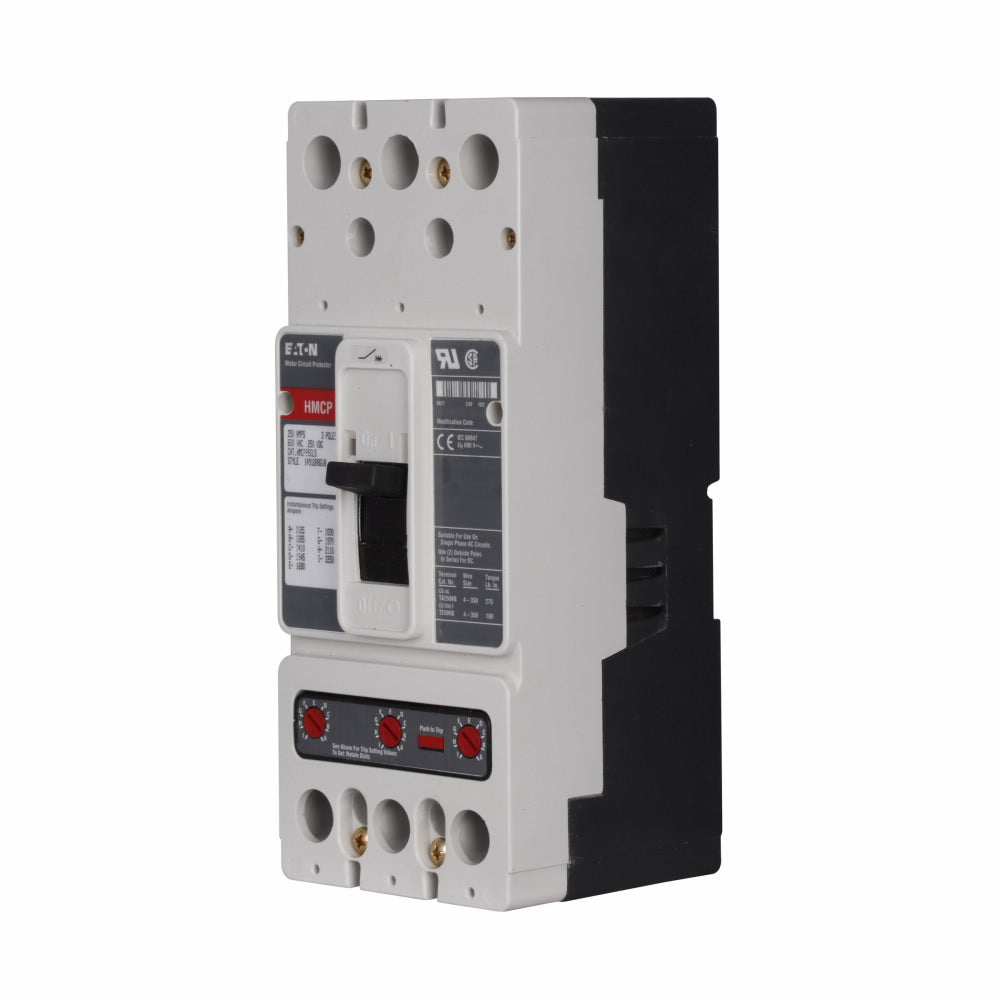

HMCP250W5W - Westinghouse 250A 600V 3 Pole Molded Case Circuit Breaker

HMCP250W5W

HMCP250W5W is a 3 pole, 600 volt, 250 ampere rated molded case circuit breaker manufactured by Westinghouse for reliable motor circuit protection.

The HMCP250W5W features a J frame design with magnetic trip technology and an interrupt rating of 35kA at 480V. This motor circuit protector is engineered for industrial applications requiring dependable overcurrent protection and fast response times. The breaker operates with a magnetic trip range of 1250 to 2500 amperes and supports both 600 VAC and 250 VDC maximum voltage ratings.

• Part Number: HMCP250W5W
• Manufacturer: Westinghouse
• Amperage Rating: 250 Amps
• Voltage Rating: 600 VAC, 250 VDC
• Poles: 3 Pole
• Frame Size: J Frame
• Type: Molded Case Circuit Breaker
• Trip Unit: Magnetic
• Interrupt Rating: 35kA @ 480V
• Magnetic Trip Range: 1250 to 2500 Amperes
• Series: Series C
• Connection: Feed Thru

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Lugs are not included

Specifications

• Part Number: HMCP250W5W
• Manufacturer : Westinghouse
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HMCP
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : I - Instantaneous
• Protection : Magnetic Only

Product Data

• UPC : 786679072929
• GTIN : 00786679072929
• Country of Origin : Dominican Republic
• Dimensions : 4.06 in x 10 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 12.5
• Certification : CSA Certified,UL Listed
