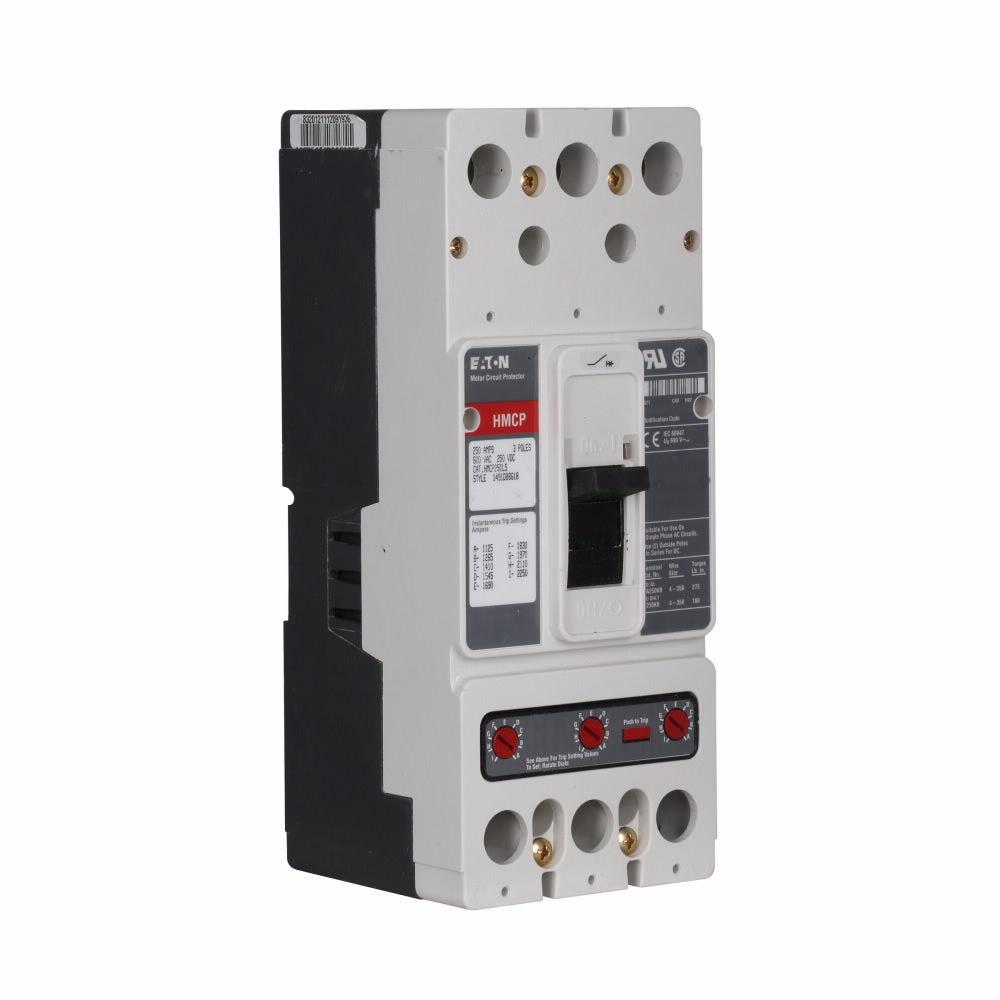

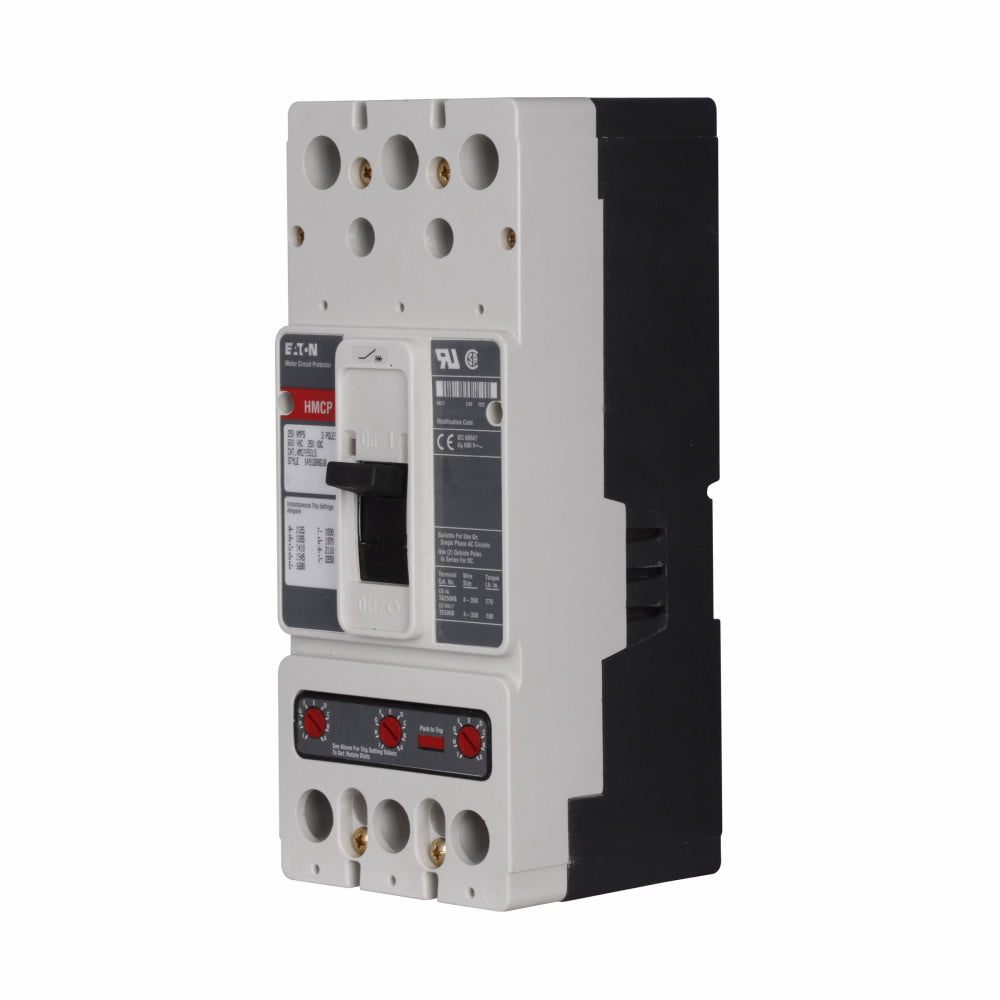

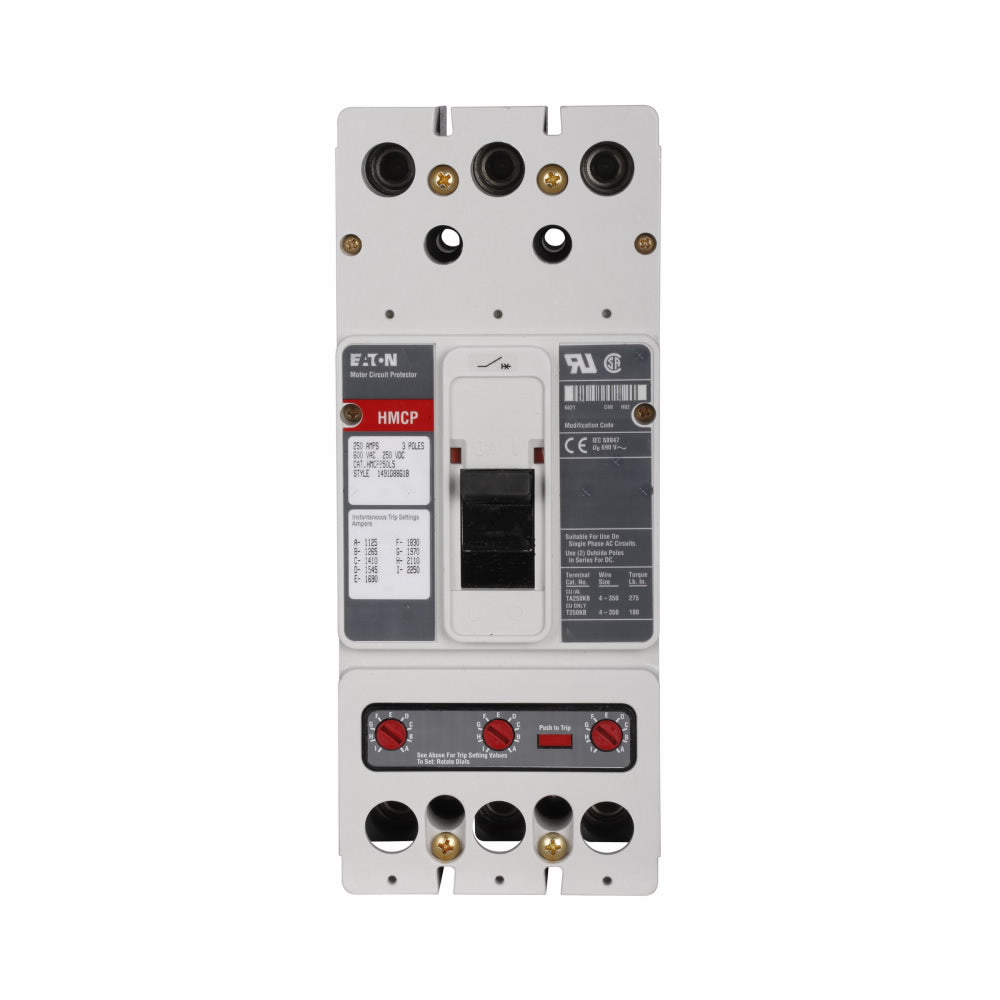

HMCP250G5 - Eaton 250A 600V 3 Pole Motor Circuit Protector J Frame Magnetic Trip

HMCP250G5

HMCP250G5 is a three-pole motor circuit protector designed for reliable protection in industrial applications. This Eaton device features a J frame and is rated for 250A at 600V AC, making it suitable for demanding environments. The HMCP250G5 is a molded case circuit breaker with a magnetic non-interchangeable trip unit, providing instantaneous-only protection. It is engineered for panel mounting and is certified to UL, CSA, and CE standards. The interrupt rating is 489 kAIC, ensuring robust fault protection.

• Part Number: HMCP250G5
• Manufacturer: Eaton
• Amperage: 250A
• Voltage: 600V AC, 250V DC
• Poles: 3
• Mounting Type: Panel
• Interrupt Rating: 489 kAIC
• Series/Frame: J Frame
• Trip Unit: Magnetic Non-interchangeable, Instantaneous-only
• Certifications: UL, CSA, CE
• Weight: 12.5 lbs
• Dimensions: 10" x 4.13" x 4.06"

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HMCP250G5
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : I - Instantaneous
• Protection : Magnetic Only

Product Data

• UPC : 786679150436
• GTIN : 00786679150436
• Country of Origin : Dominican Republic
• Dimensions : 4.06 in x 10 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 12.5
• Certification : UL Listed,CSA Certified
