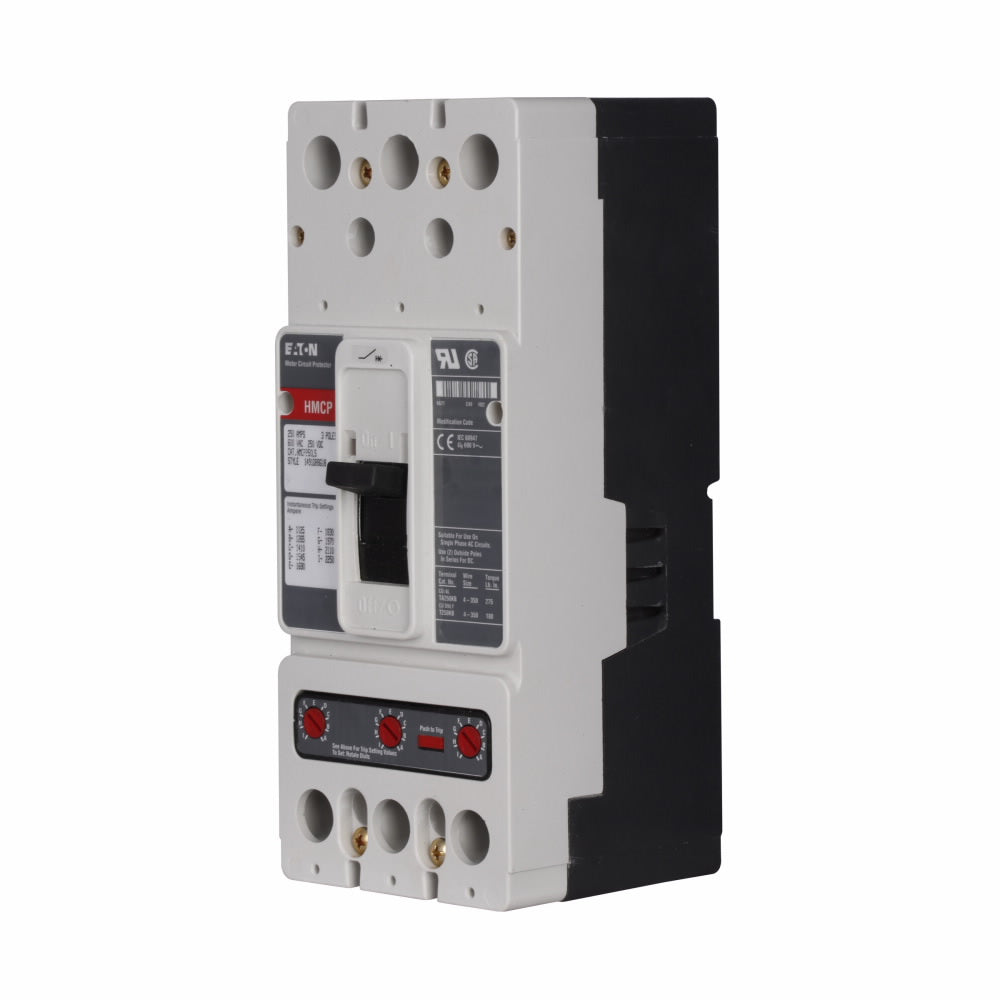

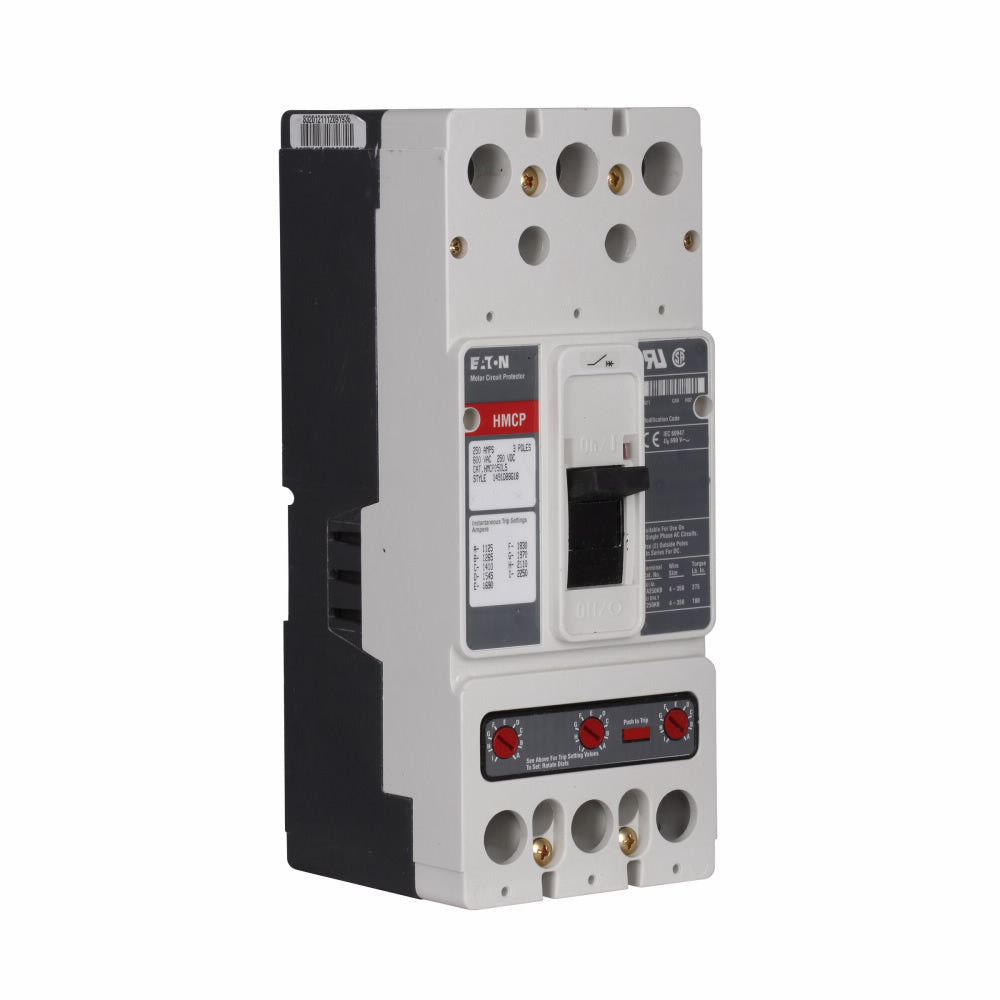

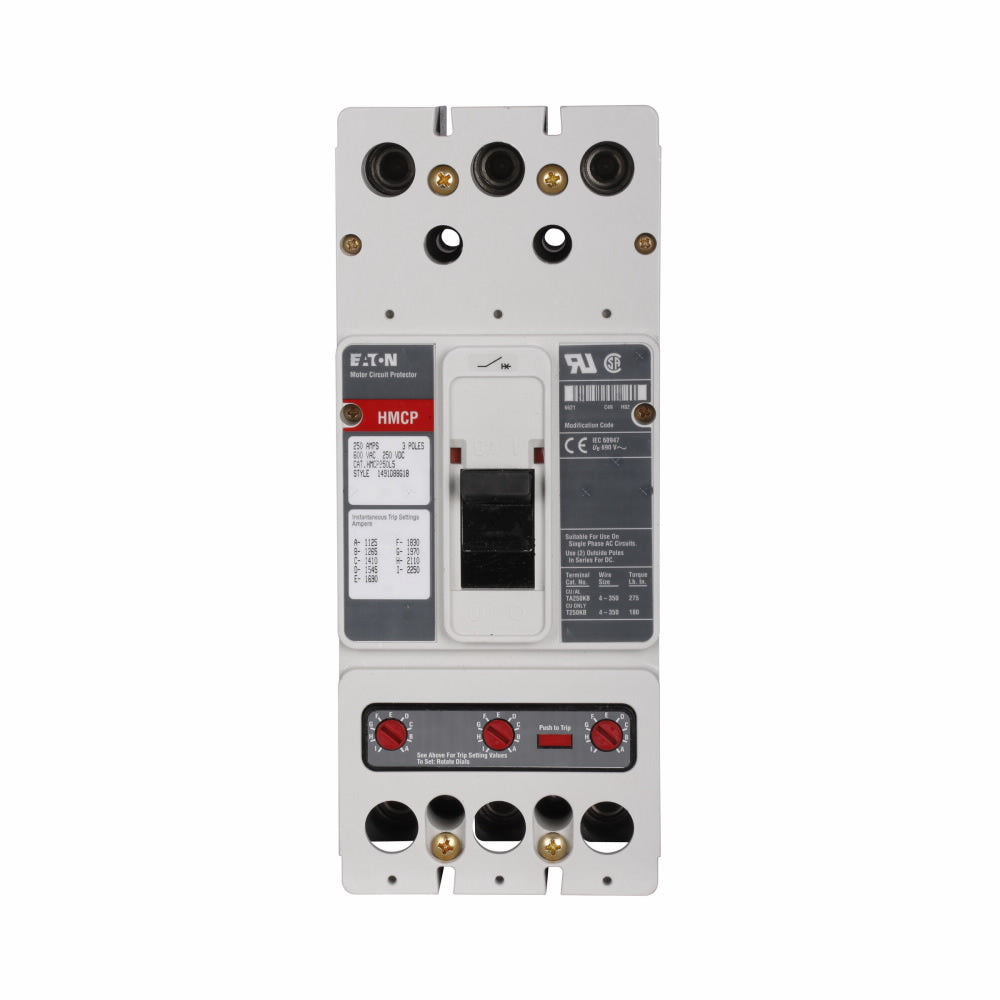

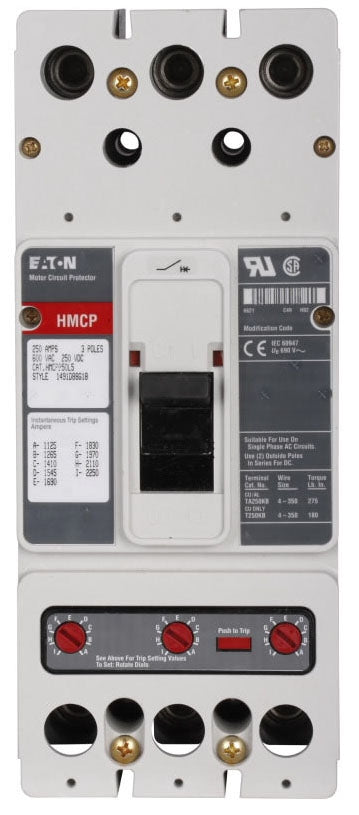

HMCP250D5C - Eaton 250A 600V 3-Pole Motor Circuit Protector Molded Case Circuit Breaker

HMCP250D5C

HMCP250D5C is a 3-pole, 250 amp motor circuit protector molded case circuit breaker from Eaton designed for reliable motor protection.This Eaton HMCP250D5C circuit breaker features a 600V AC rating, magnetic trip unit for instantaneous protection, and is part of the C Series with a J frame. It supports feed-thru connection type and offers a 35kA interrupt rating at 480V, suitable for industrial motor control applications.

Key Specifications
• Amperage: 250A
• Voltage: 600V AC, 250V DC
• Poles: 3
• Frame Type: J Frame, Series C
• Trip Unit: Magnetic (Instantaneous)
• Interrupt Rating: 35kA @ 480V
• Connection Type: Feed-Thru (Line/Load)
• Category: Motor Circuit Protector (Molded Case Circuit Breaker)
• Manufacturer: Eaton
• Certifications: UL Listed, CSA Certified (typical for series)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HMCP250D5C
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HMCP
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : I - Instantaneous
• Frame Size : J Frame
• Protection : Magnetic Only



Product Data

• UPC : 786679151013
• GTIN : 00786679151013
• Country of Origin : Dominican Republic
• Dimensions : 4.06 in x 10 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 12.5
• Certification : CSA Certified,UL Listed
