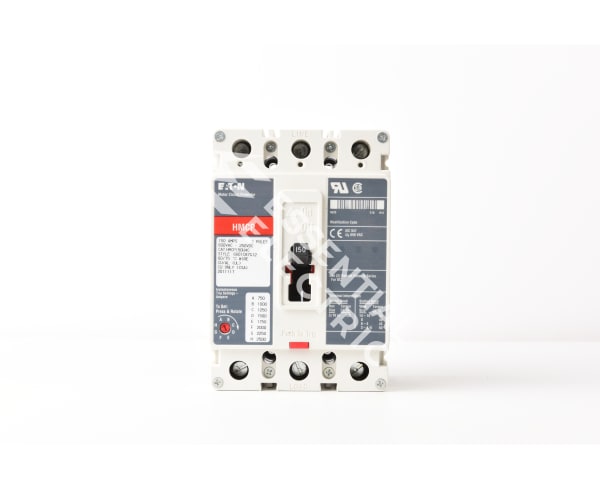

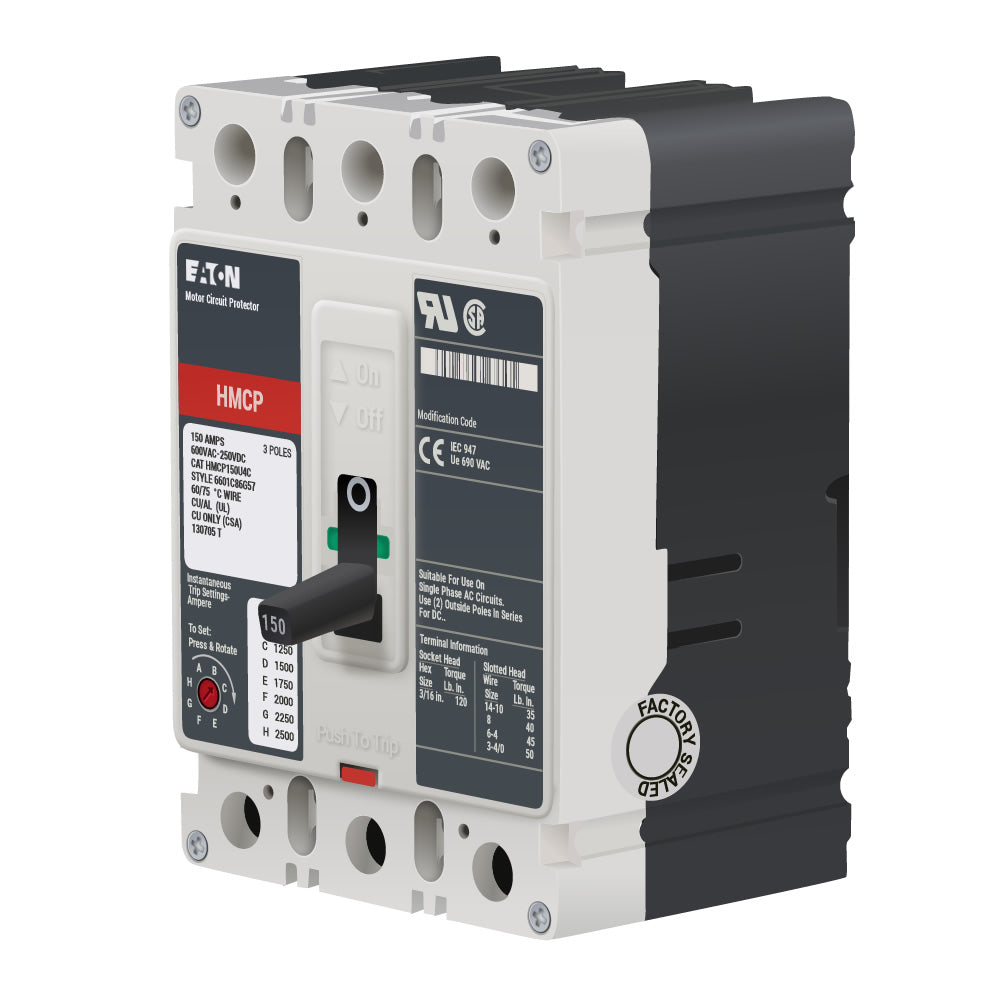

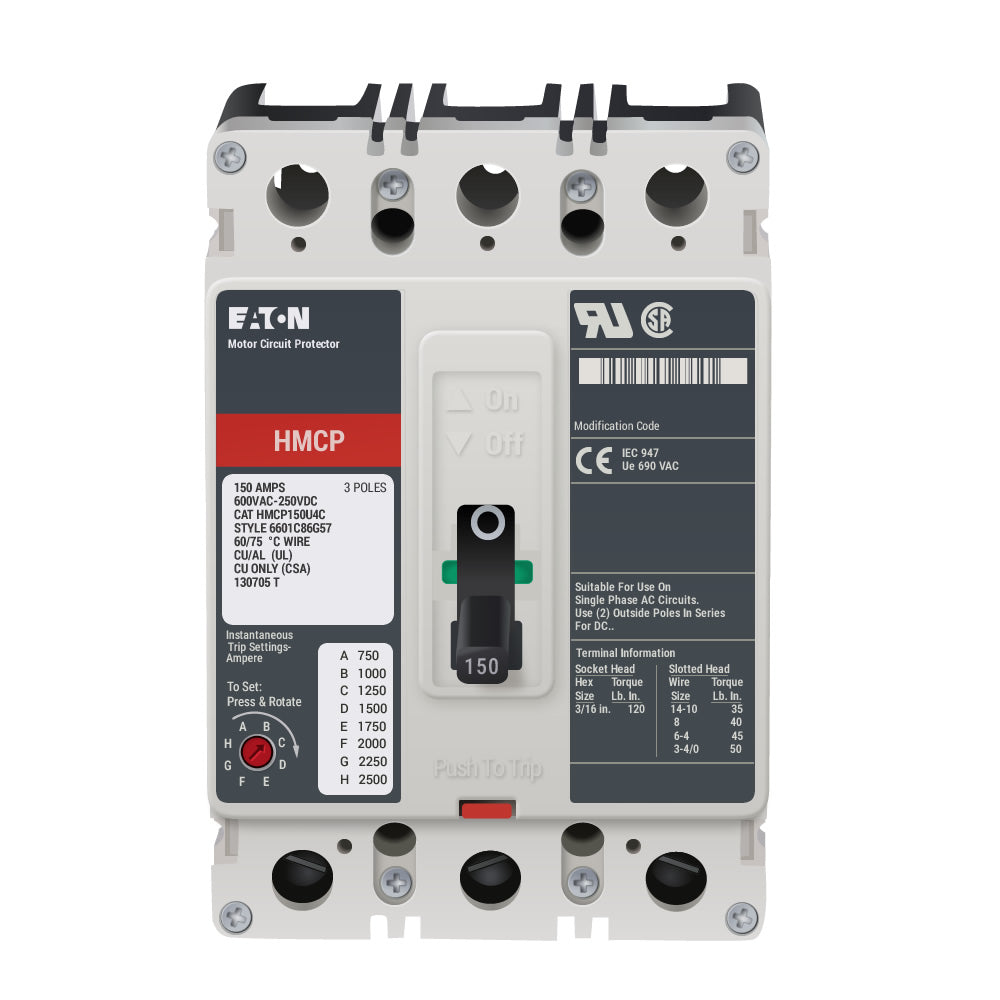

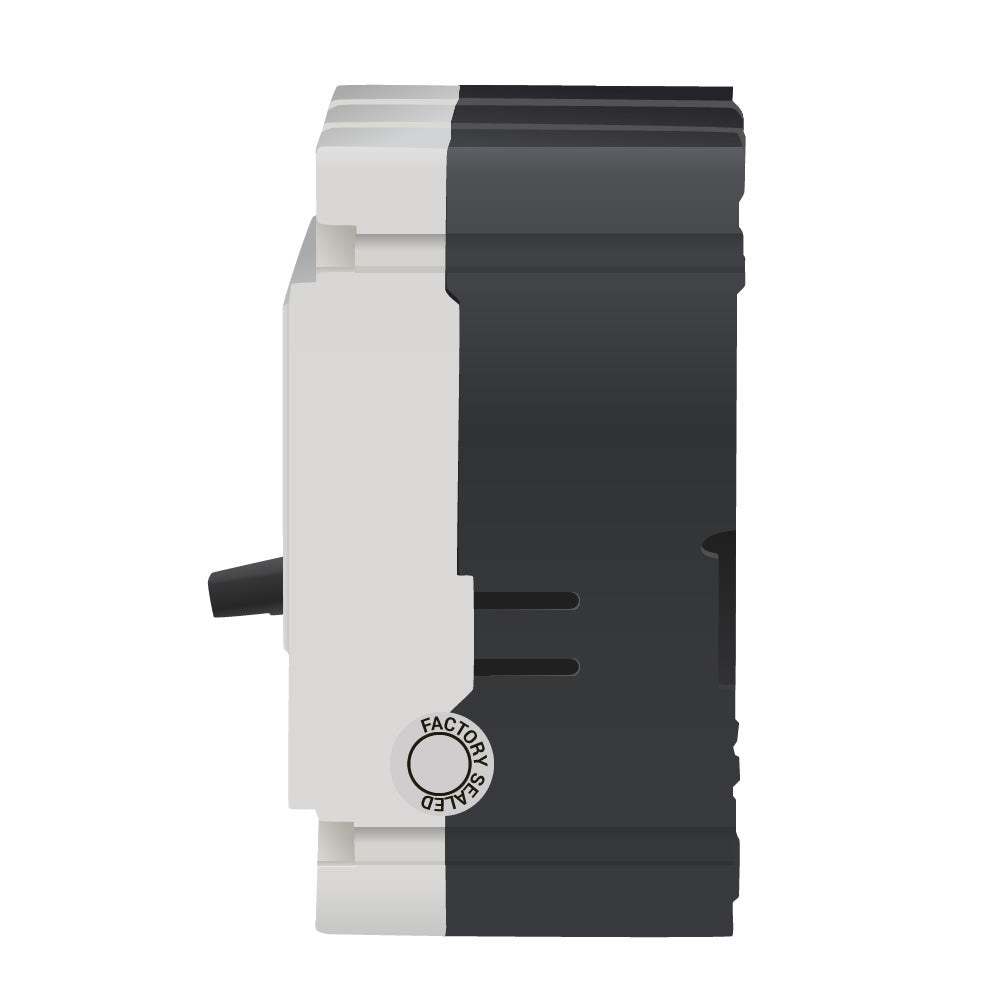

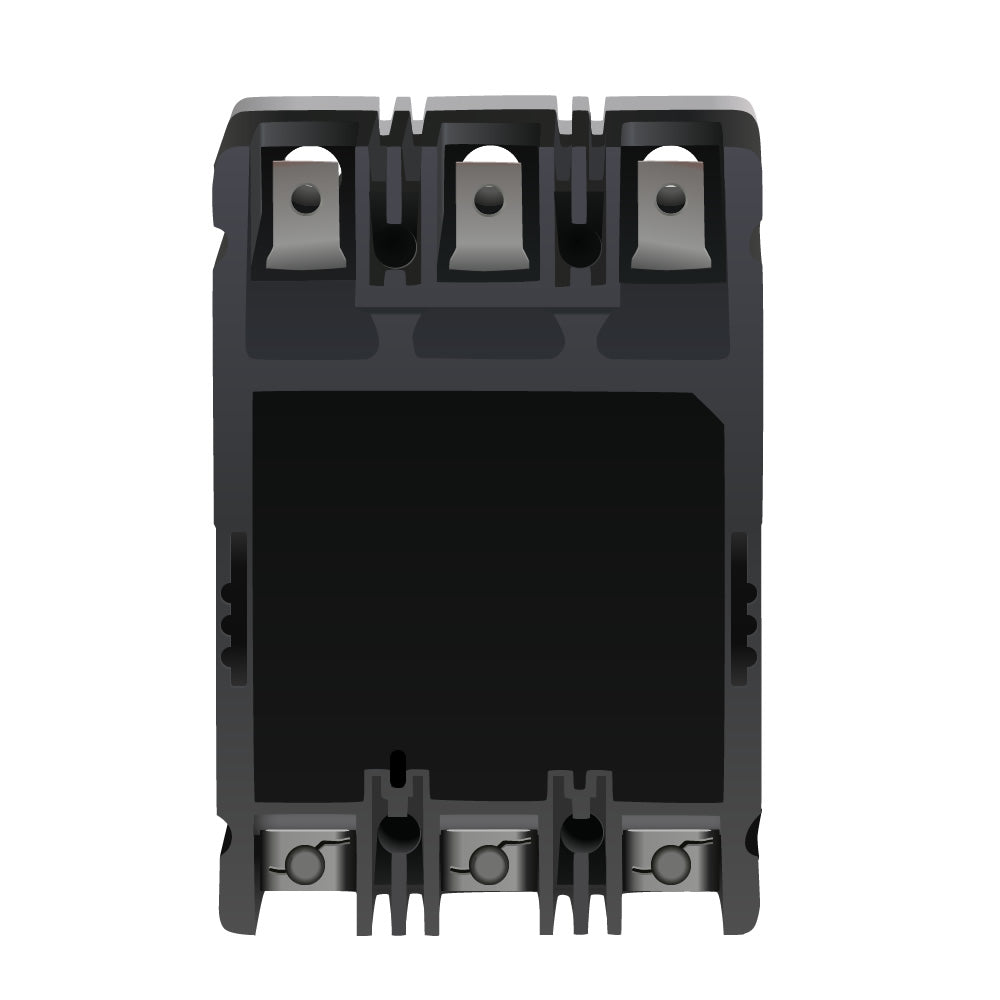

HMCP150U4C - Cutler Hammer 150 Amp 3 Pole 600VAC Magnetic Motor Circuit Protector, F Frame, Series C, Feed-Thru Mount, 65kAIC@480V, UL/CSA Certified

HMCP150U4C

HMCP150U4C is a Cutler Hammer magnetic motor circuit protector designed for industrial motor control applications.

This molded case circuit breaker features instantaneous magnetic trip protection only, with no thermal overload capability—overload protection must be provided separately. It is engineered for reliable short-circuit protection in demanding environments and is compatible with NEMA 4 starters.

Key Specifications
• Amperage: 150A
• Voltage: 600VAC, 250VDC
• Poles: 3
• Mounting Type: Feed-Thru
• Interrupt Rating: 65kAIC@480V
• Series/Frame: Series C, F Frame
• Trip Unit: Magnetic, non-interchangeable, instantaneous-only (750–2500A trip setting)
• Certifications: UL Listed, CSA Certified
• Terminal Material: Non-aluminum
• Motor Full Load Amperes: 57.0–130.7A
• NEMA Starter Size: 4
• Dimensions: 8" L x 5" W x 5" H
• Weight: 4.5 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HMCP150U4C
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HMCP
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : I - Instantaneous
• Terminal Connection : Line/Load Lug
• Frame Size : 250A/J
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Magnetic Only
• Phase Connection : ABC

Product Data

• UPC : 786679150870
• GTIN : 00786679150870
• Country of Origin : Dominican Republic
• Dimensions : 8 in x 5 in x 5 in (Length/Depth x Height x Width)
• Weight : 4.5
• Panel Type : Eaton Motor Starters, Rockwell Motor Starters
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
