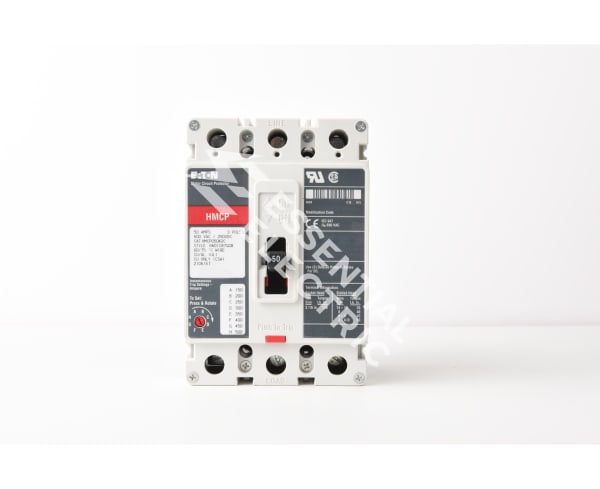

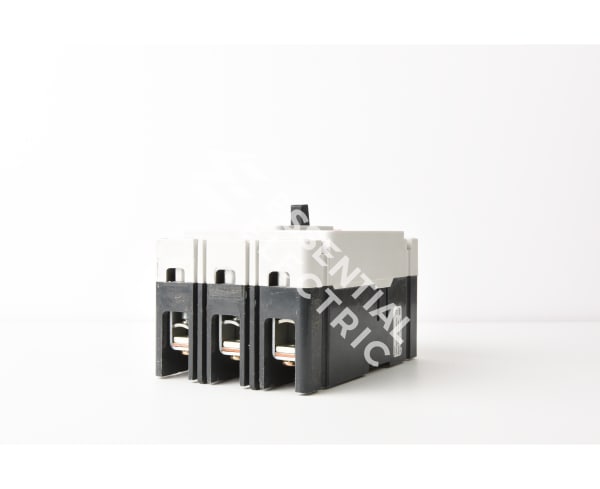

HMCP050K2C - Cutler Hammer 50A 600V 3-Pole Motor Circuit Protector F Frame

HMCP050K2C

HMCP050K2C is a Cutler Hammer 50 Amp, 600 Volt, 3-pole motor circuit protector designed for reliable motor protection in industrial applications.This molded case circuit breaker features an F frame size and instantaneous magnetic trip unit with a magnetic trip range of 50-500 Amps. It includes feed-thru connection with non-interchangeable trip and non-aluminum line and load side lug terminals. The breaker is UL Listed and CSA Certified, suitable for three-phase motor circuit protection with a motor full load amperage range of 11.5 to 42.1 Amps.

Key Specifications
• Amperage: 50 A
• Voltage Rating: 600 V
• Poles: 3
• Frame Type: F Frame (Series C)
• Trip Unit: Magnetic Only, Instantaneous Trip
• Interrupt Rating: 65kA @ 480V
• Mounting Type: Molded Case, Feed-Thru Connection
• Terminal Material: Non-Aluminum
• Certifications: UL Listed, CSA Certified
• Motor Full Load Amps: 11.5 - 42.1 A

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HMCP050K2C
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HMCP
• Voltage : 600
• Amperage : 50
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : I - Instantaneous
• Terminal Connection : Line/Load Lug
• Frame Size : 250A/J
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Magnetic Only
• Phase Connection : ABC

Product Data

• UPC : 786679150832
• GTIN : 00786679150832
• Country of Origin : Dominican Republic
• Dimensions : 8 in x 5 in x 5 in (Length/Depth x Height x Width)
• Weight : 4.5
• Panel Type : Eaton Motor Starters, Rockwell Motor Starters
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
