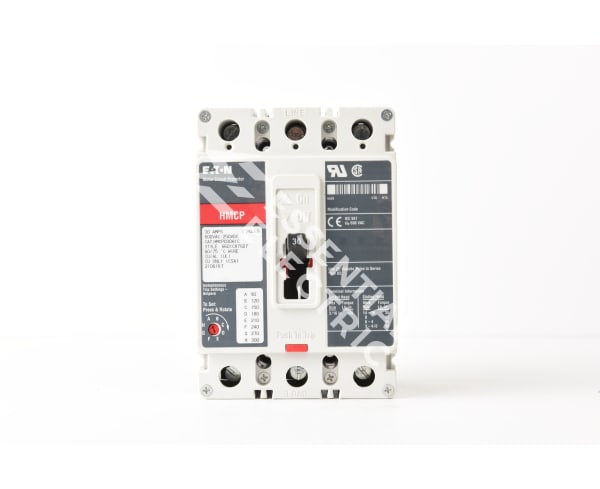

HMCP030H1C - Cutler Hammer 30A 600V 3-Pole Magnetic Motor Circuit Protector, Frame J-K, Series C, Non-Aluminum, UL/CSA Certified

HMCP030H1C

HMCP030H1C is a Cutler Hammer 30A, 600V, 3-pole magnetic motor circuit protector designed for reliable motor circuit protection.

This molded case circuit breaker features a magnetic-only trip unit with an adjustable range of 90–300A, providing instantaneous protection for motor circuits. It is part of the C Series with a Frame J-K size, includes both line and load side terminals, and is constructed with non-aluminum materials for enhanced durability. The HMCP030H1C is panel-mounted and is certified for use in a wide range of industrial applications.

Key Specifications
• Amperage: 30A
• Voltage: 600V AC, 250V DC
• Poles: 3
• Mounting Type: Panel
• Interrupt Rating: Not specified in available data
• Series/Frame: C Series, Frame J-K
• Trip Unit: Magnetic only, non-interchangeable, adjustable 90–300A
• Certifications: UL Listed, CSA Certified, CE
• Terminals: Line and load side lugs included
• Terminal Material: Non-aluminum
• Protection Type: Motor circuit protector
• Standards: UL 489, CSA 22.2

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HMCP030H1C
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HMCP
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : I - Instantaneous
• Terminal Connection : Line/Load Lug
• Frame Size : 250A/J
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Magnetic Only
• Phase Connection : ABC

Product Data

• UPC : 786679150825
• GTIN : 00786679150825
• Country of Origin : Dominican Republic
• Dimensions : 8 in x 5 in x 5 in (Length/Depth x Height x Width)
• Weight : 4.5
• Panel Type : Eaton Motor Starters, Rockwell Motor Starters
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
