Product Info
- Manufacturer:Westinghouse
- Sub-Category:Trip Units & Programmers
Description
HMA3500T

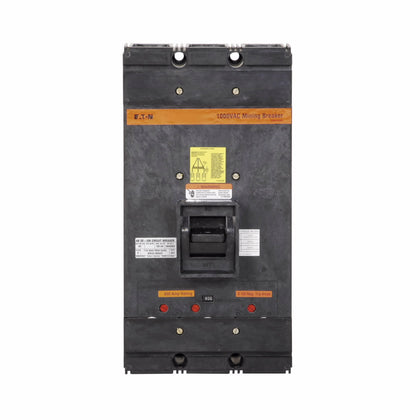

HMA3500T is a 3 Pole circuit breaker trip unit by Westinghouse rated for 500 Amps and 600 Volts. It is designed for use with MA/HMA breaker frames and provides reliable circuit protection.HMA3500T features a thermal magnetic trip unit suitable for industrial and commercial applications. It is UL Listed and compatible with 800 Amp frames, offering a 35kA interrupt rating at 480V. The unit uses a bolt-on mounting type and meets industry certifications for safety and performance.
- Part Number: HMA3500T
- Manufacturer: Westinghouse
- Amperage: 500 Amps
- Voltage Rating: 600 Volts
- Poles: 3
- Mounting Type: Bolt-on
- Interrupt Rating: 35kA at 480V
- Series/Frame: MA/HMA Frame
- Trip Unit: Thermal Magnetic
- Certifications: UL Listed
- Weight: Approx. 1.54 kg
Specifications
- Part Number: HMA3500T
- Manufacturer : Westinghouse
- Brand : Westinghouse
- Category : Circuit Breaker
- Item Subcategory : Trip Units & Programmers
- Family : MARK 75
- Type : HMA
- Voltage : 600
- Poles : 3
- Functions : LI - Long-Time and Instantaneous
- Frame Size : 500
- Amperage Maximum : 500
- Amperage Minimum : 500
- Protection : Thermal Magnetic
- Compatible Frames : MA,HMA
Product Data
- UPC : 786679190081
- GTIN : 00786679190081
- Country of Origin : United States
- Dimensions : 10.5 in x 6.8 in x 5.5 in (Length/Depth x Height x Width)
- Weight : 3.6
- Certification : UL Listed
