Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HLXD63B450L

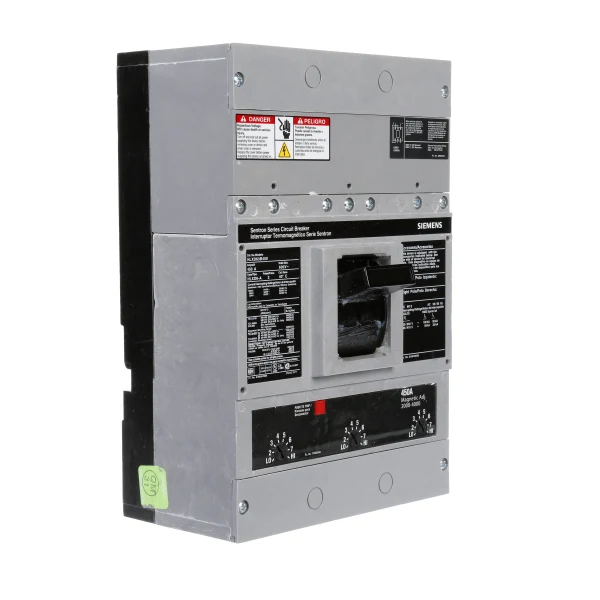

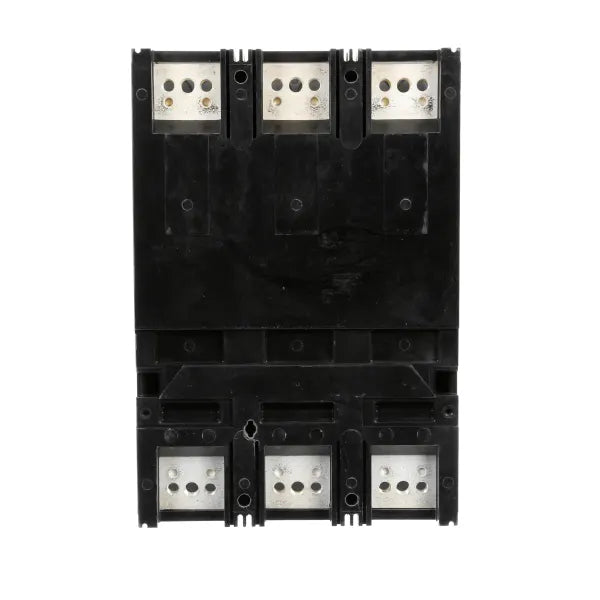

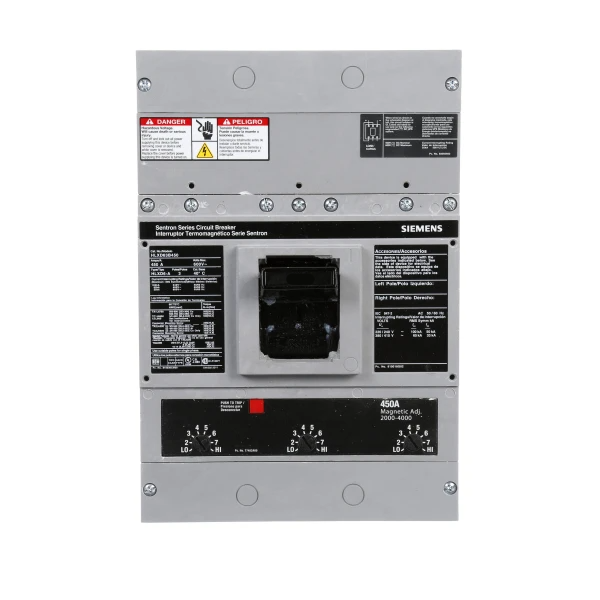

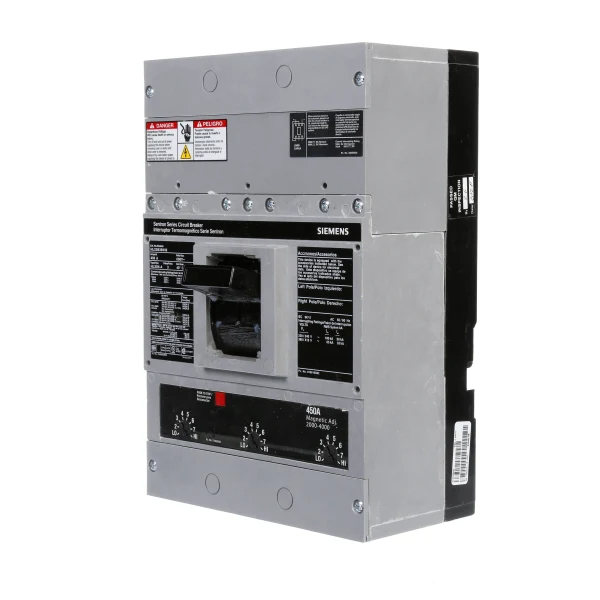

HLXD63B450L is a Siemens Sentron low voltage molded case circuit breaker designed for thermal-magnetic trip protection in industrial and commercial applications. This bolt-on MCCB provides reliable overload and short circuit protection with a 450 ampere rating at 600 volts across three poles. The breaker features a 65 kA breaking capacity at 480V and 35 kA at 600V, meeting UL 489 and IEC 60947-2 standards for safety and performance. The LD frame design accommodates line and load side lugs for flexible installation configurations.
- Amperage Rating: 450A
- Voltage: 600V
- Poles: 3
- Connection Type: Bolt-On
- Series: Sentron LD Frame
- Breaking Capacity: 65 kA at 480V, 35 kA at 600V
- Trip Unit: Thermal-Magnetic
- Protection Type: Overload and Short Circuit
- Certifications: UL 489, IEC 60947-2
- Dimensions: 22.0 cm W x 33.0 cm H x 17.0 cm D
- Weight: 9.5 kg
Specifications
- Part Number: HLXD63B450L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HLXD
- Voltage : 600
- Amperage : 450
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : LD Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 040892919820
- GTIN : 00040892919820
- Country of Origin : Mexico
- Dimensions : 12.992 x 8.661 x 6.693 inch
- Weight : 20.944
