Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HLXD63B450

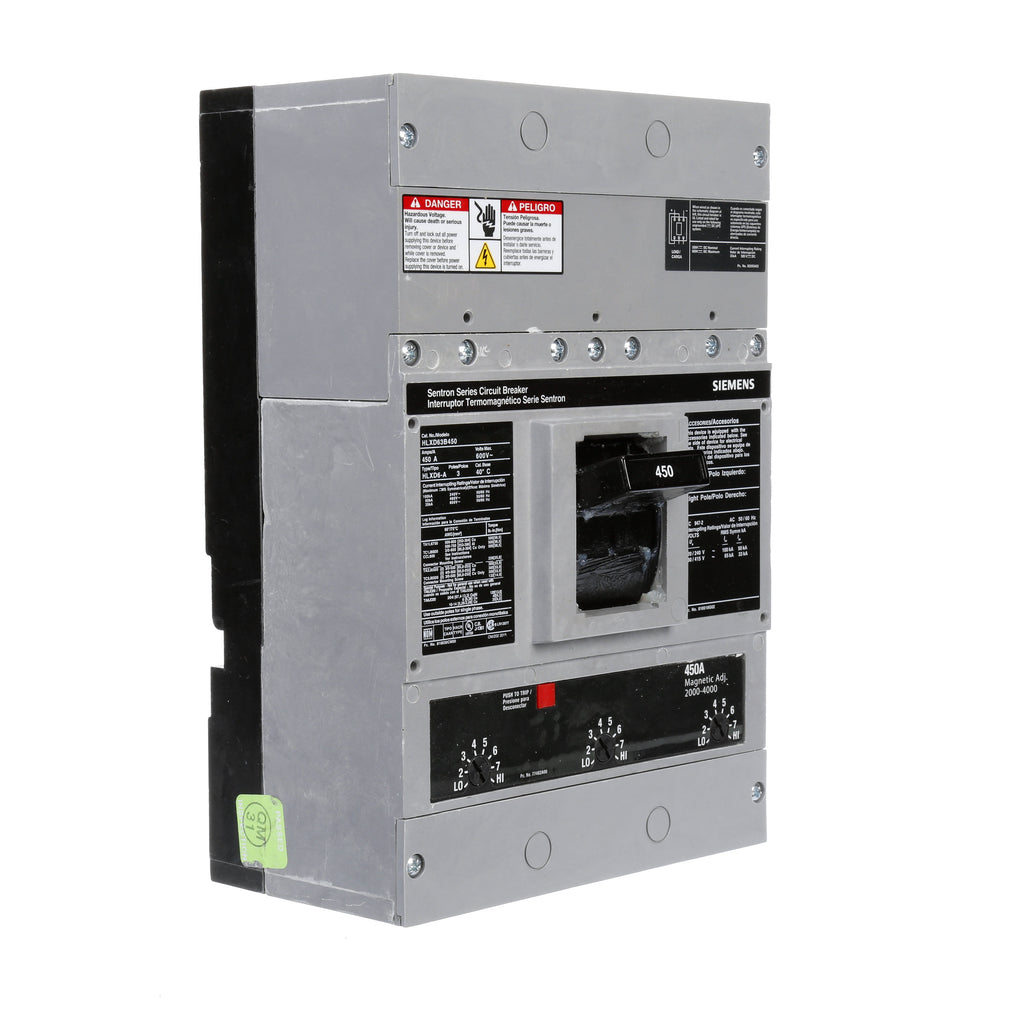

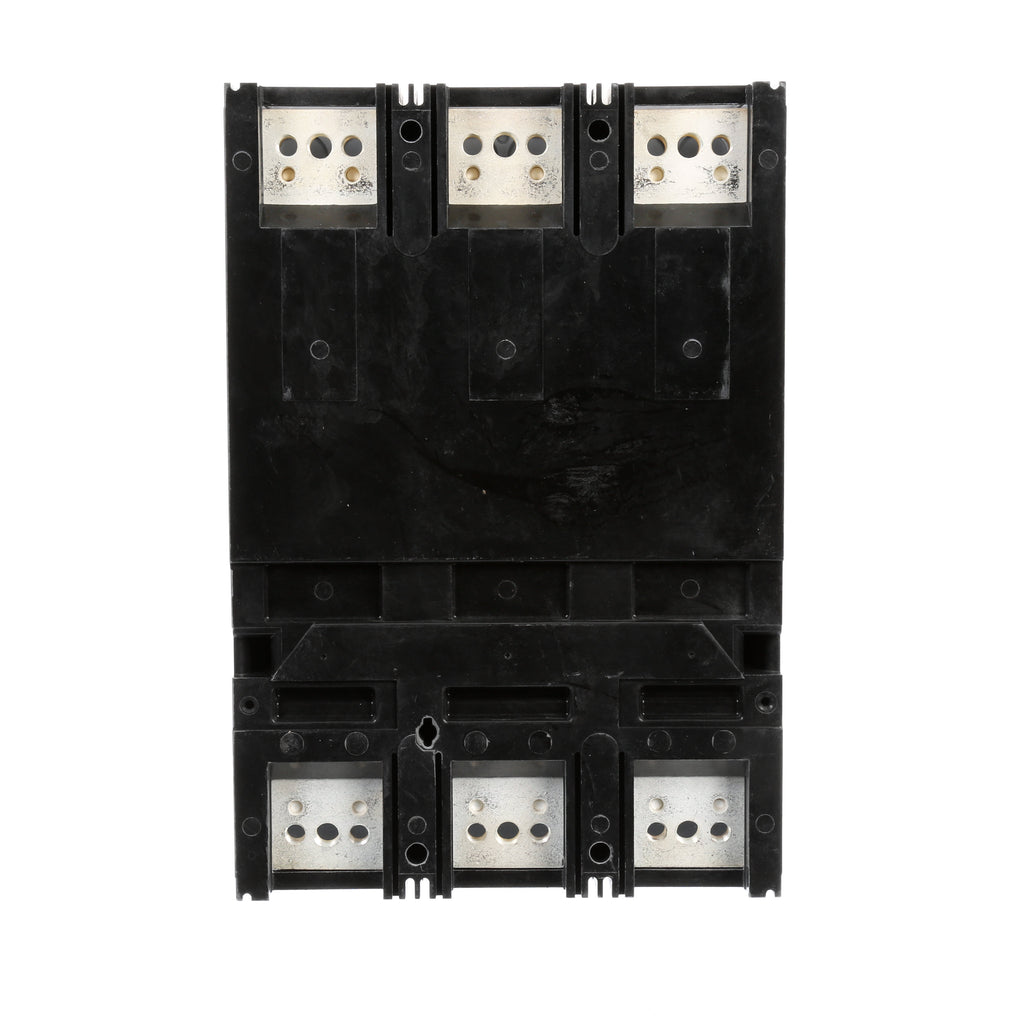

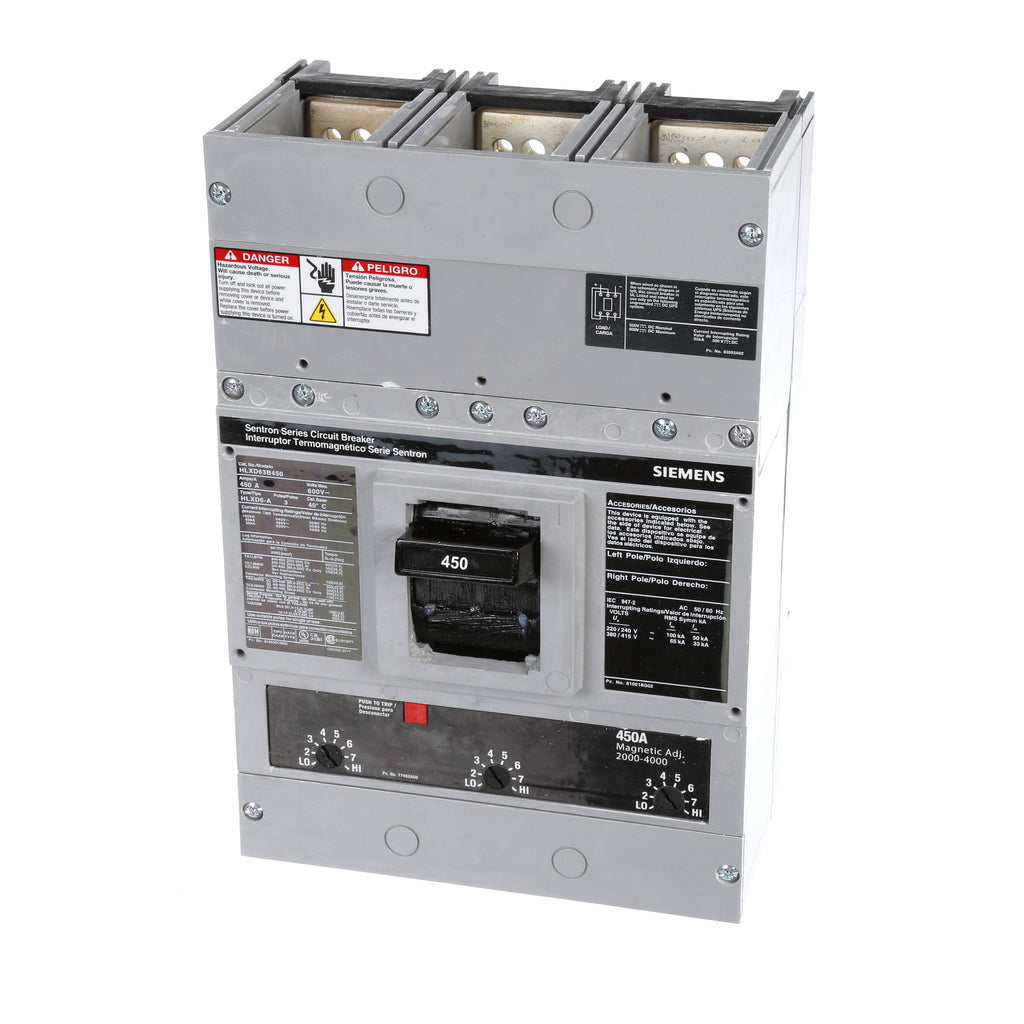

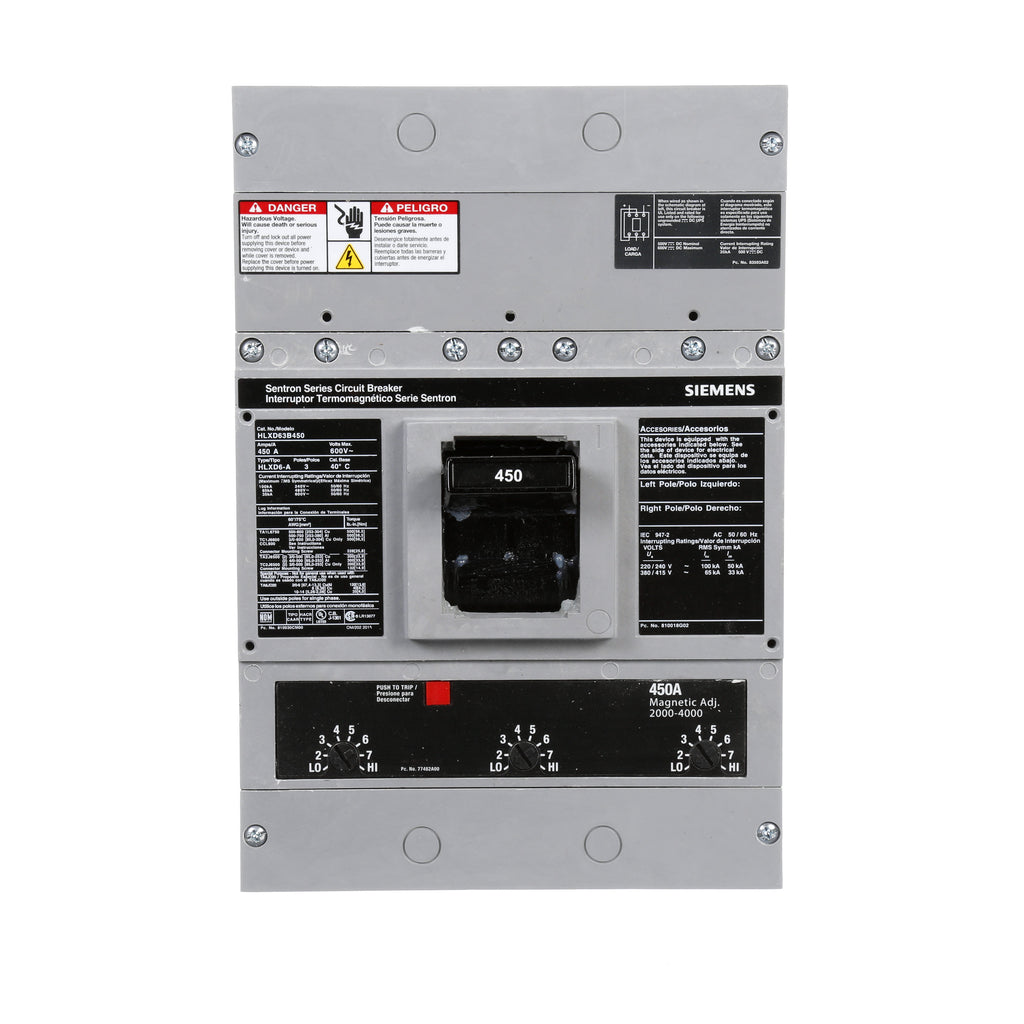

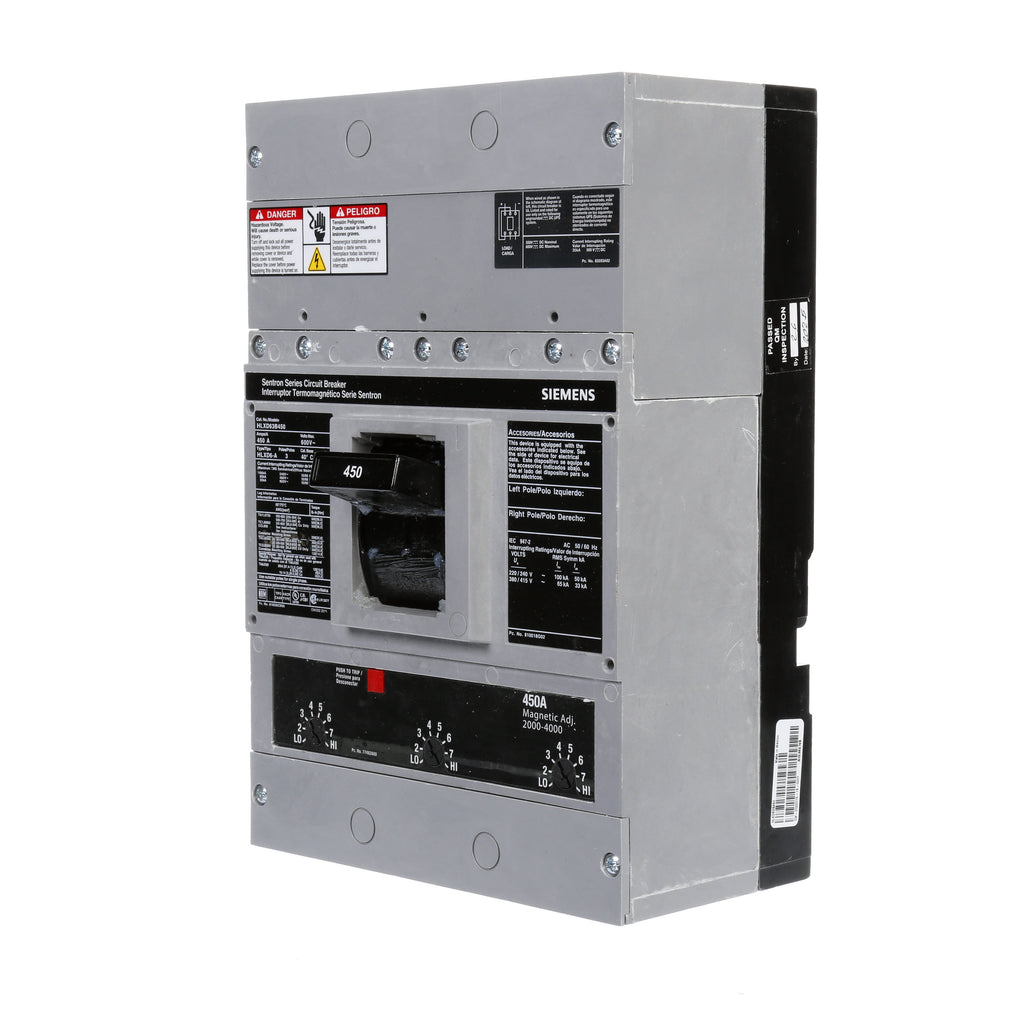

HLXD63B450 is a Siemens 450 amp, 3 pole, 600 volt molded case circuit breaker designed for high interrupting capacity applications.This Siemens LD frame breaker features a thermal magnetic trip unit with a mechanical static trip, providing reliable protection with an interrupt rating of 65kA at 480V and 35kA at 600V. It is bolt-on mounted and UL 489 and UL 1066 certified, suitable for industrial and commercial power distribution systems.
- Key Specifications
- Amperage: 450A
- Voltage Rating: 600V AC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 65kA at 480V, 35kA at 600V
- Frame/Series: LD Frame (Sentron)
- Trip Unit: Thermal Magnetic, Mechanical Static Trip
- Certifications: UL 489, UL 1066, CE
- Dimensions: Approx. 7.5" W x 5.44" D x 11" H
- Terminal Type: Line/Load Lug
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: HLXD63B450
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HLXD
- Voltage : 600
- Amperage : 450
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : LD Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 783643314931
- GTIN : 00783643314931
- Country of Origin : Mexico
- Weight : 18.301
