Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HLMD63B700

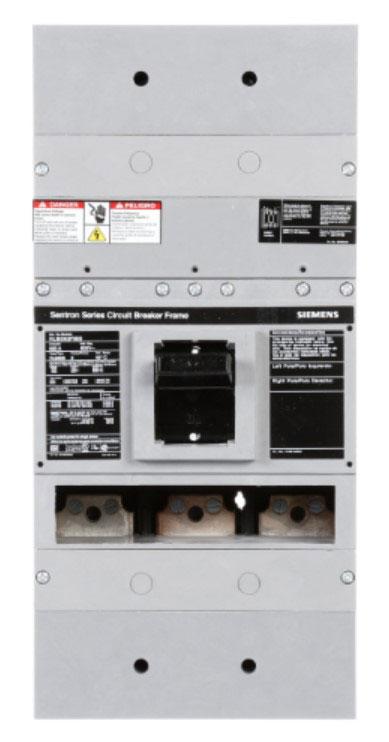

HLMD63B700 is a Siemens 3-pole molded case circuit breaker with a 700 ampere rating and 600 volt AC capacity, designed for reliable thermal magnetic protection.This Siemens HLMD63B700 breaker features a thermal magnetic trip unit, LMD frame, and a high interrupting rating of 50kA at 600VAC (65kA at 480VAC). It supports 3-phase bolt-on mounting and is suitable for industrial power distribution applications requiring adjustable trip functions and high breaking capacity.
- Amperage: 700A
- Voltage: 600VAC / 500VDC
- Poles: 3
- Frame Type: LMD
- Trip Unit: Thermal Magnetic
- Interrupt Rating: 50kA at 600VAC, 65kA at 480VAC
- Mounting Type: Bolt-On
- Frequency: 50/60 Hz
- Interchangeable Trip Unit
- Lugs Not Included
- Certifications: UL Listed, CSA Certified (typical for Siemens MCCBs)
Specifications
- Part Number: HLMD63B700
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HLMD
- Voltage : 600
- Amperage : 700
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : LMD Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643254510
- GTIN : 00783643254510
- Country of Origin : Mexico
- Dimensions : 17.717 x 8.661 x 7.874 inch
- Weight : 35.671
- Wire Size : AWG 1/0 to 500KCM, Cu/Al
