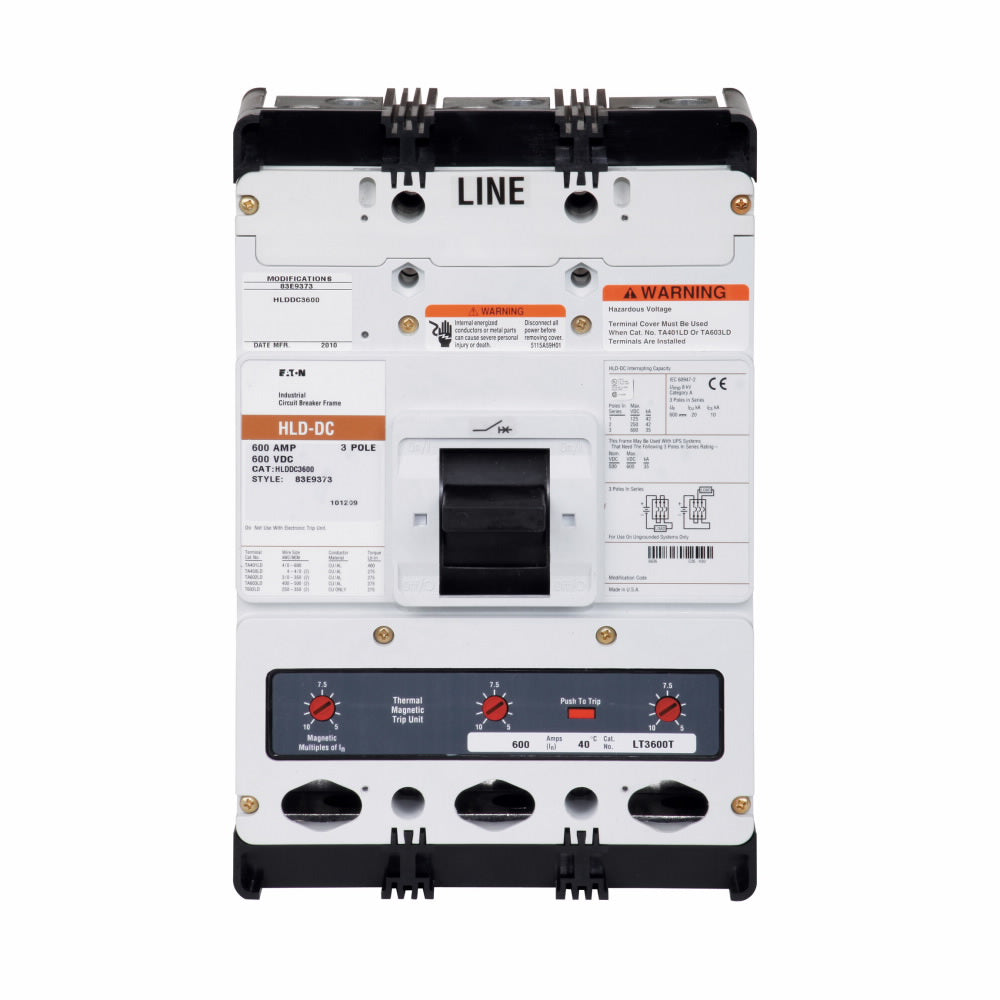

HLDDC3600F - Eaton 600A 600V 3-Pole DC Rated Molded Case Circuit Breaker Frame Only

HLDDC3600F

HLDDC3600F is a molded case circuit breaker frame designed for DC applications, featuring a robust 600A amperage rating and 600V voltage rating for reliable performance in demanding environments.This Eaton Series C circuit breaker is a three-pole device with an L-frame design, suitable for panel mounting. It is rated for both AC and DC systems, making it ideal for solar and industrial power distribution. The breaker features a fixed thermal and fixed magnetic trip unit for dependable protection.

• Part Number: HLDDC3600F
• Manufacturer: Eaton
• Amperage Rating: 600A
• Voltage Rating: 600V AC, 600V DC
• Poles: 3
• Mounting Style: Panel
• Interrupt Rating: 35kA at 600V AC
• Series: Series C
• Frame Type: L-Frame
• Trip Unit Type: Fixed Thermal, Fixed Magnetic
• Product Type: Molded Case Circuit Breaker Frame Only
• Weight: 17.5 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item is Frame only as definded by the part number. That means it is only the circuit breaker frame, and no lugs or trip unit is included with the frame.

Specifications

• Part Number: HLDDC3600F
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HLDDC
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 35kA@600V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 786679851401
• GTIN : 00786679851401
• Country of Origin : United States
• Dimensions : 8.25 in x 8.25 in x 8.25 in (Length/Depth x Height x Width)
• Weight : 17.4
• Certification : UL 489
