Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
HLDB3600F

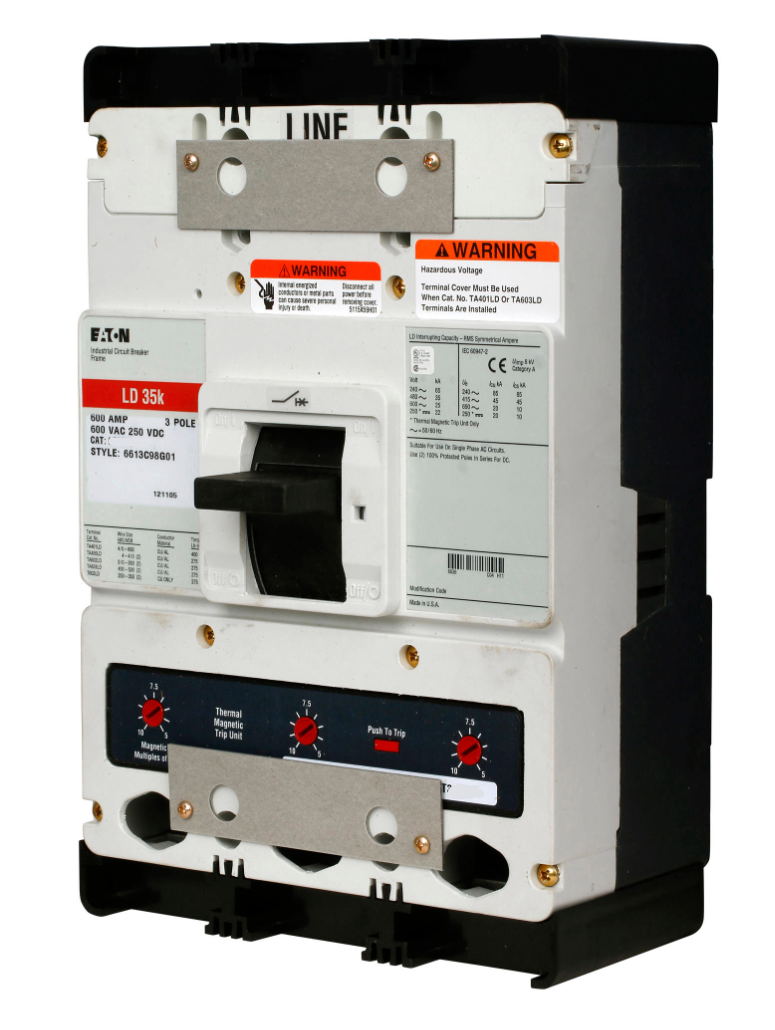

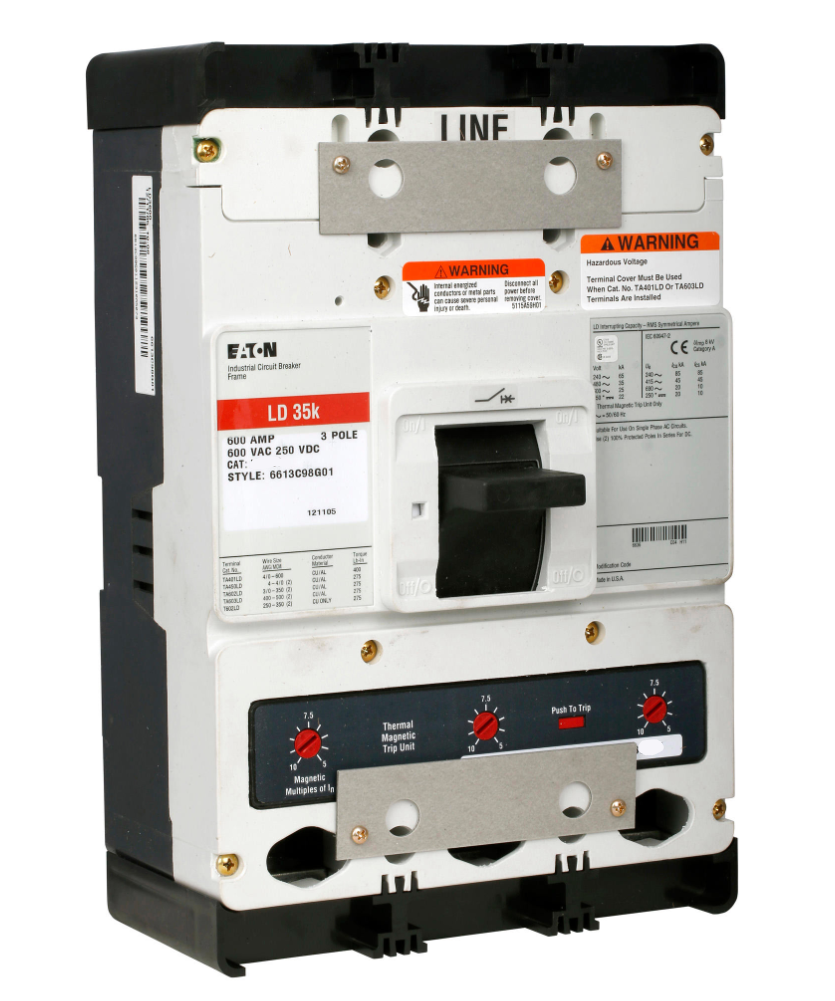

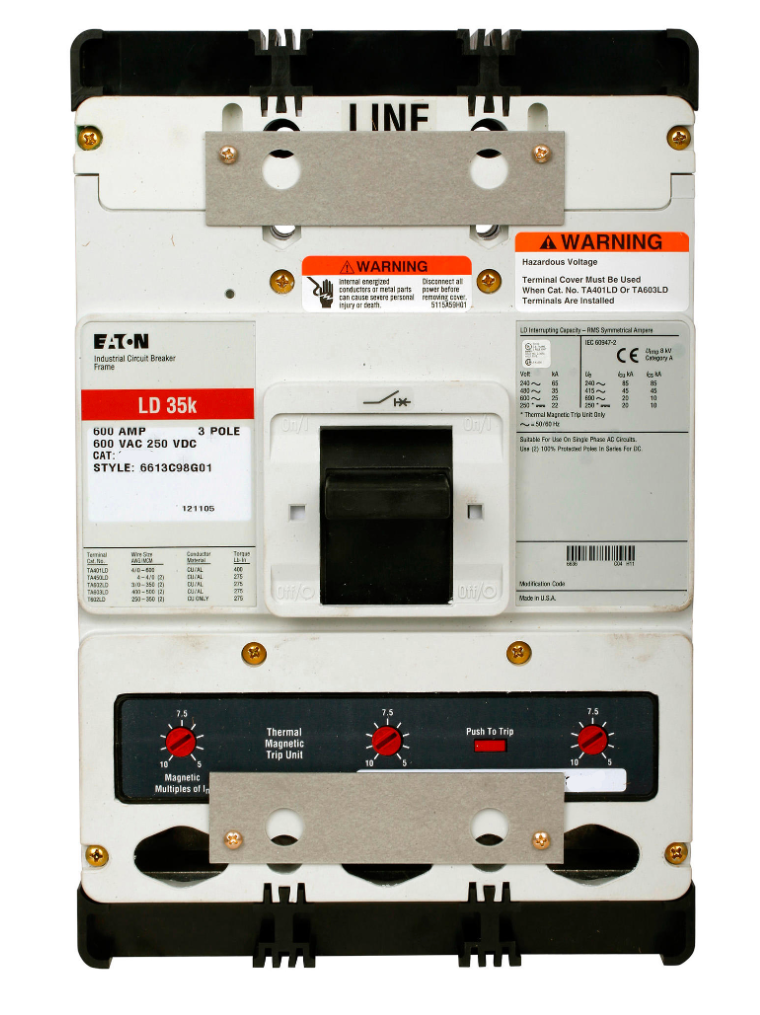

HLDB3600F is an Eaton Series C molded case circuit breaker designed for heavy-duty power distribution applications. This L-frame breaker delivers reliable thermal-magnetic trip protection with fixed trip characteristics suitable for industrial and commercial installations. HLDB3600F features a 600-ampere rating at 600 volts AC with three-pole configuration and bolt-on mounting for secure panel integration. The breaker provides high interrupting capacity ratings of 100 kAIC at 240 volts and 65 kAIC at 480 volts, ensuring superior fault protection. Aluminum terminals support both line and load connections with 50/60 Hz frequency compatibility.
- Amperage Rating: 600 Amp
- Voltage Rating: 600 VAC / 250 VDC
- Number of Poles: 3-Pole
- Frame Type: L-Frame (HLD)
- Trip Type: Fixed Thermal, Fixed Magnetic
- Interrupt Rating: 100 kAIC at 240 VAC, 65 kAIC at 480 VAC
- Mounting: Bolt-On
- Terminal Material: Aluminum
- Frequency: 50/60 Hz
- Dimensions: 8.25 in L x 8.25 in W x 8.25 in H
- Weight: 17 lb
Additional Information
This item is Frame only as definded by the part number. That means it is only the circuit breaker frame, and no lugs or trip unit is included with the frame.
Specifications
- Part Number: HLDB3600F
- Manufacturer : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : HLDB
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
Product Data
- Weight : 25
