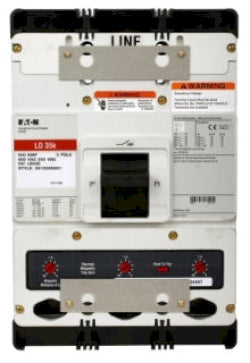

HLDB3500 - Eaton 500 Amp 600 Volt 3 Pole L-Frame Molded Case Circuit Breaker

HLDB3500

HLDB3500 is a 500 Amp, 600 Volt, 3 pole L-frame molded case circuit breaker from Eaton designed for reliable power distribution protection.This Eaton HLDB3500 breaker features a fixed thermal and fixed magnetic trip unit, providing dependable overcurrent protection. It is part of Eaton's Series C family, constructed with an aluminum frame suitable for line and load applications at 50/60 Hz frequency. The breaker offers an interrupt rating of 100 kAIC at 240 Volt and 65 kAIC at 480 Volt, ensuring high fault current interruption capability. Its patented contact design includes a high-speed "blow-open" action for superior performance and durability.

Key Specifications
• Amperage: 500 Amp
• Voltage Rating: 600 Volt
• Poles: 3
• Frame Type: L-Frame
• Trip Unit: Fixed Thermal, Fixed Magnetic
• Interrupt Rating: 100 kAIC at 240 V, 65 kAIC at 480 V
• Frequency: 50/60 Hz
• Material: Aluminum
• Mounting Type: Line and Load
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HLDB3500
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HLDB
• Voltage : 600
• Amperage : 500
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : L Frame
• Protection : Thermal Magnetic



Product Data

• UPC : 782113965208
• GTIN : 00782113965208
• Country of Origin : United States
• Dimensions : 8.25 in x 8.25 in x 8.25 in (Length/Depth x Height x Width)
• Weight : 20
• Certification : UL Listed
