Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HLD63B600

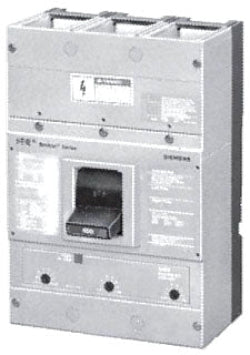

HLD63B600 is a Siemens Sentron molded case circuit breaker designed for high interrupting capacity applications with thermal magnetic trip protection.This 600A, 3 pole, 600V breaker features an LD frame, bolt-on mounting, and is rated for 35kAIC at 600V, 65kAIC at 480V. Suitable for use in industrial and commercial power distribution systems, it meets UL 489 and IEC 60947-2 standards and includes line and load side lugs for easy installation.
- Part Number: HLD63B600
- Manufacturer: Siemens
- Series: Sentron
- Frame: LD
- Amperage: 600A
- Voltage: 600VAC
- Poles: 3
- Interrupt Rating: 35kAIC at 600V, 65kAIC at 480V
- Mounting Type: Bolt-On
- Mounting Type: Bolt-On
- Trip Unit: Thermal Magnetic
- Certifications: UL 489, IEC 60947-2
- Operating Temperature: 40°C
Specifications
- Part Number: HLD63B600
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HLD
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Frame Size : LD Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643214095
- GTIN : 00783643214095
- Country of Origin : Mexico
- Weight : 19.495
- Wire Size : AWG 3/0 to 500KCM, Cu, AWG 4/0 to 500KCM, Al
