Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HLD63B250

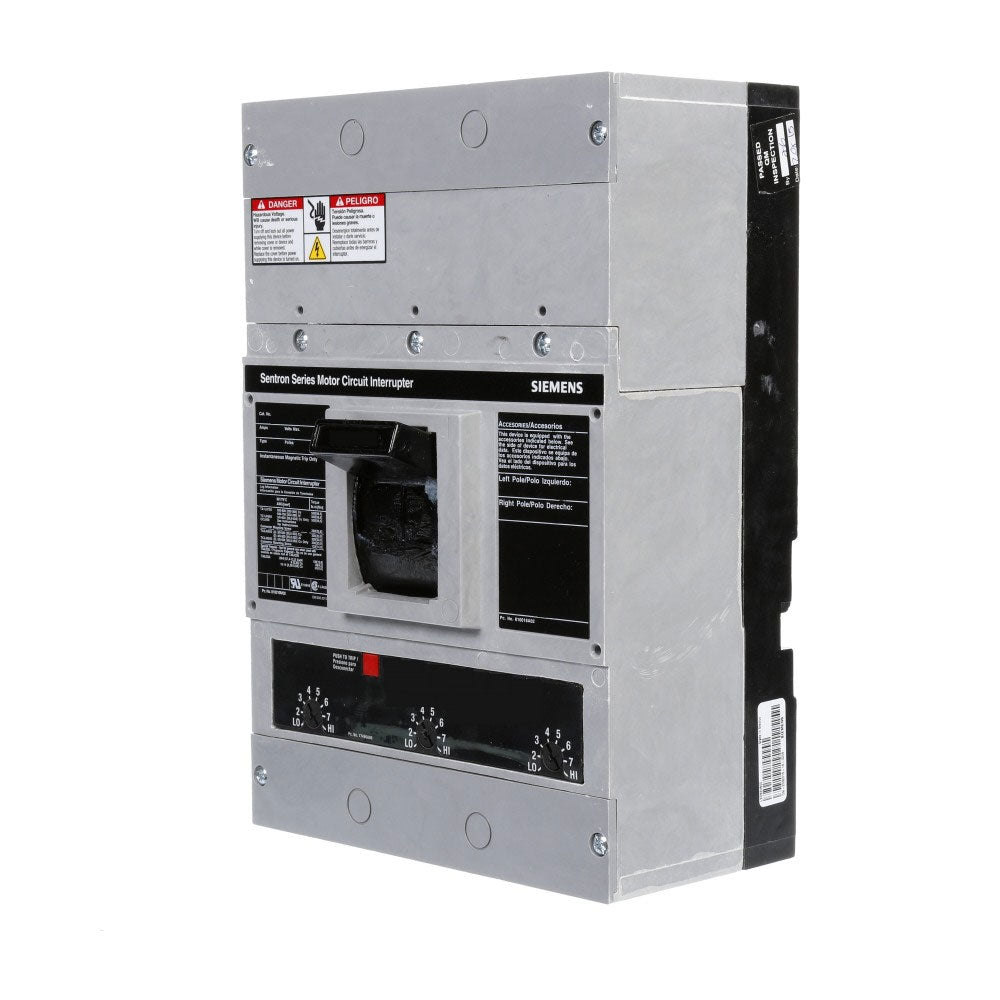

HLD63B250 is a Siemens 3 pole molded case circuit breaker rated for 250 amps and 600 volts with a thermal magnetic trip unit.
This Siemens Sentron HLD63B250 breaker features an LD frame design with a high interrupting capacity of up to 35 kA at 600 VAC. It is designed for surface mounting with lug connections and operates at a standard 40°C ambient temperature. The breaker includes an interchangeable trip unit for flexible protection settings and is suitable for low voltage power distribution applications.
- Manufacturer: Siemens
- Part Number: HLD63B250
- Amperage: 250 A
- Voltage Rating: 600 VAC / 250 VDC
- Poles: 3
- Interrupt Rating: 35 kA at 600 VAC
- Frame: LD Frame
- Trip Unit: Thermal Magnetic
- Mounting Type: Surface Mount
- Standard Ambient Temperature: 40°C
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HLD63B250
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HLD
- Voltage : 600
- Amperage : 250
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : LD Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 783643214033
- GTIN : 00783643214033
- Country of Origin : Mexico
- Weight : 20.084
