Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HLD63B450

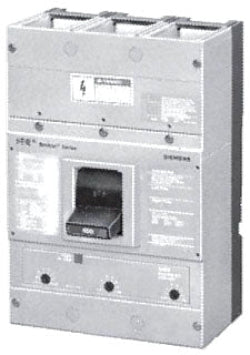

HLD63B450 is a Siemens 3-pole molded case circuit breaker with a 450 amp current rating and 600 volt AC voltage rating designed for reliable power distribution protection.This Siemens HLD63B450 breaker features a thermal magnetic trip unit, LD frame series, and a high interrupt rating of 35kA at 600V and 65kA at 480V. It meets UL 489 and IEC 60947-2 standards and is rated for operation at 40 degrees Celsius. The breaker is unassembled and designed for lug-type line side connections.
- Key Specifications
- Current Rating: 450 Amps
- Voltage Rating: 600 VAC
- Number of Poles: 3
- Frame/Series: LD Frame
- Interrupt Rating: 35kA at 600V, 65kA at 480V
- Trip Unit: Thermal Magnetic
- Mounting Type: Molded Case
- Standards: UL 489, IEC 60947-2
- Maximum Operating Temperature: 40°C
- Line Side Termination: Lug (included)
- Part Number: HLD63B450
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HLD
- Voltage : 600
- Amperage : 450
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : LD Frame
- Protection : Thermal Magnetic
- UPC : 783643214071
- GTIN : 00783643214071
- Country of Origin : Mexico
- Weight : 20.9
- Certification : UL
