Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HLD62B300L

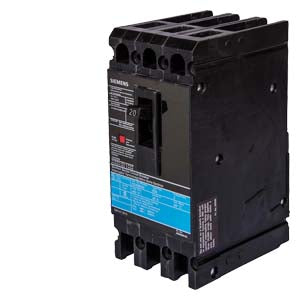

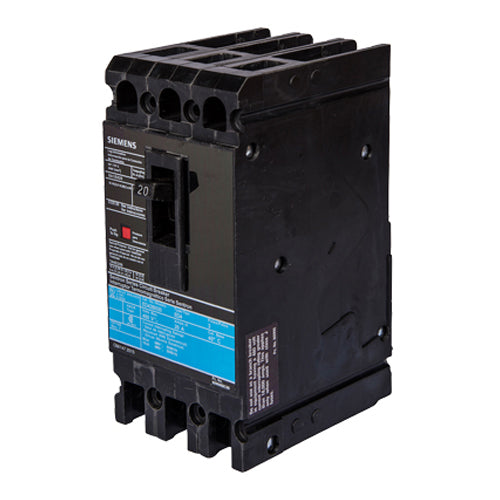

HLD62B300L is a Siemens low voltage molded case circuit breaker designed for industrial and commercial power distribution applications with thermal/magnetic trip protection and high breaking capacity. This LD frame breaker delivers reliable performance in demanding electrical systems, featuring adjustable trip settings and interchangeable trip unit design for flexible configuration and maintenance. The unit meets UL 489 and IEC 60947-2 standards, ensuring compliance with major electrical codes and safety requirements.
- Amperage Rating: 300 A at 40 degrees C
- Voltage Rating: 600 VAC / 250 VDC
- Number of Poles: 2
- Frame Type: LD Frame
- Interrupt Rating: 35 kA at 600V, 65 kA at 480V
- Trip Unit: Thermal/Magnetic with Long-Time and Instantaneous functions
- Frequency Rating: 50/60 Hz
- Mounting Style: Feed-Thru with Lug terminals
- Trip Adjustment: Adjustable
- Certifications: UL 489, IEC 60947-2
- Interchangeable Trip Unit design for field replacement
Specifications
- Part Number: HLD62B300L
- Manufacturer : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HLD
- Voltage : 600
- Amperage : 300
- Phase : 1
- Poles : 2
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : LD Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 783643008540
- GTIN : 00783643008540
- Country of Origin : Mexico
- Dimensions : 12.992 x 8.661 x 6.693 inch
- Weight : 17.527
