Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
HLD3600Y

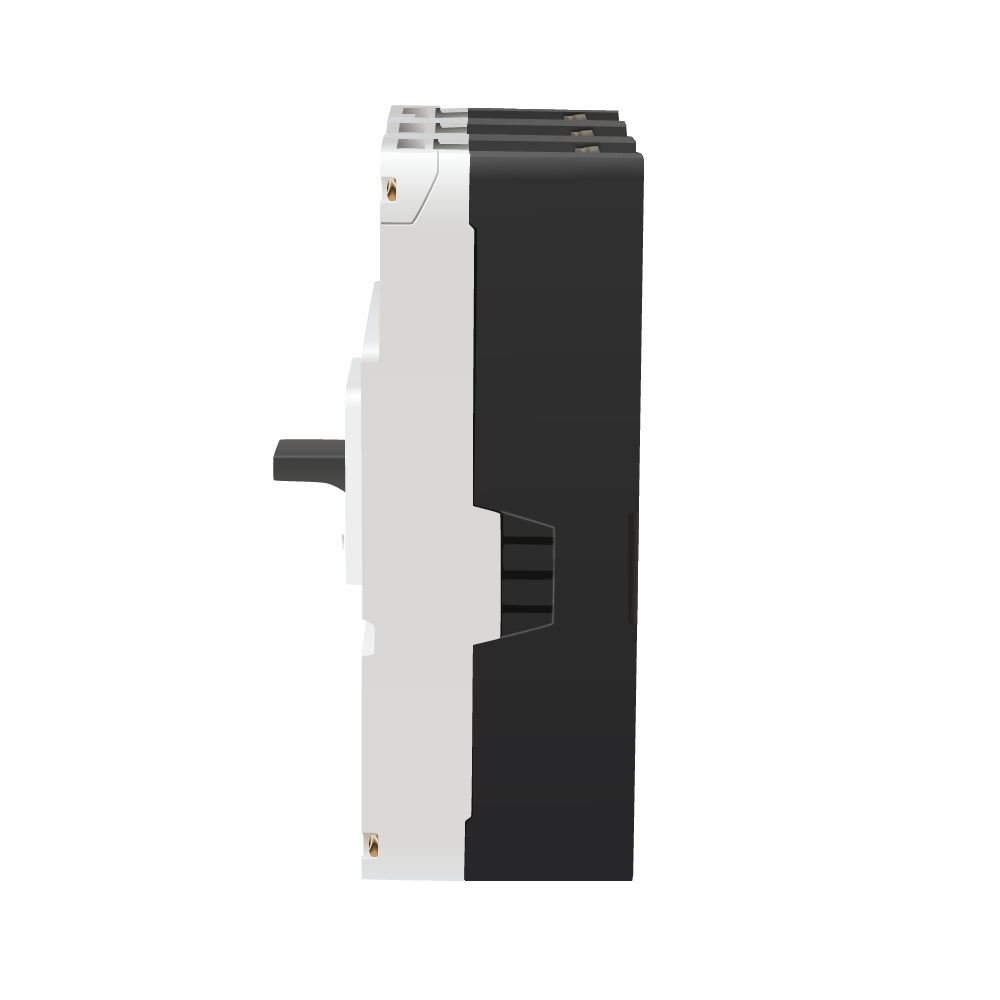

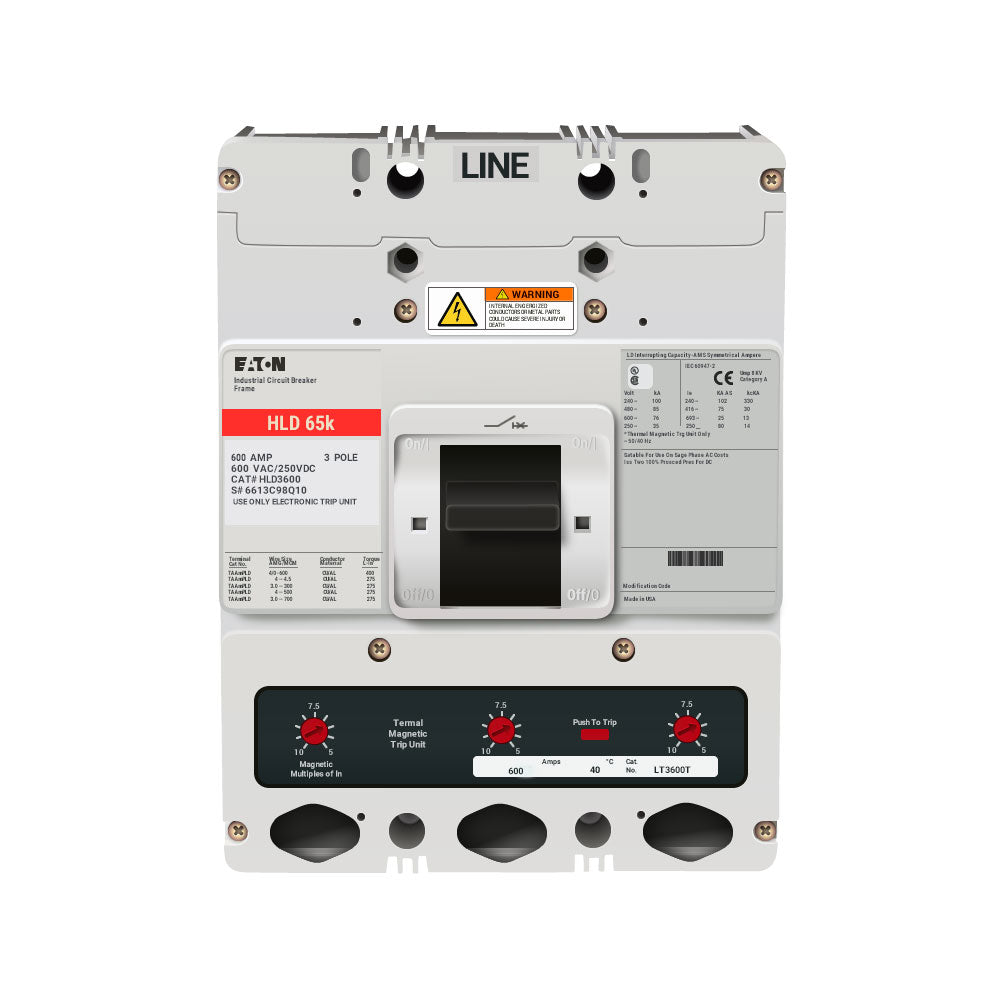

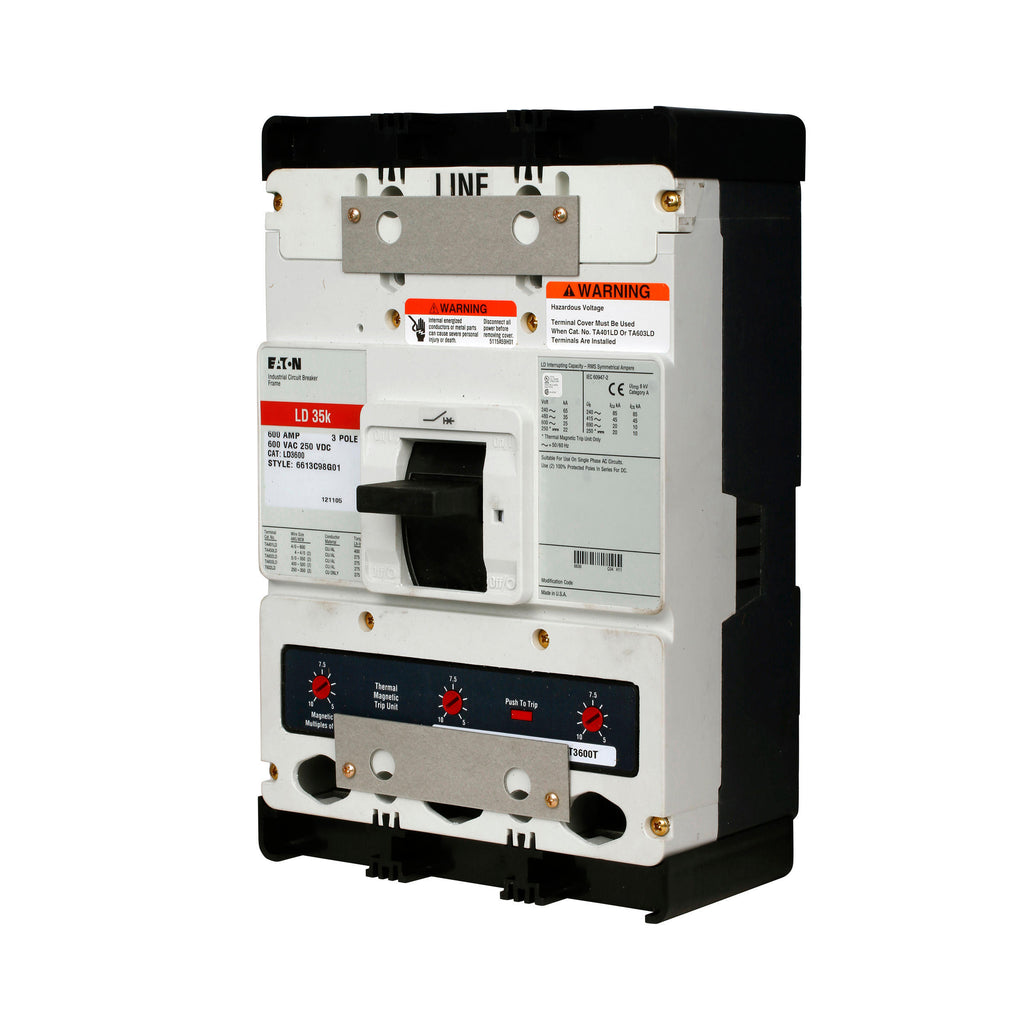

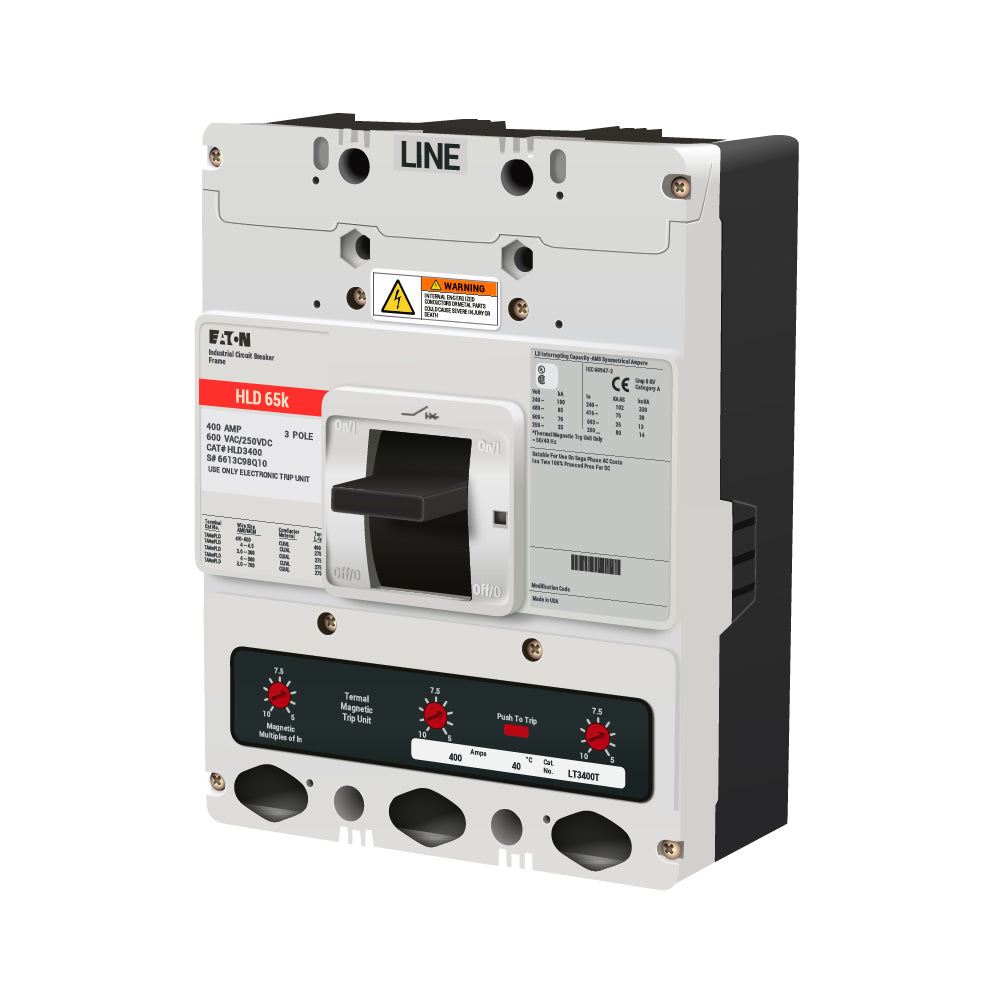

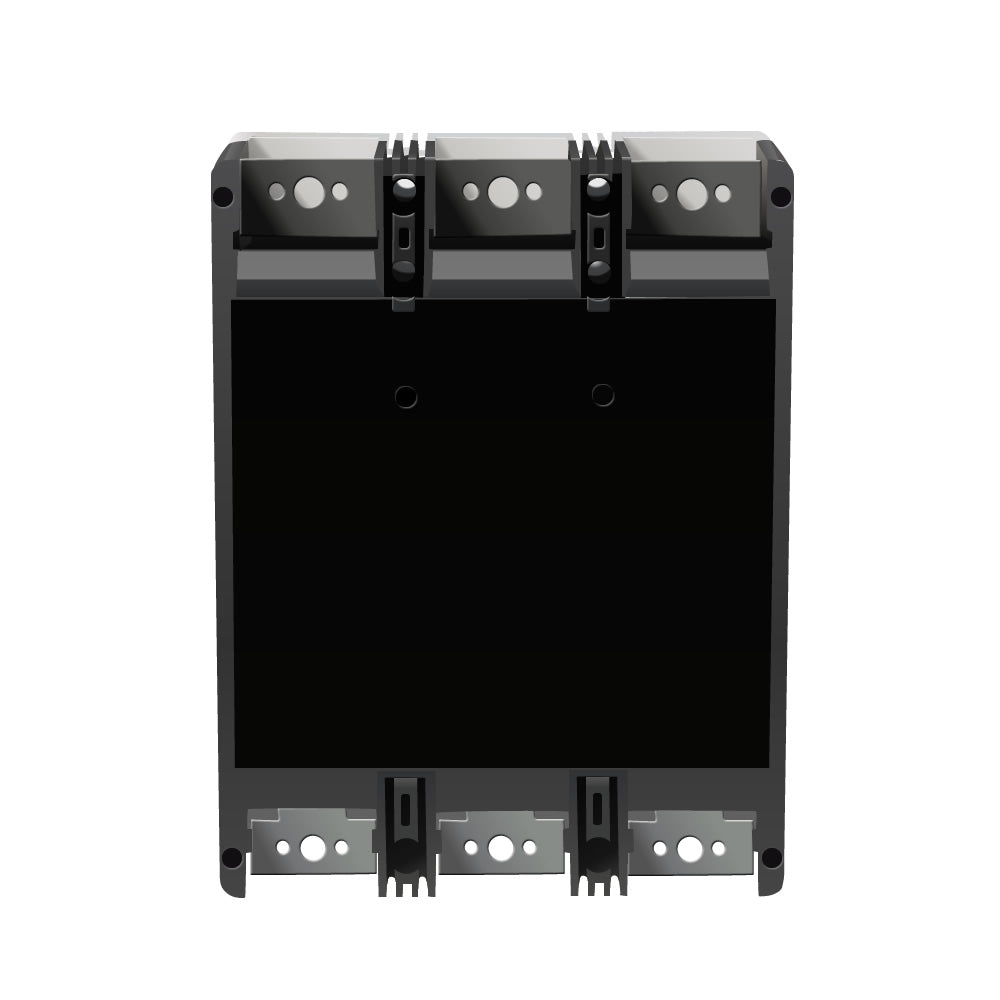

HLD3600Y is a Series C L-frame molded case circuit breaker from Eaton, designed for reliable protection in industrial and commercial power distribution systems.This three-pole circuit breaker features a 600A amperage rating and 600V AC voltage rating, with a high interrupting capacity of 100 kAIC at 240 Vac and 65 kAIC at 480 Vac. It is equipped with a fixed thermal and fixed magnetic trip unit, suitable for bolt-on mounting applications. The breaker is constructed with aluminum terminals and is rated for 50/60 Hz operation.
- Series C L-frame molded case circuit breaker
- 600A amperage rating
- 600V AC voltage rating
- Three-pole configuration
- Bolt-on mounting type
- 100 kAIC at 240 Vac, 65 kAIC at 480 Vac interrupt rating
- Fixed thermal and fixed magnetic trip unit
- Aluminum terminals
- 50/60 Hz frequency rating
- UL 489 certified
Specifications
- Part Number: HLD3600Y
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : HLD
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : L Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 22
