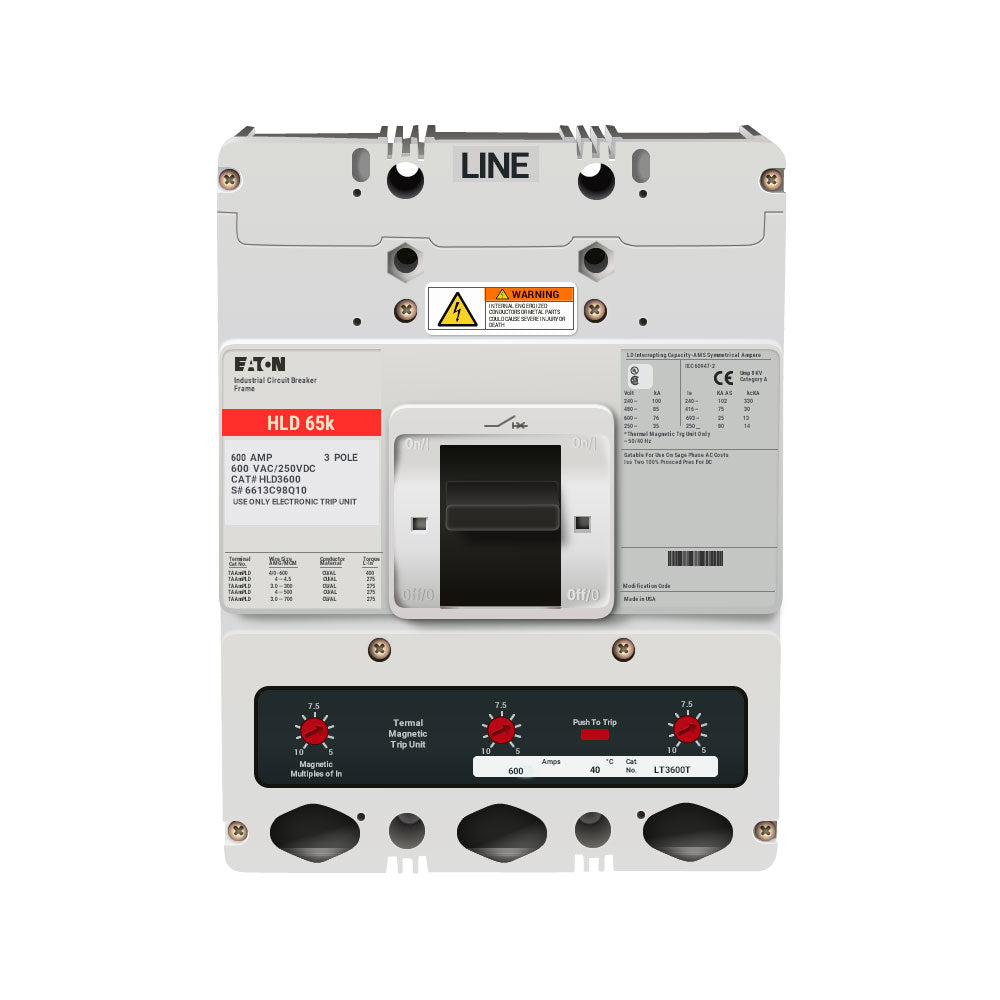

HLD3600 - Cutler Hammer 600A 600V 3-Pole L-Frame Molded Case Circuit Breaker Series C

HLD3600

HLD3600 is a Cutler Hammer molded case circuit breaker designed for industrial and commercial power distribution applications.This Series C, L-frame breaker features a fixed thermal and magnetic trip unit, rated for 600 amperes at 40°C, 600 volts AC, and 250 volts DC. It has a 3-pole configuration with a high interrupting rating of 100 kA at 240 VAC and 65 kA at 480 VAC. The breaker includes aluminum line and load terminals and complies with UL certification standards.

• 600 Ampere current rating at 40°C
• 600 Vac, 250 Vdc voltage rating
• 3 poles
• L-frame, Series C design
• Fixed thermal and magnetic trip unit
• Interrupting rating: 100 kA at 240 Vac, 65 kA at 480 Vac
• Aluminum line and load terminals
• UL Listed certification
• 50/60 Hz frequency rating
• Dimensions: 8.25 in x 8.25 in x 8.25 in
• Weight: 17 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HLD3600
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HLD
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Line and load
• Frame Size : 400A/K
• MCM Size : Min. Wire Size 400 MCM Max. Wire Size 500 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 786679009611
• GTIN : 00786679009611
• Country of Origin : United States
• Dimensions : 8.25 in x 8.25 in x 8.25 in (Length/Depth x Height x Width)
• Weight : 17
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CCC, CE Marked, CSA Certified, IEC, NEMA, UL Listed, VDE
• Certification : CCC, CE Marked, CSA Certified, IEC, NEMA, UL Listed, VDE
