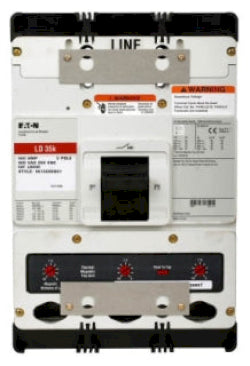

HLD3450W - Eaton 450A 600V 3-Pole Series C Molded Case Circuit Breaker L-Frame

HLD3450W

HLD3450W is an Eaton Series C complete molded case circuit breaker designed for reliable circuit protection in industrial and commercial applications.HLD3450W features a 450 ampere rating with a voltage capacity of 600 Vac and 250 Vdc, configured as a three-pole breaker with an L-frame design. It includes fixed thermal and magnetic trip units, aluminum terminals for line and load connections, and supports 50/60 Hz frequency. The breaker offers a high interrupt rating of 100 kAIC at 240 Vac and 65 kAIC at 480 Vac, ensuring robust fault current interruption. It is UL listed for safety and performance compliance.

• Amperage: 450 A
• Voltage Rating: 600 Vac, 250 Vdc
• Number of Poles: Three-pole
• Frame Type: L-frame
• Series: Series C
• Trip Unit: Fixed thermal and magnetic
• Interrupt Rating: 100 kAIC at 240 Vac, 65 kAIC at 480 Vac
• Terminal Material: Aluminum
• Terminal Connection: Line and load
• Frequency Rating: 50 to 60 Hz
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: HLD3450W
• Manufacturer : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HLD
• Voltage : 600
• Amperage : 450
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : L Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 786679071977
• GTIN : 00786679071977
• Country of Origin : United States
• Dimensions : 10.75 in x 8.25 in x 4.06 in (Length/Depth x Height x Width)
• Weight : 21
• Certification : UL Listed
