Product Info
- Manufacturer:Westinghouse
- Sub-Category:Molded Case
Description
HLD3400

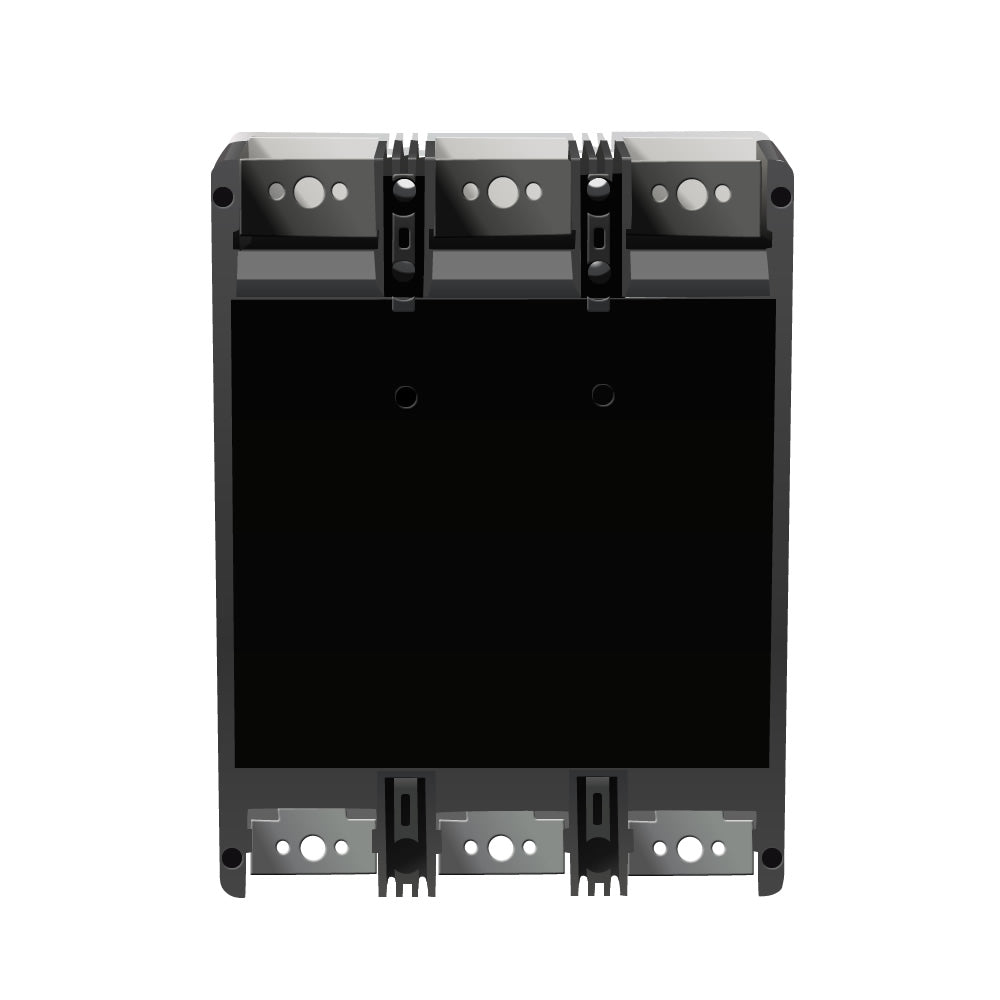

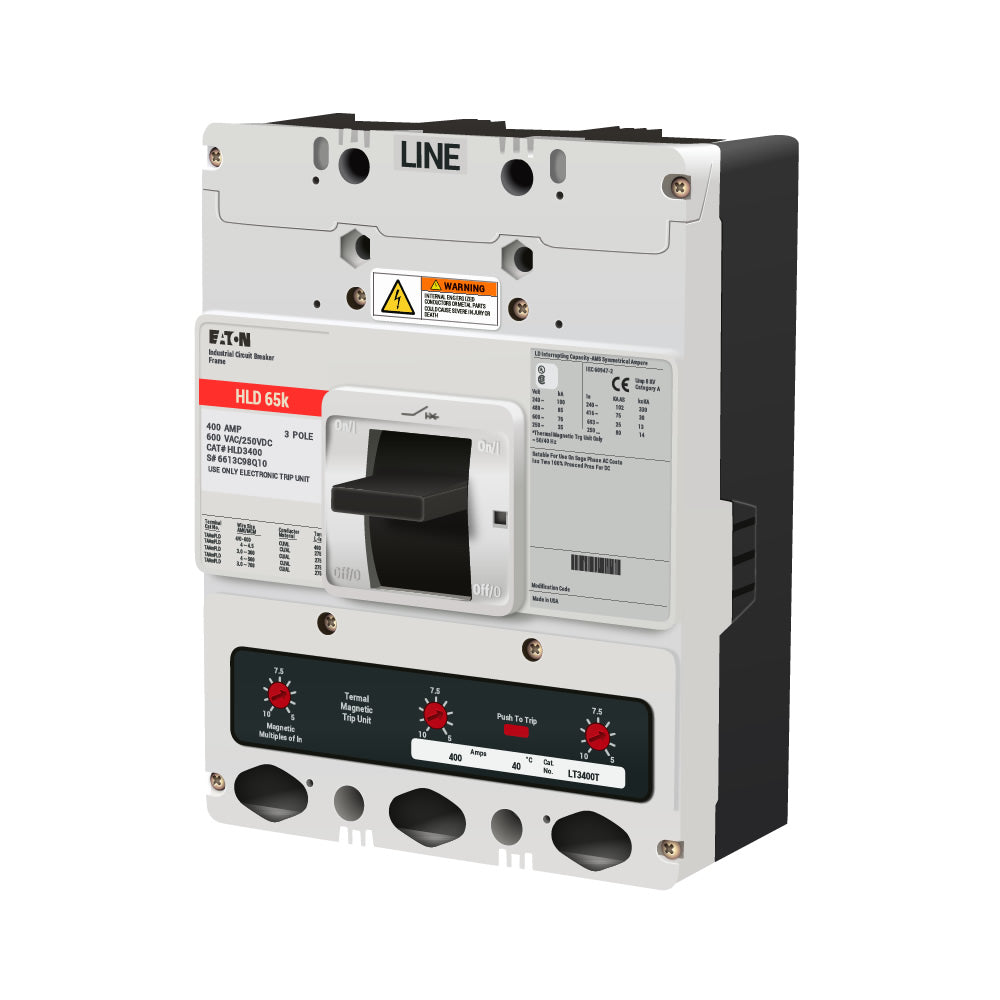

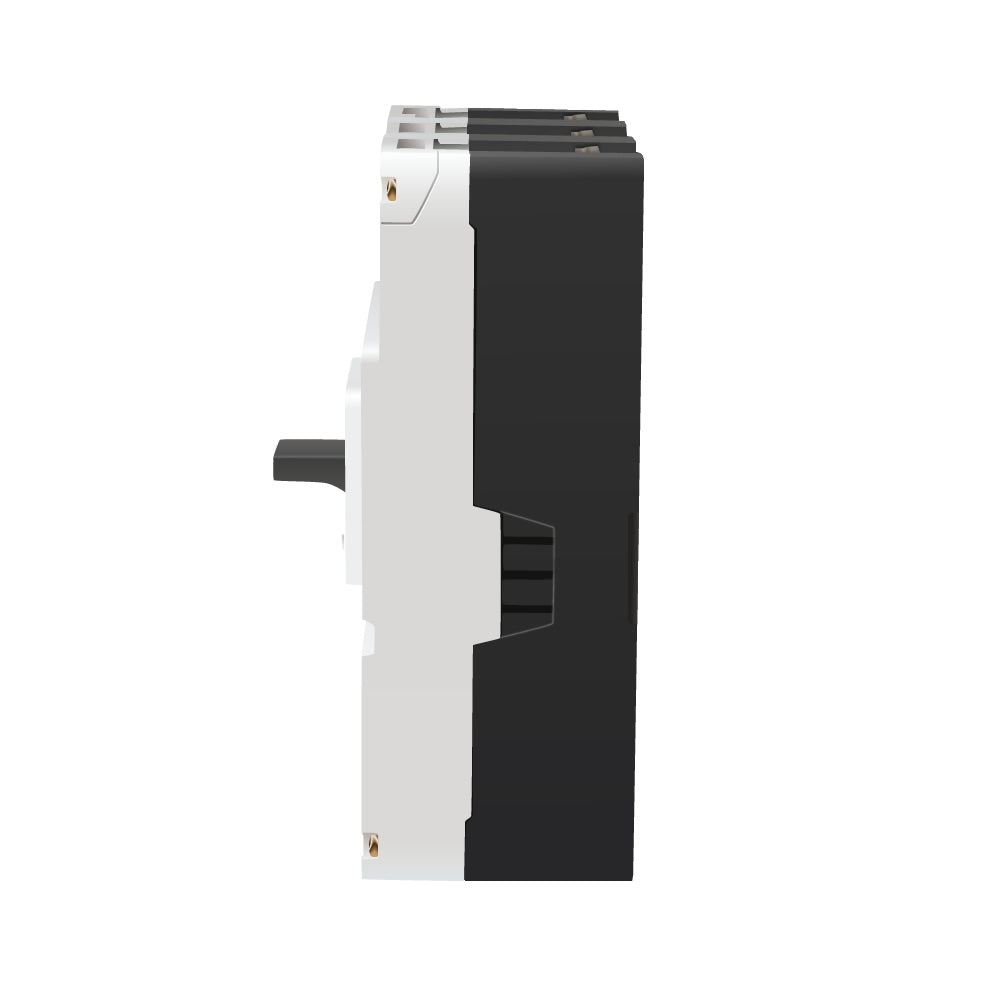

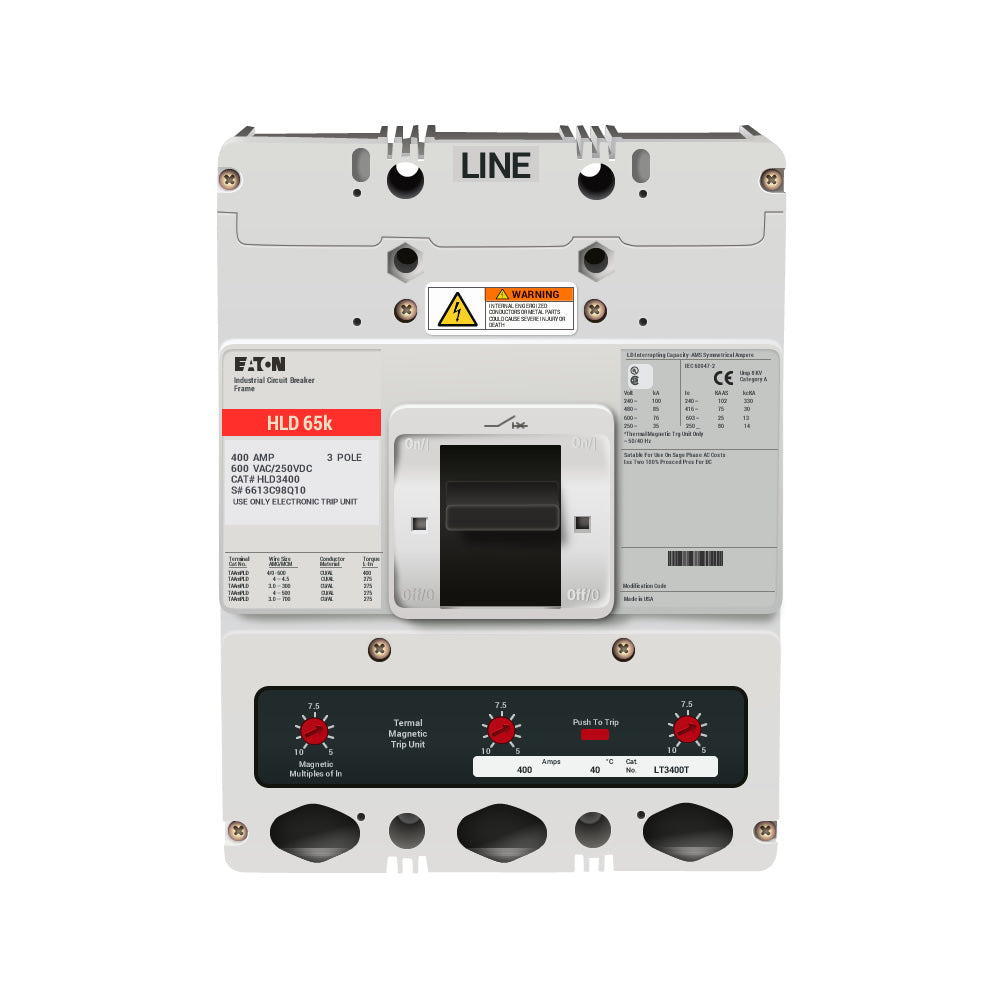

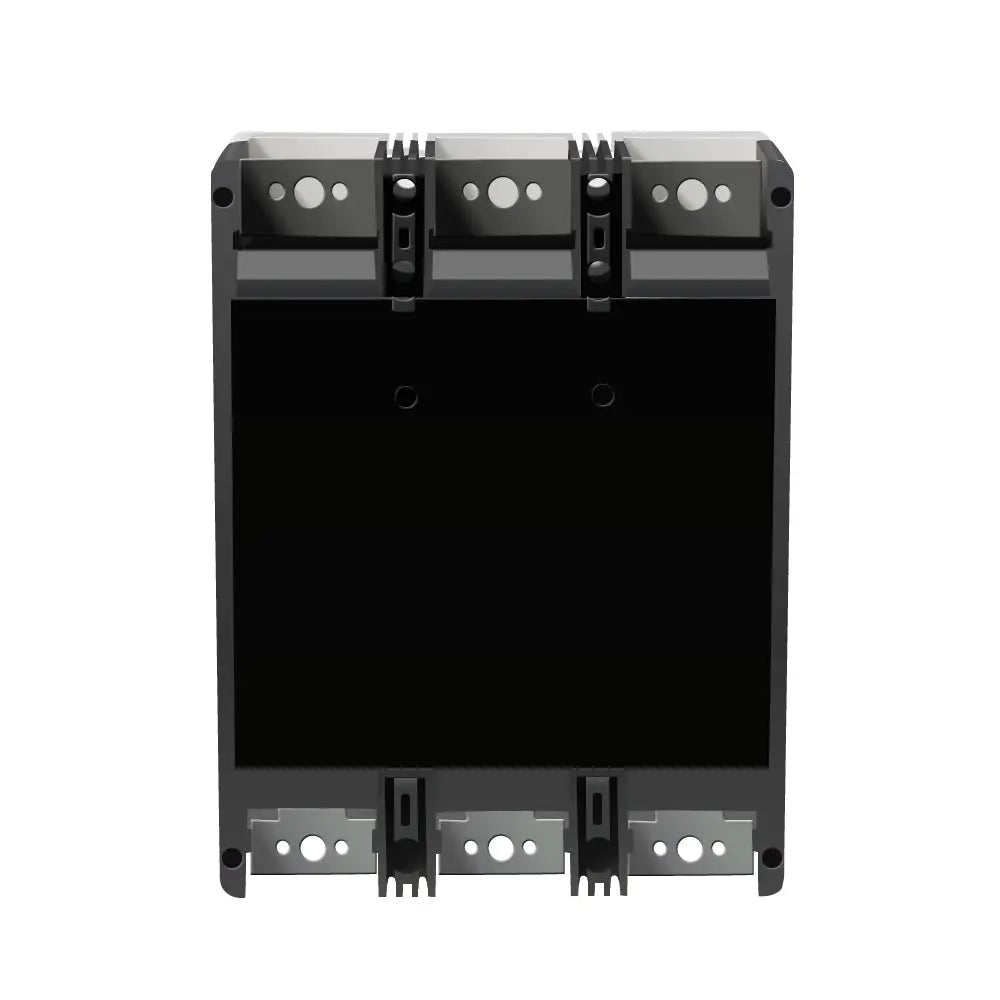

HLD3400 is a 400 Amp, 600 Volt, 3-pole Series C molded case circuit breaker from Westinghouse with thermal magnetic trip protection.This HLD3400 breaker features an L-frame design with a 65kA interrupt rating at 480VAC and 100kA at 240VAC. It is panel mountable with aluminum line and load terminals, suitable for industrial applications. The breaker is UL listed and designed for 50/60 Hz operation with fixed thermal and magnetic trip units.
- Key Specifications
- Amperage: 400 A
- Voltage Rating: 600 Vac, 250 Vdc
- Poles: 3
- Interrupt Rating: 65 kAIC at 480 Vac, 100 kAIC at 240 Vac
- Frame: L-frame, Series C
- Trip Type: Thermal Magnetic
- Mounting Type: Panel mount
- Terminal Material: Aluminum
- Frequency: 50-60 Hz
- Certifications: UL Listed
Specifications
- Part Number: HLD3400
- Manufacturer : Westinghouse
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : HLD
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : L Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 786679006566
- GTIN : 00786679006566
- Country of Origin : United States
- Dimensions : 4.06 in x 8.25 in x 8.25 in (Length/Depth x Height x Width)
- Weight : 21
- Certification : UL Listed
