Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
HLD3400X

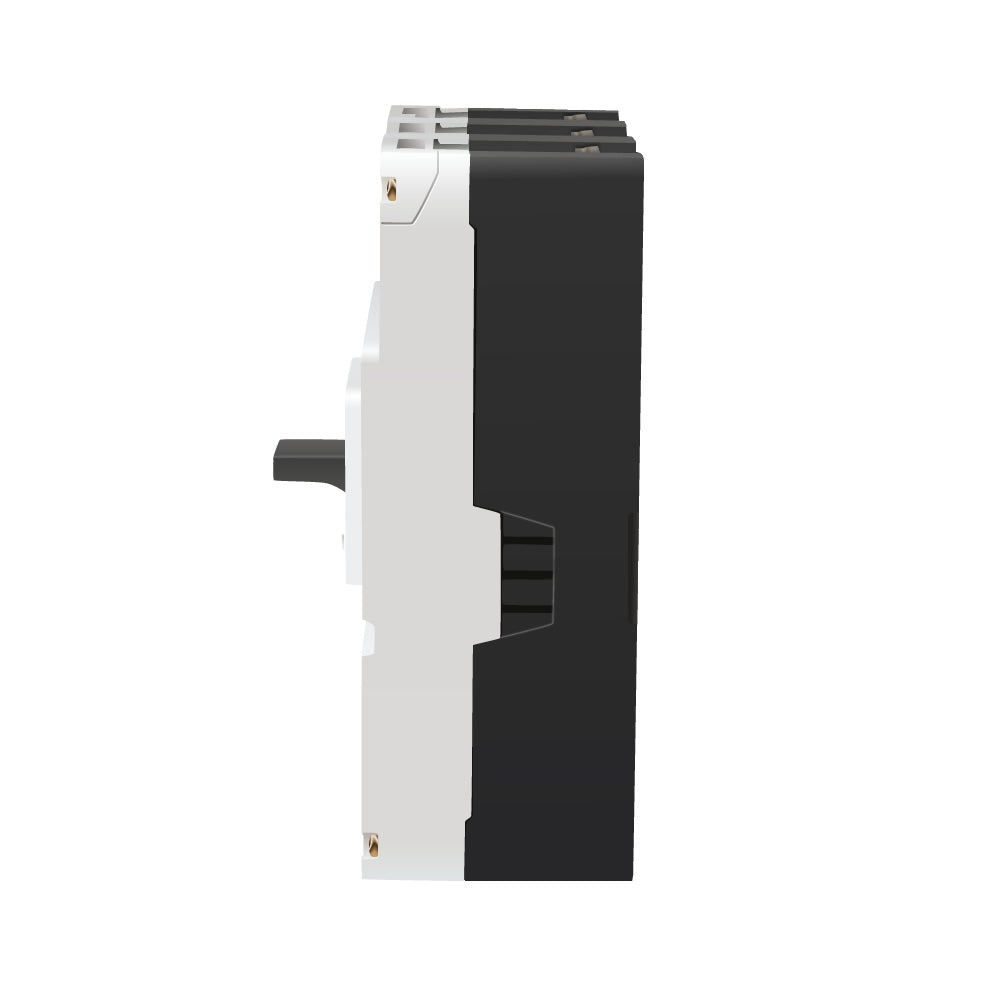

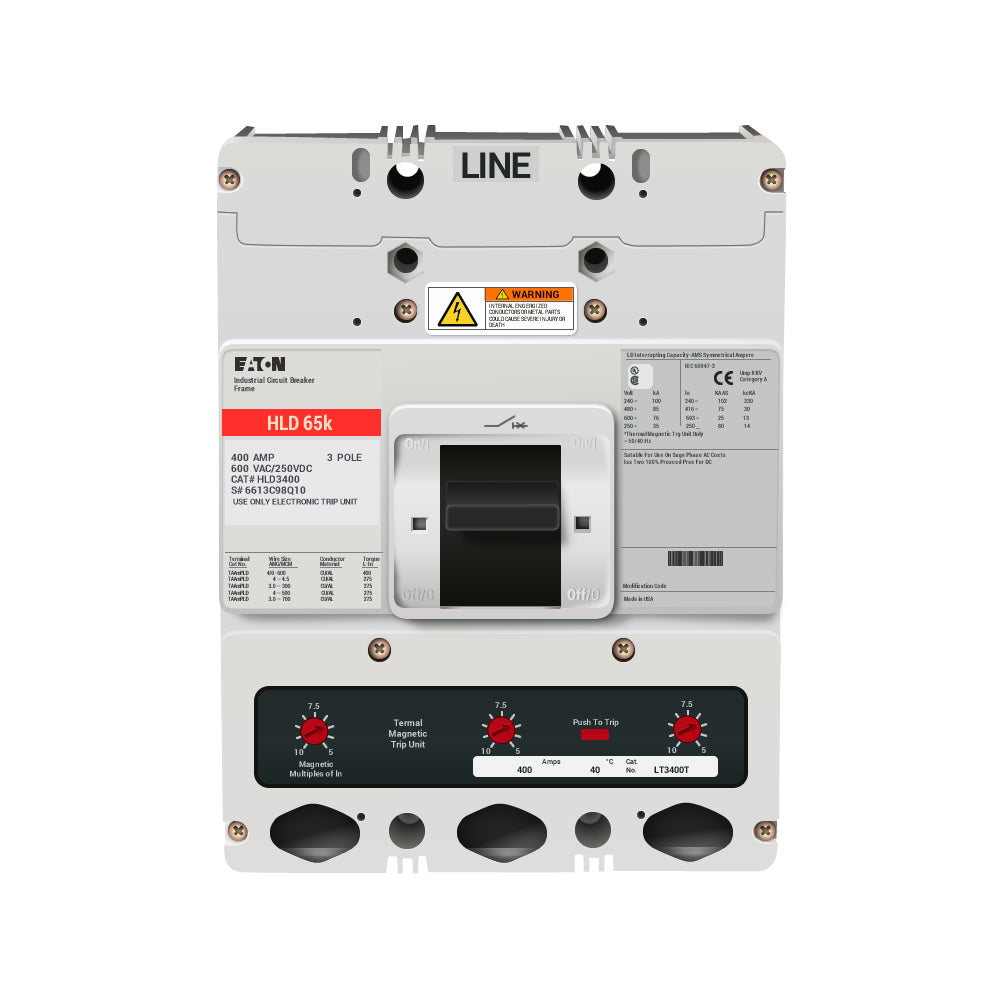

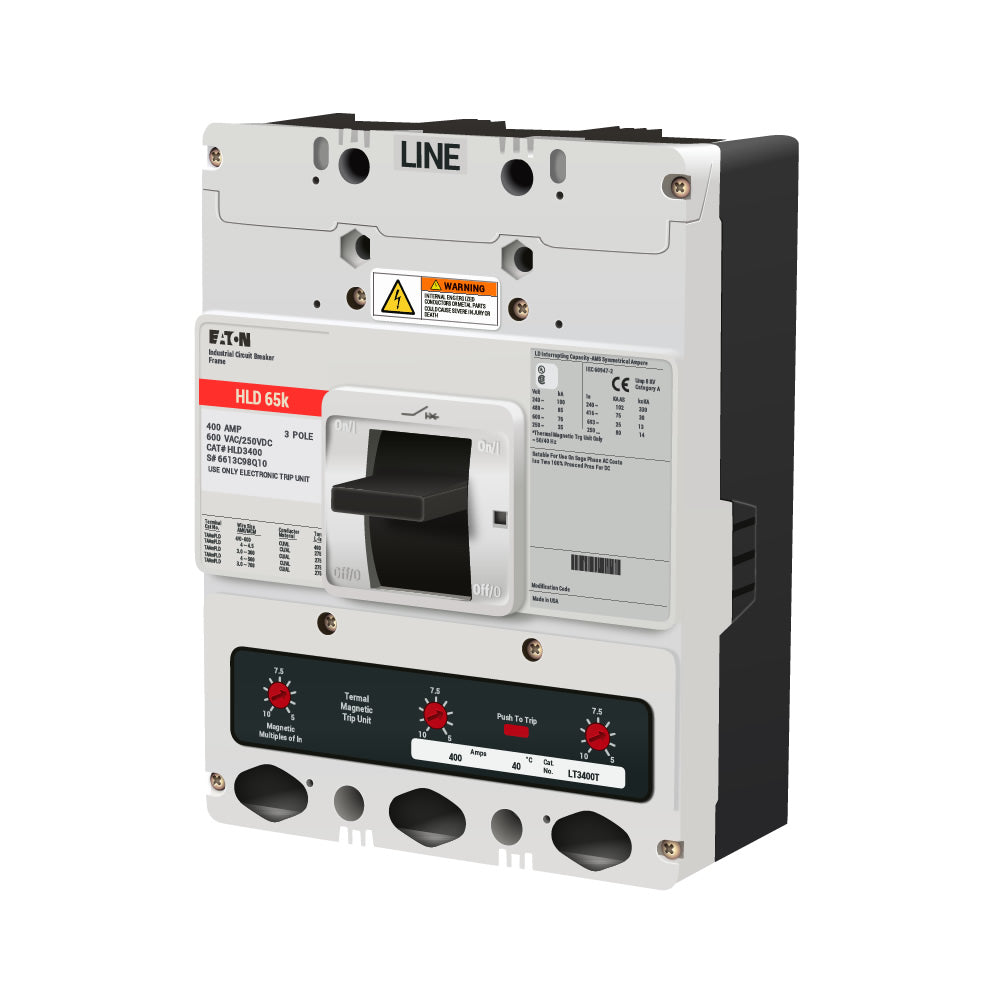

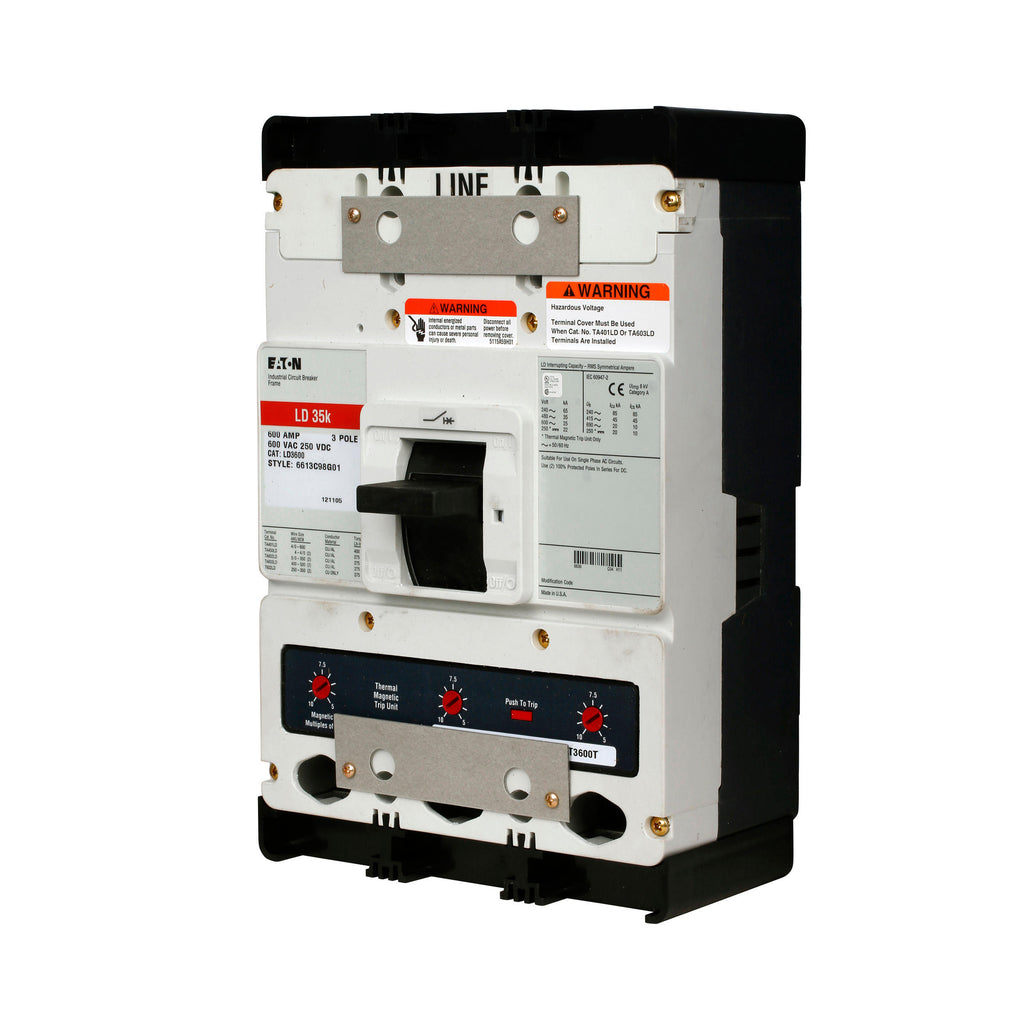

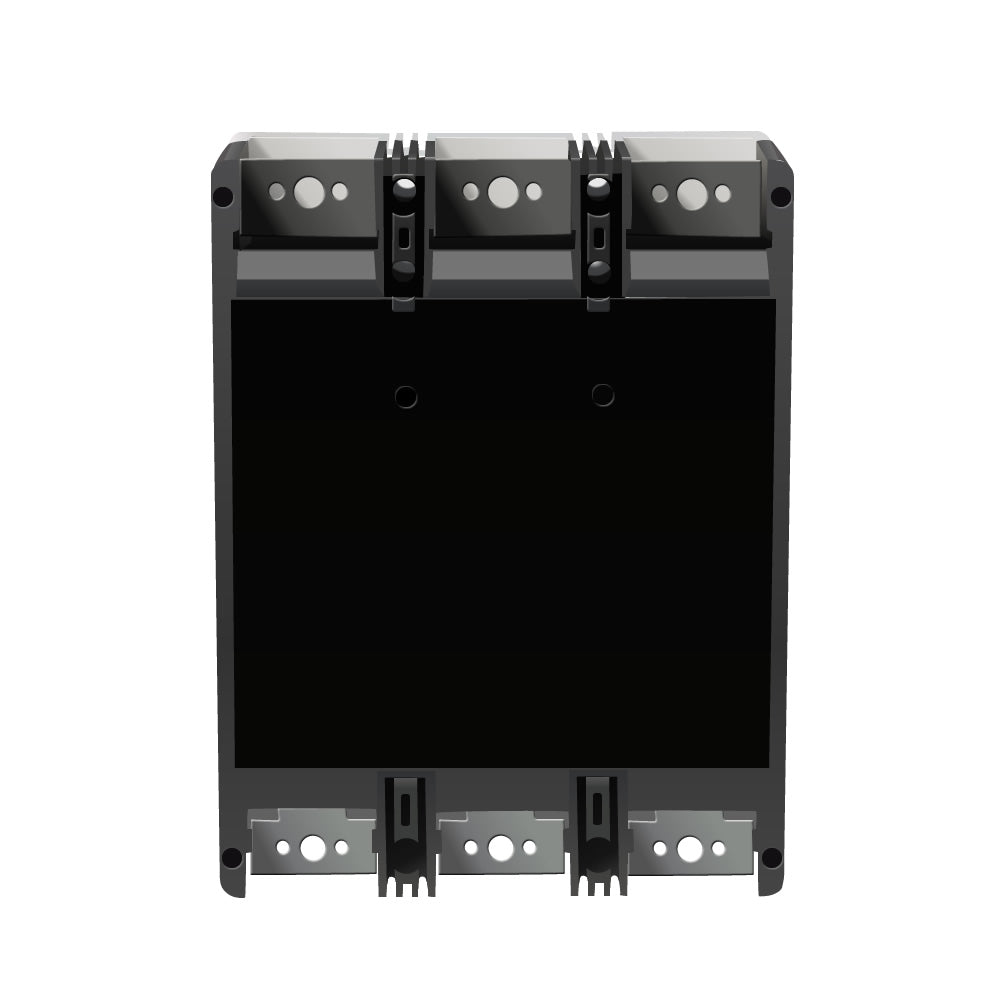

HLD3400X is a 400 Amp, 600 Volt, 3 Pole molded case circuit breaker from Eaton designed for bolt-on mounting in the Series C frame.
This Eaton HLD3400X circuit breaker features fixed thermal and fixed magnetic trip units, providing reliable protection for electrical circuits. It supports feed-thru connection and offers a high interrupting capacity suitable for demanding applications. The breaker is rated for 100 kA interrupting capacity at 240 Vac and 65 kA at 480 V, ensuring robust fault current interruption. It is designed for three-phase systems and is part of Eaton's L-frame Series C molded case circuit breaker family.
- Key Specifications
- Amperage: 400 Amp
- Voltage Rating: 600 Volt AC, 250 Volt DC
- Poles: 3
- Mounting Type: Bolt-On
- Series/Frame: Series C (L-frame)
- Trip Unit: Fixed Thermal, Fixed Magnetic
- Interrupt Rating: 100 kA at 240 Vac, 65 kA at 480 Vac
- Connection Type: Feed-Thru
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HLD3400X
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : HLD
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : L Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 786679006566
- GTIN : 00786679006566
- Weight : 22
