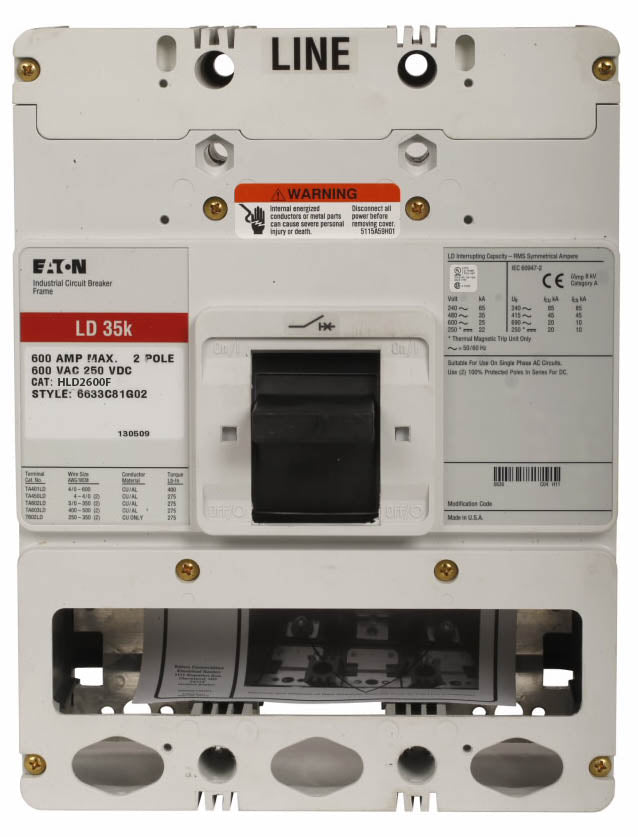

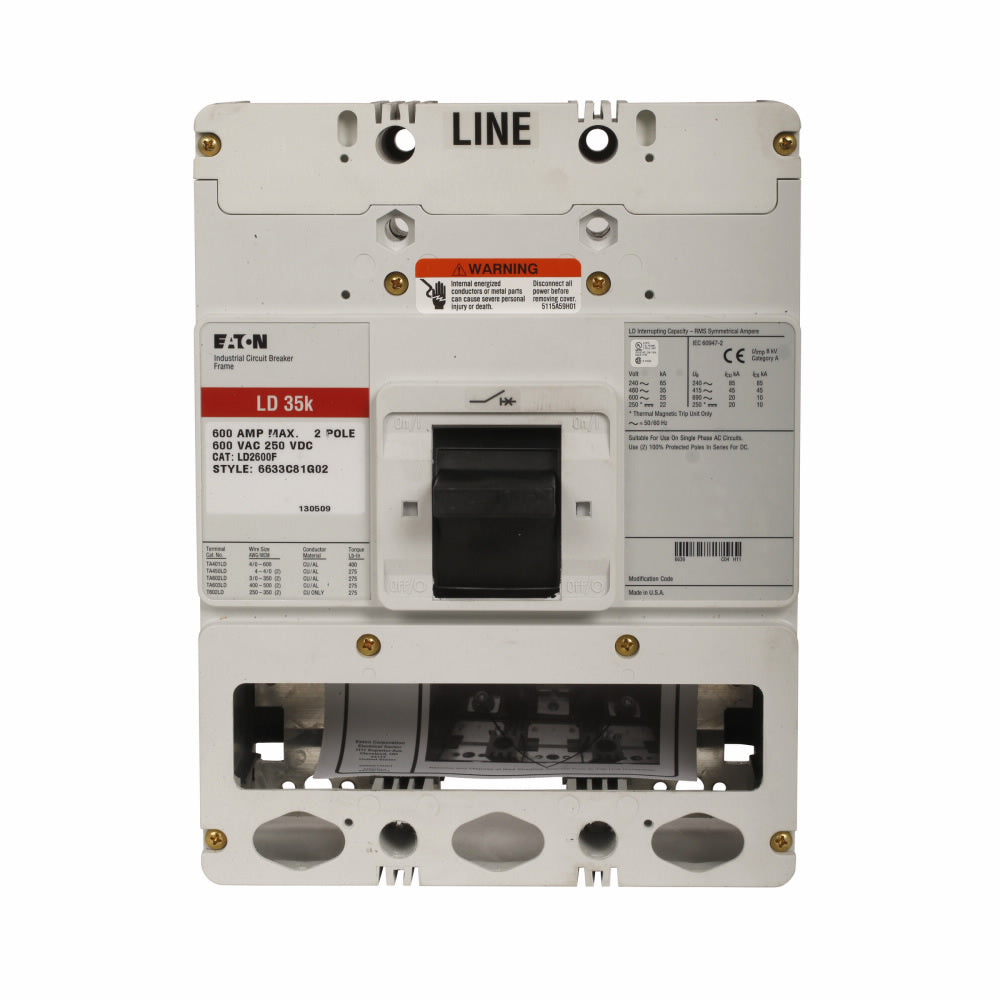

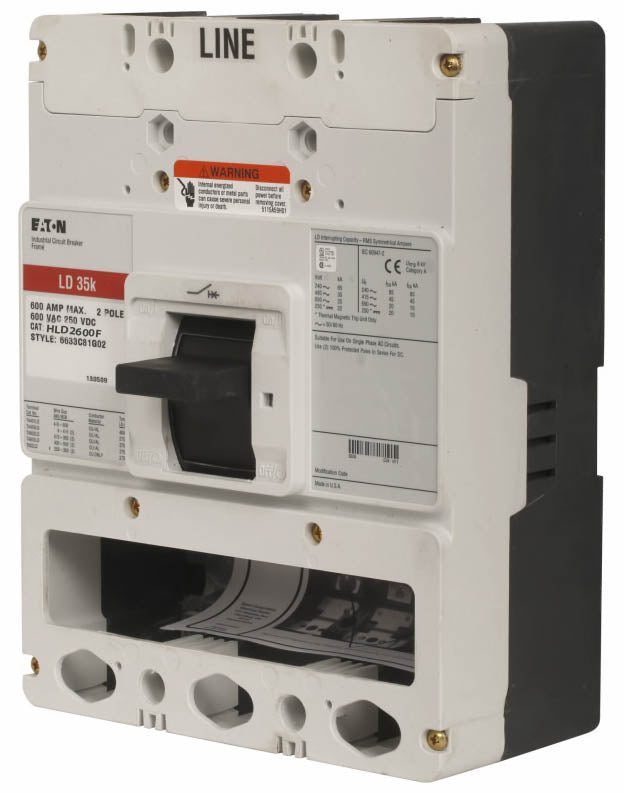

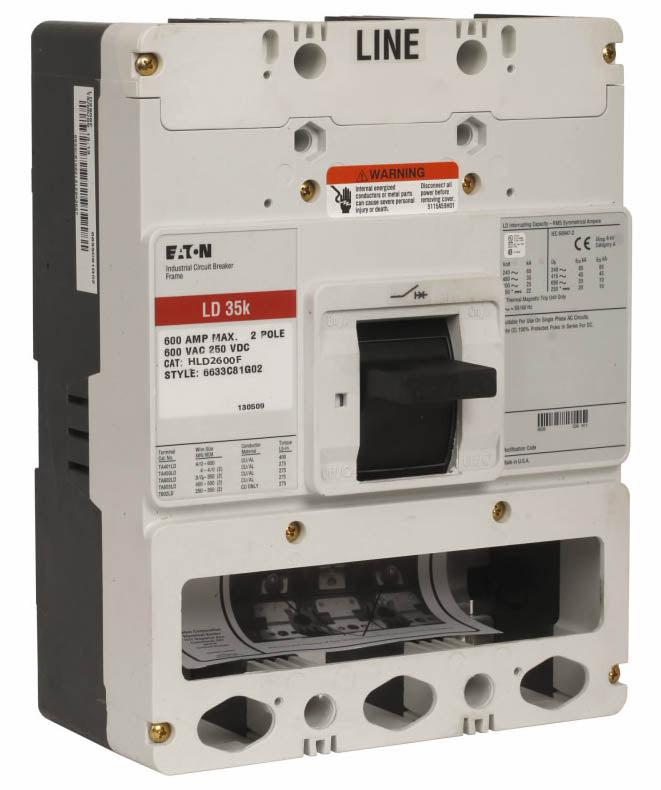

HLD2600F - Cutler Hammer 600A 600VAC 2-Pole Series C Molded Case Circuit Breaker Frame

HLD2600F

HLD2600F is a Cutler Hammer Series C molded case circuit breaker frame designed for 600 ampere, 600 VAC applications with 2 poles.

This circuit breaker frame features a fixed thermal and fixed magnetic trip unit, suitable for use in single-phase systems. It supports voltages up to 600 VAC and 250 VDC, providing reliable protection with a robust L-frame design. The breaker is bolt-on mounted and intended for use as a frame only, allowing for flexible integration with compatible trip units and accessories.

• Manufacturer: Cutler Hammer (Eaton)
• Series: C, L-Frame
• Amperage: 600 A
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 2
• Trip Type: Fixed Thermal / Fixed Magnetic
• Mounting Type: Bolt-On
• Interrupt Rating: Up to 100 kA at 240 VAC, 65 kA at 480 VAC (typical for Series C)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item is Frame only as definded by the part number. That means it is only the circuit breaker frame, and no lugs or trip unit is included with the frame.

Specifications

• Part Number: HLD2600F
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HLD
• Voltage : 600
• Amperage : 600
• Phase : 1
• Poles : 2
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : L Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 786679138007
• GTIN : 00786679138007
• Country of Origin : United States
• Dimensions : 8.25 in x 8.25 in x 8.25 in (Length/Depth x Height x Width)
• Weight : 15
• Certification : UL Listed
