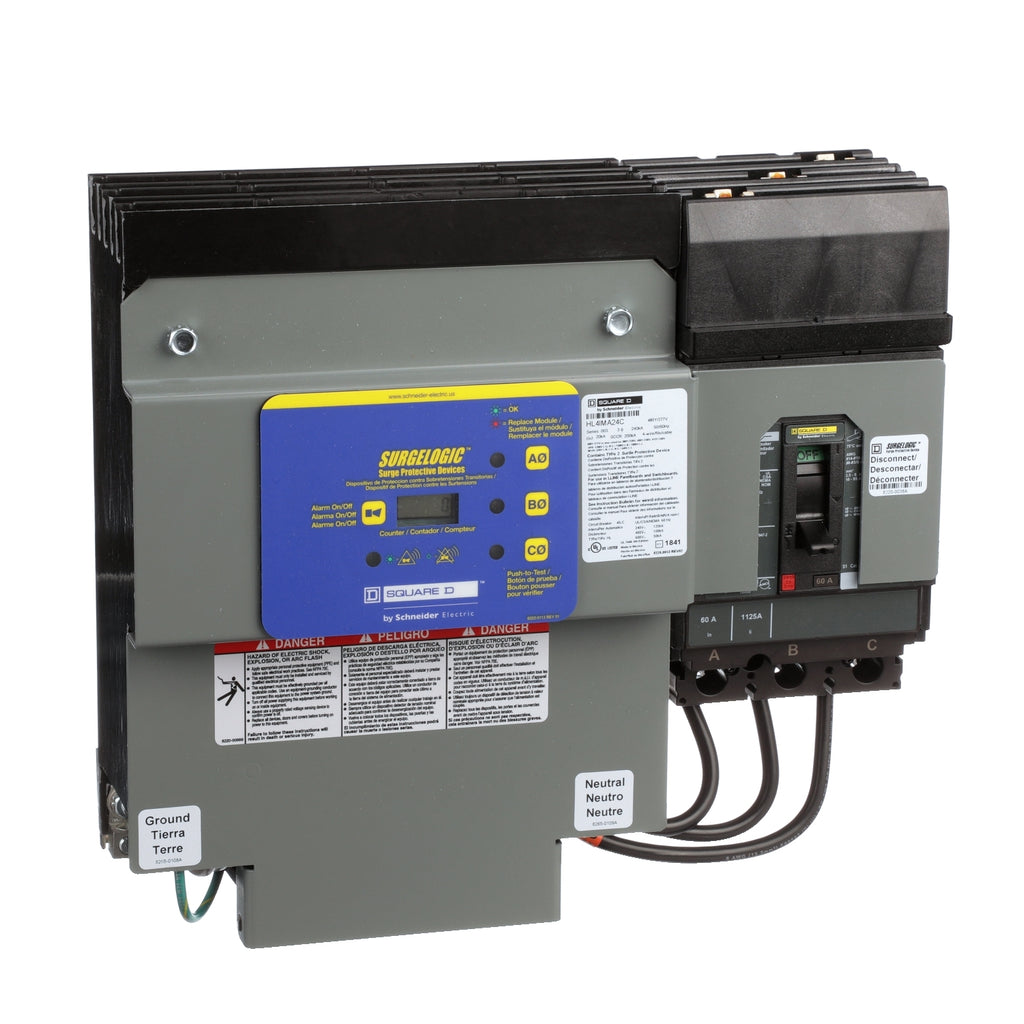

HL5IMA24C - Square D SURGELOGIC Surge Protection Circuit Breaker 480V 3 Pole 240kA HL5 Frame

HL5IMA24C

HL5IMA24C is a Square D SURGELOGIC surge protection circuit breaker designed for 480V AC, 3-phase, 3-wire delta systems. This device provides robust surge protection with a 240kA interrupt rating and is built for reliable performance in demanding environments. Engineered for use in industrial and commercial power distribution panels, the HL5IMA24C features a compact HL5 frame, 3-pole configuration, and is rated for 60A continuous current. It is designed for easy mounting in standard panel layouts and meets CSA C22.2 No 5-09 and CSA C22.2 No 8 standards for safety and performance.

• Part Number: HL5IMA24C
• Manufacturer: Square D
• Series/Frame: SURGELOGIC HL5
• Rated Voltage: 480V AC
• Number of Poles: 3
• Continuous Current: 60A
• Interrupt Rating: 240kA
• Mounting Type: Panel Mount
• Phase Configuration: 3-phase, 3-wire Delta
• Surge Protection Type: Type 2 SPD
• Trip Unit: Integrated Surge Protection
• Certifications: CSA C22.2 No 5-09, CSA C22.2 No 8

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HL5IMA24C
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Parts & Accessories
• Section : Surge Protection
• Family : SURGELOGIC
• Type : HL
• Voltage : 480VAC
• Amperage : 60
• Phase : 3
• Poles : 3
• Connection : I-Line
• Protection : Thermal Magnetic

Product Data

• UPC : 3606486148266
• Country of Origin : United States
• Dimensions : 12.2 in (308.9 mm) x 13.5 in (341.9 mm) x 5.6 in (142.1 mm) (Height x Width x Depth)
• Weight : 22.141
• Standards : UL 1449:ed. 3, UL 1283:ed. 5, CSA C22.2 No 8:1986, UL 96A:ed. 12, UL 489:ed. 11, CSA C22.2 No 5-09
• Certification : UL, CSA, NEMA
• Wire Size : 6 AWG, Copper
