Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
HKDB3400

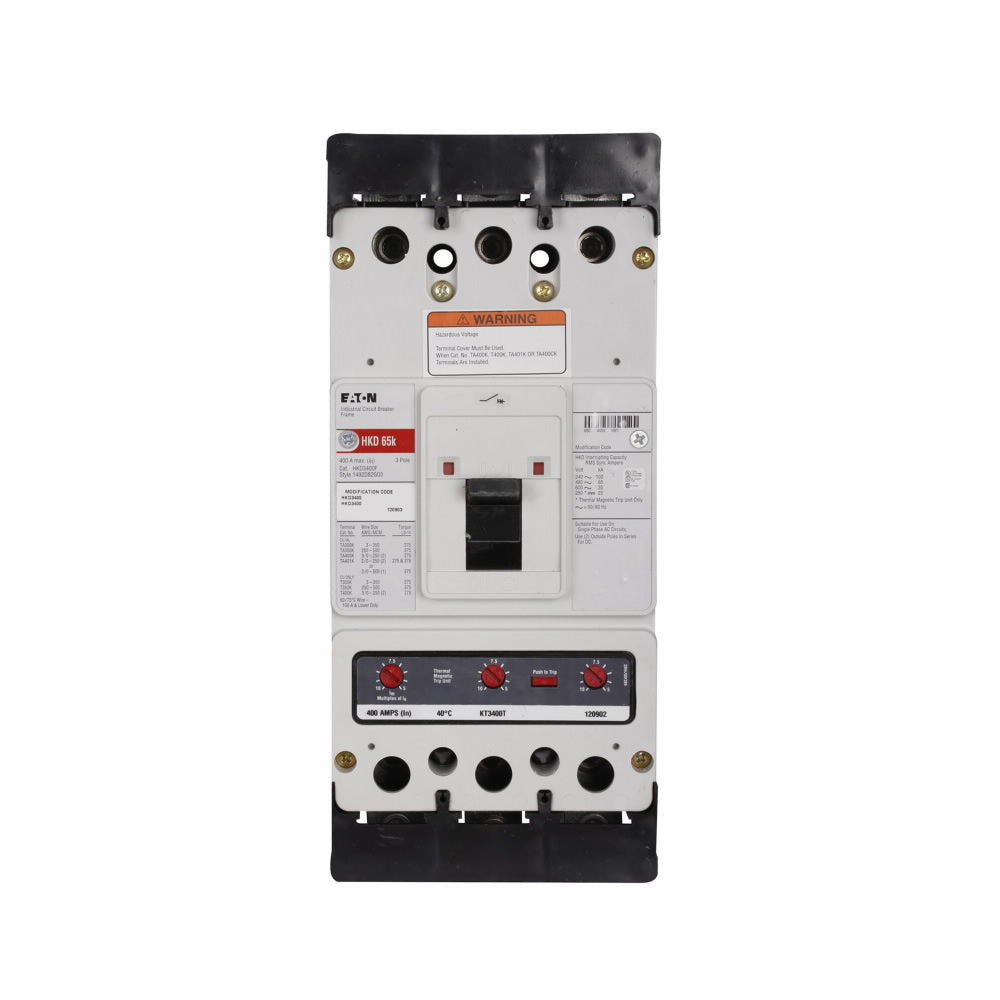

HKDB3400 is a 400 amp, 600 volt, 3-pole molded case circuit breaker from Eaton's Series C K-frame with fixed thermal and fixed magnetic trip units.This Eaton HKDB3400 circuit breaker features a sealed molded case design, rated for 400A continuous current, 600 VAC and 250 VDC maximum voltage, and a high interrupt rating of 100 kAIC at 240 VAC and 65 kAIC at 480 VAC. It is a fixed trip unit breaker with thermal and magnetic protection, designed for line and load side mounting. The breaker is UL listed and part of Eaton's reliable Series C family, suitable for industrial and commercial power distribution applications.
- Amperage: 400A
- Voltage: 600 VAC / 250 VDC
- Poles: 3
- Interrupt Rating: 100 kAIC @ 240 VAC, 65 kAIC @ 480 VAC
- Trip Unit: Fixed Thermal / Fixed Magnetic
- Series/Frame: Eaton Series C K-frame
- Mounting Type: Line and Load
- UL Listed Certification
- Sealed Molded Case Design
- Weight: 11 lb
Specifications
- Part Number: HKDB3400
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : HKDB
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : K Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 782113952369
- GTIN : 00782113952369
- Country of Origin : Dominican Republic
- Dimensions : 4.1 in x 5.5 in x 5.5 in (Length/Depth x Height x Width)
- Weight : 11
- Certification : UL Listed
