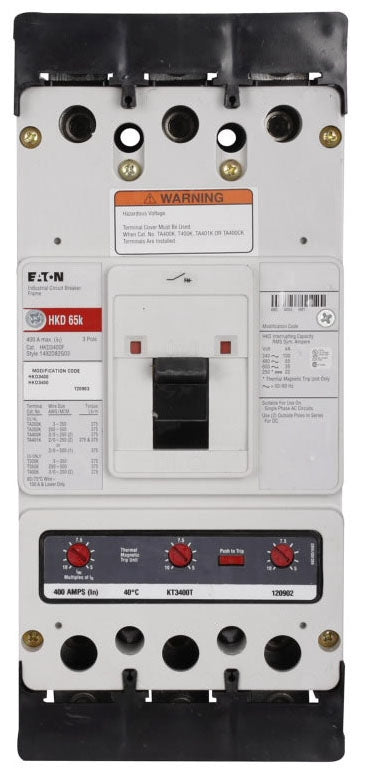

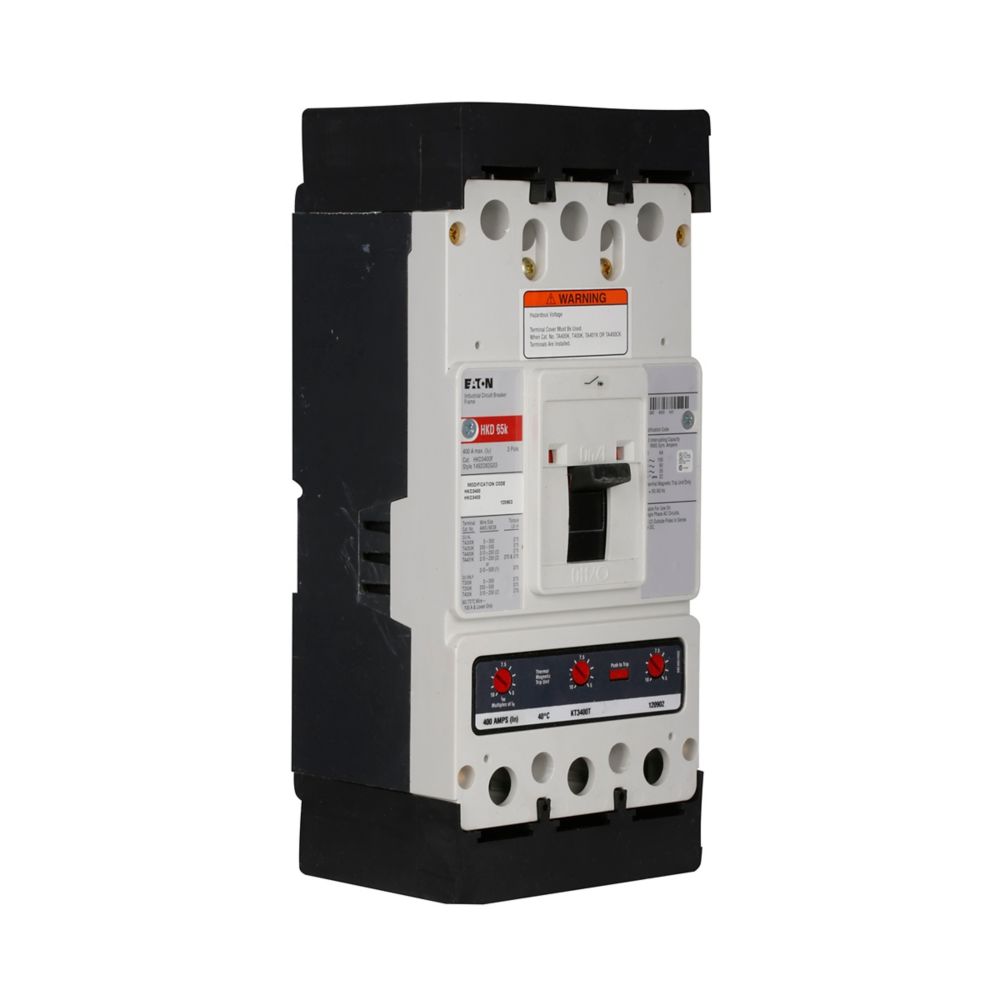

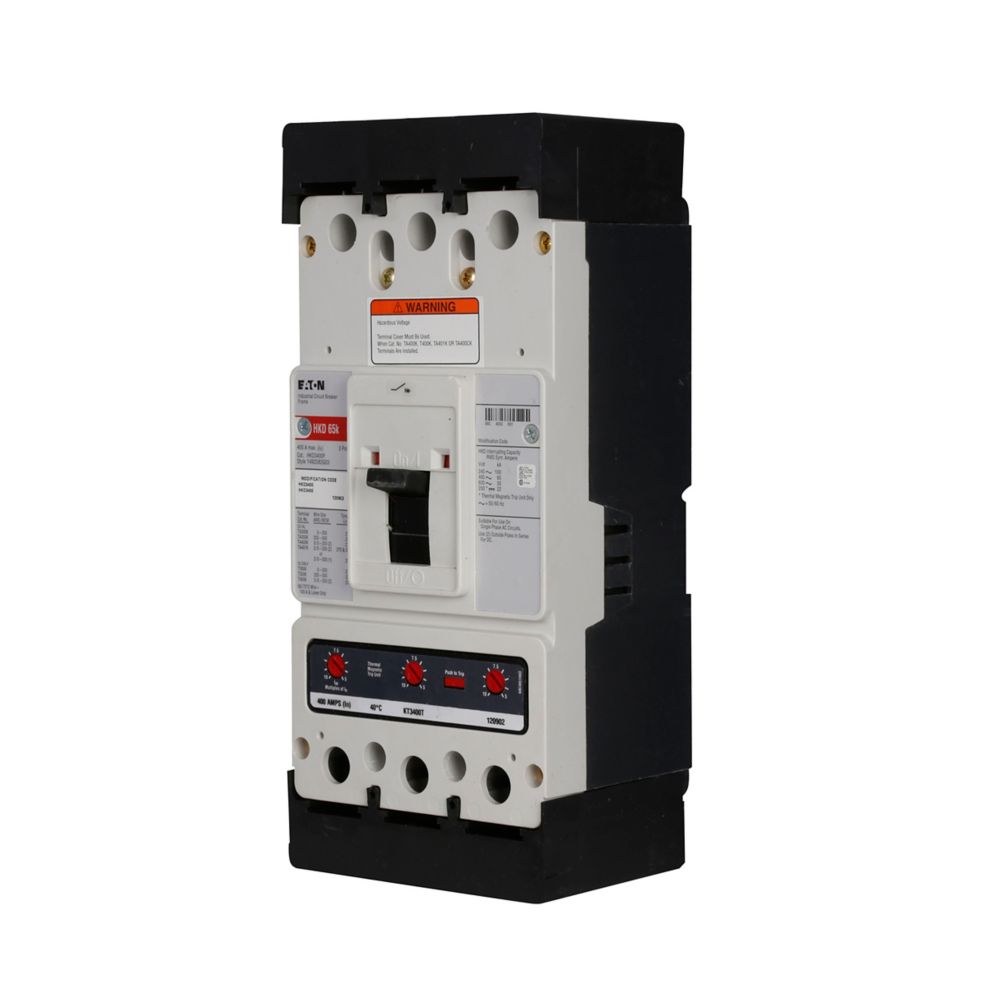

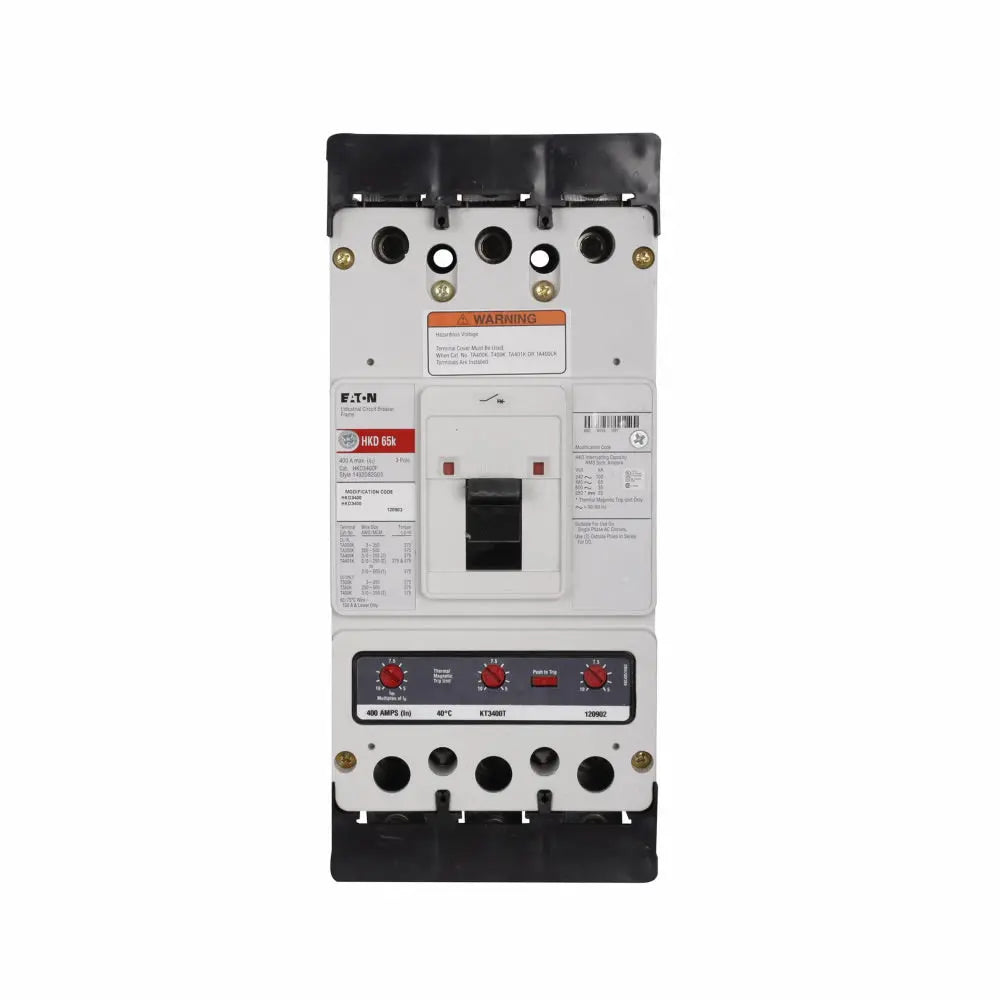

HKD3400KW - Cutler Hammer 400 Amp 600V 3 Pole Molded Case Circuit Breaker KD Frame

HKD3400KW

HKD3400KW is a Cutler Hammer 3 pole molded case circuit breaker rated for 400 amps and 600 volts AC, designed for reliable power distribution protection.HKD3400KW features a KD frame type with thermal magnetic trip unit, suitable for panel mount applications. It offers a high interrupt rating of up to 65kA at 480VAC and 100kA at 240VAC, ensuring robust fault current interruption. This breaker includes load side lug terminals and is a non-automatic switch with no overcurrent protection, designed for feed-thru 3-phase systems.

Key Specifications
• Amperage: 400 Amp
• Voltage: 600 VAC, 250 VDC
• Poles: 3
• Frame Type: KD
• Interrupt Rating: 65kA @ 480VAC, 100kA @ 240VAC
• Trip Unit: Thermal Magnetic
• Mounting Type: Panel Mount
• Load Side Lug Terminals
• Non-Automatic Switch
• Series: Series C
• Phase: 3
• Certifications: Eaton Cutler Hammer OEM

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HKD3400KW
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HKD
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : No Overcurrent Protection
• Frame Size : K Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Non-Automatic

Product Data

• UPC : 786679010853
• GTIN : 00786679010853
• Country of Origin : Dominican Republic
• Dimensions : 4.1 in x 5.5 in x 5.5 in (Length/Depth x Height x Width)
• Weight : 6
• Certification : UL Listed
