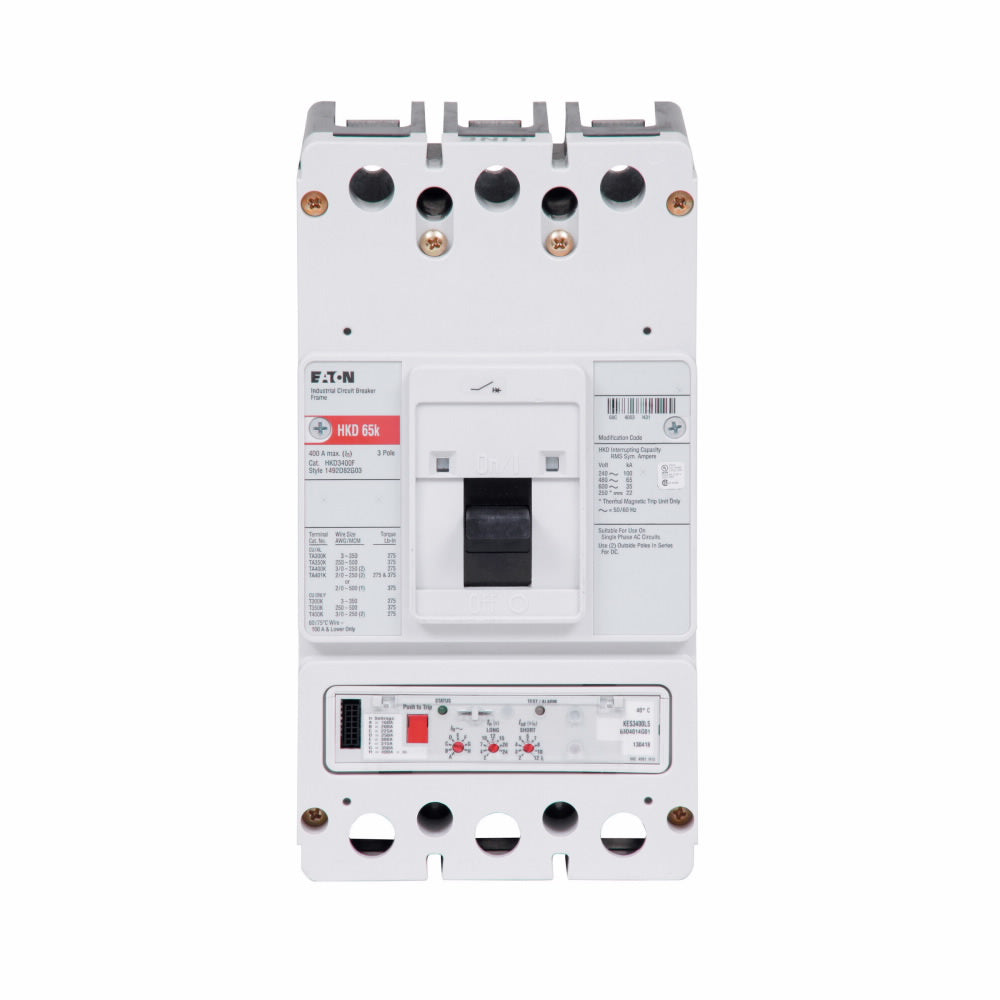

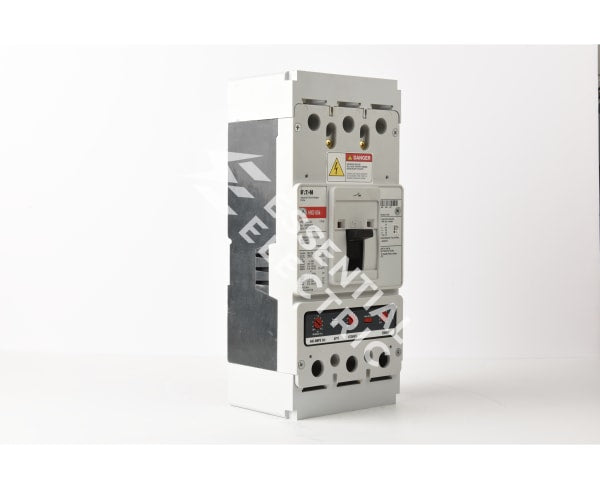

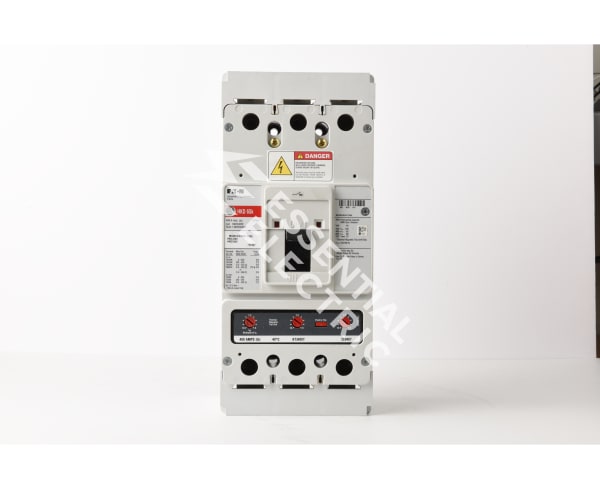

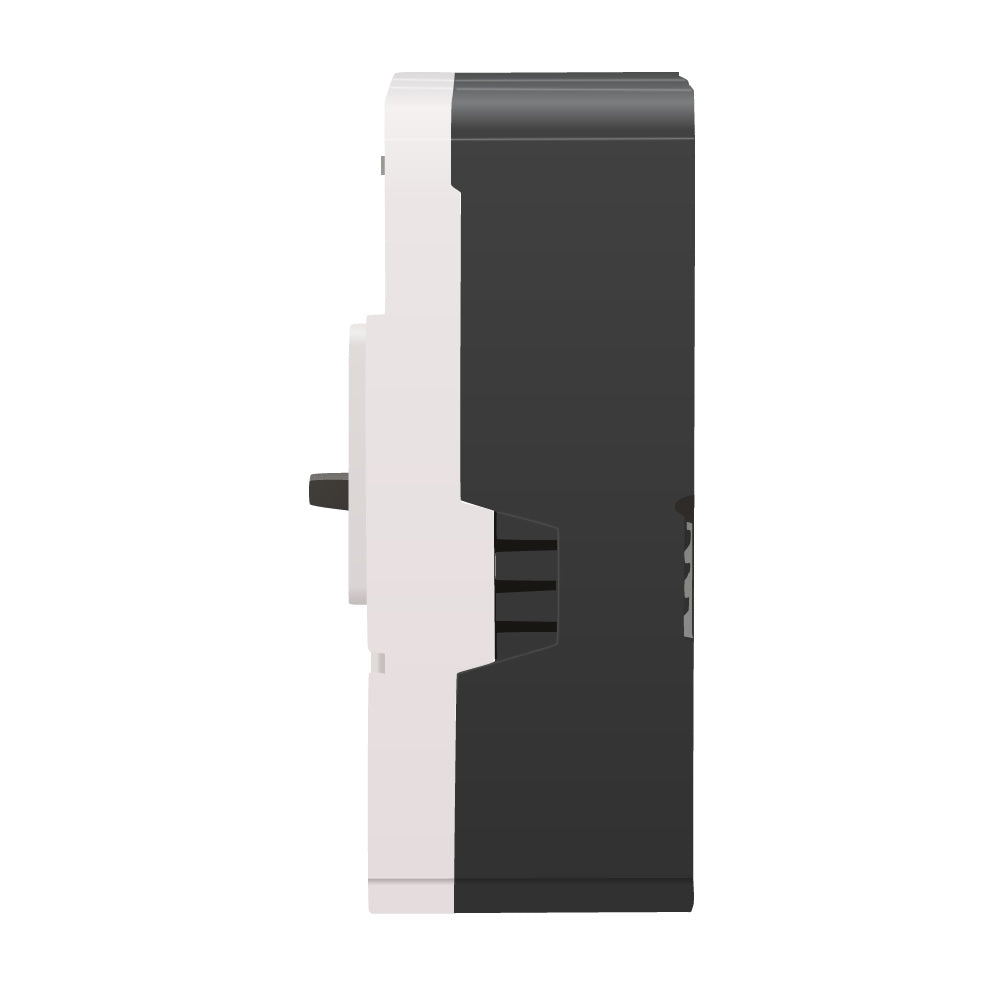

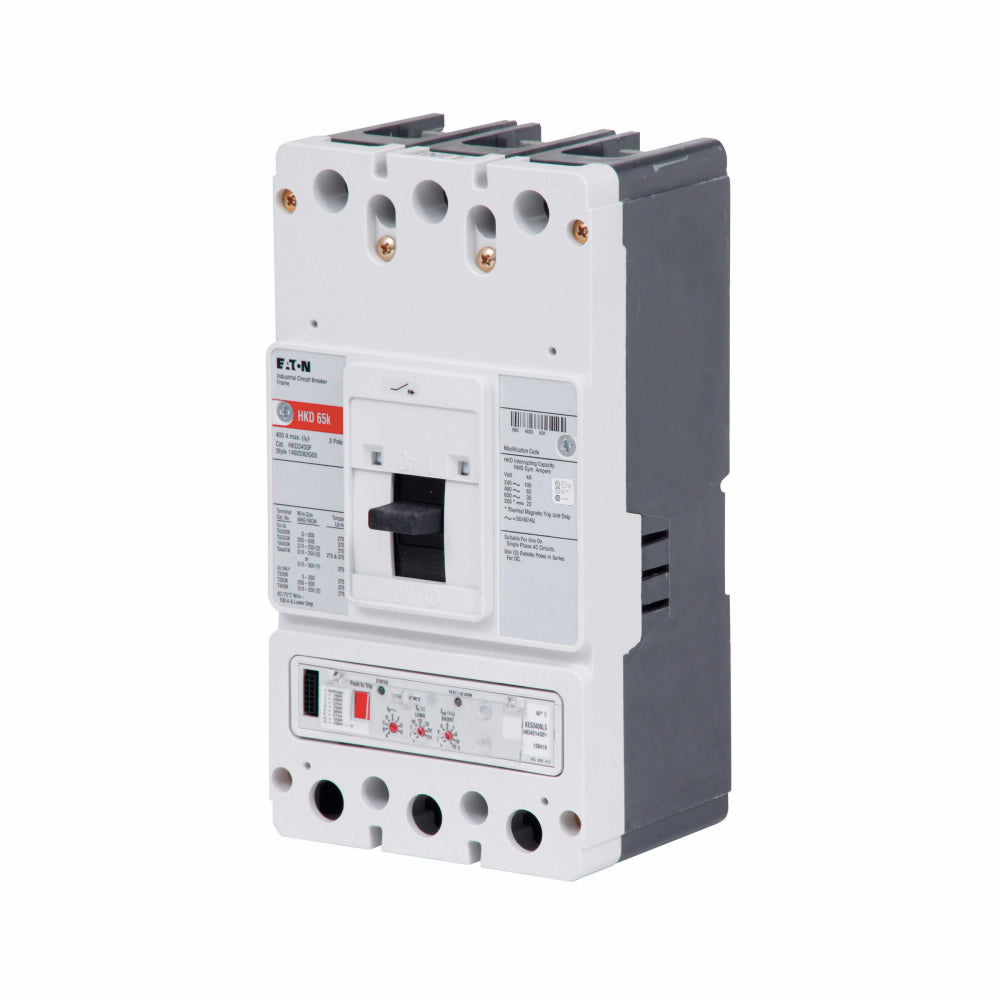

HKD3400 - Cutler Hammer 400 Amp 3 Pole 600VAC Series C HKD Frame Thermal Magnetic Molded Case Circuit Breaker Complete with Trip Unit

HKD3400

HKD3400 is a Cutler Hammer Series C, HKD frame, 400 Amp, 3 pole, 600VAC thermal magnetic molded case circuit breaker, complete with trip unit, lugs, and lug shield for industrial power distribution.

This heavy-duty circuit breaker features a non-interchangeable long-time and instantaneous (LI) trip unit, line and load side lug terminals, and is designed for panel mounting in demanding environments. It is rated for 65kA interrupting capacity at 480VAC and is approved to UL, CSA, and CE standards for safety and reliability.

Key Specifications
• Part Number: HKD3400
• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 400 Amp
• Voltage: 600VAC, 250VDC
• Poles: 3
• Mounting Type: Panel mount
• Interrupt Rating: 65kA at 480VAC
• Series/Frame: Series C, HKD (K-Frame)
• Trip Unit: Thermal magnetic, non-interchangeable LI (long-time and instantaneous)
• Certifications: UL, CSA, CE

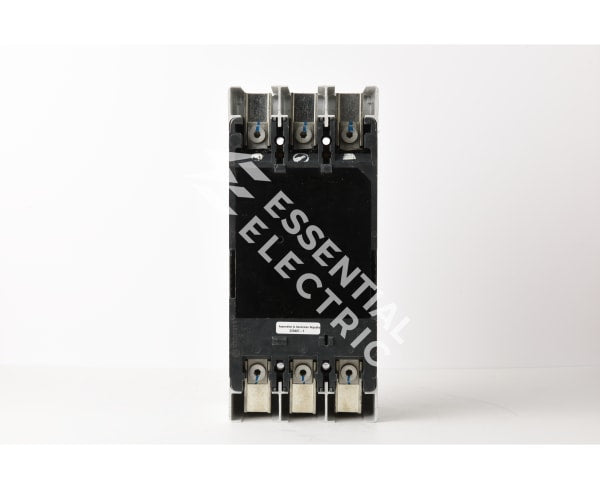

• Connection: Feed-thru, includes lugs and lug shield
• Application: Industrial, heavy-duty
• Status: Available new or late-model re-certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HKD3400
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HKD
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Line/Load Lug
• Frame Size : 400A/K
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 250 MCM Max. Wire Size 250 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 786679319420
• GTIN : 00786679319420
• Country of Origin : Dominican Republic
• Dimensions : 4.1 in x 5.5 in x 5.5 in (Length/Depth x Height x Width)
• Weight : 11.5
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
