Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
HKD3175Y

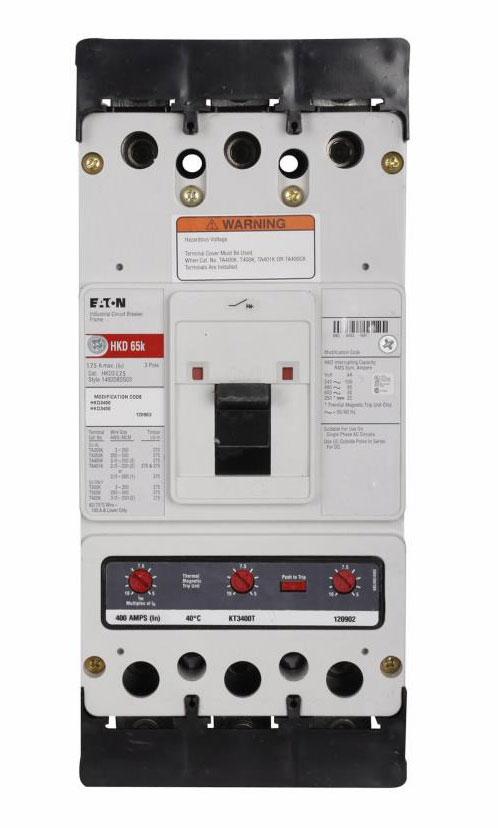

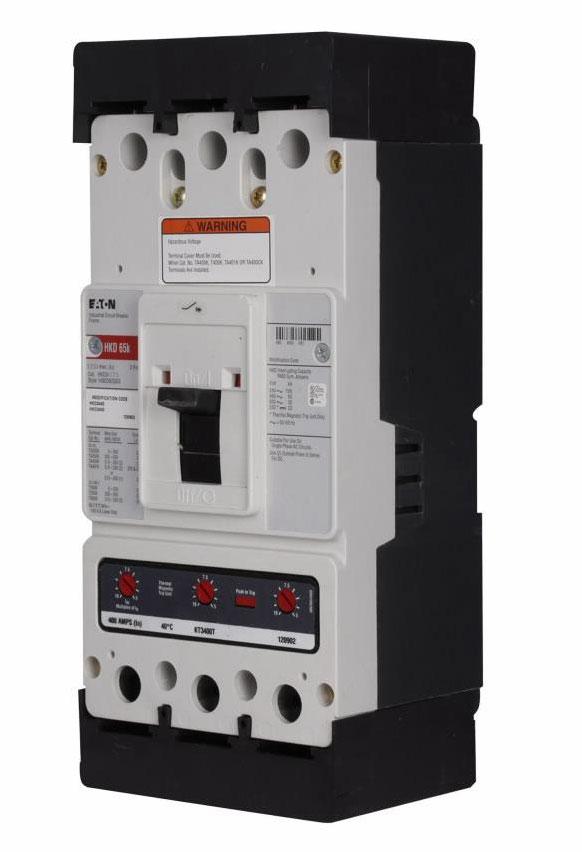

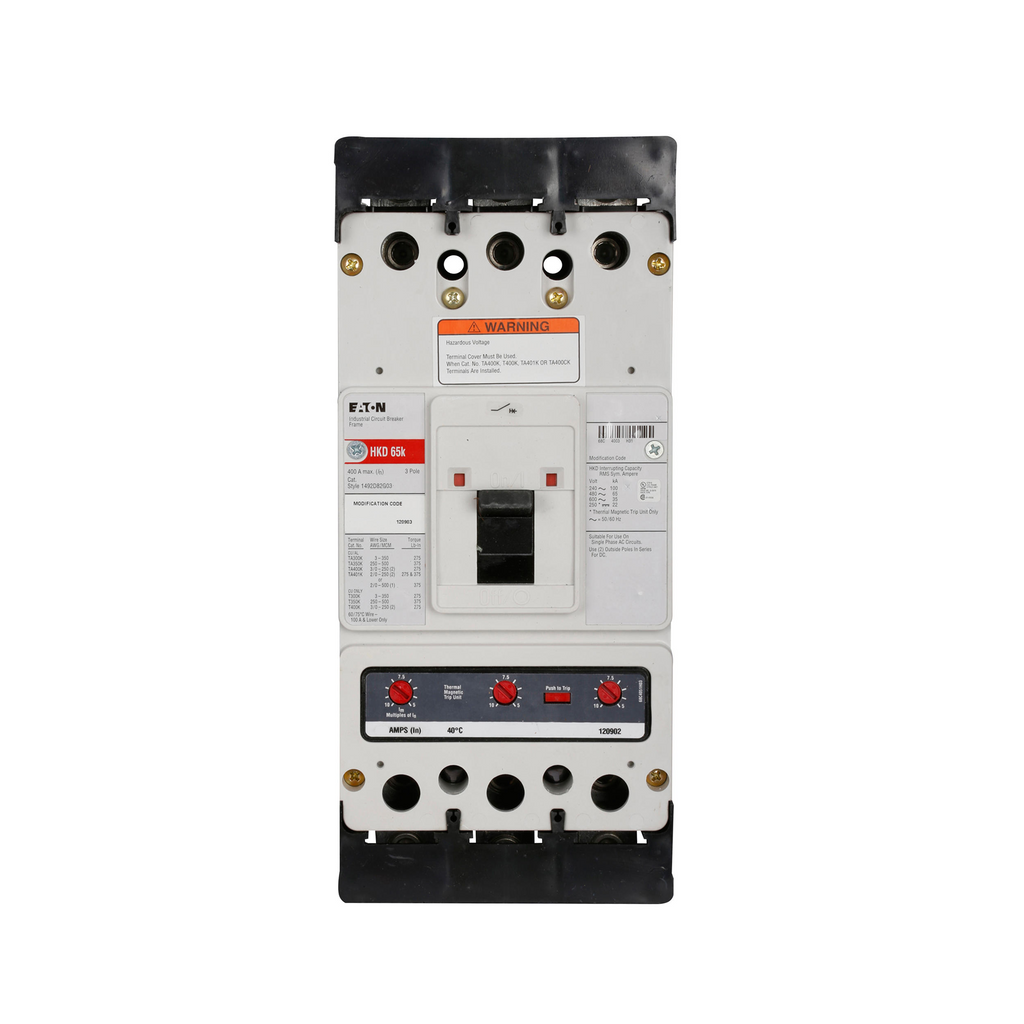

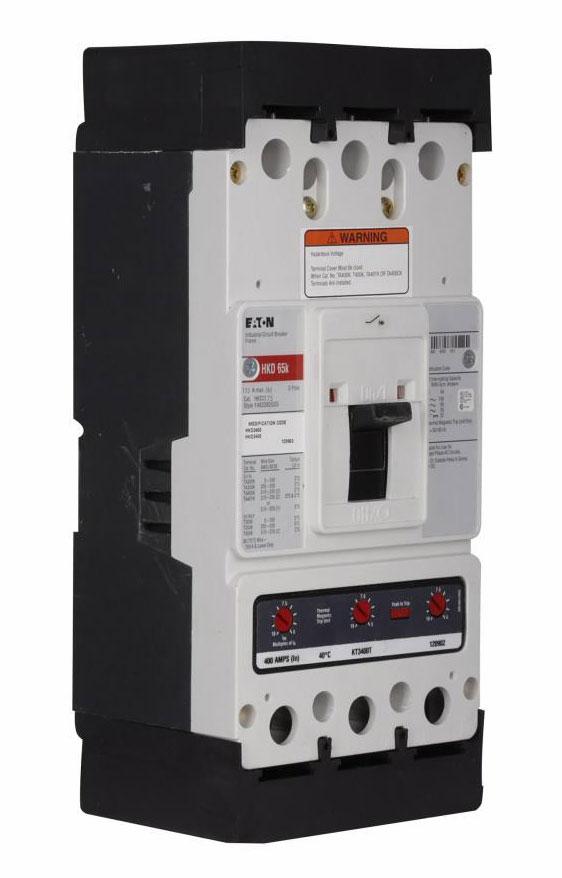

HKD3175Y is an Eaton Series C complete molded case circuit breaker designed for industrial and commercial power distribution applications. This three-pole breaker delivers reliable overcurrent protection with fixed thermal and fixed magnetic trip units, suitable for 50/60 Hz systems. HKD3175Y features a K-frame design with aluminum terminals and line and load connectivity, engineered for superior performance in demanding environments. The patented contact design provides high-speed blow-open action, ensuring consistent trip performance and equipment protection.
- Amperage Rating: 175 A
- Voltage Rating: 600 Vac, 250 Vdc
- Number of Poles: Three-pole
- Frame Type: K-frame
- Circuit Breaker Type: HKD
- Trip Unit: Fixed thermal, fixed magnetic
- Interrupt Rating: 100 kAIC at 240 Vac, 65 kAIC at 480 Vac
- Terminal Material: Aluminum
- Frequency Rating: 50/60 Hz
- Terminals: Line and load
- Series: Series C
- Certifications: UL Listed
Specifications
- Part Number: HKD3175Y
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : HKD
- Voltage : 600
- Amperage : 175
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : K Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 13
