Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
HKD3175X

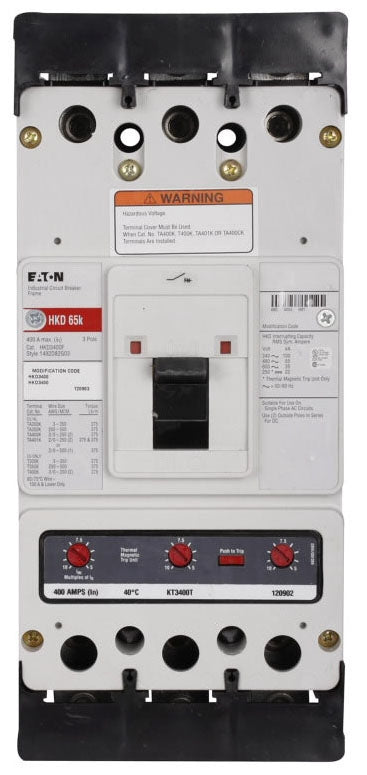

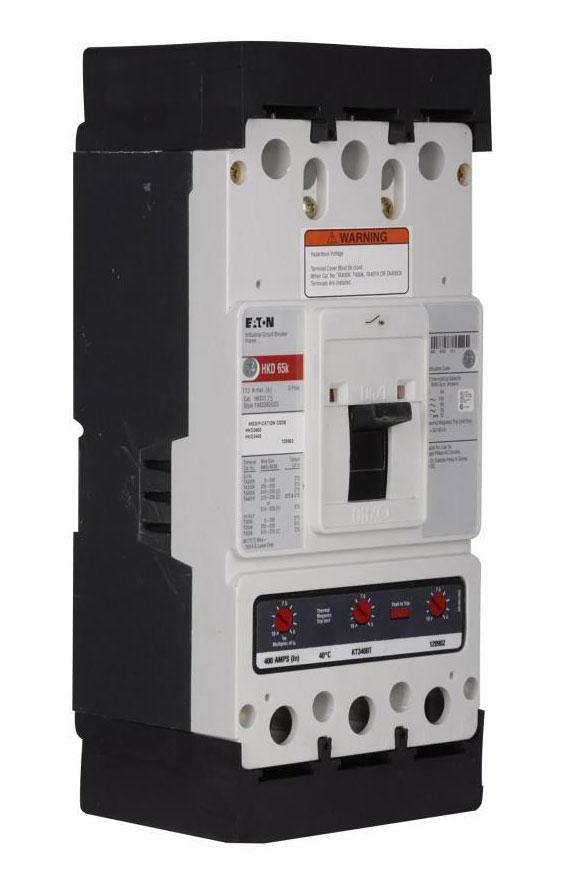

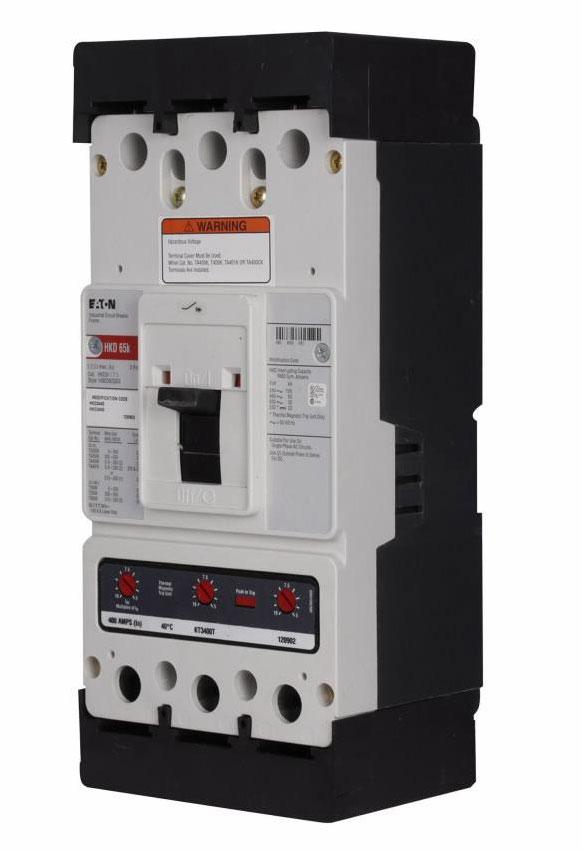

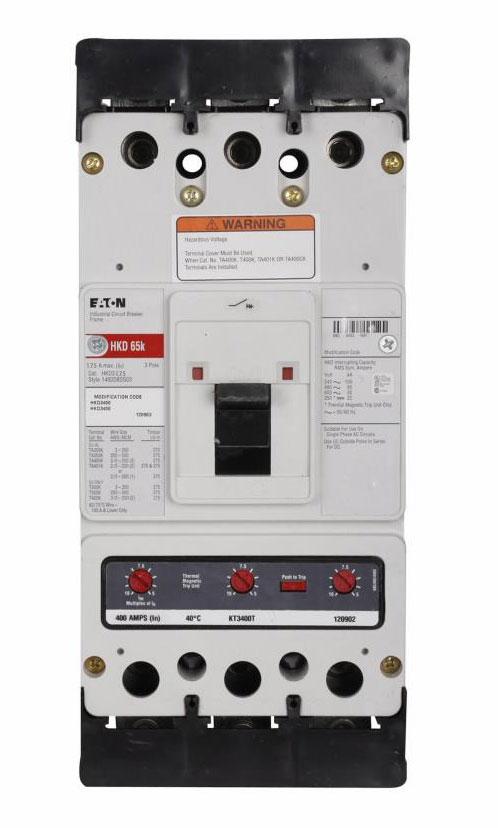

HKD3175X is a complete Eaton Series C molded case circuit breaker designed for reliable electrical protection.This Eaton HKD3175X circuit breaker features a K-frame design with fixed thermal and magnetic trip units, providing dependable overload and short circuit protection. It is a three-pole breaker rated for 175 amps and supports voltages up to 600 VAC and 250 VDC. The breaker offers a high interrupt rating of 100 kAIC at 240 VAC and 65 kAIC at 480 VAC, suitable for demanding industrial and commercial applications. Constructed with aluminum terminals for line and load connections, it operates at 50/60 Hz frequency.
- Amperage: 175 Amp
- Voltage Rating: 600 VAC, 250 VDC
- Poles: 3
- Frame Type: K-Frame
- Trip Type: Fixed Thermal, Fixed Magnetic
- Interrupt Rating: 100 kAIC at 240 VAC, 65 kAIC at 480 VAC
- Terminal Material: Aluminum
- Frequency: 50/60 Hz
- Mounting Type: Bolt-On
- Series: Eaton Series C
- UL Listed
Specifications
- Part Number: HKD3175X
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : HKD
- Voltage : 600
- Amperage : 175
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : K Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 786679079195
- GTIN : 00786679079195
- Country of Origin : Dominican Republic
- Dimensions : 4.1 in x 5.5 in x 5.5 in (Length/Depth x Height x Width)
- Weight : 11.5
- Certification : UL Listed
