Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
HKD3175W

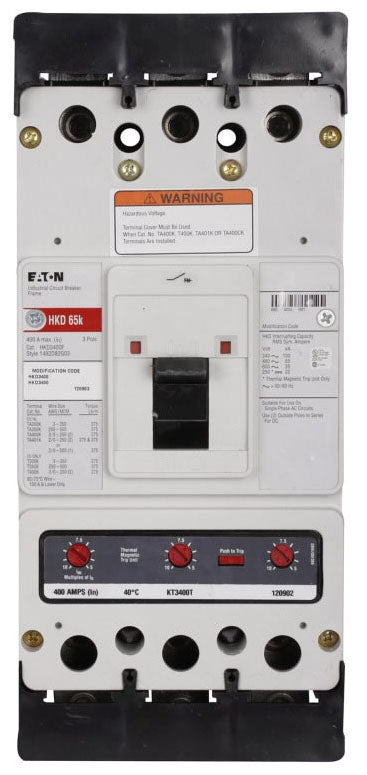

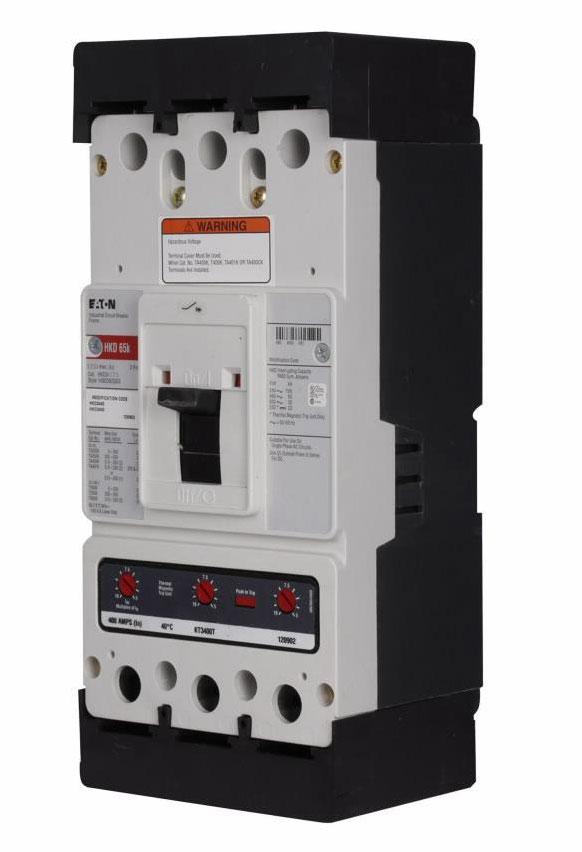

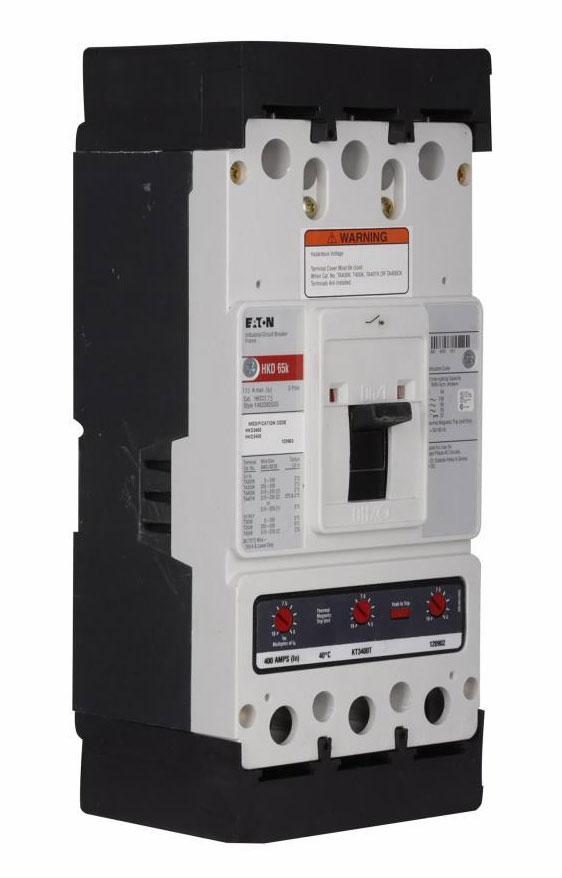

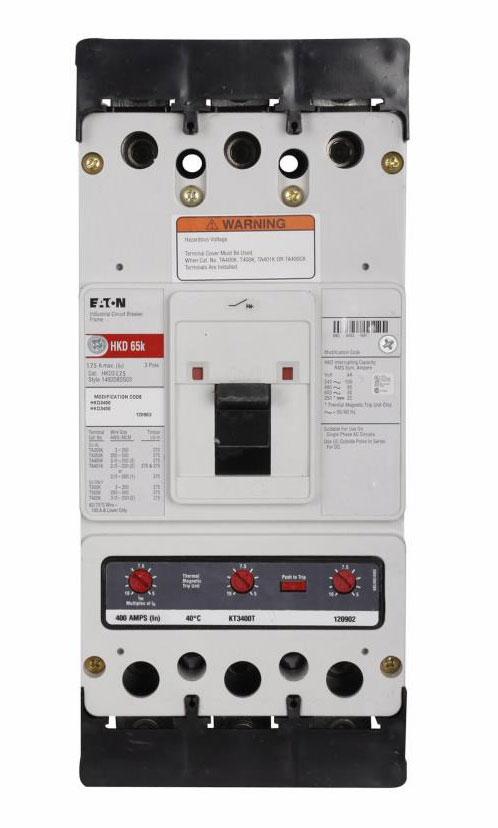

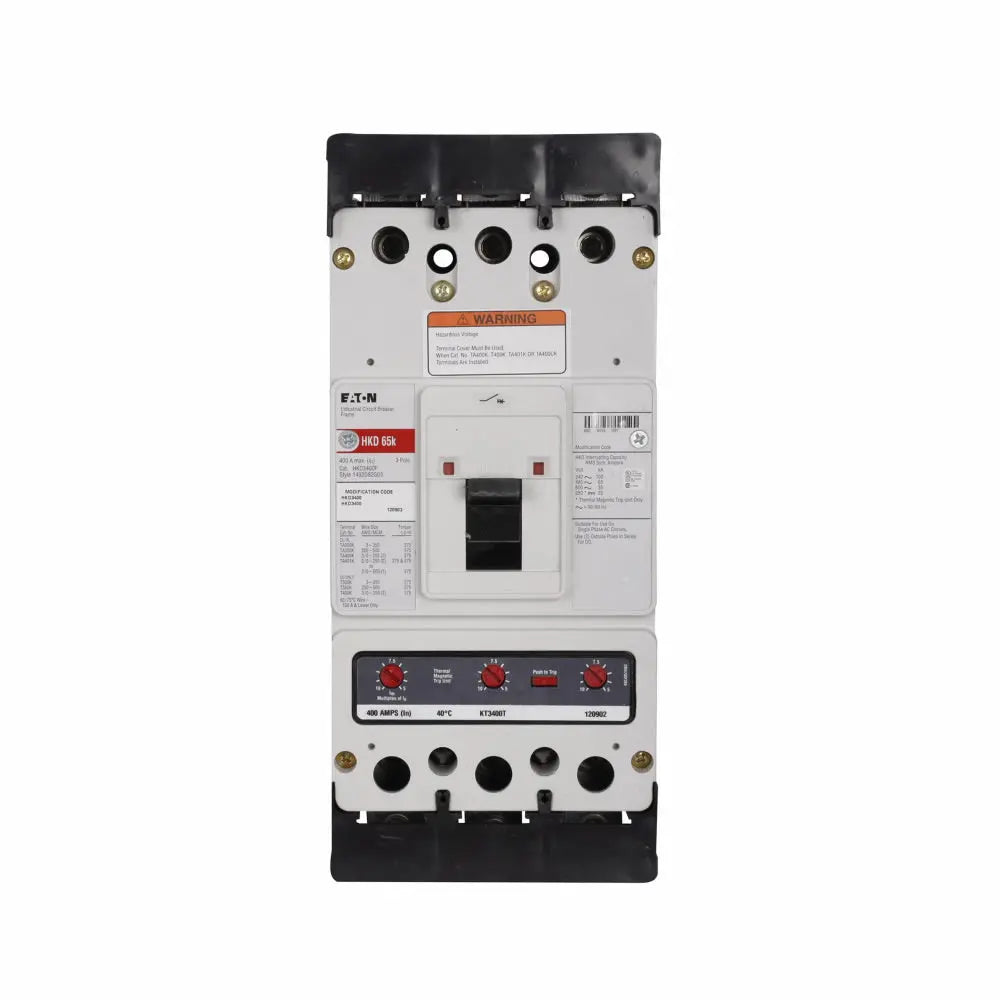

HKD3175W is an Eaton Series C complete molded case circuit breaker designed for industrial and commercial power distribution applications. This K-frame breaker features fixed thermal and fixed magnetic trip units with interchangeable trip characteristics, providing reliable overcurrent protection for three-phase systems. The unit comes without terminals and is suitable for bolt-on mounting configurations.Key Specifications
- Manufacturer: Eaton Cutler Hammer
- Series: Series C
- Frame Size: K-Frame
- Amperage Rating: 175 Amperes
- Poles: Three-Pole
- Voltage Rating: 600 VAC, 250 VDC
- Interrupt Rating: 65 kAIC at 480 VAC, 100 kAIC at 240 VAC
- Trip Type: Fixed Thermal, Fixed Magnetic
- Frequency: 50/60 Hz
- Terminal Material: Aluminum
- Mounting: Line and Load
- Certifications: UL Listed
Specifications
- Part Number: HKD3175W
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : HKD
- Voltage : 600
- Amperage : 175
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : K Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 786679342824
- GTIN : 00786679342824
- Country of Origin : Dominican Republic
- Dimensions : 4.1 in x 5.5 in x 5.5 in (Length/Depth x Height x Width)
- Weight : 11.5
- Certification : UL Listed
