HJXD63B300 - Siemens 300A 600V 3-Pole Molded Case Circuit Breaker Bolt-On Frame HHED

HJXD63B300

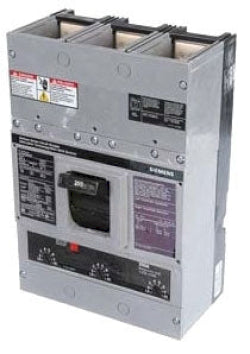

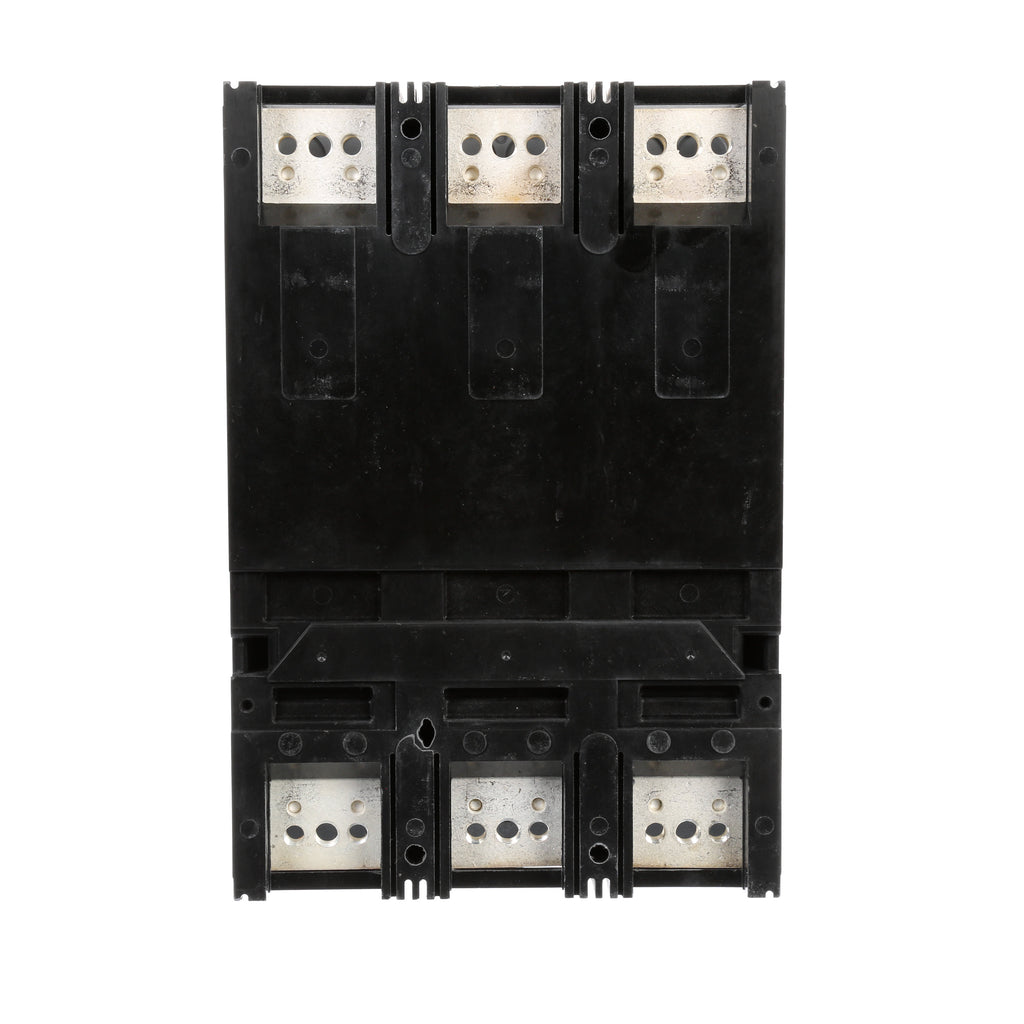

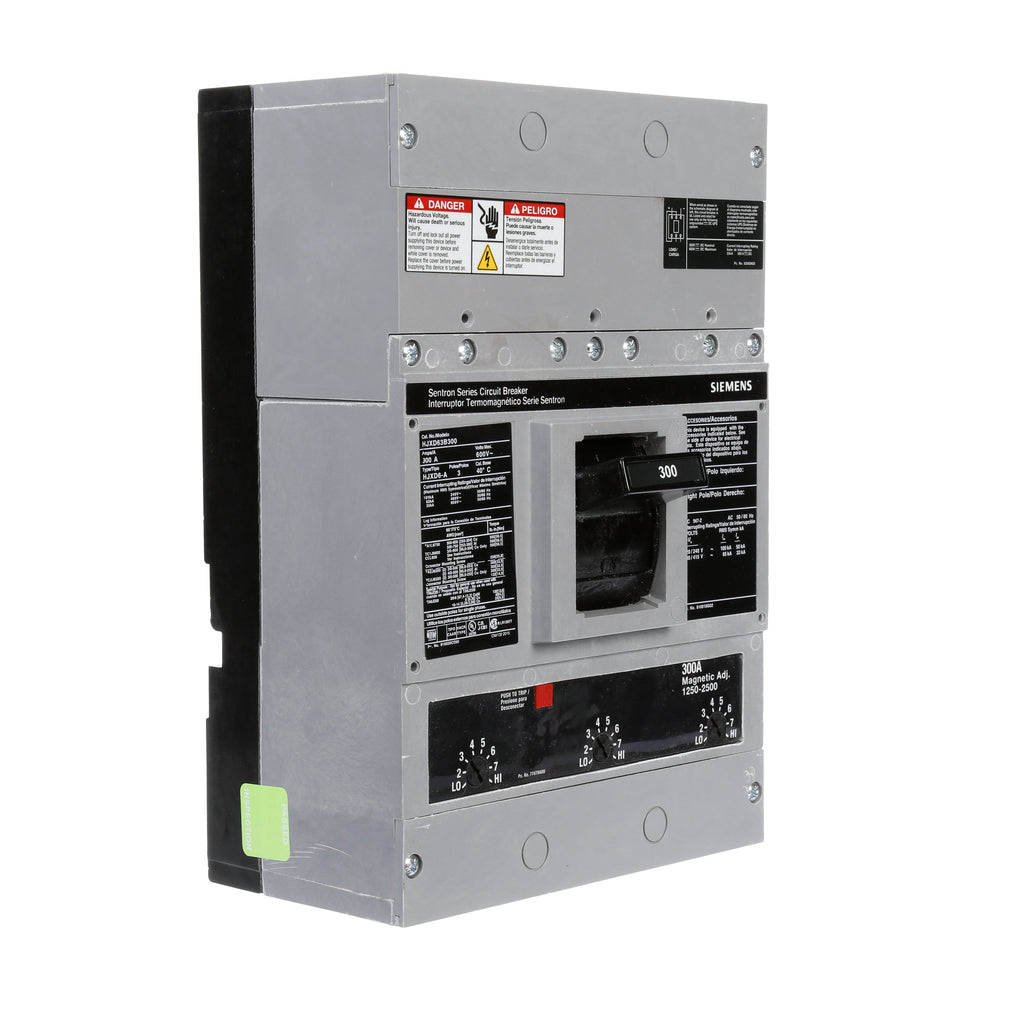

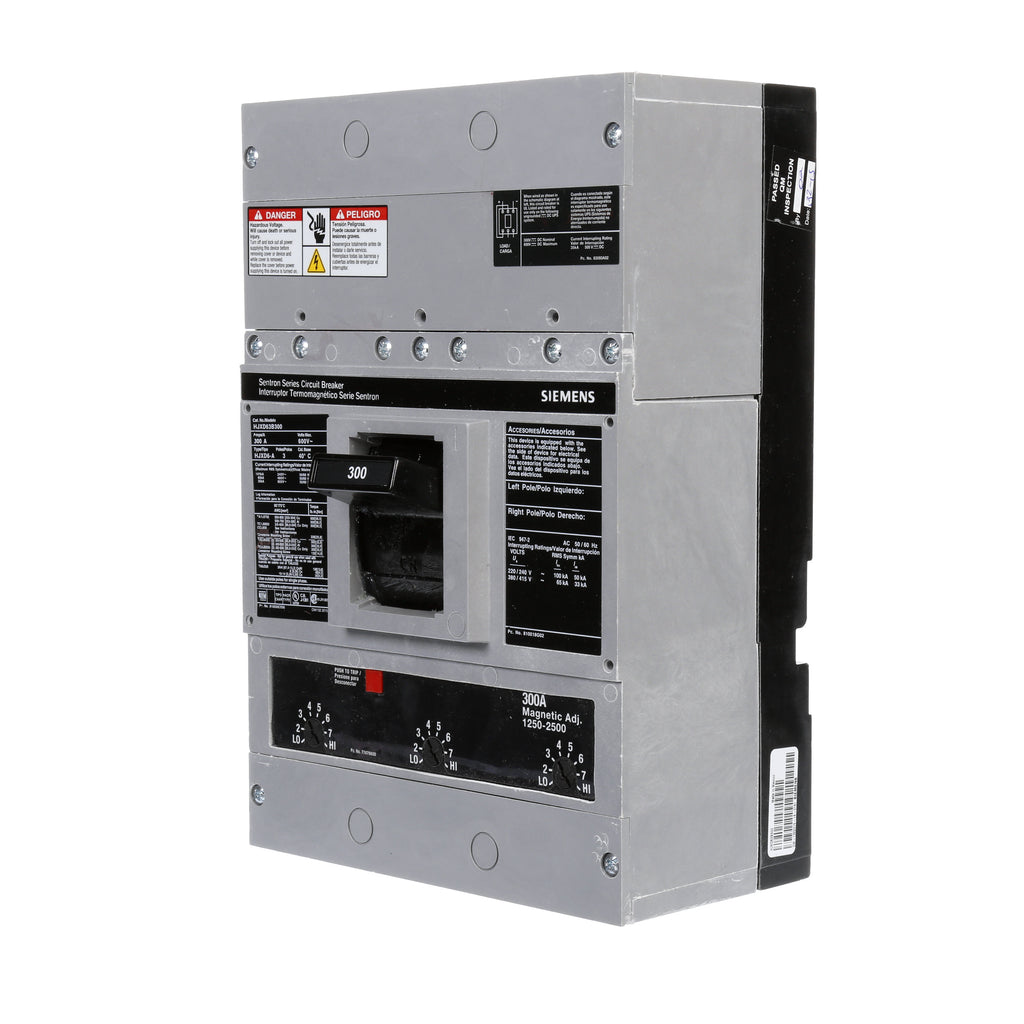

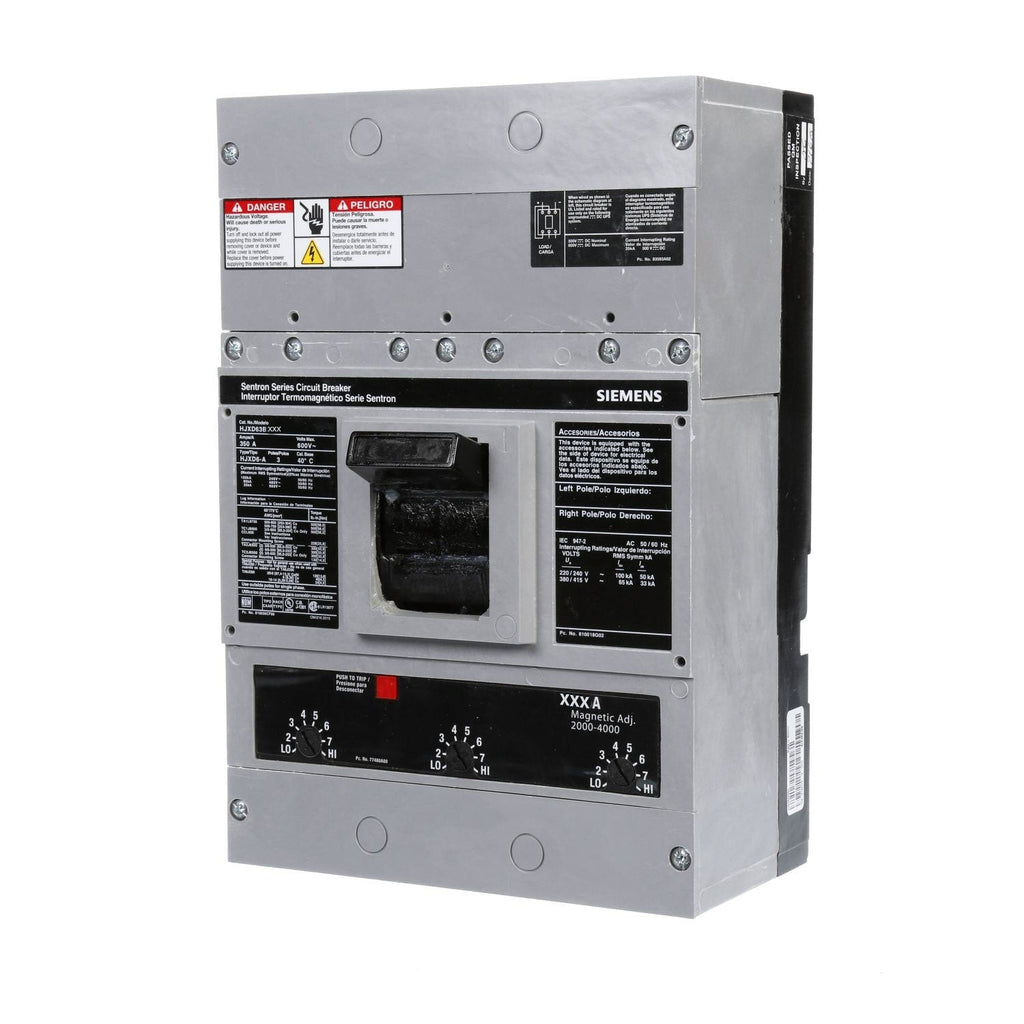

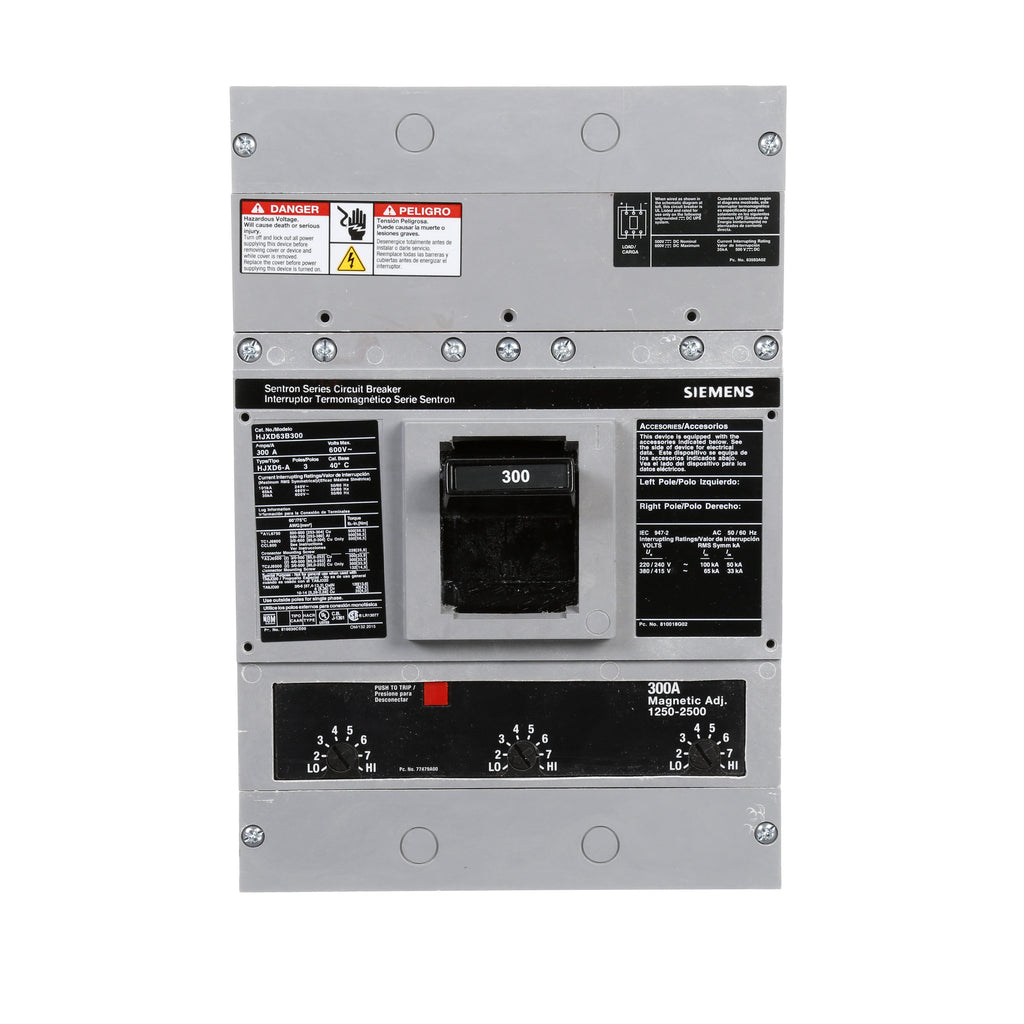

HJXD63B300 is a Siemens 3-pole molded case circuit breaker with 300 amperes rating and 600 volts AC voltage capacity.This Siemens Sentron™ HJXD63B300 breaker features a bolt-on mounting type, HHED frame, and a high interrupt rating of 35 kA at 600 VAC and 65 kA at 480 VAC. It is designed for low voltage applications with non-interchangeable thermal-magnetic trip units and is UL listed for reverse fed applications.

• Amperage: 300 A
• Voltage: 600 VAC / 500 VDC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 35 kA at 600 V, 65 kA at 480 V
• Frame Type: HHED (Sentron Series)
• Trip Unit: Thermal-Magnetic, Non-Interchangeable
• Frequency: 50/60 Hz
• UL Listed for reverse fed applications
• Dimensions (W x H x D): 7.5 x 11 x 4 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: HJXD63B300
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HJXD
• Voltage : 600
• Amperage : 300
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Frame Size : JD Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643314900
• GTIN : 00783643314900
• Country of Origin : Mexico
• Weight : 18.301
