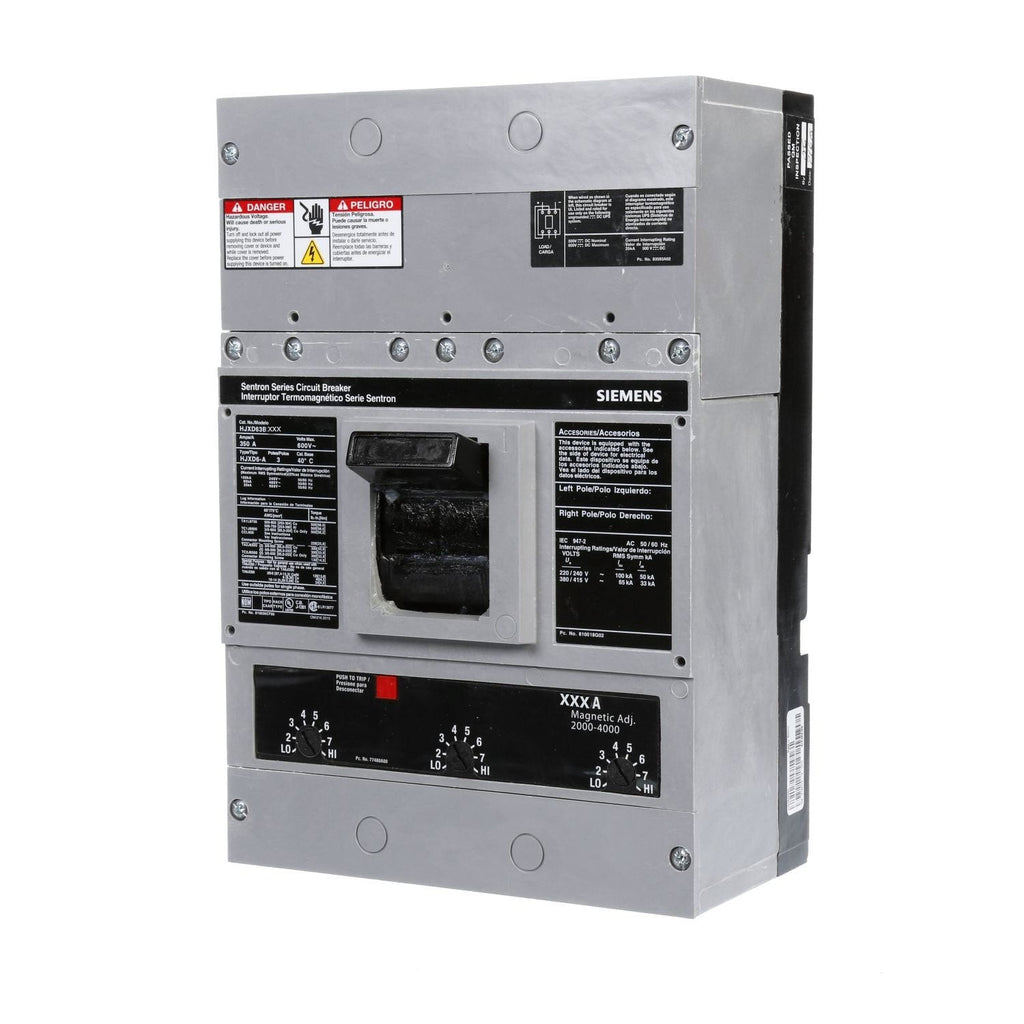

HJXD63B200L - Siemens 200A 600V 3-Pole FD Frame Thermal Magnetic Circuit Breaker Bolt-On

HJXD63B200L

HJXD63B200L is a Siemens 3-pole, 200 amp, 600 volt thermal magnetic circuit breaker designed for bolt-on mounting.This Siemens FD frame circuit breaker provides reliable short circuit and overload protection with a 22 kA interrupt rating at 600 VAC. It features a thermal magnetic trip unit suitable for motor circuit protection and general use. The breaker is UL 489 listed and HACR rated, supporting 3-phase applications with a standard 40°C temperature rating.

• Manufacturer: Siemens
• Part Number: HJXD63B200L
• Amperage: 200 A
• Voltage Rating: 600 VAC
• Number of Poles: 3
• Frame Type: FD
• Mounting Type: Bolt-On
• Interrupt Rating: 22 kA
• Trip Unit: Thermal Magnetic
• Phase: 3
• Certifications: UL 489 Listed, HACR Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJXD63B200L
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HJXD
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Frame Size : JD Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643084643
• GTIN : 00783643084643
• Country of Origin : Mexico
• Dimensions : 14.961 x 8.661 x 6.693 inch
• Weight : 14.021
• Certification : Ul Listed
• Wire Size : AWG 3/0 to 500KCM, Cu, AWG 4/0 to 500KCM, Al
