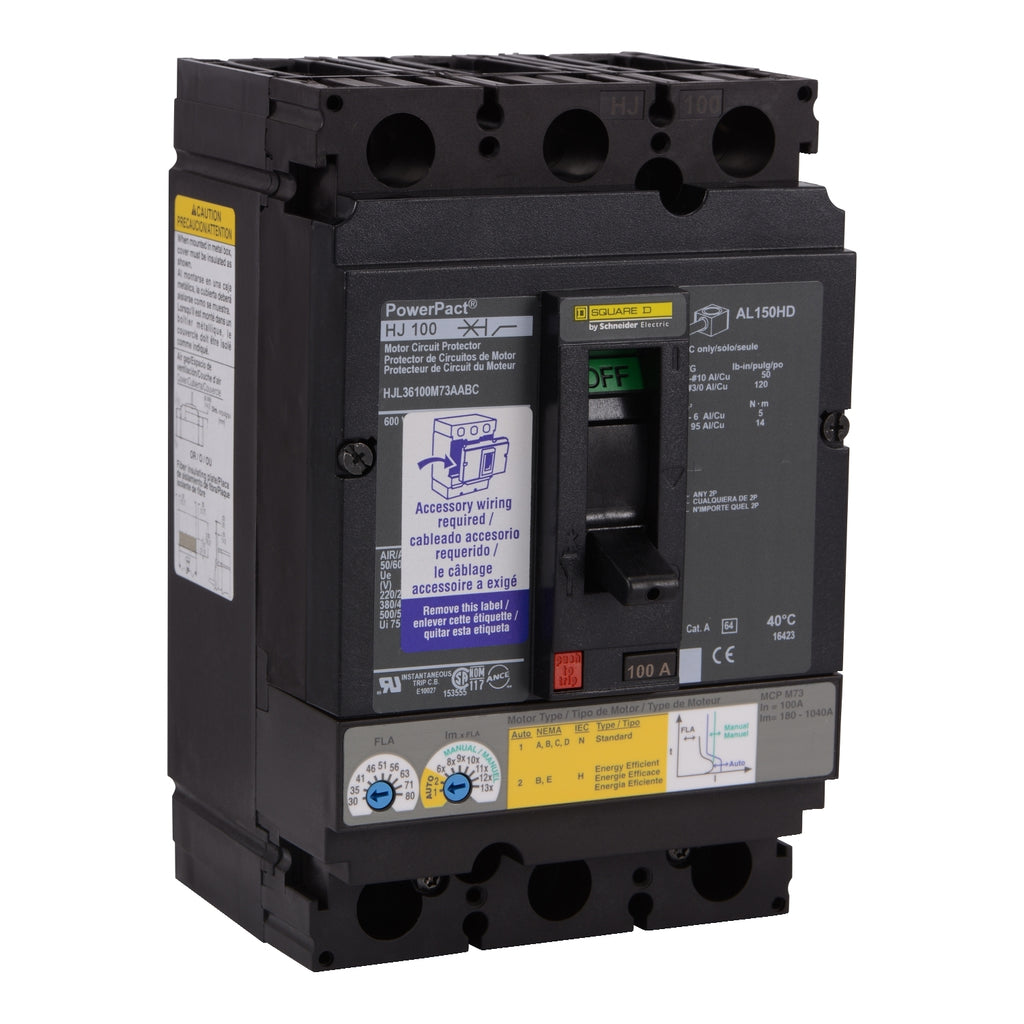

HJL36100M73AABC - Square D 100A 600V 3-Pole Molded Case Circuit Breaker H-Frame

HJL36100M73AABC

HJL36100M73AABC is a Square D 3-pole molded case circuit breaker rated for 100 amps and 600 volts AC, designed for reliable motor circuit protection.This circuit breaker features a thermal magnetic trip unit with long time and instantaneous trip functions, a 65kA interrupt rating at 480V, and is suitable for reverse fed applications. It includes line and load side lug terminals and a feed-thru connection, housed in a robust H-frame design for industrial use.

• Manufacturer: Square D
• Amperage: 100A
• Voltage: 600V AC
• Poles: 3
• Frame Type: H-Frame
• Interrupt Rating: 65kA at 480V
• Trip Unit: Thermal Magnetic
• Mounting Type: Unit Mount
• Connection: Feed-Thru with line and load side lugs
• Suitable for Reverse Fed Applications
• Current Limiting
• UL 489 Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJL36100M73AABC
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : I - Instantaneous
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Magnetic Only

Product Data

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
