Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
HJDDC3250

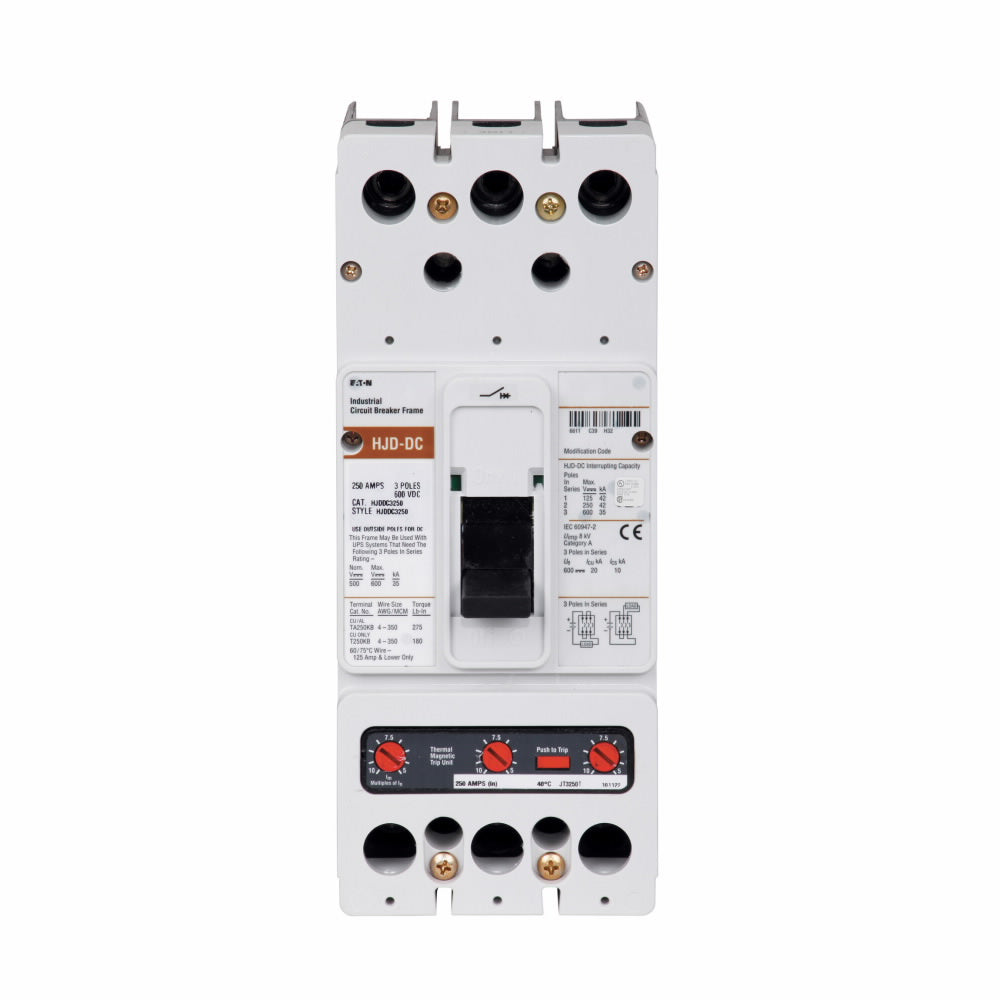

HJDDC3250 is a 3-pole molded case circuit breaker from Eaton designed for DC applications with a 250 amp rating and 600 volts maximum voltage.HJDDC3250 features a thermal magnetic interchangeable trip unit, HJD frame style, and a high interrupting capacity suitable for solar and industrial power distribution systems. It is UL 489 certified and provides reliable protection with a 42kA interrupt rating at 600 VDC.
- Amperage: 250A
- Voltage: 600 VDC max
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 42kA @ 600 VDC
- Series/Frame: HJD
- Trip Unit: Thermal Magnetic Interchangeable
- Certifications: UL 489
- Application: DC, Solar, PV Guard
- Manufacturer: Eaton (Cutler Hammer)
Specifications
- Part Number: HJDDC3250
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : HJDDC
- Voltage : 600
- Amperage : 250
- Phase : 3
- Poles : 3
- AIC rating : 42kA@600V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : J Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 786685375564
- GTIN : 00786685375564
- Country of Origin : Dominican Republic
- Dimensions : 4.06 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 12.5
- Certification : UL 489
