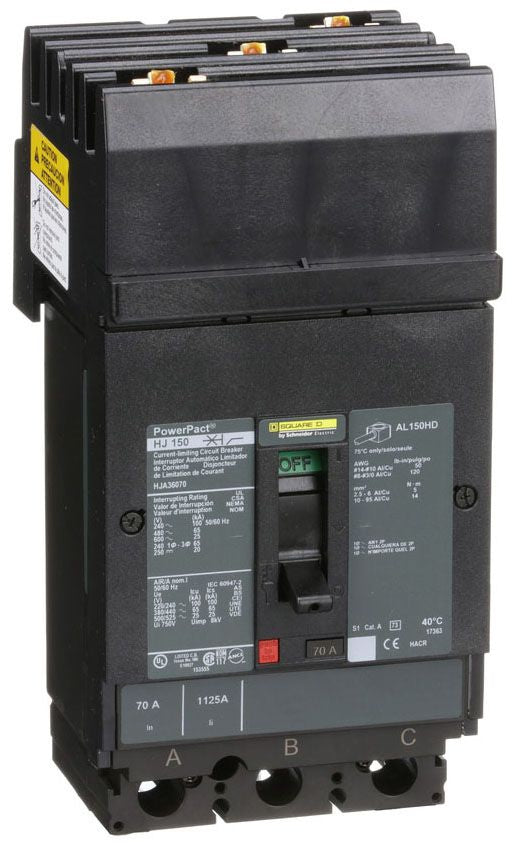

HJA36070SP - Square D Powerpact 3 Pole 70 Amp 600V Molded Case Circuit Breaker

HJA36070SP

HJA36070SP is a Square D Powerpact series 3 pole molded case circuit breaker rated for 70 amperes at 600 volts with thermal-magnetic trip protection and i-line style plug-in mounting.

This H-frame type circuit breaker features current limiting protection with an interrupt rating of 65kA at 480V. The breaker includes long-time and instantaneous (LI) trip functions and is suitable for reverse fed applications. It utilizes a toggle control mechanism with i-line bracket mounting and accepts AWG 14 through 3/0 aluminum or copper terminals. The unit is UL listed and CSA certified for commercial and industrial electrical distribution applications.

• Manufacturer: Square D
• Part Number: HJA36070SP
• Poles: 3
• Amperage: 70 A
• Voltage: 600 VAC, 250 VDC
• Interrupt Rating: 65 kA at 480V
• Frame Type: H-Frame
• Trip Unit: Thermal-Magnetic
• Connection: I-Line Style Plug-In
• Trip Functions: Long-Time and Instantaneous
• Certifications: UL Listed, CSA Certified
• Dimensions: 9.37 inches H x 4.48 inches W x 4.8 inches D
• Weight: 4.85 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 48Vdc shunt trip

Specifications

• Part Number: HJA36070SP
• Manufacturer : Square D
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJA
• Voltage : 600
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : H Frame
• Protection : Thermal Magnetic

Product Data

• Weight : 5
