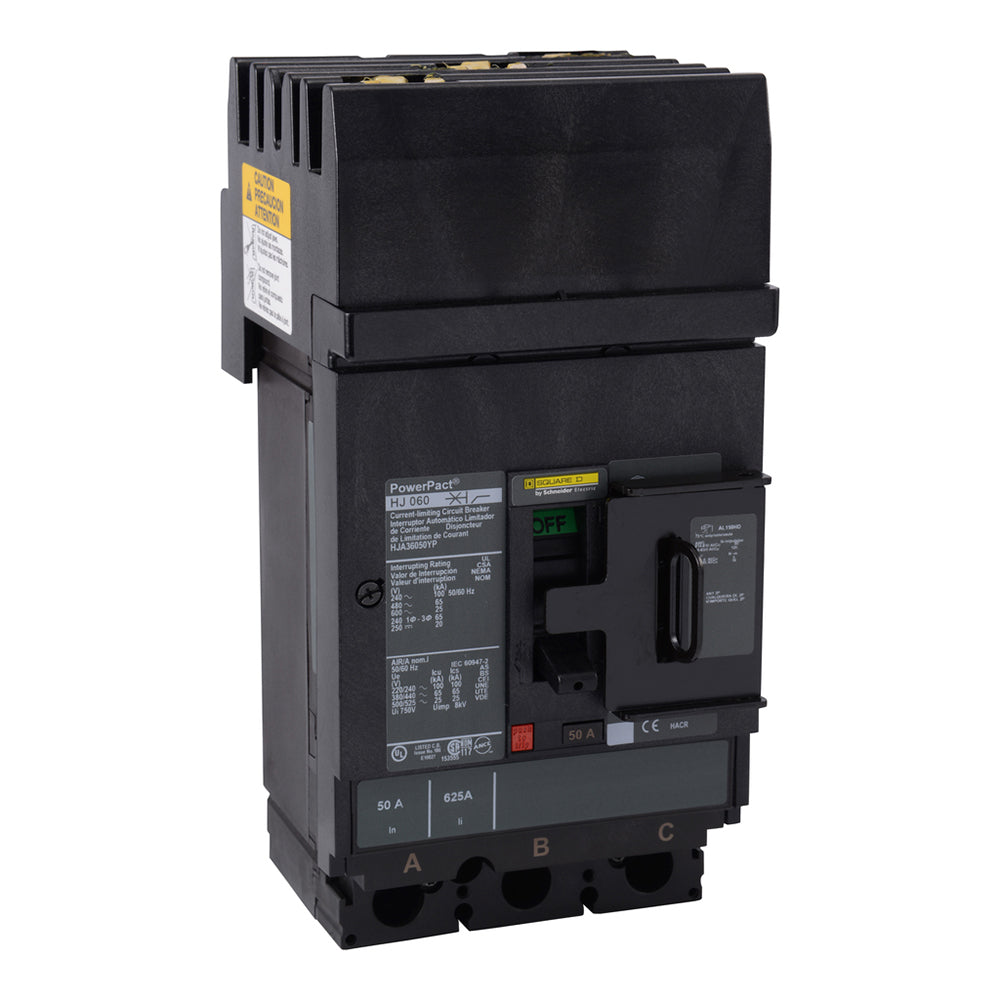

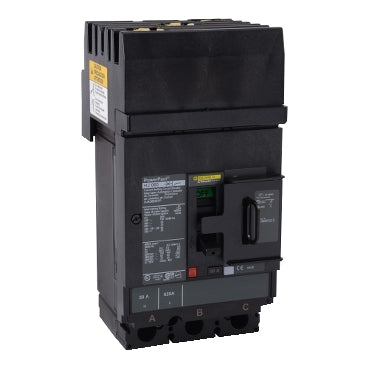

HJA36050YP - Square D PowerPact H Molded Case Circuit Breaker 50A 600V 3P I-Line Plug-In

HJA36050YP

HJA36050YP is a Square D PowerPact H molded case circuit breaker designed for 3-pole electrical protection with a 50 ampere rating and 600 volt capacity.

This circuit breaker features a thermal-magnetic trip unit with long-time and instantaneous trip functions, providing reliable protection for electrical systems. It has an I-Line style plug-in mounting and connection, suitable for reverse fed applications. The breaker offers a breaking capacity of up to 65kA at 480V and 25kA at 600V, with a frame type H and a toggle control type. It is UL listed and designed for use in three-phase power distribution.

• Amperage: 50 A
• Voltage: 600 V
• Poles: 3
• Mounting Type: I-Line plug-in
• Interrupt Rating: 65kA @ 480V, 25kA @ 600V
• Series/Frame: PowerPact H
• Trip Unit: Thermal-magnetic with long-time and instantaneous functions
• Connection: I-Line style plug-in
• Control Type: Toggle
• UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJA36050YP
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJA
• Voltage : 600
• Amperage : 50
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
